Shindaiwa AH231 Articulated Hedge Trimmer Illustrated Parts Diagram

Shindaiwa Parts and Accessories
We are an Authorized Shindaiwa dealer carrying a large selection of Shindaiwa AH231 Articulated Hedge Trimmer Parts.  The following are the most commonly used Shindaiwa AH230 Articulated Hedge Trimmer Parts.  If you do not see the Shindaiwa Parts you need,  please complete the Lawn Mower Parts Request Form and we will be happy to assist you.

Shindaiwa AH231 Hedge Trimmer Parts

No Description Part No Order
1 Cylinder 62023-12110
No Longer Available

Replaced by A130001160


2 Bolt 01020-05250
No Longer Available

Replaced by 90010505025


3 Gasket 62023-12220
No Longer Available

Replaced by V103000750


4 Insulator 20016-12212
No Longer Available

Replaced by 99909-12212


5 Bolt 11022-05300
No Longer Available

Replaced by V203000480


6 Nut 20011-12260
No Longer Available

Replaced by V263000260


7 Valve Holder 20016-12310
No Longer Available

Replaced by A358000040


8 Cylinder Gasket 62023-12120
No Longer Available

Replaced by V100000360


  - Gasket Assembly 62023-15211
No Longer Available

Replaced by V104001130


9 Muffler Gasket 62023-15430
No Longer Available

Replaced by V104001470


10 Gasket 62023-15421 Internet Price: $5.95


11 Bolt 01020-05080
No Longer Available

Replaced by 90010505008


  Catalyst Muffler Assembly 62023-15011
No Longer Available

Replaced by A030000141


12 Spark Arrester 62023-15130
No Longer Available

Replaced by A310000250


13 Tail Plate 62023-15160
No Longer Available

Replaced by A313001371


14 Screw 11203-04060
No Longer Available

Replaced by 9157804006


15 Bolt 01020-05200
No Longer Available

Replaced by V203001040


16 Muffler Cover 62023-15381
No Longer Available

Replaced by A320000600


17 Washer 01610-05085
No Longer Available

Replaced by 90060400005


18 Bolt 01020-05605
No Longer Available

Replaced by 9110905060


  - Piston Assembly 80244
No Longer Available

Replaced by P021027070


19 Piston Ring Set 20000-41210
No Longer Available

Replaced by A101000400


20 Piston 62023-41110
No Longer Available

Replaced by A100000720


21 Snap Ring 70030-41320
No Longer Available

Replaced by V580000070


22 Piston Pin 20016-41310
No Longer Available

Replaced by V606000060


23 Thrush Washer 20016-41340
No Longer Available

Replaced by 81593


24 Needle Bearing 20016-41330
No Longer Available

Replaced by 81593


8 Cylinder Gasket 62023-12120
No Longer Available

Replaced by V100000360


25 Crankshaft Assembly 20016-42002
No Longer Available

Replaced by A011000930


26 Key 02403-03100
No Longer Available

Replaced by V381000030


Clutch Shoe Assembly 70140-51102
No Longer Available

Replaced by A056000260


27 Clutch Bolt 20087-51210
No Longer Available

Replaced by A557000040


28 Spring Washer 20087-51231
No Longer Available

Replaced by V346000040


29 Washer 22100-71430
No Longer Available

Replaced by V304000150


30 Clutch Spring 70140-51220
No Longer Available

Replaced by A566000200


  - Crankcase Assembly M 20016-21200
No Longer Available

Replaced by P021017920


31 Bearing 12900-60010
No Longer Available

Replaced by V592000310


32 Oil Seal 20000-21211
No Longer Available

Replaced by V505000080


33 Dowel Pin 12492-40080
No Longer Available

Replaced by V622000040


34 Bolt 01020-05250
No Longer Available

Replaced by 90010505025


  - Crankcase Assembly S 20016-21100
No Longer Available

Replaced by P021017910


31 Bearing 12900-60010
No Longer Available

Replaced by V592000310


35 Oil Seal 22150-21250
No Longer Available

Replaced by V505000140


No Description Part No Order
1 Cap 70135-31470
No Longer Available

Replaced by A575000460


2 Bolt 11022-05160
No Longer Available

Replaced by V203000590


3 Front Cushion 20018-31420
No Longer Available

Replaced by V420002640


4 Bolt 11023-05250
No Longer Available

Replaced by V203000560


5 Joint 20018-31410
No Longer Available

Replaced by A575000180


6 Shim 20018-31460 Internet Price: $0.95


7 Rear Cushion 20018-31430
No Longer Available

Replaced by V420002650


8 Bolt 11022-05350
No Longer Available

Replaced by V203000600


9 Bolt 11022-05160
No Longer Available

Replaced by V203000590


  - Fan Cover Assembly 70234-98030
No Longer Available

Replaced by P021030520


10 Clutch Drum 20087-31210
No Longer Available

Replaced by A556001300


11 Bearing 02002-06000
No Longer Available

Replaced by 9404406000


12 Snap Ring 22000-13320
No Longer Available

Replaced by V583000160


13 Snap Ring 02432-26120
No Longer Available

Replaced by 9242426000


14 Cushion 70140-31130
No Longer Available

Replaced by V420002620


  - Cylinder Cover Assembly 80245
No Longer Available

Replaced by P021027690


15 Bolt 01020-05250
No Longer Available

Replaced by 90010505025


16 Washer 01613-05080
No Longer Available

Replaced by 90060300005


17 Cylinder Cover 62023-32110
No Longer Available

Replaced by A160001390


18 Insulator 20018-31260
No Longer Available

Replaced by V353000430


19 Clip 20018-31270
No Longer Available

Replaced by V490000680


20 Model Label 62844-91021 Internet Price: $1.95




No Description Part No Order
1 Flywheel 20016-71200
No Longer Available

Replaced by A409000730


2 Nut 20035-71220
No Longer Available

Replaced by V265000140


3 Insulator 70030-71620
No Longer Available

Replaced by V322000040


4 Tube 20016-71660
No Longer Available

Replaced by V475004840


5 Plug Cap 22102-72220
No Longer Available

Replaced by A427000100


6 Spring, Plug 20000-72231
Currently Unavailable

  - Coil Assembly 20016-71601
No Longer Available

Replaced by A411000880


7 Wire 20016-71641
No Longer Available

Replaced by V485001960


8 Tube 20016-71651
No Longer Available

Replaced by V475005140


9 Grommet 20010-72110 Internet Price: $0.95


10 Bolt 11024-04261
No Longer Available

Replaced by V202000330


No Description Part No Order
- Recoil Starter Assembly 72933-75900
No Longer Available

Replaced by A051001861


1 Reel 72933-75120
No Longer Available

Replaced by A506000120


2 Recoil Spring 70064-75130
No Longer Available

Replaced by P022034790


3 Knob 32004-75150
No Longer Available

Replaced by A511000090


4 Rope 70064-75190
No Longer Available

Replaced by A509000320


5 Ratchet 72933-75140
No Longer Available

Replaced by A518000010


6 Valve Washer 70064-75150
No Longer Available

Replaced by V346000030


7 Retainer 72933-75170
No Longer Available

Replaced by A606000000


8 Washer 72933-75180
No Longer Available

Replaced by V303000110


9 Bolt 72933-75160
No Longer Available

Replaced by V253000260


10 Nut 01511-08051
No Longer Available

Replaced by 90050300008


11 Starter Pulley 70064-75310
No Longer Available

Replaced by A520000080


12 Bolt 11024-04120
No Longer Available

Replaced by V202000180


13 Label 62023-91040
No Longer Available

Replaced by X504003110


No Description Part No Order
- Fuel Tank Assembly 62023-85012
No Longer Available

Replaced by A038000160


1 Breather Element 20035-85522
No Longer Available

Replaced by A356000040


2 Holder 20016-12310
No Longer Available

Replaced by A358000040


3 Grommet 62023-85320
No Longer Available

Replaced by V137000040


4 Fuel Tube 62023-85310
No Longer Available

Replaced by V471002610


5 Fuel Filter Assembly 20016-85400
No Longer Available

Replaced by A369000070


6 Connector Tube 20087-85340
No Longer Available

Replaced by V186000270


7 Tube 72933-85611
No Longer Available

Replaced by V471002340


8 Clip 20020-85540
No Longer Available

Replaced by V490000500


- Fuel Cap Assembly 70043-95201
Currently Unavailable

9 Fuel Cap 70168-85210
No Longer Available

Replaced by A355000180


10 Gasket 20000-85221
No Longer Available

Replaced by V107000010


11 Cushion 20024-86120
No Longer Available

Replaced by V420002630


12 Tank Guard 70135-86130
No Longer Available

13 Bolt 11022-05120
No Longer Available

Replaced by V203000700


No Description Part No Order
- Throttle Lever Assembly 63880-65011
No Longer Available

Replaced by C044001090


1 Body, Right 63880-65311 Internet Price: $12.95


2 Lock Lever 63880-65340 Internet Price: $2.95


3 Lever 63880-65330
No Longer Available

Replaced by C450000590


4 Lever Spring 63880-65350
No Longer Available

Replaced by V452000700


5 Switch 63880-65390 Internet Price: $19.95


6 Throttle Cable 63880-65371
No Longer Available

Replaced by V430003240


7 Tube 63880-65380
No Longer Available

Replaced by V475005150


8 Plug 63880-65410
No Longer Available

Replaced by V162000350


9 Body, Left 63880-65321 Internet Price: $12.95


10 Nut 01501-05030
No Longer Available

Replaced by 9201705000


11 Screw 70871-65320
No Longer Available

Replaced by V253000580


12 Screw 63880-65360
No Longer Available

Replaced by V252000380


13 Collar 60880-98050 Internet Price: $5.95


No Description Part No Order
- Throttle Lever Assembly 63901-62312
No Longer Available

Replaced by C044000820


2 Body, Right 63901-62321 Internet Price: $6.95


3 Body, Left 63901-62332 Internet Price: $6.95


4 Lever 63901-62341
No Longer Available

Replaced by C450000490


5 Lock Lever 63901-62351
No Longer Available

Replaced by C460000190


6 Holder 63901-62361
No Longer Available

Replaced by C461000030


7 Coil Spring 63880-65350
No Longer Available

Replaced by V452000700


8 Coil Spring 63901-62370
No Longer Available

Replaced by V452000500


9 Switch 63901-62380
No Longer Available

Replaced by A440001570


10 Screw, Tapping 63880-65360
No Longer Available

Replaced by V252000380


11 Screw, Tapping 63901-62390 Internet Price: $0.95


12 Screw 63901-62410 Internet Price: $0.95


13 Nut 01501-05030
No Longer Available

Replaced by 9201705000


14 Plug 63880-65411
No Longer Available

Replaced by V162000350


15 Throttle Cable 63901-62173
No Longer Available

Replaced by V430003250


16 Tube 37018-62310
No Longer Available

Replaced by V475004480


No Description Part No Order
- Gear Case Assembly 63840-61011
No Longer Available

Replaced by P021028791


1 Lower Gear Case 63840-61111
No Longer Available

Replaced by P021028811


2 Pinion Gear 63840-61330
No Longer Available

Replaced by V655000060


3 Bearing 02000-06001
No Longer Available

Replaced by 90080036001


4 Bearing 02002-06001
No Longer Available

Replaced by 90080406001


5 Snap Ring 02430-12100
No Longer Available

Replaced by 9242312000


6 Snap Ring 02432-28120
No Longer Available

Replaced by 9242428000


7 Felt Packing 68120-61340
No Longer Available

Replaced by V541000220


8 Grease Fitting 20870-61640
No Longer Available

Replaced by V187000080


9 Holder 68120-62331
No Longer Available

Replaced by V152002390


10 Flange Nut 11526-05212
No Longer Available

Replaced by V263000330


11 Lock Nut 22011-97840
No Longer Available

Replaced by V264000150


12 Collar 15401-11010
No Longer Available

Replaced by V307000250


13 Bevel Gear Assembly 63840-61350
No Longer Available

Replaced by P021034470


14 Pin 02421-16150
No Longer Available

Replaced by 9300216150


15 Castle Nut 63840-61370
No Longer Available

Replaced by V264000170


16 Washer 20024-81790
No Longer Available

Replaced by V347000030


17 Washer 01613-06100
No Longer Available

Replaced by 90060300006


18 Upper Gearcase 63840-63310
No Longer Available

Replaced by C531000700


19 Plate, Adjust 63840-66310
No Longer Available

Replaced by C465000020


20 Bolt 01020-05120
No Longer Available

Replaced by 90010505012


21 O-Ring 02304-03150
No Longer Available

Replaced by 9250703150


22 Bolt 01020-05120
No Longer Available

Replaced by 90010505012


23 Bolt 11023-05250
No Longer Available

Replaced by V203000560


24 Shim 22000-13420
No Longer Available

Replaced by V340000300


25 Bevel Gear 63840-63320
No Longer Available

Replaced by V000000090


26 Bearing 02000-00609
No Longer Available

Replaced by 9008000609


27 Bearing 02002-00609
No Longer Available

Replaced by 90080400609


28 Snap Ring 22420-13350
No Longer Available

Replaced by 90070600009


29 Snap Ring 02432-24120
No Longer Available

Replaced by 9242424000


30 Lock Lever 63840-66320
No Longer Available

Replaced by C661000070


31 Ratchet Pin 22106-71441
No Longer Available

Replaced by V204000580


32 Spring 17520-18601
No Longer Available

Replaced by V452000710


33 Safety Lever 63840-66330
No Longer Available

Replaced by C661000080


34 Handle 63840-66341
No Longer Available

Replaced by C403000490


35 Screw 01215-06208
No Longer Available

Replaced by 9146306020


36 Plate 68120-61331
No Longer Available

Replaced by V150002460


37 Connecting Rod 68120-61170
No Longer Available

Replaced by C532000220


38 Cam Gear 68120-61130
No Longer Available

Replaced by V650000530


39 Gasket 68120-61351
No Longer Available

Replaced by V110000140


40 Case Cover 68120-61120
No Longer Available

Replaced by C542000040


41 Cover 63840-61340
No Longer Available

Replaced by C539000081


42 Bolt 01020-04100
No Longer Available

Replaced by 90010504010


43 Collar 15401-10025
No Longer Available

Replaced by V355000440


No Description Part No Order
- Outer Tube Assembly 63840-64312
No Longer Available

Replaced by C050002110


1 Bushing 22035-12120
No Longer Available

Replaced by C501000010


2 Grip 63840-64331
No Longer Available

Replaced by C403000470


3 Main Shaft 22070-12410
No Longer Available

Replaced by C504000500


4 Liner Cap 20891-98180
No Longer Available

Replaced by C525000030


5 Protector 63840-64340
No Longer Available

Replaced by C440000050


6 Screw 11207-05300
No Longer Available

Replaced by 9157705030


7 Nut 01500-05041
No Longer Available

Replaced by 90050000005


8 Trade Label 19420-00049
No Longer Available

Replaced by X504002780


9 Caution Label 19402-00170
No Longer Available

Replaced by X505003470


10 Caution Label 19402-00173
No Longer Available

Replaced by X505003480


11 Caution Label 72005-12140
No Longer Available

Replaced by X505002860


No Description Part No Order
- Cutter Assembly 68120-62010
No Longer Available

Replaced by X041000121


- Cutter Assembly 38121-62010
No Longer Available

Replaced by X041000300


1 Guide Bar 18501-50000
No Longer Available

Replaced by X425000780


2 Lock Nut 22011-97840
No Longer Available

Replaced by V264000150


3a Blade (22") 18500-50100
No Longer Available

Replaced by X411000960


3b Blade (22") 18500-50102
No Longer Available

Replaced by X411001151


4 Washer 20870-62131
No Longer Available

Replaced by V304000240


5 Bolt 20870-62110
No Longer Available

Replaced by V204000570


6 Tool Bag 19639-01100
No Longer Available

Replaced by X705000130


7 Spanner 22000-91120
No Longer Available

Replaced by X600000020


8 Wrench 09026-04001
No Longer Available

Replaced by X605000100


9 Plug Wrench 22150-91410
No Longer Available

Replaced by X602000170


 - Hanger Assembly 60840-98020 Internet Price: $15.95


10 Hanger 22000-12210 Internet Price: $2.95


11 Bolt 11020-05120
No Longer Available

Replaced by V203000700


12 Nut 01500-05041
No Longer Available

Replaced by 90050000005


13 Spacer 60840-98030 Internet Price: $1.95


14 Strap Assembly 22410-17202
No Longer Available

Replaced by C062000340


15 Blade Cover 19601-01506
No Longer Available

Replaced by X495000410


No Description Part No Order

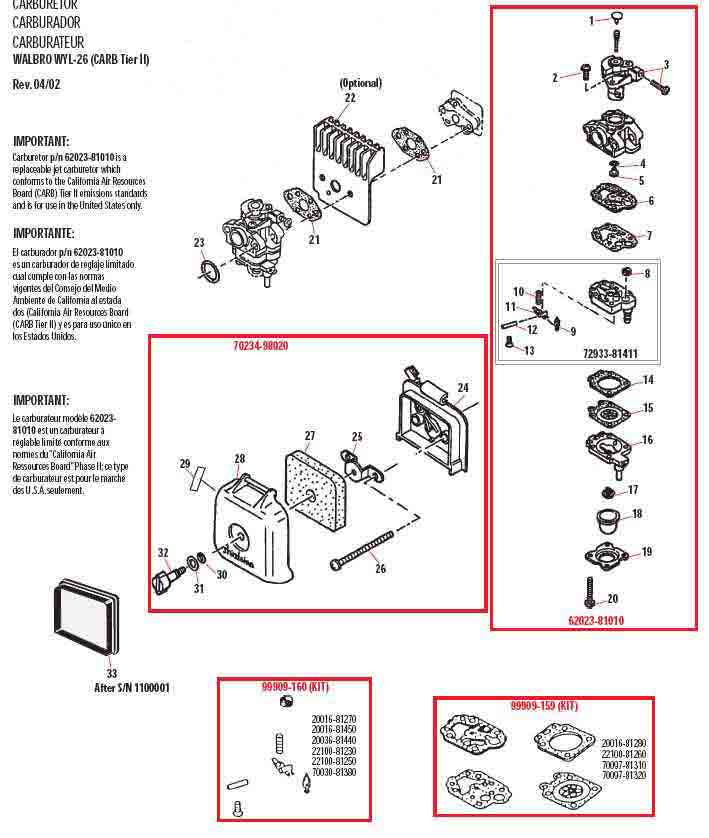

- Carburetor Assembly 62023-81010
No Longer Available

Replaced by A021002150


1 Plug 22154-81270
No Longer Available

Replaced by 12314644330


2 Screw 70064-81290
No Longer Available

Replaced by 12311444330


3 Throttle Valve Assembly 62023-81340
No Longer Available

Replaced by 12311644330


4 O-Ring 70097-81220
No Longer Available

Replaced by 12318305960


5 Main Jet (#37) 62023-81330 Internet Price: $4.95


6 Pump Gasket 70097-81310
No Longer Available

Replaced by 12312540630


7 Diaphragm 70097-81320
No Longer Available

Replaced by 12311240630


- Pump Body Assembly 72933-81411
No Longer Available

Replaced by P003003690


8 Screen 70030-81380
No Longer Available

Replaced by 12312610631


9 Needle Valve 20036-81440
No Longer Available

Replaced by 12313719830


10 Spring 72933-81270
No Longer Available

Replaced by 12312205560


11 Metering Lever 22100-81230
No Longer Available

Replaced by 12312338330


12 Pin 22100-81250
No Longer Available

Replaced by 12313803930


13 Screw 20016-81450
No Longer Available

Replaced by 12313905560


14 Gasket 20016-81280
No Longer Available

Replaced by 12314005560


15 Metering Diaphragm 22100-81260
No Longer Available

Replaced by 12314103930


16 Pump Base 20016-81420
No Longer Available

Replaced by 12318005560


17 Valve 99909-207 Internet Price: $2.95


18 Primer Pump 20036-81670
No Longer Available

Replaced by 188-12-1


19 Pump Cover 20016-81510
No Longer Available

Replaced by 12314205560


20 Screw 20016-81140
No Longer Available

Replaced by 12311005560


21 Gasket 20016-81530
No Longer Available

Replaced by V103001210


22 Heat Deflector 60023-98020 Internet Price: $6.95


23 O-Ring 20016-81250
No Longer Available

Replaced by 90072000015


- Air Filter Assembly 70234-98020
No Longer Available

Replaced by P021030510


24 Cleaner Body Assembly 70140-81710
No Longer Available

Replaced by A023000230


25 Bracket 20018-81721
No Longer Available

Replaced by A244000190


26 Screw 70140-81810
No Longer Available

Replaced by V253000940


27 Air Filter 20018-81750
No Longer Available

Replaced by A226000740


28 Air Filter Cover 70140-81760
No Longer Available

Replaced by A232000940


29 Choke Label 19404-00008
No Longer Available

Replaced by X506000130


30 O-Ring 22100-82430
No Longer Available

Replaced by V581000200


31 Washer 20024-81790
No Longer Available

Replaced by V347000030


32 Knob 20115-81780
No Longer Available

Replaced by V299000430


33 Heavy Duty Air Filter 60023-98030
No Longer Available

Replaced by A226000600


- Gasket and Diaphragm Kit 99909-159 Internet Price: $11.95


- Kwik Kit 99909-160 Internet Price: $5.95





  Customer Service Top Brands Company Info
  Home Page
Ordering Information
Customer Service
Help
Privacy Policy
Articles
How To
Popular Searches
Shipping Policy
Return Policy
Site Map
DIY
Briggs & Stratton
Dixon
Echo
Honda
Husqvarna
Kohler
MTD
Murray
Oregon
Shindaiwa
Snapper
Stens
Tanaka
About Us
Contact Us
Affiliate Program
Testimonials
Employment
News
Disclaimer
Local Store

Find us on:


GooglePlusOne Facebook Youtube Twttier Pinterest

McAfee Secure sites help keep you safe from identity theft, credit card fraud, spyware, spam, viruses and online scams H and H Lawncare Equipment, LLC is a BBB Accredited Business. Click for the BBB Business Review of this Lawn & Garden Equipment & Supplies in Haysville KS


Copyright 1982-2014 H and H Lawncare Equipment, LLC
All Rights Reserved Worldwide
