EB240S Blower Illustrated Parts Diagram
|
 |
 |
| We are an Authorized Shindaiwa dealer carrying a large selection of
Shindaiwa EB240S Blower Parts. The following are the most commonly used Shindaiwa
EB240S Blower Parts. If you do not see the
Shindaiwa Parts you need,
please complete the Lawn Mower
Parts Request Form
and we will be happy to assist you. |
|
|
|
|
No |
Description
|
Part No
|
Order
|
|
1
|
Cylinder
|
72934-12111
|
No Longer Available
Replaced by A130001061
|
|
2
|
Gasket
|
20870-12120 |
No Longer Available
Replaced by 20870-12121
|
|
3
|
Bolt
|
01020-05200
|
No Longer Available
Replaced by 11230-05220
|
|
4
|
Boot
|
72933-12211
|
No Longer Available
Replaced by A202000100
|
|
5
|
Gasket
|
72933-12220
|
No Longer Available
Replaced by V103000560
|
|
6
|
Screw, PM SLPW
|
11207-05160
|
No Longer Available
Replaced by 9157705016
|
|
7
|
Holder
|
72933-12310
|
No Longer Available
Replaced by A200000390
|
|
8
|
Screw, PM SLPW
|
11207-05160
|
No Longer Available
Replaced by 9157705016
|
|
- |
Muffler Assembly
|
72933-15100
|
No Longer Available
Replaced by A030000030
|
|
11
|
Chamber
|
72933-15120
|
Internet Price: $5.95
|
|
12
|
Gasket
|
72933-15131
|
No Longer Available
Replaced by V104000980
|
|
13
|
Spark Arrester
|
72933-15140
|
No Longer Available
Replaced by A310000120
|
|
14
|
Guide Plate
|
72933-15150
|
Internet Price: $9.95
|
|
15
|
Screw, PM
|
11206-04100
|
Internet Price: $0.95
|
|
16
|
Gasket
|
68234-15210
|
No Longer Available
Replaced by V104000990
|
|
17
|
Bolt
|
01020-05550
|
No Longer Available
Replaced by 90010505055
|
|
18
|
Washer
|
01610-05080
|
No Longer Available
Replaced by 90060000005
|
|
19
|
Screw, PM SLPW
|
11207-05160
|
No Longer Available
Replaced by 9157705016
|
|
|
No |
Description
|
Part No
|
Order
|
|
- |
Crankcase S Comp.
|
20035-21100
|
No Longer Available
Replaced by 20035-21101
|
|
3
|
Bearing
|
12900-60010
|
No Longer Available
Replaced by V592000310
|
|
4
|
Oil Seal
|
22150-21250
|
No Longer Available
Replaced by V505000140
|
|
- |
Crankcase M Comp.
|
72933-21200
|
No Longer Available
Replaced by P021033400
|
|
7
|
Roller
|
12492-40080
|
No Longer Available
Replaced by V622000040
|
|
8
|
Oil Seal
|
20000-21211
|
No Longer Available
Replaced by V505000080
|
|
9
|
Bearing
|
12900-62010
|
No Longer Available
Replaced by V592000110
|
|
10
|
Bolt
|
01020-05250
|
No Longer Available
Replaced by 90010505025
|
|
11
|
Engine Cover
|
72933-31111
|
Internet Price: $19.95
|
|
12
|
Cushion
|
72933-31121
|
Internet Price: $2.95
|
|
13
|
Screw, PM SLPW
|
11207-05160
|
No Longer Available
Replaced by 9157705016
|
|
14
|
Screw, PC
|
22160-32220
|
No Longer Available
Replaced by V253000550
|
|
|
No |
Description
|
Part No
|
Order
|
|
- |
Piston Kit
|
68234-98020 |
No Longer Available
Replaced by 72933-98020
|
|
1
|
Piston
|
72933-41111
|
No Longer Available
Replaced by A100000470
|
|
2
|
Piston Ring
|
72933-41210
|
No Longer Available
Replaced by A101000290
|
|
3
|
Piston Pin
|
72933-41310
|
No Longer Available
Replaced by V606000030
|
|
4
|
Snap Ring
|
70030-41320
|
No Longer Available
Replaced by V580000070
|
|
5
|
Needle Bearing
|
72933-41330
|
No Longer Available
Replaced by V553000070
|
|
6
|
Crankshaft Assembly
|
72933-42001 |
No Longer Available
Replaced by A011000620
|
|
| No |
Description
|
Part No
|
Order
|
| 1 |
Volute Case
|
72934-61110
|
No Longer Available
Replaced by 72934-61111
|
| 2 |
Screw, PM SLPW
|
11207-05160
|
No Longer Available
Replaced by 9157705016
|
| 3 |
Handle
|
72933-61121
|
Internet Price: $4.95
|
| 4 |
Throttle Lever
|
72933-61210
|
No Longer Available
Replaced by C450000440
|
| 5 |
Left Grip
|
72933-61231
|
No Longer Available
Replaced by C412000220
|
| 6 |
Right Grip
|
72933-61241
|
No Longer Available
Replaced by C412000230
|
| 7 |
Screw, PC
|
22160-32210
|
No Longer Available
Replaced by V253000710
|
| 8 |
Volute Cover
|
72933-61310 |
No Longer Available
Replaced by E103000790
|
| 9 |
Cushion
|
72933-61320
|
No Longer Available
Replaced by V420002140
|
| 10 |
Screw, PC
|
22160-32210
|
No Longer Available
Replaced by V253000710
|
| 11 |
Intake Cover
|
72933-61411
|
No Longer Available
Replaced by E104000150
|
| 12 |
Trade Label
|
68234-91020
|
Internet Price: $2.95
|
| 13 |
Screw, PC
|
22160-32210
|
No Longer Available
Replaced by V253000710
|
| 14 |
Fan
|
72933-62113 |
No Longer Available
Replaced by 72933-62114
|
| 15 |
Bolt, SPW
|
11022-05200
|
No Longer Available
Replaced by V203000350
|
| 16 |
Pipe
|
72933-63110
|
No Longer Available
Replaced by 72933-63111
|
| 17 |
Nozzle
|
72933-63122
|
No Longer Available
Replaced by 72933-63123
|
|
| No |
Description
|
Part No
|
Order
|
| 1 |
Flywheel
|
72933-71200
|
Internet Price: $24.95
|
| 2 |
Key
|
02403-03100
|
No Longer Available
Replaced by 12408-03100
|
| 3 |
Nut
|
20035-71220
|
No Longer Available
Replaced by V265000140
|
| 4 |
Coil Assembly
|
72933-71600
|
No Longer Available
Replaced by A411000530
|
| 5 |
Plug Cap
|
22102-72220
|
No Longer Available
Replaced by A427000100
|
| 6 |
Spark Plug Spring
|
20000-72230
|
No Longer Available
Replaced by A426000050
|
| 7 |
Insulator
|
70030-71620
|
No Longer Available
Replaced by V322000040
|
| 8 |
Bolt, SLPW
|
11024-04261
|
No Longer Available
Replaced by V202000330
|
| 10 |
Switch
|
72933-74110
|
Internet Price: $8.95
|
| 11 |
Grommet
|
20011-72110
|
No Longer Available
Replaced by V135000080
|
|
| No |
Description
|
Part No
|
Order
|
| - |

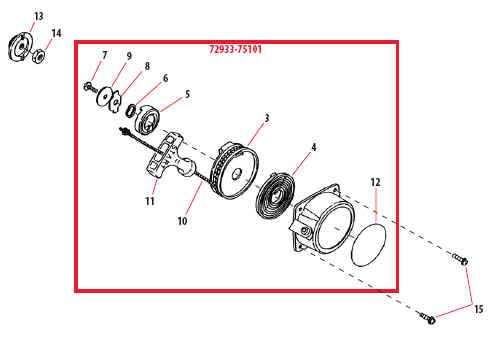

Recoil Starter Assembly
|
72933-75101
|
No Longer Available
Replaced by P021034871
|
| 3 |
Reel
|
72933-75120
|
No Longer Available
Replaced by A506000120
|
| 4 |
Recoil Spring
|
70064-75130
|
No Longer Available
Replaced by A504000050
|
| 5 |
Dog
|
72933-75140
|
No Longer Available
Replaced by A518000010
|
| 6 |
Wave Washer
|
70064-75150
|
No Longer Available
Replaced by V346000030
|
| 7 |
Screw
|
72933-75160
|
No Longer Available
Replaced by V253000260
|
| 8 |
Retainer
|
72933-75170
|
No Longer Available
Replaced by A606000000
|
| 9 |
Washer
|
72933-75180
|
No Longer Available
Replaced by V303000110
|
| 10 |
Rope
|
70064-75190
|
No Longer Available
Replaced by A509000320
|
| 11 |
Knob
|
32004-75150
|
No Longer Available
Replaced by A511000090
|
| 12 |
Name Plate
|
70117-75311
|
No Longer Available
Replaced by X504006130
|
| 13 |
Starter Pulley
|
70064-75310
|
No Longer Available
Replaced by A520000080
|
| 14 |
Nut
|
01511-08051
|
No Longer Available
Replaced by 90050300008
|
| 15 |
Screw, PM SLPW
|
11207-04120 |
No Longer Available
Replaced by 11238-04120
|
|
| No |
Description
|
Part No
|
Order
|
| - |
Carburetor Assembly
|
72934-81001
|
No Longer Available
Replaced by A021001950
|
| - |
Carburetor Assembly
|
22933-81010
|
No Longer Available
Replaced by A021001940
|
| - |
Pump Body Assembly
|
72933-81411
|
No Longer Available
Replaced by P003003690
|
| 3 |
Fuel Inlet Screen
|
70030-81380
|
No Longer Available
Replaced by 12312610631
|
| 4 |
Needle Valve
|
20036-81440
|
No Longer Available
Replaced by 12313719830
|
| 5 |
Metering Lever Spring
|
72933-81270
|
No Longer Available
Replaced by 12312205560
|
| 6 |
Metering Lever Pin Screw
|
20016-81450
|
No Longer Available
Replaced by 12313905560
|
| 7 |
Metering Lever Pin
|
22100-81250
|
No Longer Available
Replaced by 12313803930
|
| 8 |
Metering Lever
|
22100-81230
|
No Longer Available
Replaced by 12312338330
|
| 9 |
Main Jet (#37)
|
72934-81231
|
No Longer Available
Replaced by P003000520
|
| 10 |
O-Ring
|
70097-81220
|
No Longer Available
Replaced by 12318305960
|
| 11 |
Pump Base Comp.
|
20016-81420
|
No Longer Available
Replaced by 12318005560
|
| 12 |
Pump Cover
|
20016-81510
|
No Longer Available
Replaced by 12314205560
|
| 13 |
Primer Pump
|
20036-81670
|
No Longer Available
Replaced by 188-12-1
|
| - |
Gasket and Diaphragm Kit
|
99909-159
|
Internet Price: $11.95
|
| 15 |
Diaphragm Assembly
|
22100-81260 (Replaced by Walbro D10-WAT)
|
Internet Price: $5.95
|
| 18 |
Diaphragm
|
70097-81320
|
No Longer Available
Replaced by 12311240630
|
| 17 |
Gasket
|
20016-81280
|
No Longer Available
Replaced by 12314005560
|
| 19 |
Pump Gasket
|
70097-81310
|
No Longer Available
Replaced by 12312540630
|
| 20 |
Screw
|
20016-81140
|
No Longer Available
Replaced by 12311005560
|
| 21a |
Valve Assembly
|
72934-81250 |
No Longer Available
Replaced by 62074-81310
|
| 21b |
Valve Assembly
|
72933-81180
|
No Longer Available
Replaced by P003003680
|
| 23 |
Swivel
|
72933-81450
|
No Longer Available
Replaced by 12317245130
|
| 24 |
Washer
|
20089-81185
|
No Longer Available
Replaced by 12314954230
|
| 25 |
E-Ring
|
20036-81195
|
No Longer Available
Replaced by 12317307930
|
| 26 |
Bracket
|
20089-81130
|
No Longer Available
Replaced by 12312854230
|
| 27 |
Cable Adjuster
|
20089-81110
|
Internet Price: $21.95
|
| 28 |
Nut
|
20036-81120
|
No Longer Available
Replaced by 12315356430
|
| 29 |
Screw
|
70097-81290
|
No Longer Available
Replaced by 12311440630
|
| 30 |
Ring Gasket
|
72933-81250
|
No Longer Available
Replaced by 12314312110
|
| 31 |
Cleaner Body
|
72934-82111 |
No Longer Available
Replaced by 72934-82112
|
| 32 |
Screw, PC
|
22160-32210
|
No Longer Available
Replaced by V253000710
|
| 33 |
Choke Plate
|
72933-82130
|
No Longer Available
Replaced by A243000150
|
| 34 |
Carburetor Washer
|
22100-82110
|
No Longer Available
Replaced by V303000280
|
| 35 |
Choke Rod
|
72933-82140
|
No Longer Available
Replaced by A240000020
|
| 36 |
Back Plate
|
72933-82150
|
No Longer Available
Replaced by A244000100
|
| 37 |
Bolt, SPW
|
11022-05450
|
No Longer Available
Replaced by V203000610
|
| 38 |
Grommet
|
72933-82180
|
No Longer Available
Replaced by V130000050
|
| 39 |
Filter
|
72933-82210
|
No Longer Available
Replaced by A226000490
|
| 40 |
Cleaner Cover
|
72933-82230
|
No Longer Available
Replaced by A232000570
|
| 41 |
Screw
|
70064-32130
|
No Longer Available
Replaced by A235000210
|
| 42 |
Grip Ring
|
02439-05080
|
No Longer Available
Replaced by V490000450
|
| 43 |
Throttle Cable
|
72934-83110
|
No Longer Available
Replaced by V430002510
|
|
| No |
Description
|
Part No
|
Order
|
| - |
Fuel Tank Assembly
|
72933-85106
|
Internet Price: $29.95
|
| - |
Fuel Cap Assembly
|
70043-85201
|
No Longer Available
Replaced by A033000070
|
| 4 |
Fuel Gasket
|
20000-85221
|
No Longer Available
Replaced by V107000010
|
| 5 |
Pipe
|
72933-85310
|
No Longer Available
Replaced by V471002670
|
| 6 |
Grommet
|
72933-85350
|
No Longer Available
Replaced by V470000890
|
| 7 |
Clip
|
20020-85540
|
No Longer Available
Replaced by V490000500
|
| - |
Fuel Filter Comp.
|
70030-85401
|
No Longer Available
Replaced by A369000090
|
| 9 |
Fuel Weight
|
70030-85411
|
Internet Price: $1.95
|
| 10 |
Filter A
|
70030-85420
|
No Longer Available
Replaced by A371000020
|
| 11 |
Filter B
|
70030-85431
|
No Longer Available
Replaced by 7003081380
|
| 12 |
Filter Clip
|
70030-85440
|
Internet Price: $1.95
|
| 13 |
Valve
|
20035-85522
|
No Longer Available
Replaced by A356000040
|
| 14 |
Pipe
|
72933-85530
|
Internet Price: $0.95
|
| 15 |
Pipe
|
72933-85611
|
No Longer Available
Replaced by V471002340
|
| 16 |
Joint
|
72933-85620
|
No Longer Available
Replaced by V186000210
|
| 17 |
Clip
|
37013-85310
|
No Longer Available
Replaced by V346000050
|
| 18 |
Cushion
|
72933-86110
|
Internet Price: $0.95
|
|
| No |
Description
|
Part No
|
Order
|
| - |
Tool Set
|
72490-91000
|
Internet Price: $1.95
|
| 2 |
Poly Bag
|
19639-01100
|
No Longer Available
Replaced by X705000130
|
| 3 |
Plug Wrench
|
22000-91181
|
No Longer Available
Replaced by 57-017
|
| 4 |
Hex Wrench 4mm
|
09026-04001
|
No Longer Available
Replaced by X605000100
|
