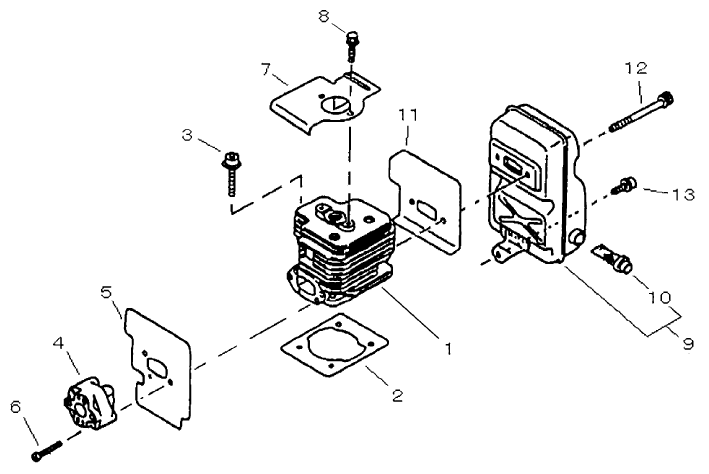

Shindaiwa EB630 & EB630RT Backpack Blower Illustrated Parts Diagram
|
 |
| We are an Authorized Shindaiwa dealer carrying a large selection of
Shindaiwa EB630 Parts. The following are the most commonly used Shindaiwa
EB630 Parts. If you do not see the
Shindaiwa Parts you need,
please complete the Lawn Mower
Parts Request Form
and we will be happy to assist you. |
|
|
 |
|
|
|
No |
Description
|
Part No
|
Order
|
|
1 |
Cylinder |
68206-12110 |
No Longer Available
Replaced by A130001080
|
|
2 |
Cylinder Gasket |
68206-12120 |
No Longer Available
Replaced by V100000310
|
|
3 |
Bolt |
68206-12310 |
Internet Price: $3.95
|
|
4 |
Insulator |
68206-12210 |
No Longer Available
Replaced by A200000410
|
|
5 |
Insulator Gasket |
68206-12220 |
No Longer Available
Replaced by V103000610
|
|
6 |
Screw, PM, SPW |
11206-05350 |
No Longer Available
Replaced by 9157405035
|
|
7 |
Cylinder Cover |
68206-12320 |
No Longer Available
Replaced by A160001270
|
|
8 |
Bolt |
68206-12330 |
Internet Price: $1.95
|
|
- |
Muffler Assembly |
68206-15010 |
No Longer Available
Replaced by 68206-15011
|
|
10 |
Spark Arrestor |
68206-15130 |
Internet Price: $21.95
|
|
11 |
Muffler Gasket |
68206-15210 |
No Longer Available
Replaced by V104001040
|
|
12 |
Bolt, SPW |
11022-06700 |
No Longer Available
Replaced by V204000340
|
|
13 |
Flange Bolt |
68206-15310 |
No Longer Available
Replaced by V204000350
|
|
|
No |
Description
|
Part No
|
Order
|
|
- |
Crankcase Assembly |
68206-98021 |
No Longer Available
|
|
2 |
Bearing |
02030-06202 |
No Longer Available
Replaced by 90081036202
|
|
3 |
Oil Seal |
68206-21120 |
No Longer Available
Replaced by V508000020
|
|
6 |
Oil Seal |
68206-21220 |
Internet Price: $7.95
|
|
7 |
Snap Ring |
68206-21310 |
Internet Price: $1.95
|
|
8 |
Gasket |
68206-21320 |
No Longer Available
Replaced by V102000080
|
|
9 |
Bolt |
01020-05300 |
No Longer Available
Replaced by 90010505030
|
|
10 |
Adhesive Bolt |
11060-06400 |
No Longer Available
Replaced by V204000370
|
|
11 |
Engine Cover |
68206-31111 |
No Longer Available
Replaced by 68206-31112
|
|
12 |
PC Bolt |
70140-31480 |
No Longer Available
Replaced by V203000450
|
 |
|
No |
Description
|
Part No
|
Order
|
|
9
|
PISTON KIT
|
68206-100
|
Internet Price: $112.95
|
|
1
|
PISTON
|
68206-41110
|
No Longer Available
Replaced by A100000500
|
|
2
|
PISTON RING (2 REQUIRED)
|
68206-41120
|
No Longer Available
Replaced by A101000260
|
|
3
|
PISTON PIN
|
68206-41210
|
No Longer Available
Replaced by V609000030
|
|
4
|
SNAP RING
|
68206-41220
|
No Longer Available
Replaced by V580000050
|
|
5
|
NEEDLE BEARING
|
|
No Longer Available
Replaced by V556000010
|
|
6
|
THRUST WASHER
|
68206-41240
|
No Longer Available
Replaced by V308000050
|
|
7
|
CRANKSHAFT
|
68206-42010
|
No Longer Available
Replaced by A011000670
|
|
8
|
SHIM (AS NEEDED)
|
68206-42310
|
Internet Price: $1.95
|
 |
| No |
Description
|
Part No
|
Order
|
| 18 |
ELBOW CONNECTOR
|
68206-63110
|
No Longer Available
Replaced by E160000150
|
| 19 |
O-RING
|
68206-63330
|
No Longer Available
Replaced by V581000160
|
| 20 |
FLEXIBLE TUBE
|
68206-63121
|
No Longer Available
Replaced by E164000110
|
| 21 |
SWIVEL TUBE
|
68206-63130
|
No Longer Available
Replaced by E165000480
|
| 22 |
STRAIGHT TUBE
|
68206-63140
|
No Longer Available
Replaced by E165000490
|
| 23 |
NOZZLE
|
68206-63150
|
No Longer Available
Replaced by E165000500
|
| 24 |
CLAMP 0100
|
68206-63340
|
No Longer Available
Replaced by V495001270
|
| 25 |
CLAMP 085
|
68206-63350
|
No Longer Available
Replaced by V495001280
|
| 26 |
THROTTLE CABLE HOLDER (EB630RT ONLY)
|
68208-84410
|
No Longer Available
Replaced by V490000470
|
| 27 |
MODEL LABEL
|
68206-91030
|
Internet Price: $5.95
|
| 28 |
HANDLE (EB630 ONLY)
|
68206-63210
|
No Longer Available
Replaced by C400000610
|
| 29 |
BOLT M6X45 (EB630 ONLY)
|
01000-06451
|
No Longer Available
Replaced by 90010006045
|
| 30 |
WING NUM M6 (EB630 ONLY)
|
01520-10671 |
No Longer Available
Replaced by 9219206000
|
 |
| No |
Description
|
Part No
|
Order
|
| 1 |
VOLUTE CASE
|
68206-61110
|
No Longer Available
Replaced by 68206-61111
|
| 2 |
AV RUBBER MOUNT
|
68206-61320
|
No Longer Available
Replaced by V402000070
|
| 3 |
FLANGE NUT M6
|
11526-06202
|
No Longer Available
Replaced by V264000090
|
| 4 |
VOLUTE COVER
|
68206-61121
|
No Longer Available
Replaced by E103000850
|
| 5 |
AV RUBBER MOUNT
|
68206-61330
|
No Longer Available
Replaced by V401000190
|
| 6 |
TAPPING BOLT M5X40
|
68206-61340
|
No Longer Available
Replaced by V203000440
|
| 7 |
FENDER WASHER
|
15401-20009
|
No Longer Available
Replaced by V303000130
|
| 8 |
BOLT, SW
|
11020-05160
|
No Longer Available
Replaced by V203000720
|
| 9 |
WASHER
|
15401-10010
|
No Longer Available
Replaced by V303000140
|
| 10 |
BOLT, PC
|
70140-31480
|
No Longer Available
Replaced by V203000450
|
| 11 |
WASHER
|
01610-05080
|
No Longer Available
Replaced by 90060000005
|
| 12 |
BOLT, SW
|
11024-05700
|
No Longer Available
Replaced by V203000490
|
| 13 |
NUT
|
01500-05041
|
No Longer Available
Replaced by 90050000005
|
| 14 |
INTAKE COVER
|
68206-61130
|
No Longer Available
Replaced by E104000190
|
| 15 |
TAPPING BOLT
|
68206-61360
|
No Longer Available
Replaced by V203000500
|
| 16 |
FAN
|
68206-62110
|
Internet Price: $136.95
|
| 17 |
BOLT, SLPW
|
68206-62310
|
Internet Price: $4.95
|
| 18 |
LABEL dB
|
80950
|
Internet Price: $1.95
|
| 19 |
LABEL, dB
|
80957
|
Internet Price: $1.95
|
 |
| No |
Description
|
Part No
|
Order
|
| 1 |
VOLUTE CASE |
68206-61111 |
No Longer Available
Replaced by E103000840
|
| 2 |
AV RUBBER MOUNT |
68206-61320 |
No Longer Available
Replaced by V402000070
|
| 3 |
FLANGE NUM M6 |
11526-06202 |
No Longer Available
Replaced by V264000090
|
| 4 |
VOLUTE COVER |
68206-61122 |
No Longer Available
Replaced by E103000850
|
| 5 |
AV RUBBER MOUNT |
68206-61330 |
No Longer Available
Replaced by V401000190
|
| 6 |
TAPPING BOLT M5X40 |
68206-61340 |
No Longer Available
Replaced by V203000440
|
| 7 |
FENDER WASHER |
15401-20009 |
No Longer Available
Replaced by V303000130
|
| 8 |
BOLT-SW M5X16 |
11020-05160 |
No Longer Available
Replaced by V203000720
|
| 9 |
WASHER |
15401-10010 |
No Longer Available
Replaced by V303000140
|
| 10 |
BOLT, PC |
70140-31480 |
No Longer Available
Replaced by V203000450
|
| 12 |
BOLT-SLPW |
11024-05700 |
No Longer Available
Replaced by V203000490
|
| 13 |
NUT M5 |
11500-05001 |
No Longer Available
Replaced by V263000110
|
| 14 |
INTAKE COVER |
68900-61130 |
No Longer Available
Replaced by E104000180
|
| 15 |
BOLT, PC |
70140-31480 |
No Longer Available
Replaced by V203000450
|
| 16 |
FAN |
68206-62110 |
Internet Price: $136.95
|
| 17 |
BOLT-SLPW M6X40 |
68206-62310 |
Internet Price: $4.95
|
| 18 |
WASHER |
01613-05080 |
No Longer Available
Replaced by 90060300005
|
| 19 |
CAUTION LABEL |
19402-00178 |
No Longer Available
Replaced by X505002760
|
| 20 |
DECIBEL LABEL |
19404-00037 |
Internet Price: $1.95
|
 |
| No |
Description
|
Part No
|
Order
|
| 1 |
FLYWHEEL
|
68206-71110
|
Internet Price: $114.95
|
| 2 |
KEY
|
68206-71310
|
Internet Price: $1.95
|
| 3 |
FLANGE NUT
|
11527-10202
|
Internet Price: $5.95
|
| 4 |
IGNITION COIL
|
68206-71210
|
No Longer Available
Replaced by A411000560
|
| 5 |
IGNITION WIRE
|
68206-71240
|
No Longer Available
Replaced by V485001300
|
| 6 |
SPARK PLUG CAP
|
68206-71250
|
No Longer Available
Replaced by A427000040
|
| 7 |
CAP SPRING
|
68206-71320
|
No Longer Available
Replaced by A426000030
|
| 8 |
SPARK PLUG CAP COVER
|
68206-71330
|
No Longer Available
Replaced by A429000070
|
| 9 |
BOLT-SPW, M4X20
|
11022-04205
|
Internet Price: $1.95
|
| 10 |
GROMMET
|
68206-71340
|
Internet Price: $1.95
|
| 11 |
COVER
|
68206-71350
|
Internet Price: $14.95
|
| 12 |
BOLT-SLPW, M4X16
|
68206-71360
|
Internet Price: $1.95
|
| 13 |
CLAMP
|
68206-71370
|
No Longer Available
Replaced by V490000480
|
| 14 |
TAPPING SCREW M5X14
|
01280-05142
|
No Longer Available
Replaced by 9144905014
|
| 15 |
SPARK PLUG RCJ6Y
|
RCJ6Y
|
Internet Price: $4.95
|
 |
| No |
Description
|
Part No
|
Order
|
| 1 |
RECOIL STARTER ASSEMBLY (#2-11)
|
68206-75010
|
No Longer Available
Replaced by A051001520
|
| 2 |
RECOIL STARTER CASE
|
68206-75110
|
Internet Price: $21.95
|
| 3 |
REEL
|
68206-75120
|
No Longer Available
Replaced by A506000160
|
| 4 |
RECOIL SPRING
|
68206-75130
|
No Longer Available
Replaced by A504000070
|
| 5 |
ROPE
|
68206-75140
|
Internet Price: $8.95
|
| 6 |
STARTER HANDLE
|
68206-75150
|
Internet Price: $12.95
|
| 7 |
CAM
|
68206-75310
|
No Longer Available
Replaced by A518000030
|
| 8 |
WASHER
|
68206-75320
|
Internet Price: $1.95
|
| 9 |
RETAINER
|
68206-75330
|
No Longer Available
Replaced by A606000010
|
| 10 |
WASHER
|
68206-75340
|
Internet Price: $6.95
|
| 11 |
SCREW M8X1.25
|
68206-75350 |
No Longer Available
Replaced by V255000020
|
| 12 |
BOLT-SLPW M5X20
|
68206-75360 |
No Longer Available
Replaced by V203000430
|
| 13 |
STARTER PULLEY
|
68206-75210 |
No Longer Available
Replaced by A520000100
|
| 14 |
FLANGE NUT M10
|
11527-10202 |
Internet Price: $5.95
|
| 15 |
TRADE LABEL
|
19420-00027 |
No Longer Available
Replaced by X504002770
|
 |
| No |
Description
|
Part No
|
Order
|
| 1 |
CARBURETOR ASSEMBLY (#2-27)
|
68206-81010
|
No Longer Available
Replaced by A021002030
|
| 2 |
PUMP BODY ASSEMBLY (#3-8)
|
68206-81310
|
Internet Price: $55.95
|
| 3 |
INLET SCREEN
|
68206-81320
|
Internet Price: $5.95
|
| 4 |
INLET NEEDLE VALVE
|
68206-81330
|
Internet Price: $18.95
|
| 5 |
METERING LEVER SPRING
|
68206-81340
|
Internet Price: $6.95
|
| 6 |
METERING LEVER PIN SCREW
|
68206-81350
|
Internet Price: $6.95
|
| 7 |
METERING LEVER PIN
|
68206-81360
|
Internet Price: $4.95
|
| 8 |
METERING LEVER
|
68206-81370
|
Internet Price: $8.95
|
| 9 |
MAIN JET
|
68206-81380
|
Internet Price: $10.95
|
| 10 |
O-RING
|
68206-81390
|
Internet Price: $9.95
|
| 11 |
COMPLETE AIR PURGE BODY
|
68206-81410
|
Internet Price: $36.95
|
| 12 |
PRIMER PUMP COVER
|
68206-81420
|
Internet Price: $6.95
|
| 13 |
PRIMER PUMP
|
68206-81430
|
No Longer Available
Replaced by 12318140630
|
| 14 |
METERING DIAPHRAGM
|
68206-81440
|
Internet Price: $28.95
|
| 15 |
METERING DIAPHRAGM GASKET
|
68206-81450
|
Internet Price: $16.95
|
| 16 |
PUMP DIAPHRAGM
|
68206-81460
|
Internet Price: $5.95
|
| 17 |
PUMP GASKET
|
68206-81470
|
Internet Price: $15.95
|
| 18 |
COVER SCREW
|
68206-81480
|
Internet Price: $3.95
|
| 19 |
SWIVEL
|
68206-81490
|
Internet Price: $12.95
|
| 20 |
WASHER
|
68206-81510
|
Internet Price: $1.95
|
| 21 |
SNAP RING
|
68206-81520
|
Internet Price: $2.95
|
| 22 |
THROTTLE CABLE BRACKET
|
68206-81530
|
Internet Price: $17.95
|
| 23 |
THROTTLE COLLAR SCREW
|
68206-81540
|
Internet Price: $2.95
|
| 24 |
THROTTLE CABLE ADJUSTER
|
68206-81550
|
Internet Price: $6.95
|
| 25 |
NUT
|
68206-81560
|
Internet Price: $3.95
|
| 26 |
PACKING RING
|
68206-81570
|
Internet Price: $7.95
|
| 27 |
THROTTLE VALVE ASSEMBLY
|
80847
|
Internet Price: $28.95
|
| 28 |
INTAKE GASKET
|
68206-81210
|
No Longer Available
Replaced by V103000620
|
| 29 |
GASKET KIT
|
68206-200 |
Internet Price: $55.95
|
 |
| No |
Description
|
Part No
|
Order
|
| 1 |
CHOKE ASSEMBLY
|
72935-81501
|
No Longer Available
Replaced by A221000030
|
| 2 |
BOLT, SW M5X50
|
11020-05500
|
No Longer Available
Replaced by V203000850
|
| 3 |
GASKET
|
72935-82210
|
No Longer Available
Replaced by V103000600
|
| 4 |
INTAKE SCREEN
|
72935-82130
|
No Longer Available
Replaced by A239000080
|
| 5 |
BOLT, SPW M4X14
|
11024-04140
|
No Longer Available
Replaced by V202000150
|
| 6 |
AIR FILTER ASSEMBLY (#7-15)
|
68206-98321
|
No Longer Available
Replaced by P021029320
|
| 7 |
AIR FILTER
|
68206-82400
|
No Longer Available
Replaced by A226000510
|
| 8 |
AIR FILTER KIT (#9-11)
|
80801
|
Internet Price: $24.95
|
| 9 |
PRE FILTER
|
60035-98070
|
No Longer Available
Replaced by A226000520
|
| 10 |
AIR FILTER BODY
|
68206-82392
|
No Longer Available
Replaced by A225000380
|
| 11 |
CHOKE LABEL
|
19404-00008
|
No Longer Available
Replaced by X506000130
|
| 12 |
AIR FILTER COVER ASSEMBLY (#13-15)
|
68206-82031
|
No Longer Available
Replaced by A232000590
|
| 13 |
COVER THUMBSCREW
|
22182-31220
|
No Longer Available
Replaced by A235000270
|
| 14 |
WASHER
|
23627-21220
|
No Longer Available
Replaced by V323000080
|
| 15 |
AIR FILTER COVER
|
68206-82132
|
No Longer Available
Replaced by A232000600
|
| BEFORE SERIAL NUMBER
0065224-3080000 |
| 16 |
AIR FILTER COVER
|
72935-82120
|
No Longer Available
Replaced by A232000580
|
| 17 |
AIR FILTER BODY
|
68206-82390 |
No Longer Available
Replaced by 80801
|
| BEFORE SERIAL NUMBER 0065224 |
| 18 |
AIR FILTER COVER ASSEMBLY (#19)
|
68206-82040
|
Internet Price: $19.95
|
| 19 |
COVER THUMBSCREW
|
68206-82380
|
Internet Price: $7.95
|
| 20 |
CHOKE LABEL
|
68206-82340
|
Internet Price: $1.95
|
| 21 |
AIR FILTER
|
80019
|
Internet Price: $3.95
|
| 22 |
SCREW
|
68206-82370
|
Internet Price: $1.95
|
| 23 |
SCREEN
|
68206-82360
|
Internet Price: $17.95
|
| 24 |
AIR FILTER BODY ASSEMBLY (#25-27)
|
68206-82010
|
No Longer Available
Replaced by P021029320
|
| 25 |
SCREW
|
68206-82330
|
Internet Price: $1.95
|
| 26 |
SHUTTER PLATE
|
68206-82310
|
Internet Price: $9.95
|
| 27 |
CHOKE LEVER
|
68206-82320
|
Internet Price: $7.95
|
| 28 |
SCREW
|
11206-05600
|
Internet Price: $1.95
|
| 29 |
BACK PLATE
|
68206-82350
|
Internet Price: $20.95
|
 |
| No |
Description
|
Part No
|
Order
|
| 1 |
FUEL TANK ASSEMBLY (#2-19)
|
68206-85011
|
No Longer Available
Replaced by A038000050
|
| 2 |
FUEL TANK
|
68206-85110
|
No Longer Available
Replaced by 68206-85011
|
| 3 |
FUEL TANK CAP ASSEMBLY (#4)
|
70043-85201
|
No Longer Available
Replaced by A033000070
|
| 4 |
FUEL CAP GASKET
|
20000-85221
|
No Longer Available
Replaced by V107000010
|
| 5 |
FUEL TANK GROMMET WITH VENT TUBE
|
72933-85350
|
No Longer Available
Replaced by V470000890
|
| 6 |
FUEL TUBE
|
68206-85340
|
No Longer Available
Replaced by V471002370
|
| 7 |
FUEL FILTER ASSEMBLY (#8-13)
|
22115-85401
|
No Longer Available
Replaced by 13120519831
|
| 8 |
FUEL LINE WEIGHT
|
22128-85410
|
No Longer Available
Replaced by 13120519831
|
| 9 |
FILTER
|
22128-85421
|
No Longer Available
Replaced by A371000000
|
| 10 |
FILTER CLIP
|
22128-85440
|
Internet Price: $1.95
|
| 11 |
SCREEN
|
22118-85460
|
Internet Price: $1.95
|
| 12 |
FILTER BODY
|
22128-85470
|
Internet Price: $2.95
|
| 13 |
RING
|
22128-85480
|
No Longer Available
Replaced by 13120519831
|
| 14 |
CLIP 06
|
20020-85540
|
No Longer Available
Replaced by V490000500
|
| 15 |
VALVE
|
20035-85522
|
No Longer Available
Replaced by A356000040
|
| 16 |
TUBE 010 X 08 X L70
|
72935-85530
|
No Longer Available
Replaced by V471002420
|
| 17 |
TUBE 05 X 03 X l110
|
68206-85320
|
Internet Price: $1.95
|
| 18 |
JOINT
|
72933-85620
|
No Longer Available
Replaced by V186000210
|
| 19 |
SLEEVE 012 X 011 X L70
|
68206-85330
|
Internet Price: $0.95
|
| 20 |
CLIP 05
|
37013-85310
|
No Longer Available
Replaced by V346000050
|
| 21 |
CLIP 06
|
20020-85540
|
No Longer Available
Replaced by V490000500
|
| 22 |
CLIP 08 X 010
|
72935-85550
|
No Longer Available
Replaced by V491000250
|
| 23 |
ADHESIVE BOLT M5 X 14
|
11060-05140
|
No Longer Available
Replaced by V203000470
|
| 24 |
WASHER
|
15401-10010
|
No Longer Available
Replaced by V303000140
|
| 25 |
TRADE LABEL
|
68206-91021
|
Internet Price: $2.95
|
| 26 |
FRAME
|
68206-86111
|
No Longer Available
Replaced by C620000360
|
| 27 |
PAD
|
72935-86120
|
No Longer Available
Replaced by C630000080
|
| 28 |
CLIP
|
72935-86130
|
No Longer Available
Replaced by V491000240
|
| 29 |
HARNESS ASSEMBLY (#30-32)
|
68206-87010
|
No Longer Available
Replaced by C061000280
|
| 30 |
HARNESS STRAP
|
68206-87110
|
No Longer Available
Replaced by C640000050
|
| 31 |
STRAP
|
72935-87120
|
No Longer Available
Replaced by C640000020
|
| 32 |
BUCKLE
|
72451-17230
|
No Longer Available
Replaced by C645000000
|
| 33 |
SPRING HOOK
|
72935-87310
|
No Longer Available
Replaced by C646000070
|
| 34 |
CAUTION LABEL
|
19402-00290
|
No Longer Available
Replaced by X505002750
|
 |
| No |
Description
|
Part No
|
Order
|
| 1 |
THROTTLE ASSEMBLY (#2-28)
|
68209-84011
|
No Longer Available
Replaced by C044000320
|
| 2 |
RIGHT HANDLE
|
68209-84321
|
No Longer Available
Replaced by C400000570
|
| 3 |
LEFT HANDLE
|
68209-84331
|
No Longer Available
Replaced by C400000580
|
| 4 |
THROTTLE TRIGGER
|
68209-84340
|
No Longer Available
Replaced by C450000450
|
| 5 |
CRUISE CONTROL LEVER
|
68209-84350
|
No Longer Available
Replaced by C453000320
|
| 6 |
CRUISE CONTROL ADJUSTING BOLT
|
68209-84360
|
No Longer Available
Replaced by V204000260
|
| 7 |
WASHER
|
68209-84370
|
No Longer Available
Replaced by V304000110
|
| 8 |
SPRING WASHER
|
68209-84380
|
No Longer Available
Replaced by V453000110
|
| 9 |
WASHER
|
68209-84390
|
No Longer Available
Replaced by V304000120
|
| 10 |
THROTTLE LEVER
|
68209-84400
|
No Longer Available
Replaced by C472000070
|
| 11 |
NYLON NUT
|
68209-84410
|
No Longer Available
Replaced by V264000080
|
| 12 |
CRUISE CONTROL BOLT CAP
|
68209-84420
|
No Longer Available
Replaced by V162000330
|
| 13 |
THROTTLE CABLE ASSEMBLY (#14-15)
|
68209-84430
|
No Longer Available
Replaced by V043000380
|
| 14 |
THROTTLE CABLE
|
68209-84570
|
No Longer Available
Replaced by V430002560
|
| 15 |
IGNITION SWITCH
|
68209-84580
|
No Longer Available
Replaced by 68901-84340
|
| 16 |
HANDLE SCREW
|
68209-84440
|
No Longer Available
Replaced by V252000070
|
| 17 |
RIGHT HANDLE BRACKET
|
68209-84450
|
No Longer Available
Replaced by C405000380
|
| 18 |
LEFT HANDLE BRACKET
|
68209-84460
|
No Longer Available
Replaced by C405000390
|
| 19 |
KNOB BOLT
|
68209-84470
|
No Longer Available
Replaced by V299000330
|
| 20 |
THROTTLE LIMITER ADJUSTMENT ASSEMBLY
|
68209-84480
|
No Longer Available
Replaced by C457000010
|
| 21 |
THROTTLE LIMITER ADJUSTMENT PLUG
|
68209-84490
|
No Longer Available
Replaced by V162000340
|
| 22 |
THROTTLE LIMITER LEVER SCREW
|
68209-84500
|
No Longer Available
Replaced by V252000080
|
| 23 |
THROTTLE LIMITER LEVER
|
68209-84510
|
No Longer Available
Replaced by C453000330
|
| 24 |
WASHER
|
68209-84520
|
No Longer Available
Replaced by V345000010
|
| 25 |
SPRING WASHER
|
68209-84530
|
No Longer Available
Replaced by V453000120
|
| 26 |
RIGHT GRIP
|
68209-84541
|
No Longer Available
Replaced by C412000240
|
| 27 |
LEFT GRIP
|
68209-84551
|
No Longer Available
Replaced by C412000250
|
| 28 |
THROTTLE CABLE SCREW
|
68209-84561
|
No Longer Available
Replaced by V251000030
|
| 29 |
SPACER
|
68209-84310
|
No Longer Available
Replaced by V376001190
|
 |
| No |
Description
|
Part No
|
Order
|
| 4 |
GROUND WIRE 110MM
|
14350-01100
|
No Longer Available
Replaced by V485001310
|
| 5 |
GROUND WIRE 550MM
|
14350-05500
|
Internet Price: $1.95
|
| 6 |
THROTTLE ASSEMBLY (#7-20)
|
68206-84013
|
No Longer Available
Replaced by C044000310
|
| 7 |
THROTTLE LEVER
|
68206-84110
|
No Longer Available
Replaced by C453000340
|
| 8 |
NUT M5
|
11525-05001
|
No Longer Available
Replaced by V263000120
|
| 9 |
WASHER
|
01613-05080
|
No Longer Available
Replaced by 90060300005
|
| 10 |
GRIP
|
68206-84210
|
No Longer Available
Replaced by C471000120
|
| 11 |
SCREW BUTTON M5X16
|
11210-05160
|
No Longer Available
Replaced by 9114205016
|
| 12 |
NUT M5
|
01500-05031 |
No Longer Available
Replaced by 01501-05031
|
| 13 |
METALLIC FLEXIBLE TUBE
|
68206-84312
|
No Longer Available
Replaced by C456000060
|
| 14 |
PLASTIC FLEXIBLE TUBE
|
68206-84320
|
No Longer Available
Replaced by V475004440
|
| 15 |
THROTTLE CABLE BRACKET
|
68206-84331
|
No Longer Available
Replaced by A250000220
|
| 16 |
NUT M21
|
68206-84340
|
No Longer Available
Replaced by K543000010
|
| 17 |
STOP SWITCH
|
68206-84350
|
No Longer Available
Replaced by A440001350
|
| 18 |
FLEXIBLE TUBE
|
68206-84360
|
No Longer Available
Replaced by V475004450
|
| 19 |
THROTTLE CABLE
|
68206-83110
|
No Longer Available
Replaced by V430002550
|
| 20 |
GROUND PLATE
|
68206-84370
|
No Longer Available
Replaced by V486000160
|
| 21 |
WASHER
|
15401-10010
|
No Longer Available
Replaced by V303000140
|
| 22 |
ADHESIVE BOLT M5X18
|
11060-05181
|
No Longer Available
Replaced by V203000460
|
| 23 |
LABEL
|
19401-00175
|
No Longer Available
Replaced by X511000050
|
 |
| No |
Description
|
Part No
|
Order
|
| 1 |
THROTTLE KIT (#2-4)
|
68206-98380
|
Internet Price: $83.95
|
| 2 |
THROTTLE ASSEMBLY
|
68209-84010 |
No Longer Available
Replaced by 68209-84011
|
| 3 |
SPACER
|
68209-84310
|
No Longer Available
Replaced by V376001190
|
| 4 |
THROTTLE CABLE HOLDER
|
68208-84410
|
No Longer Available
Replaced by V490000470
|
 |
| No |
Description
|
Part No
|
Order
|
| 1 |
SERVICE TOOL KIT (#2-6)
|
72935-91000
|
Internet Price: $1.95
|
| 2 |
SCRENCH 19X13
|
22900-91180
|
Internet Price: $0.95
|
| 3 |
HEX WRENCH 3MM
|
09026-03001
|
No Longer Available
Replaced by X605000090
|
| 4 |
HEX WRENCH 4MM
|
09026-04001
|
No Longer Available
Replaced by X605000100
|
| 5 |
HEX WRENCH 5MM
|
09026-05001
|
No Longer Available
Replaced by X605000070
|
| 6 |
TOOL BAG
|
19639-01100
|
No Longer Available
Replaced by X705000130
|
