Shindaiwa
T2510X Illustrated Parts Diagram
|
 |
 |
| We are an Authorized Shindaiwa dealer carrying a large selection of
Shindaiwa T2510X Parts. The following are the most commonly used Shindaiwa
T2510X Parts. If you do not see the
Shindaiwa T2510X Parts you need,
please complete the Lawn Mower
Parts Request Form
and we will be happy to assist you. |
|
|
 |
|
No |
Description
|
Part No
|
Order
|
|

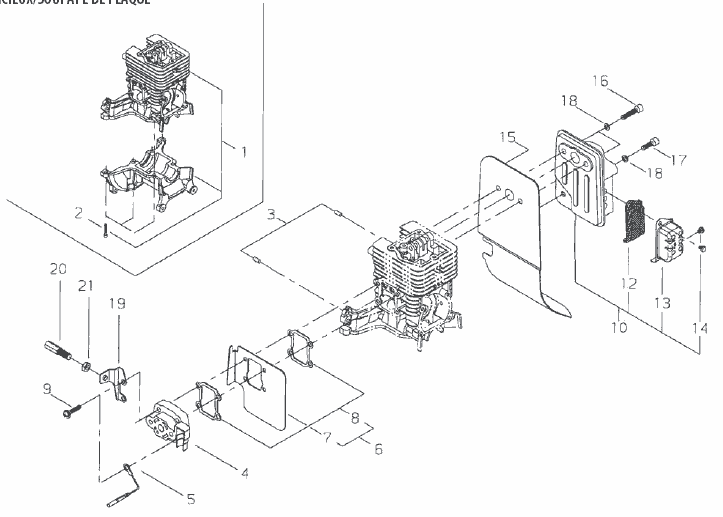

1 |
CYLINDER BLOCK SET |
60908-98330 |
Internet Price: $146.95
|
|
2 |
BOLT |
01020-05160 |
Internet Price: $0.95
|
|
3 |
ROLLER |
12492-40080 |
No Longer Available
Replaced by V622000040
|
|
4 |
REED VALVE |
62902-12310 |
No Longer Available
Replaced by A024000050
|
|
5 |
LEAD WIRE CABLE |
14350-01101 |
Internet Price: $1.95
|
|
6 |
HEAT DEFECTOR, COMP. |
62902-12320 |
Internet Price: $4.95
|
|
7 |
HEAT DEFECTOR |
62901-12320 |
Internet Price: $2.95
|
|
8 |
GASKET |
62901-12220 |
Internet Price: $0.95
|
|
9 |
SCREW, PM SPW |
11206-05225 |
Internet Price: $0.95
|
|
10 |
MUFFLER ASSY. |
62907-15011 |
Internet Price: $52.95
|
|
12 |
SCREEN |
62902-15131 |
Internet Price: $4.95
|
|
13 |
TAILPLATE |
62907-15161 |
Internet Price: $4.95
|
|
14 |
SCREW, PM |
11204-04060 |
Internet Price: $0.95
|
|
15 |
GASKET, MUFFLER |
62901-15210 |
No Longer Available
Replaced by V104001431
|
|
16 |
BOLT |
62901-15310 |
Internet Price: $0.95
|
|
17 |
BOLT |
01020-05160 |
Internet Price: $0.95
|
|
18 |
WASHER |
01610-05080 |
No Longer Available
Replaced by 90060000005
|
|
19 |
BRACKET, THROTTLE CABLE |
62901-83310 |
Internet Price: $1.95
|
|
20 |
CABLE ADJUSTER |
62902-83310 |
No Longer Available
Replaced by C486000030
|
|
21 |
NUT |
01501-06048 |
Internet Price: $0.95
|
 |
|
No |
Description
|
Part No
|
Order
|
|
1 |
INSULATOR |
62901-21320 |
Internet Price: $9.95
|
|
2 |
VALVE |
72320-83121 |
Internet Price: $3.95
|
|
3 |
STOPPER |
72320-83132 |
Internet Price: $1.95
|
|
4 |
SCREW, SW |
01211-03100 |
Internet Price: $0.95
|
|
5 |
COVER |
62901-21120 |
Internet Price: $4.95
|
|
6 |
GASKET |
62901-21130 |
No Longer Available
Replaced by V109000100
|
|
7 |
BOLT, SW |
11022-04120 |
Internet Price: $0.95
|
|
8 |
FAN COVER ASSY. |
60902-98021 |
No Longer Available
Replaced by 60902-98022
|
|
9 |
FAN COVER COMP. |
62901-31011 |
Internet Price: $68.95
|
|
11 |
BEARING |
02002-06000 |
No Longer Available
Replaced by 9404406000
|
|
12 |
SNAP RING |
02432-26120 |
No Longer Available
Replaced by 9242426000
|
|
13 |
CLUTCH DRUM |
20087-31211 |
No Longer Available
Replaced by 20087-31210
|
|
14 |
SNAP RING |
22000-13320 |
No Longer Available
Replaced by V583000160
|
|
15 |
JOINT |
20087-31411 |
Internet Price: $9.95
|
|
16 |
SNAP RING |
02432-40170 |
Internet Price: $1.95
|
|
18 |
BOLT, SW |
11020-05220 |
Internet Price: $0.95
|
|
19 |
BOLT |
01020-05160 |
Internet Price: $0.95
|
|
20 |
BOLT, SPW |
11022-05450 |
Internet Price: $1.95
|
|
21 |
CYLINDER COVER |
62901-32111 |
Internet Price: $13.95
|
|
22 |
GROMMET |
62901-32312 |
Internet Price: $1.95
|
|
23 |
LABEL, TRADE |
19420-00071 |
Internet Price: $2.95
|
|
25 |
BOLT, SLPW |
11024-04160 |
No Longer Available
Replaced by V202000300
|
|
26 |
LABEL. MODEL |
80835 |
Internet Price: $3.95
|
 |
|
No |
Description
|
Part No
|
Order
|
|
1 |
PISTON SET PISTON |
62902-41310 |
Internet Price: $40.95
|
|
2 |
CRANKSHAFT COMP. |
62902-42020 |
Internet Price: $88.95
|
|
3 |
OIL SEAL |
62901-42260 |
No Longer Available
Replaced by V505000020
|
|
4 |
OIL SEAL |
62901-42270 |
Internet Price: $6.95
|
|
5 |
CAM GEAR ASSY. |
62905-43010 |
No Longer Available
Replaced by 62905-43011
|
|
6 |
CAM GEAR |
62902-43310 |
No Longer Available
Replaced by A622000000
|
|
7 |
WEIGHT |
62907-43120 |
Internet Price: $1.95
|
|
8 |
COIL SPRING |
17520-08900 |
Internet Price: $0.95
|
|
9 |
PLATE |
62905-43130 |
Internet Price: $0.95
|
|
10 |
SCREW, TAPPING |
01280-04062 |
Internet Price: $0.95
|
|
11 |
ROLLER |
12492-50290 |
Internet Price: $1.95
|
|
12 |
LIFTER |
62907-43210 |
Internet Price: $6.95
|
|
13 |
WASHER |
11620-10000 |
Internet Price: $0.95
|
|
14 |
PUSH ROD |
62908-43220 |
No Longer Available
Replaced by A607000010
|
|
15 |
CAM GEAR COVER |
62901-43330 |
Internet Price: $12.95
|
|
16 |
GASKET |
62901-43240 |
No Longer Available
Replaced by V109000110
|
|
17 |
BOLT, SPW |
11022-04140 |
No Longer Available
Replaced by V202000350
|
|
18 |
SCREW |
62901-43310 |
Internet Price: $0.95
|
|
19 |
COLLAR |
15401-10028 |
Internet Price: $0.95
|
|
20 |
INTAKE VALVE |
62902-44110 |
No Longer Available
Replaced by 62902-44111
|
|
21 |
EXHAUST VALVE |
62902-44120 |
No Longer Available
Replaced by 62902-44121
|
|
22 |
VALVE SPRING |
62901-44130 |
Internet Price: $1.95
|
|
23 |
RETAINER |
62901-44140 |
No Longer Available
Replaced by 62908-44140
|
|
24 |
ROCKER ARM ASSY. |
62907-44010 |
Internet Price: $18.95
|
|
25 |
ROCKER ARM |
62901-44210 |
Internet Price: $16.95
|
|
26 |
ADJUST SCREW |
62907-44220 |
Internet Price: $1.95
|
|
27 |
NUT |
62901-44231 |
Internet Price: $0.95
|
|
28 |
ROLLER |
12492-50310 |
Internet Price: $0.95
|
|
29 |
ROCKER ARM COVER |
62901-44241 |
No Longer Available
Replaced by A137000020
|
|
30 |
GASKET |
62901-44250 |
No Longer Available
Replaced by V109000120
|
|
31 |
BOLT, SW |
11022-04120 |
Internet Price: $0.95
|
|
32 |
CLUTCH SET |
62901-51011 |
Internet Price: $26.95
|
|
33 |
CLUTCH SHOE ASSY. SET |
62901-51021 |
No Longer Available
Replaced by A056000530
|
|
35 |
CLUTCH SPRING |
70140-51220 |
No Longer Available
Replaced by A566000200
|
|
36 |
BOLT |
20087-51210 |
No Longer Available
Replaced by A557000040
|
|
37 |
SPRING PLATE |
20087-51231 |
Internet Price: $0.95
|
|
38 |
WASHER |
22100-71430 |
Internet Price: $0.95
|
|
40 |
PISTON RINGS |
62902-41120 |
Internet Price: $3.95
|
|
41 |
PISTON |
62902-41110 |
Internet Price: $20.95
|
|
42 |
PISTON PIN |
62901-41210 |
Internet Price: $2.95
|
|
43 |
SNAP RING |
20000-41320 |
Internet Price: $0.95
|
|
44 |
NEEDLE BEARING |
62901-41230 |
Internet Price: $5.95
|
|
45 |
THRUST WASHER |
37019-41240 |
Internet Price: $1.95
|
 |
| No |
Description
|
Part No
|
Order
|
| 1 |
ROTOR |
62905-71110 |
Internet Price: $27.95
|
| 2 |
KEY |
02403-03100 |
No Longer Available
Replaced by 12408-03100
|
| 3 |
NUT |
20035-71220 |
Internet Price: $0.95
|
|
4 |
COIL ASSY. |
62905-71310 |
Internet Price: $47.95
|
| 5 |
COIL |
62905-71310 |
Internet Price: $47.95
|
| 6 |
SPRING, PLUG |
62905-71320 |
Internet Price: $1.95
|
| 7 |
LEAD WIRE CABLE |
14350-02001 |
Internet Price: $1.95
|
| 8 |
GROMMET |
62901-71310 |
Internet Price: $0.95
|
| 9 |
INSULATOR |
70030-71620 |
Internet Price: $0.95
|
| 10 |
BOLT, SW |
11024-04265 |
Internet Price: $1.95
|
| 11 |
SPARK PLUG |
80966 |
No Longer Available
Replaced by CMR5H
|
 |
| No |
Description
|
Part No
|
Order
|
| 1 |
RECOIL STARTER ASSY. |
62901-75012 |
No Longer Available
Replaced by A051001491
|
| 3 |
REEL |
62901-75120 |
Internet Price: $4.95
|
| 4 |
RECOIL SPRING |
70064-75130 |
No Longer Available
Replaced by A504000050
|
| 5 |
DOG |
62901-75310 |
No Longer Available
Replaced by A518000020
|
| 6 |
WAVE WASHER |
70064-75150 |
Internet Price: $0.95
|
| 7 |
SCREW |
72933-75160 |
Internet Price: $1.95
|
| 8 |
RETAINER |
72933-75170 |
Internet Price: $1.95
|
| 9 |
WASHER |
72933-75180 |
Internet Price: $1.95
|
| 10 |
ROPE |
32004-75140 |
No Longer Available
Replaced by 70064-75190
|
| 11 |
KNOB |
32004-75150 |
Internet Price: $2.95
|
| 12 |
STARTER PULLEY |
70064-75310 |
Internet Price: $3.95
|
| 13 |
NUT |
01511-08051 |
Internet Price: $0.95
|
| 14 |
BOLT, SLPW |
11024-04160 |
No Longer Available
Replaced by V202000300
|
| 15 |
LABEL, TRADE |
19420-00070 |
Internet Price: $2.95
|
 |
| No |
Description
|
Part No
|
Order
|
| 1 |
CABURETOR ASSY. |
60908-98310 |
No Longer Available
Replaced by 62908-81011
|
| 2 |
THROTTLE VALVE SET |
60908-98320 |
Internet Price: $29.95
|
| 3 |
PLUG |
62074-81320 |
Internet Price: $0.95
|
| 4 |
SWIVEL |
72933-81450 |
Internet Price: $3.95
|
| 5 |
WASHER |
20089-81185 |
Internet Price: $1.95
|
| 6 |
E-RING |
20036-81195 |
Internet Price: $0.95
|
| 7 |
SCREW |
70064-81290 |
Internet Price: $0.95
|
| 8 |
PUMP BODY ASSY. |
37013-81350 |
Internet Price: $30.95
|
| 9 |
PUMP BASE COMP. BASE |
20016-81420 |
Internet Price: $10.95
|
| 10 |
PUMP COVER |
20016-81510 |
No Longer Available
Replaced by 12314205560
|
| 11 |
PRIMER PUMP |
20036-81670 |
No Longer Available
Replaced by 188-12-1
|
| 12 |
SCREW |
20016-81140 |
Internet Price: $1.95
|
| 13 |
O-RING |
20016-81250 |
No Longer Available
Replaced by 90072000015
|
| 14 |
MAIN JET #36.5 |
60084-98320 |
Internet Price: $3.95
|
| 15a |
MAIN JET #35.5 |
60084-98330 |
Internet Price: $3.95
|
| 15b |
MAIN JET #34.5 |
60908-98350 |
Internet Price: $3.95
|
| 16 |
GASKET SET KIT |
60902-98030 |
Internet Price: $36.95
|
| 17 |
VALVE SET KIT |
60908-98360 |
Internet Price: $22.95
|
| 18 |
GASKET |
62901-81211 |
No Longer Available
Replaced by V103001140
|
| 19 |
AIR FILTER BASE ASSY. |
62905-82010 |
Internet Price: $7.95
|
| 20 |
FILTER |
62902-82120 |
No Longer Available
Replaced by A226001470
|
| 21 |
CLEANER COVER ASSY. |
62902-82030 |
Internet Price: $14.95
|
| 22 |
CLEANER COVER ASSY. |
62902-82030 |
Internet Price: $14.95
|
| 23 |
CLEANER COVER |
62901-82131 |
Internet Price: $4.95
|
| 24 |
SCREW, PM SW |
11203-05605 |
Internet Price: $1.95
|
| 25 |
WASHER |
01613-05080 |
No Longer Available
Replaced by 90060300005
|
| 27 |
PIN |
22100-81250 |
Internet Price: $1.95
|
| 28 |
SCREEN |
70030-81380 |
No Longer Available
Replaced by 12312610631
|
| 29 |
SCREW |
20016-81450 |
Internet Price: $1.95
|
| 30 |
NEEDLE VALVE |
20036-81440 |
Internet Price: $5.95
|
| 31 |
SPRING |
72933-81270 |
Internet Price: $1.95
|
| 32 |
LEVER |
22100-81230 |
Internet Price: $1.95
|
| 33 |
GASKET, PUMP |
70097-81310 |
Internet Price: $2.95
|
| 34 |
DIAPHRAGM |
70097-81320 |
Internet Price: $3.95
|
| 35 |
GASKET, PUMP |
20016-81280 |
No Longer Available
Replaced by 12314005560
|
| 36 |
DIAPHRAGM |
37013-81310 |
Internet Price: $15.95
|
| 37 |
O-RING |
70097-81220 |
Internet Price: $1.95
|
 |
| No |
Description
|
Part No
|
Order
|
| 1 |
FUEL TANK ASSY. |
62903-85310 |
Internet Price: $49.95
|
| 3 |
FUEL CAP ASSY. |
70168-85201 |
No Longer Available
Replaced by A033000330
|
| 9 |
GASKET |
20000-85221 |
No Longer Available
Replaced by V107000010
|
| 10 |
FUEL PIPE |
62901-85310 |
Internet Price: $1.95
|
| 11 |
FUEL FILTER |
20016-85400 |
No Longer Available
Replaced by A369000070
|
| 12 |
GROMMET |
20144-85350 |
Internet Price: $3.95
|
| 13 |
VALVE |
22197-33960 |
Internet Price: $6.95
|
| 14 |
JOINT |
72933-85620 |
No Longer Available
Replaced by V186000210
|
| 15 |
PIPE |
20112-85360 |
No Longer Available
Replaced by 20112-85361
|
| 16 |
CLIP |
20020-85540 |
No Longer Available
Replaced by V490000500
|
| 17 |
CLIP |
37013-85310 |
No Longer Available
Replaced by V346000050
|
| 18 |
TANK CUSHION |
62901-85220 |
Internet Price: $0.95
|
| 19 |
TANK GUARD PROTECTOR |
62902-85320 |
No Longer Available
Replaced by 70135-86130
|
| 20 |
BOLT, SPW |
11022-05200 |
Internet Price: $0.95
|
 |
| No |
Description
|
Part No
|
Order
|
| 1 |
OUTER PIPE COMP. |
63904-62010 |
Internet Price: $55.95
|
| 2 |
BUSHING |
22035-12120 |
No Longer Available
Replaced by 22035-12121
|
| 3 |
GRIP |
63901-62140 |
Internet Price: $6.95
|
| 5 |
HANGER |
22410-12210 |
No Longer Available
Replaced by C670000070
|
| 6 |
BOLT |
01020-05120 |
Internet Price: $0.95
|
| 7 |
NUT |
01500-05041 |
Internet Price: $0.95
|
| 8 |
THROTTLE LEVER ASSY. |
63904-62020 |
Internet Price: $49.95
|
| 9 |
BODY, RIGHT |
72549-62320 |
Internet Price: $7.95
|
| 10 |
BODY, LEFT |
63002-62330 |
Internet Price: $7.95
|
| 11 |
LEVER |
63002-62340 |
No Longer Available
Replaced by C450000480
|
| 12 |
LOCK LEVER |
63901-62352 |
Internet Price: $2.95
|
| 13 |
HOLDER |
63002-62350 |
No Longer Available
Replaced by C461000020
|
| 14 |
COIL SPRING |
63880-65350 |
No Longer Available
Replaced by V452000700
|
| 15 |
COIL SPRING |
63901-62370 |
Internet Price: $0.95
|
| 16 |
SWITCH |
63901-62380 |
Internet Price: $16.95
|
| 17 |
SCREW, TAPPING |
63880-65360 |
Internet Price: $0.95
|
| 18 |
SCREW, PM SPW |
11206-05201 |
Internet Price: $0.95
|
| 19 |
NUT |
01501-05030 |
Internet Price: $0.95
|
| 20 |
PLUG |
63880-65411 |
Internet Price: $0.95
|
| 21 |
BUTTON |
70871-65170 |
Internet Price: $0.95
|
| 22 |
COIL SPRING |
70871-65180 |
Internet Price: $0.95
|
| 23 |
THROTTLE CABLE |
63901-62173 |
Internet Price: $4.95
|
| 24 |
MAINSHAFT |
22070-12410 |
No Longer Available
Replaced by C504000500
|
| 25 |
LABEL, INST |
19401-00269 |
Internet Price: $0.95
|
| 26 |
TUBE |
63901-62440 |
Internet Price: $1.95
|
| 27 |
LABEL, TRADE |
19420-00084 |
Internet Price: $2.95
|
| 28 |
LABEL, CAUTION |
19422-00029 |
Internet Price: $1.95
|
 |
| No |
Description
|
Part No
|
Order
|
| 1 |
GEARCASE SUB ASSY. |
63908-63020 |
Internet Price: $91.95
|
| 3 |
BEARING |
02006-00626 |
Internet Price: $5.95
|
| 4 |
BEARING |
02000-06000 |
Internet Price: $4.95
|
| 5 |
OIL SEAL |
22035-13140 |
No Longer Available
Replaced by V509000000
|
| 6 |
SNAP RING |
02432-26120 |
No Longer Available
Replaced by 9242426000
|
| 7 |
BOLT |
01014-06100 |
Internet Price: $0.95
|
| 8 |
GASKET |
22000-13410 |
Internet Price: $0.95
|
| 9 |
GEAR SHAFT |
22410-13210 |
No Longer Available
Replaced by C534000680
|
| 10 |
BEVEL GEAR |
22035-13220 |
Internet Price: $12.95
|
| 11 |
COLLAR |
22035-13230 |
No Longer Available
Replaced by V356000480
|
| 12 |
PINION SET |
22035-13391 |
Internet Price: $16.95
|
| 13 |
BEARING |
02000-00608 |
Internet Price: $3.95
|
| 14 |
BEARING |
02002-00608 |
Internet Price: $9.95
|
| 15 |
SNAP RING |
22035-13340 |
Internet Price: $0.95
|
| 16 |
SNAP RING |
02432-22100 |
Internet Price: $0.95
|
| 17 |
BOLT, SPW |
11022-05160 |
Internet Price: $0.95
|
| 18 |
BOLT, SPW |
11022-05350 |
Internet Price: $1.95
|
| 19 |
SHIM |
22000-13420 |
Internet Price: $0.95
|
| 21 |
HOLDER A |
22035-13242 |
No Longer Available
Replaced by C535000510
|
| 22 |
HOLDER B |
22410-13251 |
No Longer Available
Replaced by C535000520
|
| 23 |
BOLT GUARD PROTECTOR |
22035-13290 |
No Longer Available
Replaced by C535000530
|
| 24 |
BOLT |
22035-13271 |
No Longer Available
Replaced by V216000040
|
| 25 |
SLIDE CLIP |
22410-13530 |
Internet Price: $1.95
|
| 26 |
LOWER CLAMP |
72480-16130 |
No Longer Available
Replaced by C551000150
|
| 27 |
WASHER |
01613-05080 |
No Longer Available
Replaced by 90060300005
|
| 28 |
NUT |
01500-05041 |
Internet Price: $0.95
|
 |
| No |
Description
|
Part No
|
Order
|
| 1 |
HANDLE ASSY. |
60904-98310 |
Internet Price: $20.95
|
| 2 |
HANDLE |
62901-64113 |
Internet Price: $21.95
|
| 3 |
BARRIER |
65011-64120 |
Internet Price: $2.95
|
| 4 |
BOLT, SPW |
11022-05350 |
Internet Price: $1.95
|
| 5 |
NUT |
22420-16120 |
No Longer Available
Replaced by V263000130
|
 |
| No |
Description
|
Part No
|
Order
|
| 1 |
GUARD SET PROTECTOR |
62042-66320 |
No Longer Available
Replaced by 62903-66321
|
| 2 |
GUARD ASSY. PROTECTOR |
62042-66310 |
No Longer Available
Replaced by 81090
|
| 3 |
GUARD |
62042-66110 |
No Longer Available
Replaced by 81090
|
| 4 |
CUTTER |
72480-16121 |
No Longer Available
Replaced by C554000040
|
| 6 |
BOLT, SW |
11020-05220 |
Internet Price: $0.95
|
| 7 |
NUT |
22420-16120 |
No Longer Available
Replaced by V263000130
|
| 8 |
UPPER CLAMP |
72480-16210 |
No Longer Available
Replaced by C551000060
|
| 9 |
SPACER |
72480-16220 |
Internet Price: $1.95
|
| 10 |
BOLT, SPW |
11022-05450 |
Internet Price: $1.95
|
| 11 |
STRAP ASSY |
22421-17202 |
Internet Price: $14.95
|
| 12 |
HOOK |
22421-17130 |
Internet Price: $2.95
|
| 13 |
PROTECTOR |
22007-17220 |
No Longer Available
Replaced by 72451-17330
|
 |
| No |
Description
|
Part No
|
Order
|
| 1 |
TOOL SET |
62901-92010 |
Internet Price: $8.95
|
| 2 |
SPANNER |
22000-91120 |
Internet Price: $1.95
|
| 3 |
PLUG WRENCH |
22580-91180 |
Internet Price: $4.95
|
| 5 |
HEX WRENCH, 4MM |
09026-04001 |
Internet Price: $0.95
|
| 6 |
TOOLBAG |
19639-01400 |
No Longer Available
Replaced by 19639-01100
|
