Echo SRM-210 Parts Diagram

  Echo Parts

Search for OEM Echo Parts

We are an Authorized Echo dealer carrying a large selection of Echo SRM-210 Trimmer Parts. If you do not see the Echo SRM-210 Parts you need,  please complete the Lawn Mower Parts Request Form and we will be happy to assist you.

Echo Illustrated Parts Diagrams

Model Serial Numbers
SRM-210 08001001 - 08999999

No Description Part No Internet Price Order
1
Cylinder Cover A160000570 $10.99
2
TOP GUARD A162000050 $3.99
3
SCREW SMB 5X16 90023805016 $0.39
4
BOLT, HSH 90016304016 $0.59
5
BOLT 9110704008 $0.39

No Description Part No Internet Price Order
1
WING STUD 21041752730 $0.99
2
Cleaner Lid 13031306563 $4.99
3
Air Cleaner Lid (black) 13031305863 $4.99
4
HEAVY DUTY AIR FILTER ELEMENT 13031054130 -- ECHO 13031054130 Replaced By Echo A226001410


Price: $5.99


5
PREVENT PLATE 12901152730 $2.99
6
Screw 90022005065 $0.99
7
AIR CLEANER CASE P021000991 $6.49
8
Air Cleaner Case Assembly P021004480 -- Echo P021004480 Replaced By Echo P021049750


Price: $7.99


9 See Carburetor Diagram For Additional Information
10
Intake Gasket 13001013410 $1.99
11
INSULATOR 13001744330 -- ECHO 13001744330 Replaced By ECHO P021015350


Price: $2.99


12
Screw Smb 5X20 90023805020 $0.99
13
NUT 5 MM 90050000005 $0.99
14
INTAKE GASKET 13001042032 $1.99

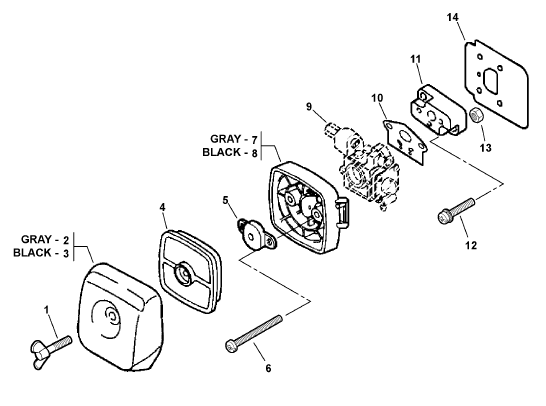

Carburetor -- RB-K75

No Description Part No Internet Price Order
--
CARBURETOR A021000740 -- ECHO A021000740 Replaced By Zama RB-K75


Price: $58.99


1
ROTOR ASSEMBLY P005001320 $21.49
2
SCREW 12534413931 $1.79
3
SCREW, METERING COVER 12534452130 $0.59
4
CABLE ADJUST SCREW P005001330 $2.59
5
SWIVEL P005001240 -- ECHO P005001240 Replaced By ECHO P005002090


Price: $3.39


6
E-RING P005000190 $0.49
7
TAS P005000100 $3.59
8
O-Ring P005000280 $2.99
9 NOT AVAILABLE SEPARATELY
10
HIGH SPEED NEEDLE PLUG P005001270 $0.99
11
HIGH SPEED NEEDLE P005001260 $3.99
12
PRIMER BASE ASSEMBLY P005000930 -- ECHO P005000930 Replaced By ZAMA A056093


13
Screw P005000270 $1.99
14
PURGE BULB PUMP 12538108660 -- ECHO 12538108660 Replaced By Zama 0057030


Price: $2.99


15
RETAINER P005000250 $1.49
16
SCREW 12531061830 -- ECHO 12531061830 Replaced By ECHO P005001900


Price: $0.49


17
METERING COVER 12534252130 -- ECHO 12534252130 Replaced By ECHO 12534213210


Price: $3.59


18
SCREW, METERING COVER 12534452130 $0.59
19
SCREW 12533942030 $0.59
20
INCLUDES ITEMS 21-30
REBUILD KIT P005001670 -- ECHO P005001670 Replaced By ZAMA RB-123


Price: $10.99


21
GUIDE ROLLER P005001000 $1.19
22 --
23 --
24 --
25 --
26 --
27 --
28 --
29 --
30 --
31
INCLUDES ITEMS 32-35
GASKET/DIAPHRAGM KIT P005001660 -- ECHO P005001660 Replaced By ZAMA GND-66


Price: $5.99


32 --
33 --
34 --
35 --
No Description Part No Internet Price Order
1
EXHAUST GASKET V104000500 $7.09
2
Muffler 14580642030 $33.99
3
MUFFLER SCREEN 14586240630 $1.29
4
Hex Bolt 5 X 55 90010505055 $1.99
5
Washer 5 Mm 90060000005 $0.99
6
Muffler Gasket 14586642031 $2.99
7
EXHAUST GUIDE A313000350 $4.79
8
Screw 4 X 10 90024204010 $0.99

No Description Part No Internet Price Order
1
INCLUDES ITEMS 2-4
Starter Pulley Assembly A052000180 $6.99
2
E-Ring P022002100 $0.99
3
PAWL RETURN SPRING P022006510 -- ECHO P022006510 Replaced By Echo 17723412220


Price: $2.99


4
STARTER PAWL P022006850 $2.39
5
INCLUDES ITEMS 6-14
RECOIL STARTER A051000680 -- ECHO A051000680 Replaced By Echo A051000681


Price: $31.99


6
SCREW 17723661830 $1.99
7
CAM PLATE P022008280 $0
No Longer Available

8
DAMPER SPRING P022008270 $6.99
9
DRUM P022006830 $6.79
10
ROPE, STARTER P022008260 $3.79
11
ROPE GUIDE 17722742030 $1.69
12
STARTER GRIP 17722827030 $4.29
13
STARTER ROPE CLIP 17724611120 $1.09
14
REWIND SPRING 17722042030 $8.09
15
BOLT, HSH 90016304016 $0.59
No Description Part No Internet Price Order
1
FUEL TANK A350000290 -- ECHO A350000290 Replaced By Echo A350000690


Price: $21.99


2
WASHER 5 90060300005 $0.99
3
BOLT 5X20 90016205020 $0.99
4
INCLUDES ITEMS 5-6
FUEL CAP ASSEMBLY 13100455530 $4.99
5
Cap Connector 13105156030 $0.99
6
Fuel Cap Gasket 13101655830 $0.99
7
Fuel Grommet V137000030 -- Echo V137000030 Replaced By Echo 13211546730


Price: $1.99


8
Fuel Filter 13120507320 -- Echo 13120507320 Replaced By Echo A369000480


Price: $3.99


9
Fuel Line Clip 13201309820 $0.99
10
3X5X180 Fuel Pipe V471001190 $1.99
11
3x5x70mm Fuel Pipe V471001200 $1.99
12
Currently Unavailable

0
13
PIPE 3X6X80 13201256030 -- ECHO 13201256030 Replaced By Echo 13201056330


Price: $1.99


No Description Part No Internet Price Order
1
INCLUDES ITEMS 2-4
HOLDER KIT 61090355230 $13.09
2
BOLT 5 X 25 90014205025 $0.59
3
HOLDER 61092227432 $4.09
4
HOLDER 61092355230 $5.39
5
CUSHION 61091055230 $4.99
6
Fan Cover Assembly 10150352131 $46.49
7
BOLT, HSH 90016304016 $0.59
8
PIN, STRAIGHT 4 V622000020 $0.49
9
CIRCLIP 90070100012 $0.99
10
BEARING BALL 90080796001 $9.19
11
CIRCLIP 90070200028 $0.99
12
CLUTCH DRUM 17500548931 $9.99
13
CLUTCH ASSEMBLY 17500056830 -- ECHO 17500056830 Replaced By ECHO 17500056831


Price: $19.49


No Description Part No Internet Price Order
1
IGNITION COIL A411000140 $51.49
2
BOLT 4 X 20 90016204020 $0.89
3
TUBE, IGNITION LEAD 15611054930 $1.19
4
GROMMET 15611240630 $0.99
5
SPARK PLUG CAP 15901201620 $1.09
6
SPARK PLUG CAP COIL 15901103432 $0.99
7
SPARK PLUG 15901019830 -- ECHO 15901019830 Replaced By NGK BPM8Y


Price: $4.99


8
SPARK PLUG BPMR-8Y A425000000 -- ECHO A425000000 Replaced By NGK BPMR8Y


Price: $2.99


9
FLYWHEEL A409000210 $38.89
10
Use 16202152830 16201052830 -- Echo 16201052830 Replaced By ECHO V485001080


Price: $2.69


No Description Part No Internet Price Order
1
INCLUDES ITEM 2-17
ENGINE SHORT BLOCK 200 TO 211 SER SB1072 $108.79
2
Cylinder A130000540 $55.99
3
BOLT 5X22 90016205022 $0.59
4
Cylinder Gasket V100000160 $4.99
5
INCLUDES ITEMS 6-9
Piston Assembly P021007712 $35.79
6
Piston Ring A101000090 $6.99
7
PISTON PIN 10001311520 $4.99
8
PISTON PIN CIRCLIP 10001504630 $0.39
9
PISTON PIN SPACER 10001411520 $2.29
10
INCLUDES ITEM 11
CRANKSHAFT ASSEMBLY A011000101 $110.39
11
Needle Bearing V553000010 $7.99
12
INCLUDES ITEMS 13-17
CRANKCASE KIT 10020452132 $98.19
13
Oil Seal 10021242031 $3.99
14
PIN, STRAIGHT 4 V622000020 $0.49
15
Ball Bearing 9403536201 $5.99
16
CRANKCASE GASKET 10024242030 $0.99
17
S.H. BOLT 90016205028 $1.29
No Description Part No Internet Price Order
1
INCLUDES ITEMS 2-7
ASSEMBLY, SHIELD P021001392 -- ECHO P021001392 Replaced By ECHO P021001393


Price: $10.49


2
BLADE SHIELD C550000031 -- ECHO C550000031 Replaced By ECHO C550000032


Price: $3.79


3
Screw Smb 5X20 90023805020 $0.99
4
SHIELD BRACKET C552000110 -- ECHO C552000110 Replaced By ECHO C552000240


Price: $1.79


5
CUTTER 69901644330 $2.59
6
SCREW SMB 5X16 90023805016 $0.39
7
NUT 5 MM 90050000005 $0.99

Gear Case S/N: 08001001 - 08075194

No Description Part No Internet Price Order
1
INCLUDES ITEMS 2-20
CASE ASSEMBLY, GEAR 61040247732 -- ECHO 61040247732 Replaced By ECHO 61040247733


Price: $111.19


2
GEAR SET 61030044830 $63.19
3
Circlip 90070600010 $0.99
4
CIRCLIP 90070200022 $1.29
5
BALL, BEARING 6900 90085806900 $16.19
6
BALL BEARING 6900 90085506900 $13.09
7
ADAPTER PLATE 61031347731 $6.79
8
OIL SEAL 61041307130 $3.99
9
Spacer 61031507130 $2.99
10
CIRCLIP 90070200032 $1.29
11
Ball Bearing 9403536201 $5.99
12
Pto Shaft 61036008931 $43.99
13
BALL BEARING 90080000609 $6.89
14
CIRCLIP 90070600012 $0.89
15
SHIM WASHER 61023904130 $0.59
16
GEAR HOUSING 61046027431 $41.69
17
SCREW 5X10 90024205010 $0.59
18
Bolt 8 X 8 61043450031 $0.99
19
BOLT 5 X 35 90010005035 $0.59
20
Washer 5 Mm 90060000005 $0.99


Gear Case S/N: 08075195 - 08467771

No Description Part No Internet Price Order
1
INCLUDES ITEMS 2-18
GEAR CASE ASSEMBLY P021008180 -- Echo P021008180 Replaced By Echo P021008182


Price: $66.99


2
GEAR SET 61030044830 $63.19
3
Circlip 90070600010 $0.99
4
CIRCLIP 90070200022 $1.29
5
BALL BEARING 9406306900 -- ECHO 9406306900 Replaced By ECHO 90085806900


Price: $16.19


6
BALL BEARING 9406006900 -- ECHO 9406006900 Replaced By ECHO 90085506900


Price: $13.09


7
BLADE FIXTURE C535000210 $8.99
8
CIRCLIP 90070200032 $1.29
10
BALL BEARING 90081206201 $8.79
11
Gear Shaft C534000270 $47.99
12
Ball Bearing 9406000609 $6.99
13
SHIM WASHER 61023904130 $0.59
14
Gear Case C531000310 -- Echo C531000310 Replaced By ECHO C531000312


Price: $47.39


15
SCREW 5X10 90024205010 $0.59
16
Bolt 8 X 8 61043450031 $0.99
17
BOLT 5 X 35 90010005035 $0.59
18
Washer 5 Mm 90060000005 $0.99

Gear Case S/N: 08467772 - 08999999

No Description Part No Internet Price Order
1
INCLUDES ITEMS 2-18
GEAR CASE ASSEMBLY P021008181 -- ECHO P021008181 Replaced By Echo P021008182


Price: $66.99


2
GEAR SET 61030044830 $63.19
3
Circlip 90070600010 $0.99
4
CIRCLIP 90070200022 $1.29
5
BALL BEARING 9406306900 -- ECHO 9406306900 Replaced By ECHO 90085806900


Price: $16.19


6
BALL BEARING 9406006900 -- ECHO 9406006900 Replaced By ECHO 90085506900


Price: $13.09


7
BLADE FIXTURE C535000210 $8.99
8
CIRCLIP 90070200032 $1.29
9
WASHER V340000180 $1.09
10
BALL BEARING 90081206201 $8.79
11
Gear Shaft C534000270 $47.99
12
Ball Bearing 9406000609 $6.99
13
SHIM WASHER 61023904130 $0.59
14
Gear Case C531000310 -- Echo C531000310 Replaced By ECHO C531000312


Price: $47.39


15
SCREW 5X10 90024205010 $0.59
16
Bolt 8 X 8 61043450031 $0.99
17
BOLT 5 X 35 90010005035 $0.59
18
Washer 5 Mm 90060000005 $0.99

No Description Part No Internet Price Order
1
INCLUDES ITEMS 2-7
HOUSING ASSEMBLY, DRIVE SHAFT 61060944730 $36.69
2
STOPPER 61024644730 $0.89
3
FLEXIBLE LINER 61021744730 -- ECHO 61021744730 Replaced By ECHO C507000260


Price: $17.89


4
LABEL, CAUTION 89022809560 $0.59
5
CAUTION LABEL 89016054130 $1.09
6
CAUTION LABEL X505001930 $0.89
7
CAUTION LABEL 89015204930 $0.59
8
Flex Shaft 61001344730 -- Echo 61001344730 Replaced By Echo C506000390


Price: $12.99


9
LABEL, CAUTION 89031749030 $6.39

No Description Part No Internet Price Order
1
INCLUDES ITEMS 2-4
Throttle Bracket Set 17800352130 $4.99
2
SCREW 5 X 35 90024205035 $0.59
3
SCREW 5 X 25 90024205025 $0.39
4
NUT 5 MM 90050000005 $0.99
5
INCLUDES ITEM 6
BAND 30120029430 -- ECHO 30120029430 Replaced By Echo 30120029431


Price: $6.99


6
SCREW 5X14 90024205014 $0.39
7
Throttle Control 17801052130 $2.99
8
Throttle Cable V430000730 $5.99
9
TUBE 17812750330 $0.89
10
Throttle Return Spring 17804342230 $0.99
11
Throttle Latch 17801252730 $3.99
12
THROTTLE TRIGGER LOCKOUT LEVER 17809052631 -- ECHO 17809052631 Replaced By ECHO 17809052632


Price: $1.59


13
THROTTLE SPRING LOCK 17801352630 $1.59
14
INCLUDES ITEMS 15-17
On-Off Switch 16340155631 $6.99
15
SCREW 9154503010 $0.39
16
KNOB, SWITCH 16341049231 $2.69
17
STOP DECAL 89015712330 $1.29
18
HANDLE GRIP 35121352130 $6.99
19
INCLUDES ITEMS 20-21
BAND 61027252130 $6.99
20
Screw 5X28 90024205028 $0.99
21
NUT 5 MM 90050000005 $0.99
No Description Part No Internet Price Order
1
INCLUDES ITEMS 2-9
FRONT HANDLE ASSEMBLY P021000021 $29.19
2
SCREW 5 X 35 90024205035 $0.59
3
HANDLE GRIP 35121666230 $2.29
4
FRONT HANDLE 35120566230 $3.09
5
HANDLE BRACKET 35123266230 $3.69
6
Washer 5 Mm 90060000005 $0.99
7
Tapping Screw 5X20 90025305020 $1.99
8
USE C423000300 35122507130 -- ECHO 35122507130 Replaced By Echo C423000300


Price: $1.99


9
NUT 5 MM 90050000005 $0.99
10
BARRIER BAR 99944200455 $10.95

No Description Part No Internet Price Order
1
CHOKE LABEL 89012152730 $0.89
2
CHOKE LABEL - CANADA MODELS 89033252730 $0.89
3
LABEL, CAUTION I.S.O. 89016006361 -- ECHO 89016006361 Replaced By Echo X505002310


Price: $1.99


4
i-30 LABEL X502000150 -- ECHO X502000150 Replaced By ECHO X502000330


Price: $0.39


5
Label, Bpm-8Y X532000671 $0.99
6
LABEL (BPMR-8Y) X532000720 $0.69
7
REPLACED BY X547000280 X543000170 -- ECHO X543000170 Replaced By ECHO X547000280


Price: $0.39


8
MODEL LABEL X543000180 $1.79
9
MODEL LABEL X543000190 $3.29
10
MODEL LABEL X503001290 $1.69
11
MODEL LABEL X503001580 $2.39
12
MODEL LABEL X503001690 -- ECHO X503001690 Replaced By ECHO X547000310


Price: $1.79


No Description Part No Internet Price Order
1
WRENCH, BOX 17 X 19 89541010630 $8.09
2
Wrench W/screw Driver X602000020 $2.99
3
WRENCH 89541039131 -- ECHO 89541039131 Replaced By Echo 89541039132


Price: $3.99


4
WRENCH 89541006960 $5.39
5
TOOL, WRENCH X602000031 $1.49
6
Fitting Tool 89751801131 $1.99
7
WRENCH 8 X 10 89511200330 $3.09
8
WRENCH 17 X 19 89512220960 $12.89
9
OPEN END WRENCH 10 89501505260 $0.89
10
TOLL, BAR 89541220960 $12.89
11
3 MM WRENCH 89561203430 $1.79
12
4 MM WRENCH 89561000130 $0.89
13
5 MM WRENCH 89561100330 $1.59
14
L WRENCH TOOL X605000050 $3.79
15
SCREWDRIVER 125 MM 89581100130 $2.89
16
SCREWDRIVER 89581203930 $2.89
Accessories and Cutting Heads
No Description Part No Internet Price Order
--
U-HANDLE KIT 35130454230 $99.99
--
Srm And Pas Shoulder Strap Kit 99944200200 $22.99
--
BLADE CONVERSION KIT 99944200411 -- ECHO 99944200411 Replaced By ECHO 99944200422


Price: $75.95


--
BLADE CONVERSION KIT 99944200415 -- ECHO 99944200415 Replaced By ECHO 99944200418


Price: $74.98


--
BARRIER BAR 99944200455 $10.95
--
COMBINATION OFFSET U-HANDLE / BLADE CONVERSION KIT 99944200521 $0
No Longer Available

--
Tiller Cultivator Attachment SRAC-200 $199.99
--
SRM ECHOMATIC PRO TRIMMER HEAD 21560030 -- ECHO 21560030 Replaced By Echo 21560031


Price: $29.99


--
SRM Trimmer Head (Pro) 21560031 $29.99
--
SRM AUTO HEAD (2 LINE) SEMI-AUTO 21560050 -- ECHO 21560050 Replaced By Echo 21560070


Price: $37.99


--
Rapid Loader 2-Line Trimmer Head - Maximum .130 Line 21560056 $33.99
--
Srm Manual Trimmer Head (2 Line) Echo Srm 21.2 Cc And Up 21560060 -- Echo 21560060 Replaced By Echo 21560065


Price: $29.99


--
U-Turn, Tap-N-Go Trimmer Head 99944200900 $29.95
--
GASKET KIT P021008260 $22.29
--
Repower Tune-Up Kit 90074 -- Echo 90074 Replaced By Echo EC90152


Price: $11.99
