Shindaiwa EB8510 and EB8510RT Blower Illustrated Parts Diagram

Shindaiwa Parts

Search for OEM Shindaiwa Parts

Shindaiwa EB8510 and EB8510RT Blower Parts
Shindaiwa EB8510 and EB8510RT Parts available at LawnMowerPros. We are an Authorized Shindaiwa dealer carrying a large selection of Shindaiwa EB8510 and EB8510RT Parts ready to ship direct to your door.  The following are the most popular Shindaiwa EB8510 Parts.  If you do not see the Shindaiwa Parts you need,  please complete the Lawn Mower Parts Request Form and we will be happy to assist you.

Shindaiwa Illustrated Parts Diagrams



No Description Part No Order
1 CYLINDER HEAD ASSEMBLY (1-2) 68900-11020
Price: $55.09


2 BOLT 01020-05220
No Longer Available

3 GASKET 68900-11260
Price: $4.89


4 BOLT 01020-06350
Price: $0.89


5 WASHER 11620-10001 Price: $0.69


6 ROCKER ARM COVER 68900-11270
Price: $10.99


7 GASKET 68900-11280
Price: $5.09


8 BOLT 01020-05140
Price: $0.69


9 CYLINDER 68900-12111 Price: $60.89


10 GASKET 68900-12121
Price: $2.39


11 BOLT 01020-06250
Price: $0.89


12 REED VALVE ASSEMBLY 68900-12310
Price: $27.79


13 GASKET 68900-12320
Price: $1.19


14 SCREW 01210-04140
Price: $0.69


15 INSULATOR 68900-12211
Price: $13.69


16 BAFFLE PLATE COMPLETE (16-17) 68900-12332
Price: $6.49


17 GASKET 68900-12220
Price: $2.99


18 BOLT SW 11022-05300
Price: $2.89


19 ROLLER 12492-40080
Price: $0.69


20 MUFFLER ASSEMBLY (20-23) 68900-15010
Price: $80.39


21 SCREEN 68900-15130
Price: $1.99


22 TAIL PLATE 68900-15160
Price: $4.09


23 SCREW 01210-05086
Price: $0.69


24 GASKET 68900-15210
Price: $8.99


25 GASKET 68900-15320
Price: $2.99


26 BOLT 01020-06355
Price: $1.59


27 BOLT 01020-06160
Price: $0.69


28 WASHER 01610-06080
Price: $0.99

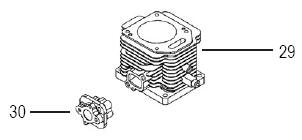

SPARE PARTS FOR PREVIOUS MODELS
29 CYLINDER 68900-12110
Price: $60.89


30 INSULATOR 68900-12210
Price: $13.69


No Description Part No Order
1 CRANKCASE S COMPLETE (1-3) 68900-21011 Price: $31.99


2 BEARING 12900-62020
Price: $5.99


3 OIL SEAL 12310-12000
Price: $6.99


4 CRANKCASE M COMPLETE (4-7) 68900-21020 Price: $44.29


5 BEARING 02030-06303
Price: $9.89


6 OIL SEAL 12310-12000
Price: $6.99


7 ROLLER 12492-40080
Price: $0.69


8 BOLT 01020-05300
Price: $0.99


9 BOLT, ADHESIVE 11060-06400
Price: $1.39


10 COVER 68900-21310
Price: $1.59


11 BOLT SW 11024-04200
Price: $1.19


12 ENGINE COVER 68900-31110
Price: $29.29


13 GROMMET 68900-31310
Price: $5.09


14 BOLT PC 70140-31480
Price: $1.19


15 BOLT SLPW 11024-05140
Price: $0.69


16 ROLLER 12492-40080
Price: $0.69


17 BELT CASE 68900-32110
Price: $4.39


18 BELT COVER 68900-32120
Price: $4.69


19 BOLT SPW 11022-05120
Price: $0.99


20 LEAD WIRE 14395-09100
Price: $5.49


21 Trade Label 68900-91330 Price: $3.89


No Description Part No Order
1 INTAKE VALVE 68900-11210
Price: $10.79


2 EXHAUST VALVE 68900-11220
Price: $13.99


3 VALVE SPRING 68900-11230
Price: $2.39


4 RETAINER 68900-11240
Price: $9.39


5 VALVE KEEPER GUARD 68900-11250
Price: $1.59


6 CAM SHAFT 68900-13110
Price: $31.39


7 BEARING 02030-06001
Price: $6.59


8 OIL SEAL 62901-42260
Price: $4.49


9 ROCKER ARM 68900-13120
Price: $30.89


10 ROCKER ARM 68900-13130
Price: $30.89


11 ADJUST SCREW 68900-13140
Price: $1.39


12 NUT 62901-44231
Price: $0.69


13 ROLLER 12492-60350
Price: $1.19


14 BELT 68900-13150
Price: $34.59


15 CAM PULLEY 68900-13160
Price: $17.59


16 CRANK PULLEY 68900-13170
Price: $7.59


17 KEY 02403-03100
Price: $1.19


18 BOLT 01020-05140
Price: $0.69


19 WASHER 01612-00500
Price: $0.99


20 PISTON 68900-41110
Price: $28.89


21 PISTON RING 68900-41120
Price: $6.99


22 PISTON PIN 22169-41220
Price: $4.99


23 SNAP RING 22155-41230
Price: $0.69


24 BEARING 22155-41281
Price: $8.99


25 CRANKSHAFT 68900-42010
Price: $94.69


No Description Part No Order
1 FLYWHEEL 68900-71111
Price: $30.39


2 KEY 02403-03100
Price: $1.19


3 NUT 20035-71220
Price: $0.69


4 COIL ASSEMBLY 68900-71020
Price: $36.59


5 GROMMET 68900-71310 Price: $1.79


6 TUBE 68900-71320
Price: $0.69


7 PLUG CAP 62901-71250
Price: $3.49


8 SPARK PLUG SPRING 22154-72230
Price: $0.69


9 LEAD WIRE CABLE 14350-01701
Price: $1.69


10 BOLT SW 11024-04200
Price: $1.19


No Description Part No Order
1 RECOIL STARTER ASSEMBLY (1-10) 68900-75010
Price: $27.99


2 STARTER CASE 68900-75110
Price: $7.69


3 RECOIL SPRING 68900-75130
Price: $6.99


4 REEL 68900-75120
Price: $5.09


5 DOG 68900-75310
Price: $2.69


6 BRAKE SPRING 68900-75320
Price: $2.29


7 SCREW 68900-75330
Price: $2.39


8 RETAINER 68900-75340
Price: $1.99


9 ROPE 68900-75140
Price: $4.09


10 KNOB 68900-75150 Price: $3.59


11 STARTER PULLEY 68900-75210
Price: $4.89


12 NUT 01511-08051
Price: $0.49


13 BOLT SPW 11022-05200
Price: $0.69


14 LABEL TRADE 19420-00070
Price: $1.49



No Description Part No Order
1 CARBURETOR ASSEMBLY (1-25)  68900-81011
Price: $60.69


SCREEN 70030-81380
Price: $1.99


3 LEVER 22100-81230
Price: $4.99


4 PIN 22100-81250
Price: $0.59


SPRING 72933-81270
Price: $0.99


6 NEEDLE VALVE 20036-81440
Price: $8.59


7 SCREW 20016-81450
Price: $0.59


8 PUMP BASE COMPLETE 20016-81420
Price: $5.99


9 PUMP COVER 20016-81510
Price: $3.99


10 PRIMER PUMP 20036-81670
Price: $2.99


11 DIAPHRAGM 37013-81310
Price: $12.99


12 GASKET 20016-81280
Price: $2.99


13 DIAPHRAGM 70097-81320
Price: $8.99


14  PUMP GASKET 70097-81310
Price: $3.99


15 MAIN JET 68900-81330 Price: $6.19


16 O-RING 70097-81220
Price: $1.99


17  E-RING 20036-81195
Price: $0.89


18 SWIVEL CONNECTOR 72933-81450
Price: $1.29


19 SCREW 70097-81290
Price: $1.79


20  BRACKET 20089-81130
Price: $1.49


21  RING GASKET 72933-81250
Price: $2.99


22  SCREW 20016-81140
Price: $0.79


23  WASHER 20089-81185
Price: $0.59


24 CABLE ADJUSTER 20089-81110 Price: $2.99


25 NUT 20036-81120
Price: $0.99


26 GASKET 68900-81210
Price: $3.99


27  CLEANER BODY ASSEMBLY (27-33) 68900-82010
Price: $36.09


28 CHOKE PLATE 20018-81711
Price: $1.49


29 CHOKE LEVER 20870-82120
Price: $1.99


30 CHOKE SHAFT 20110-82140
Price: $2.99


31 SPRING WASHER 01600-06151
Price: $0.59


32 NUT 11524-06211
Price: $1.19


33  CONE WASHER 20024-81790
Price: $0.69


34 PLATE 68900-82311
Price: $3.19


35 FILTER 68900-82120
Price: $19.99


36 PRE FILTER 68900-82320
Price: $1.99


37  CLEANER COVER ASSEMBLY (37-39)  68900-82030
Price: $27.59


38 CLEANER COVER KNOB 22182-31220
Price: $4.99


39 COLLAR 23627-21220
Price: $0.99


40 BOLT 01020-05650
Price: $0.59


41 WASHER 01612-00500
Price: $0.99


42 BOLT 11024-05140
Price: $0.69


No Description Part No Order
1 FUEL TANK ASSEMBLY (1-19) 68900-85010
Price: $40.09


2 FUEL TANK 68206-85110
Price: $35.99


3 FUEL CAP ASSEMBLY (3-4) 68204-85020
Price: $6.09


4 GASKET 20000-85221
Price: $1.99


5 GROMMET 72933-85350
Price: $2.99


6 FUEL PIPE 68900-85310
Price: $1.89


7 FUEL FILTER ASSEMBLY (7-13) 22115-85401
Price: $7.99


FUEL LINE WEIGHT 22128-85410
Price: $7.99


FILTER 22128-85421
Price: $7.99


10 FILTER CLIP 22128-85440 Price: $1.19


11 SCREEN 22118-85460 Price: $1.09


12 SLEEVE 22128-85470 Price: $2.59


13  RING 22128-85480
Price: $7.99


14 CLIP 20020-85540
Price: $0.99


15 VALVE 20035-85522
Price: $4.99


16 PIPE 72935-85530
Price: $1.19


17 PIPE 68900-85320
Price: $1.19


18 JOINT 72933-85620
Price: $1.99


19 PIPE 68206-85330 Price: $0.69


20 CLIP 20020-85540
Price: $0.99


21 CLIP 37013-85310
Price: $0.69


22 CLIP 72935-85550
Price: $0.69


23 BOLT, ADHESIVE 11060-05140
Price: $1.19


24 COLLAR 15401-10010
Price: $0.69


25 Trade Label 68900-91320 Price: $4.09


26 FRAME 68206-86111
Price: $40.39


27 PAD 72935-86120
Price: $21.99


28 CLIP 72935-86130
Price: $0.99


29 SHOULDER STRAP ASSEMBLY (29-32) 68206-87010
Price: $17.99


30 SHOULDER STRAP 68206-87110
Price: $14.99


31 STRAP 72935-87120
Price: $3.39


32 BUCKLE 72451-17230
Price: $1.19


33 RING 72935-87310
Price: $1.49


34 LABEL, CAUTION 19402-00290
Price: $0.69


No Description Part No Order
1 VOLUTE CASE 68900-61110
Price: $45.99


2 CUSHION 68206-61320
Price: $9.99


3 FLANGE NUT 11526-06202
Price: $0.69


4 VOLUTE COVER 68900-61120
Price: $46.99


5 CUSHION 68206-61330
Price: $15.99


6 BOLT TAPPING 68206-61340
Price: $1.49


7 COLLAR 15401-20009
Price: $6.29


8 BOLT SW 11020-05160
Price: $0.99


9 COLLAR 15401-10010
Price: $0.69


10 CLAMP 68206-71370
Price: $0.79


11 SCREW TAPPING 01280-05142
Price: $1.79


12 BOLT PC 70140-31480
Price: $1.19


13 BOLT SW 11024-05700
Price: $2.49


14 NUT 11500-05001
Price: $0.69


15 INTAKE COVER 68900-61130
Price: $7.29


16 FUNNEL 68900-61310
Price: $4.49


17 WASHER 01613-05080
Price: $0.99


18 FAN 17343-07000
Price: $53.99


19 BOLT SW 11024-06351
Price: $1.19


20 BEND PIPE 68900-63110
Price: $4.89


21 O-RING 68900-63330
Price: $1.19


22 FLEXIBLE PIPE 68900-63120
Price: $11.79


23 PIPE JOINT 68900-63130
Price: $9.09


24 NOZZLE 68900-63150
Price: $5.99


25 CLAMP 68900-63340
Price: $2.59


26 CLAMP 68900-63350
No Longer Available

27 Trade Label 68900-91340
Price: $4.09


28 LABEL, CAUTION 19402-00178
Price: $0.69


No Description Part No Order
1 HANDLE 68900-63210
Price: $11.69


2 BOLT 01000-06451
Price: $0.59


3 WING NUT 01520-10671
Price: $0.69


4 LEAD WIRE 14350-01100
Price: $1.19


5 LEAD WIRE 14350-05900
Price: $1.39


6 THROTTLE LEVER ASSEMBLY (6-20) 68206-84013
Price: $109.99


7 THROTTLE LEVER 68206-84110
Price: $8.39


8 NUT 11525-05001
Price: $0.69


9 WASHER 01613-05080
Price: $0.99


10 GRIP 68206-84210
Price: $5.69


11 SCREW BUTTON 11210-05160
Price: $0.69


12 NUT 01500-05031
Price: $0.59


13 FLEXIBLE ARM 68206-84312
Price: $44.49


14 FLEXIBLE PIPE 68206-84320
Price: $14.49


15 BRACKET 68206-84331
Price: $4.19


16 NUT 68206-84340
Price: $6.59


17 SWITCH 68206-84350
Price: $11.99


18 FLEXIBLE TUBE 68206-84360
Price: $2.39


19 THROTTLE CABLE 68206-83110
Price: $8.39


20 GROUND PLATE 68206-84370
Price: $24.69


21  COLLAR 15401-10010
Price: $0.69


22 BOLT ADHESIVE 11060-05181
Price: $1.19


23 LABEL 19401-00175
Price: $0.69


No Description Part No Order
 1 THROTTLE LEVER ASSEMBLY (1-28) 68209-84011
Price: $73.09


2 BODY, RIGHT 68209-84321
Price: $8.29


3 BODY, LEFT 68209-84331
Price: $8.69


4 THROTTLE LEVER 68209-84340
Price: $2.39


5 LOCK LEVER 68209-84350
Price: $2.19


6 ADJUST BOLT 68209-84360
Price: $0.69


7 WASHER 68209-84370
Price: $0.69


8 ADJUST SPRING 68209-84380
Price: $1.19


9 WASHER 68209-84390
Price: $0.69


10 PLATE 68209-84400
Price: $1.29


11 NYLON NUT 68209-84410
Price: $0.69


12 RUBBER CAP 68209-84420
Price: $1.19


13 THROTTLE CABLE COMPLETE (13-15) 68209-84430
Price: $36.99


14 THROTTLE CABLE 68209-84570
Price: $14.99


15 SWITCH 68209-84580
Price: $15.99


16 SCREW 68209-84440
Price: $0.69


17 BAND, RIGHT 68209-84450
Price: $7.59


18 BAND, LEFT 68209-84460
Price: $7.59


19 KNOB BOLT 68209-84470
Price: $3.19


20 ADJUSTER ASSEMBLY 68209-84480
Price: $0.79


21 PLUG 68209-84490
Price: $1.19


22 SCREW 68209-84500
Price: $0.69


23 SUB LEVER 68209-84510
Price: $1.99


24 WASHER 68209-84520
Price: $1.19


25 ADJUST SPRING 68209-84530
Price: $1.49


26 GRIP 68209-84541
Price: $11.19


27 GRIP 68209-84551
Price: $11.19


28 SCREW 68209-84560
Price: $0.69


29 CLAMP 68901-84310
Price: $6.59


No Description Part No Order
1 TOOL SET (1-5) 68900-92310 Price: $1.79


2 PLUG WRENCH 22580-91180
Price: $1.19


3 HEX WRENCH 5MM 09026-04001
Price: $1.09


4 HEX WRENCH 6MM 09026-05001
Price: $0.69


5 POLY BAG 19639-01100
Price: $1.99


No Description Part No Order
1 PIPE 68900-63140
Price: $8.19


2 NOZZLE 65MM 809511
Price: $3.89





  Customer Service About Us Contact Us
  Home Page
Ordering Information
Customer Service
Help
Privacy Policy
Articles
How To
Shipping Policy
Return Policy
Site Map
DIY
About Us
Contact Us
Blog
Testimonials
Employment
News
Disclaimer
Local Store

Phone
316-522-2006

Address
H and H Lawncare Equipment
7048 S. Broadway
Haysville, KS
67060
United States

Find us on:

GooglePlusOne Facebook Youtube Twttier Pinterest



Copyright 2017 H and H Lawncare Equipment, LLC
All Rights Reserved Worldwide
