Shindaiwa 22DH Hedge Trimmer Illustrated Parts Diagrams

	Search for OEM Shindaiwa Parts
We are an Authorized Shindaiwa dealer carrying a large selection of Shindaiwa 22DH Hedge Trimmer Parts. The following are the most popular Shindaiwa 22DH Hedge Trimmer Parts. If you do not see the Shindaiwa 22DH Hedge Trimmer Parts you need, please complete the Lawn Mower Parts Request Form and we will be happy to assist you.
Shindaiwa Illustrated Parts Diagrams

Description

Order

SHINDAIWA 20142-12110
CYLINDER

This part is no longer available and has been replaced by Shindaiwa A130001150

SHINDAIWA 20870-12120
GASKET

This part is no longer available and has been replaced by SHINDAIWA V100000480

SHINDAIWA 11022-05250
BOLT

This part is no longer available and has been replaced by Shindaiwa V203000630

SHINDAIWA 20140-12220
GASKET

This part is no longer available and has been replaced by Shindaiwa V103000720

SHINDAIWA 20140-12210
INSULATOR

This part is no longer available and has been replaced by Shindaiwa A200000470

SHINDAIWA 20011-12260
NUT

This part is no longer available and has been replaced by Shindaiwa V263000260

SHINDAIWA 11022-05250
BOLT

This part is no longer available and has been replaced by Shindaiwa V203000630

SHINDAIWA 68120-15210
MUFFLER GASKET

This part is no longer available and has been replaced by SHINDAIWA V104001480

SHINDAIWA 66700-15110
MUFFLER ASSEMBLY

Currently Unavailable

SHINDAIWA 67000-15340
SPARK ARRESTER

This part is no longer available and has been replaced by Shindaiwa A310000180

SHINDAIWA 01020-05400
BOLT

This part is no longer available and has been replaced by ECHO 90010505040

SHINDAIWA 01610-05080
WASHER

This part is no longer available and has been replaced by Echo 90060000005

Description

Order

SHINDAIWA 20870-21301
CRANKCASE ASSEMBLY M

This part is no longer available and has been replaced by SHINDAIWA P021018910

SHINDAIWA 20000-21211
OIL SEAL

This part is no longer available and has been replaced by Shindaiwa V505000080

SHINDAIWA 12900-60010
BEARING

This part is no longer available and has been replaced by SHINDAIWA V592000310

SHINDAIWA 12492-40080
DOWEL PIN

This part is no longer available and has been replaced by ECHO 90033040080

SHINDAIWA 20870-21100
CRANKCASE ASSEMBLY S

This part is no longer available and has been replaced by SHINDAIWA P021018900

SHINDAIWA 22150-21250
OIL SEAL

This part is no longer available and has been replaced by Shindaiwa V505000140

SHINDAIWA 01020-05250
BOLT

This part is no longer available and has been replaced by Echo 90010505025

Description

Order

SHINDAIWA 68120-32110
CYLINDER COVER

Price: $26.99

SHINDAIWA 20011-72120
GROMMET

This part is no longer available and has been replaced by SHINDAIWA V136000060

SHINDAIWA 11022-06160
BOLT

No Longer Available

SHINDAIWA 11060-04123
BOLT

This part is no longer available and has been replaced by SHINDAIWA V202000320

Description

Order

SHINDAIWA 99909-230
PISTON ASSEMBLY

Price: $60.99

SHINDAIWA 20142-41210
PISTON RINGS

This part is no longer available and has been replaced by SHINDAIWA A101000300

SHINDAIWA 20142-41110
PISTON

This part is no longer available and has been replaced by SHINDAIWA A100000550

SHINDAIWA 20142-41310
PISTON PIN

This part is no longer available and has been replaced by SHINDAIWA V606000050

SHINDAIWA 70030-41320
SNAP RING

This part is no longer available and has been replaced by Shindaiwa V580000070

SHINDAIWA 20016-41330
NEEDLE BEARING

This part is no longer available and has been replaced by Shindaiwa 81593

SHINDAIWA 20016-41340
THRUST WASHER

This part is no longer available and has been replaced by Shindaiwa 81593

SHINDAIWA 20870-12120
CYLINDER GASKET

This part is no longer available and has been replaced by SHINDAIWA V100000480

SHINDAIWA 68120-42010
CRANKSHAFT ASSEMBLY

This part is no longer available and has been replaced by SHINDAIWA A011000920

SHINDAIWA 02403-03100
KEY

This part is no longer available and has been replaced by SHINDAIWA 9311503010

SHINDAIWA 20870-51210
CLUTCH BOSS

This part is no longer available and has been replaced by SHINDAIWA A552000130

SHINDAIWA 22100-71430
WASHER

This part is no longer available and has been replaced by SHINDAIWA V304000150

SHINDAIWA 20870-51220
BOLT

This part is no longer available and has been replaced by SHINDAIWA V204000480

SHINDAIWA 68120-51020
CLUTCH SHOE ASSEMBLY

This part is no longer available and has been replaced by SHINDAIWA A056000330

SHINDAIWA 20035-51221
CLUTCH SPRING

This part is no longer available and has been replaced by SHINDAIWA A566000060

SHINDAIWA 22100-71430
WASHER

This part is no longer available and has been replaced by SHINDAIWA V304000150

SHINDAIWA 20087-51231
WASHER

This part is no longer available and has been replaced by SHINDAIWA V346000040

SHINDAIWA 20142-51210
BOLT

This part is no longer available and has been replaced by SHINDAIWA A557000060

Description

Part No

Order

COIL ASSEMBLY

68120-81020

Currently Unavailable

WIRE

68120-71240

This part is no longer available and has been replaced by SHINDAIWA V485001960

TUBE

14063-08005

This part is no longer available and has been replaced by Shindaiwa V475005140

PLUG CAP

22102-72220

This part is no longer available and has been replaced by Shindaiwa A427000100

PLUG SPRING

20000-72230

This part is no longer available and has been replaced by Shindaiwa A426000050

TUBE

70064-72111

This part is no longer available and has been replaced by Shindaiwa V475004510

INSULATOR

68120-71320

This part is no longer available and has been replaced by SHINDAIWA V352000150

BOLT

01020-04260

No Longer Available

SPRING WASHER

01600-04101

This part is no longer available and has been replaced by Echo 90060500004

WASHER

01613-04080

This part is no longer available and has been replaced by ECHO 90060300004

FLYWHEEL ASSEMBLY

20870-71100

This part is no longer available and has been replaced by Shindaiwa A409000710

RATCHET

20870-71120

This part is no longer available and has been replaced by SHINDAIWA A514000190

SPRING

20870-71130

This part is no longer available and has been replaced by Shindaiwa V452000620

NUT

20035-71220

This part is no longer available and has been replaced by SHINDAIWA V265000140

Description

Part No

Order

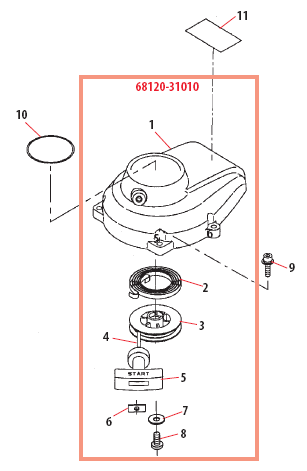

68120-31010

FAN COVER ASSEMBLY

This part is no longer available and has been replaced by SHINDAIWA A051001850

68120-31110

FAN COVER

This part is no longer available and has been replaced by Shindaiwa A500001050

70030-75130

RECOIL SPRING

This part is no longer available and has been replaced by Echo 17722042030

70030-75120

REEL

This part is no longer available and has been replaced by Shindaiwa A506000340

70030-75160

ROPE

This part is no longer available and has been replaced by SHINDAIWA P022006800

20010-75190

KNOB

This part is no longer available and has been replaced by Echo 17722827030

20010-75210

STOPPER

This part is no longer available and has been replaced by SHINDAIWA A522000040

70030-75140

WASHER

Price: $2.99

20035-75170

SCREW

This part is no longer available and has been replaced by SHINDAIWA V253000560

11060-05202

BOLT

This part is no longer available and has been replaced by SHINDAIWA V203001010

68120-91020

MODEL NAME LABEL

Price: $1.99

19420-00050

NAME LABEL

This part is no longer available and has been replaced by Shindaiwa X504003140

Description

Part No

Order

FUEL TANK ASSEMBLY

20870-85152

Currently Unavailable

FUEL CAP ASSEMBLY

20870-85151

This part is no longer available and has been replaced by Shindaiwa A033000110

FUEL CAP

20870-85310

This part is no longer available and has been replaced by Shindaiwa A033000110

GASKET

20870-85210

This part is no longer available and has been replaced by SHINDAIWA V540000280

VALVE

20870-85320

This part is no longer available and has been replaced by Shindaiwa E263000040

HOLDER A

20870-85170

This part is no longer available and has been replaced by SHINDAIWA P021035110

PACKING

20870-85160

This part is no longer available and has been replaced by SHINDAIWA V107000050

FUEL FILTER

20016-85400

This part is no longer available and has been replaced by Shindaiwa A369000440

CLAMP

20000-85350

This part is no longer available and has been replaced by Shindaiwa V490000610

FUEL TUBE

20870-85121

This part is no longer available and has been replaced by Shindaiwa V470001190

CONNECTOR

72933-85620

This part is no longer available and has been replaced by Shindaiwa V186000210

CLIP

20020-85540

This part is no longer available and has been replaced by Shindaiwa V490000500

FUEL TUBE

20870-85140

This part is no longer available and has been replaced by Shindaiwa V471002780

JOINT

20087-85340

This part is no longer available and has been replaced by Shindaiwa V186000270

TUBE

20870-85131

This part is no longer available and has been replaced by Shindaiwa V471002760

BOLT

11060-05202

This part is no longer available and has been replaced by SHINDAIWA V203001010

Description

Part No

Order

FRONT HANDLE

68120-64110

This part is no longer available and has been replaced by Shindaiwa C400000890

BOLT

11020-06250

This part is no longer available and has been replaced by SHINDAIWA V204000320

WASHER

23510-64210

This part is no longer available and has been replaced by SHINDAIWA V304000380

CAUTION LABEL

19402-00158

This part is no longer available and has been replaced by Shindaiwa 80824

STAY

68120-66310

This part is no longer available and has been replaced by Shindaiwa C600001200

COLLAR

15401-10200

This part is no longer available and has been replaced by SHINDAIWA V354000300

CUSHION

68120-65330

This part is no longer available and has been replaced by SHINDAIWA V420002610

WASHER

23510-64210

This part is no longer available and has been replaced by SHINDAIWA V304000380

BOLT

11020-06350

This part is no longer available and has been replaced by SHINDAIWA 9112206035

PLATE

68120-66320

Price: $2.99

Description

Part No

Order

CUTTING ASSEMBLY

68120-62010

This part is no longer available and has been replaced by Shindaiwa X041000121

GUIDE BAR

18501-50000

This part is no longer available and has been replaced by SHINDAIWA X425000780

BLADE (22")

18500-50100

This part is no longer available and has been replaced by Shindaiwa X411000960

BOLT

20870-62110

This part is no longer available and has been replaced by Shindaiwa V204000570

WASHER

20870-62131

This part is no longer available and has been replaced by Shindaiwa V304000240

LOCK NUT

23510-35230

This part is no longer available and has been replaced by Echo 43302206460

Description

Part No

Order

CLUTCH DRUM

68120-61160

This part is no longer available and has been replaced by SHINDAIWA A556000950

GEARCASE ASSEMBLY

68120-61010

This part is no longer available and has been replaced by Shindaiwa P021029260

SNAP RING

02432-28120

This part is no longer available and has been replaced by Shindaiwa 9242428000

BEARING

02006-06001

This part is no longer available and has been replaced by ECHO 9404206001

GEAR CASE

68120-61120

This part is no longer available and has been replaced by Shindaiwa C542000040

MAINSHAFT

68120-61320

This part is no longer available and has been replaced by SHINDAIWA C534000660

CAUTION LABEL

19402-00134

This part is no longer available and has been replaced by Shindaiwa X505003390

GREASE FITTING

20870-61640

This part is no longer available and has been replaced by Shindaiwa V187000080

BOLT

01020-06160

This part is no longer available and has been replaced by SHINDAIWA 90010506016

SNAP RING

02430-12100

This part is no longer available and has been replaced by SHINDAIWA 9242312000

FELT PACKING

68120-61340

This part is no longer available and has been replaced by Shindaiwa V541000220

PLATE

68120-61330

This part is no longer available and has been replaced by Shindaiwa V150002460

CONROD

68120-61170

This part is no longer available and has been replaced by SHINDAIWA C532000220

GEAR

68120-61130

This part is no longer available and has been replaced by Shindaiwa V650000530

GASKET

68120-61350

This part is no longer available and has been replaced by Shindaiwa V110000140

COVER

68120-61120

This part is no longer available and has been replaced by Shindaiwa C542000040

BOLT

01020-04100

This part is no longer available and has been replaced by Echo 90010504010

HOLDER

68120-62330

This part is no longer available and has been replaced by Shindaiwa V152002391

NUT

11526-05212

This part is no longer available and has been replaced by SHINDAIWA V263000330

LOCK NUT

23510-35230

This part is no longer available and has been replaced by Echo 43302206460

COLLAR

15401-10025

This part is no longer available and has been replaced by Shindaiwa V355000440

Description

Part No

Order

THROTTLE LEVER ASSEMBLY

68120-65001

Currently Unavailable

HANDLE

62803-65113

This part is no longer available and has been replaced by SHINDAIWA C410000680

THROTTLE LEVER ASSEMBLY

62803-65312

This part is no longer available and has been replaced by SHINDAIWA C450000570

LOCK LEVER

62803-65322

This part is no longer available and has been replaced by Shindaiwa C460000230

THROTTLE SPRING

62803-65350

This part is no longer available and has been replaced by Shindaiwa V452000680

SWITCH

62803-65331

This part is no longer available and has been replaced by SHINDAIWA A440001520

THROTTLE CABLE

68120-65320

This part is no longer available and has been replaced by SHINDAIWA V430003150

PLUG

22150-33630

This part is no longer available and has been replaced by Shindaiwa V162000410

HANDLE

62803-65123

This part is no longer available and has been replaced by SHINDAIWA C410000690

BUTTON

70871-65170

This part is no longer available and has been replaced by SHINDAIWA C461000080

SPRING

70871-65180

This part is no longer available and has been replaced by SHINDAIWA V450001010

SCREW

62803-65360

This part is no longer available and has been replaced by Shindaiwa V252000340

BAND

15210-12305

This part is no longer available and has been replaced by SHINDAIWA V495002400

NUT

01501-06041

This part is no longer available and has been replaced by ECHO 90050200006

BOLT

11022-05450

This part is no longer available and has been replaced by Shindaiwa V203000610

TUBE

20019-83140

This part is no longer available and has been replaced by SHINDAIWA V475005090

CUSHION

68120-65330

This part is no longer available and has been replaced by SHINDAIWA V420002610

COLLAR

15401-10200

This part is no longer available and has been replaced by SHINDAIWA V354000300

WASHER

23510-64210

This part is no longer available and has been replaced by SHINDAIWA V304000380

BOLT

11020-06350

This part is no longer available and has been replaced by SHINDAIWA 9112206035

PLATE

68120-66320

Price: $2.99

Description

Part No

Order

COVER

19601-01506

This part is no longer available and has been replaced by Shindaiwa X495000410

SPARK PLUG WRENCH

22000-91181

This part is no longer available and has been replaced by Oregon 57-017

Description

Order

SHINDAIWA 68120-81010
CARBURETOR ASSEMBLY

This part is no longer available and has been replaced by Shindaiwa A021002700

SHINDAIWA 67000-81310
THROTTLE VALVE ASSEMBLY

No Longer Available

SHINDAIWA 70097-81290
SCREW

This part is no longer available and has been replaced by ECHO 12311440630

SHINDAIWA 20016-81250
O-RING

This part is no longer available and has been replaced by Echo 90072000015

SHINDAIWA 70097-81220
JET O-RING

This part is no longer available and has been replaced by Echo 12318305960

SHINDAIWA 70064-81230
MAIN JET

This part is no longer available and has been replaced by SHINDAIWA 12318411810

SHINDAIWA 70097-81310
PUMP GASKET

This part is no longer available and has been replaced by Echo 12312540630

SHINDAIWA 70097-81320
DIAPHRAGM

This part is no longer available and has been replaced by ECHO 12311240630

SHINDAIWA 20016-81410
PUMP BODY

This part is no longer available and has been replaced by Echo P003000440

SHINDAIWA 70030-81380
SCREEN

This part is no longer available and has been replaced by Echo 12312610631

SHINDAIWA 20016-81270
SPRING

This part is no longer available and has been replaced by SHINDAIWA P003000450

SHINDAIWA 22100-81250
PIN

This part is no longer available and has been replaced by ECHO 12313803930

SHINDAIWA 22100-81230
LEVER

This part is no longer available and has been replaced by Echo 12312338330

SHINDAIWA 20036-81440
NEEDLE VALVE

This part is no longer available and has been replaced by ECHO 12313719830

SHINDAIWA 20016-81450
SCREW

This part is no longer available and has been replaced by ECHO 12313905560

SHINDAIWA 20016-81280
GASKET

This part is no longer available and has been replaced by Echo 12314005560

SHINDAIWA 22100-81260
METERING DIAPHRAGM

This part is no longer available and has been replaced by Echo 12314103930

SHINDAIWA 20016-81420
PUMP BASE

This part is no longer available and has been replaced by ECHO 12318005560

SHINDAIWA 99909-207
VALVE

Price: $2.99

SHINDAIWA 20036-81670
PRIMER PUMP

This part is no longer available and has been replaced by Walbro 188-12-1

SHINDAIWA 20016-81510
PUMP COVER

This part is no longer available and has been replaced by Echo 12314205560

SHINDAIWA 20016-81140
SCREW

This part is no longer available and has been replaced by Echo 12311005560

SHINDAIWA 68120-82310
GASKET

This part is no longer available and has been replaced by SHINDAIWA V103001190

SHINDAIWA 68120-81310
CABLE HOLDER

This part is no longer available and has been replaced by Shindaiwa V152002370

SHINDAIWA 20140-81700
CLEANER BODY ASSEMBLY

This part is no longer available and has been replaced by SHINDAIWA P021018690

SHINDAIWA 20018-81721
BACK PLATE

This part is no longer available and has been replaced by Shindaiwa A244000190

SHINDAIWA 20140-82210
AIR FILTER

This part is no longer available and has been replaced by Shindaiwa A226000580

SHINDAIWA 19404-00008
CHOKE LABEL

This part is no longer available and has been replaced by Shindaiwa X506000130

SHINDAIWA 20140-81790
CLEANER COVER

This part is no longer available and has been replaced by Shindaiwa A232000680

SHINDAIWA 20140-81810
SCREW

This part is no longer available and has been replaced by Shindaiwa V252000120

SHINDAIWA 11203-05658
SCREW

This part is no longer available and has been replaced by Shindaiwa 9157905065

SHINDAIWA 01610-05080
WASHER

This part is no longer available and has been replaced by Echo 90060000005

SHINDAIWA 99909-160
KWIK KIT

Price: $8.99

SHINDAIWA 99909-159
GASKET/DIAPHRAGM KIT

Price: $21.99

Most Popular Departments and Categories

Most Popular Brands

DIY Categories

DIY Manufacturer

Illustrated Parts Diagrams by Manufacturer

More Illustrated Parts Diagrams

Shindaiwa 22DH Hedge Trimmer Illustrated Parts Diagrams
