Shindaiwa Illustrated Parts Diagrams

Shindaiwa 22F Trimmer Parts

Description

Part No

Order

Cylinder

20142-12110

This part is no longer available and has been replaced by Shindaiwa A130001150

Bolt

11022-05250

This part is no longer available and has been replaced by Shindaiwa V203000630

Cylinder Gasket

20016-12120

This part is no longer available and has been replaced by Shindaiwa V100000490

Gasket

20140-12220

This part is no longer available and has been replaced by Shindaiwa V103000720

Nut

20011-12260

This part is no longer available and has been replaced by Shindaiwa V263000260

Insulator

20140-12210

This part is no longer available and has been replaced by Shindaiwa A200000470

Bolt

11022-05250

This part is no longer available and has been replaced by Shindaiwa V203000630

Muffler Gasket

20140-15120

This part is no longer available and has been replaced by Shindaiwa V104001120

Spark Arrestor

67000-15340

This part is no longer available and has been replaced by Shindaiwa A310000180

Bolt

01020-05400

This part is no longer available and has been replaced by ECHO 90010505040

Washer

01610-05080

This part is no longer available and has been replaced by Echo 90060000005

Muffler Cover

20142-32211

This part is no longer available and has been replaced by SHINDAIWA A320000590

Screw

22160-32210

This part is no longer available and has been replaced by SHINDAIWA V253000710

Muffler

67000-15110

This part is no longer available and has been replaced by SHINDAIWA A300000900

Description

Part No

Order

Crankcase Assembly M

20140-21200

This part is no longer available and has been replaced by SHINDAIWA P021018680

Bearing

12900-60010

This part is no longer available and has been replaced by SHINDAIWA V592000310

Oil Seal

20000-21211

This part is no longer available and has been replaced by Shindaiwa V505000080

Dowel Pin

12492-40080

This part is no longer available and has been replaced by ECHO 90033040080

Crankcase Assembly S

20035-21100

This part is no longer available and has been replaced by SHINDAIWA P021018090

Oil Seal

22150-21250

This part is no longer available and has been replaced by Shindaiwa V505000140

Bolt

01020-05250

This part is no longer available and has been replaced by Echo 90010505025

Description

Part No

Order

Fan Cover

20142-31111

This part is no longer available and has been replaced by SHINDAIWA A172000990

Clutch Drum

70030-31120

Price: $22.99

Screw

11206-05300

This part is no longer available and has been replaced by Shindaiwa 9157405030

Screw

11206-05160

This part is no longer available and has been replaced by SHINDAIWA 9157405016

Screw

11260-04081

This part is no longer available and has been replaced by Shindaiwa V252000100

Grommet

20011-72120

This part is no longer available and has been replaced by SHINDAIWA V136000060

Snap Ring

20000-311410

Currently Unavailable

Joint

20087-31410

This part is no longer available and has been replaced by Shindaiwa A575000470

Shim

20018-31460

No Longer Available

Bolt

11020-05220

This part is no longer available and has been replaced by SHINDAIWA V203000620

Bracket

20142-31420

This part is no longer available and has been replaced by SHINDAIWA C617000400

Cylinder Cover

20140-32110

This part is no longer available and has been replaced by Shindaiwa A160001370

Insulator

20140-31260

This part is no longer available and has been replaced by Shindaiwa V354000240

Protector

20140-34110

This part is no longer available and has been replaced by SHINDAIWA A162000170

Name Label

67001-91021

Price: $0.69

Screw

20140-31250

This part is no longer available and has been replaced by SHINDAIWA V254000030

Spacer

67001-31310

Price: $2.99

Description

Part No

Order

Piston Assembly

99909-229

Price: $56.99

Piston Ring

20142-41210

This part is no longer available and has been replaced by SHINDAIWA A101000300

Piston

20142-41110

This part is no longer available and has been replaced by SHINDAIWA A100000550

Snap Ring

70030-41320

This part is no longer available and has been replaced by Shindaiwa V580000070

Piston Pin

20142-41310

This part is no longer available and has been replaced by SHINDAIWA V606000050

Thrust Washer

20016-41340

This part is no longer available and has been replaced by Shindaiwa 81593

Needle Bearing

67000-41230

This part is no longer available and has been replaced by SHINDAIWA V553000100

Cylinder Gasket

20016-12120

This part is no longer available and has been replaced by Shindaiwa V100000490

Crankcase

67000-42010

This part is no longer available and has been replaced by SHINDAIWA A011000720

Clutch Shoe Assembly

67000-51011

This part is no longer available and has been replaced by SHINDAIWA A056000330

Bolt

20142-51210

This part is no longer available and has been replaced by SHINDAIWA A557000060

Spring Washer

20087-51231

This part is no longer available and has been replaced by SHINDAIWA V346000040

Washer

22100-71430

This part is no longer available and has been replaced by SHINDAIWA V304000150

Clutch Spring

20035-51221

This part is no longer available and has been replaced by SHINDAIWA A566000060

Clutch Shoe

20035-51111

This part is no longer available and has been replaced by SHINDAIWA A056000330

Description

Part No

Order

Coil

20140-71600

This part is no longer available and has been replaced by Shindaiwa A411000640

Insulator

70030-71620

This part is no longer available and has been replaced by Shindaiwa V322000040

Wire

67000-71240

Price: $3.99

Tube

70064-72111

This part is no longer available and has been replaced by Shindaiwa V475004510

Plug Cap

22102-72220

This part is no longer available and has been replaced by Shindaiwa A427000100

Spring, Plug

20000-72230

This part is no longer available and has been replaced by Shindaiwa A426000050

Bolt

01020-04260

No Longer Available

Spring Washer

01600-04101

This part is no longer available and has been replaced by Echo 90060500004

Washer

01613-04080

This part is no longer available and has been replaced by ECHO 90060300004

Flywheel

20140-71200

This part is no longer available and has been replaced by SHINDAIWA A409000500

Nut

20035-71220

This part is no longer available and has been replaced by SHINDAIWA V265000140

Key

02403-03100

This part is no longer available and has been replaced by SHINDAIWA 9311503010

Grommet

20011-72120

This part is no longer available and has been replaced by SHINDAIWA V136000060

Plug Cap

20000-72241

This part is no longer available and has been replaced by Shindaiwa A429000110

Protector

70180-72260

This part is no longer available and has been replaced by SHINDAIWA V151000050

Plug Cap

20010-72221

This part is no longer available and has been replaced by Shindaiwa A427000090

Cover Band

20000-72250

This part is no longer available and has been replaced by Shindaiwa V495001440

Description

Part No

Order

Recoil Starter Assembly

20140-75100

This part is no longer available and has been replaced by Shindaiwa P021035261

Name Label

67001-91031

Price: $0.79

Spring

20140-75130

This part is no longer available and has been replaced by Shindaiwa A504000110

Reel

20140-75120

Price: $5.99

Rope

70064-75190

This part is no longer available and has been replaced by SHINDAIWA A509000320

Handle

70064-75211

This part is no longer available and has been replaced by SHINDAIWA A511000150

Stopper

70064-75220

This part is no longer available and has been replaced by SHINDAIWA A522000020

Ratchet

20140-75140

This part is no longer available and has been replaced by Shindaiwa C533000060

Wave Washer

20140-75150

This part is no longer available and has been replaced by SHINDAIWA V450000840

Retainer

20140-75170

This part is no longer available and has been replaced by Shindaiwa A503000040

Washer

20140-75180

This part is no longer available and has been replaced by SHINDAIWA V392000000

Bolt

20140-75160

Price: $1.19

Nut

01511-08051

This part is no longer available and has been replaced by ECHO 90050300008

Starter Pulley

20140-75310

This part is no longer available and has been replaced by Shindaiwa A520000120

Bolt

11024-04120

This part is no longer available and has been replaced by Shindaiwa 9111304012

Description

Part No

Order

Fuel Tank Assembly

20142-85001

This part is no longer available and has been replaced by Shindaiwa A038000140

Grommet

20087-85350

This part is no longer available and has been replaced by Shindaiwa V470001030

Fuel Tube

20110-85320

This part is no longer available and has been replaced by Shindaiwa V471002600

Fuel Filter Assembly

20016-85400

This part is no longer available and has been replaced by Shindaiwa A369000440

Clip

20020-85540

This part is no longer available and has been replaced by Shindaiwa V490000500

Joint

72933-85620

This part is no longer available and has been replaced by Shindaiwa V186000210

Breather Valve

20035-85522

This part is no longer available and has been replaced by Shindaiwa A356000040

Return Tube

20140-83311

This part is no longer available and has been replaced by Shindaiwa V471002740

Fuel Cap Assembly

70043-85201

This part is no longer available and has been replaced by Shindaiwa A033000070

Gasket

20000-85221

This part is no longer available and has been replaced by Shindaiwa V107000010

Tank Guard

70135-86130

This part is no longer available and has been replaced by Shindaiwa A175000220

Screw

11206-05120

This part is no longer available and has been replaced by Shindaiwa 9157405012

Tank Cushion

20087-86130

This part is no longer available and has been replaced by SHINDAIWA V420002240

Tank Cushion

20087-86141

This part is no longer available and has been replaced by SHINDAIWA V420002250

Screw

11206-05300

This part is no longer available and has been replaced by Shindaiwa 9157405030

Bracket

67000-86310

This part is no longer available and has been replaced by Shindaiwa V376001200

Bolt

11024-04300

This part is no longer available and has been replaced by Shindaiwa V202000220

Description

Part No

Order

Shaft Case Assembly

67001-63010

This part is no longer available and has been replaced by SHINDAIWA C056000030

Bolt

11022-05250

This part is no longer available and has been replaced by Shindaiwa V203000630

Bolt

11022-05100

This part is no longer available and has been replaced by Shindaiwa V203001710

Shim

22000-13420

This part is no longer available and has been replaced by Shindaiwa V340000300

Shaft

72414-13120

This part is no longer available and has been replaced by Shindaiwa C534000540

Bearing

02006-06001

This part is no longer available and has been replaced by ECHO 9404206001

Collar A

72030-13130

This part is no longer available and has been replaced by Shindaiwa V357000170

Snap Ring

02432-28120

This part is no longer available and has been replaced by Shindaiwa 9242428000

Collar B

72030-13140

This part is no longer available and has been replaced by SHINDAIWA V357000180

Holder

72030-13151

This part is no longer available and has been replaced by SHINDAIWA C535000480

Description

Part No

Order

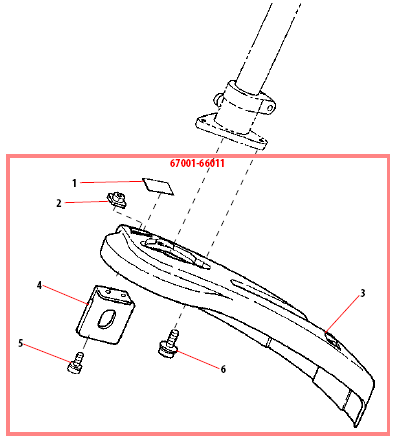

Debris Shield Assembly

67001-66011

This part is no longer available and has been replaced by SHINDAIWA P021033020

Caution Label

72030-16140

This part is no longer available and has been replaced by Shindaiwa X505002870

Nut

72030-16150

This part is no longer available and has been replaced by SHINDAIWA V262000070

Guard

67001-66110

This part is no longer available and has been replaced by SHINDAIWA C550000360

Cutter

72480-16121

This part is no longer available and has been replaced by Shindaiwa C554000040

Screw

11204-04160

This part is no longer available and has been replaced by SHINDAIWA 9157204016

Screw

11206-05160

This part is no longer available and has been replaced by SHINDAIWA 9157405016

Description

Part No

Order

Caution Label

19402-00157

Price: $0.69

Name Label

67001-81050

Currently Unavailable

Grip

72414-12130

This part is no longer available and has been replaced by SHINDAIWA C412000270

Outer Tube Assembly

67001-62021

This part is no longer available and has been replaced by SHINDAIWA C050001600

Spacer

67001-62320

Price: $2.99

Flex Shaft

67001-62211

This part is no longer available and has been replaced by Shindaiwa C506000160

Outer Tube

67001-62111

This part is no longer available and has been replaced by SHINDAIWA 80029

Flexible Liner

67001-62120

This part is no longer available and has been replaced by SHINDAIWA 80029

Front Handle

72495-14110

This part is no longer available and has been replaced by SHINDAIWA C400000700

Nut

01500-05041

This part is no longer available and has been replaced by Echo 90050000005

Screw

11207-05300

This part is no longer available and has been replaced by SHINDAIWA 9157705030

Screw

11207-05450

This part is no longer available and has been replaced by SHINDAIWA 9157705045

Description

Part No

Order

Throttle Lever Assembly

67001-62160

This part is no longer available and has been replaced by Shindaiwa C044000380

Knob

22420-12930

This part is no longer available and has been replaced by Shindaiwa A444000090

Plate

22420-12940

This part is no longer available and has been replaced by SHINDAIWA X510000500

Switch

67000-62310

This part is no longer available and has been replaced by Shindaiwa A440001380

Right Bracket

72414-12611

This part is no longer available and has been replaced by SHINDAIWA 72414-12612

Left Bracket

72414-12640

This part is no longer available and has been replaced by SHINDAIWA 72414-12641

Screw

11203-05300

This part is no longer available and has been replaced by SHINDAIWA 9157805030

Nut

01501-05031

This part is no longer available and has been replaced by ECHO 90050200005

Spring

22410-14331

This part is no longer available and has been replaced by Shindaiwa V452000440

Lever

22410-14321

This part is no longer available and has been replaced by Shindaiwa C450000460

Tube

70229-83140

This part is no longer available and has been replaced by SHINDAIWA V475004530

Nut

01501-06041

This part is no longer available and has been replaced by ECHO 90050200006

Throttle Cable

22550-14510

This part is no longer available and has been replaced by Shindaiwa V430002640

Description

Part No

Order

Trimmer Head Assembly

UN34-8R

This part is no longer available and has been replaced by Shindaiwa X047000790

Housing

99909-15790

Price: $13.99

Eyelet

72005-92630

Price: $2.99

Shaft Bolt

99909-15800

Price: $8.99

Spring

72078-15240

Price: $2.99

Spool

99909-15810

Price: $11.99

Button

99909-15780

Price: $5.99

Cover

99909-15750

Price: $10.99

Tool Set

22410-91000

This part is no longer available and has been replaced by Shindaiwa P021048890

Tool Bag

19639-01100

This part is no longer available and has been replaced by Shindaiwa X705000130

Wrench

22000-91120

This part is no longer available and has been replaced by SHINDAIWA X600000020

Spark Plug Wrench

22000-91181

This part is no longer available and has been replaced by Oregon 57-017

Wrench (4mm)

09026-04001

This part is no longer available and has been replaced by ECHO X605000100

Description

Part No

Order

Carburetor Assembly

67000-81010

This part is no longer available and has been replaced by Shindaiwa A021002120

Throttle Valve Assembly

67000-81310

No Longer Available

Throttle Collar Screw

70064-81290

This part is no longer available and has been replaced by ECHO 12311444330

O-Ring

70097-81220

This part is no longer available and has been replaced by Echo 12318305960

Main Jet (#38)

67000-81330

Price: $11.99

Pump Gasket

70097-81310

This part is no longer available and has been replaced by Echo 12312540630

Diaphragm

70097-81320

This part is no longer available and has been replaced by ECHO 12311240630

Pump Body Assembly

72933-81410

This part is no longer available and has been replaced by SHINDAIWA P003003690

Fuel Inlet Screen

70030-81380

This part is no longer available and has been replaced by Echo 12312610631

Metering Lever Spring

72933-81270

This part is no longer available and has been replaced by Echo 12312205560

Metering Lever

22100-81230

This part is no longer available and has been replaced by Echo 12312338330

Needle Valve

20036-81440

This part is no longer available and has been replaced by ECHO 12313719830

Metering Lever Pin

22100-81250

This part is no longer available and has been replaced by ECHO 12313803930

Metering Lever Pin Screw

20016-81450

This part is no longer available and has been replaced by ECHO 12313905560

Metering/Diaphragm Gasket

20016-81280

This part is no longer available and has been replaced by Echo 12314005560

Metering Diaphragm

22100-81260

This part is no longer available and has been replaced by Echo 12314103930

Air Purge Body Assembly

20016-81420

This part is no longer available and has been replaced by ECHO 12318005560

Priming Pump

20036-81670

This part is no longer available and has been replaced by Walbro 188-12-1

Primer Pump Cover

20016-81510

This part is no longer available and has been replaced by Echo 12314205560

Cover Screw

20016-81140

This part is no longer available and has been replaced by Echo 12311005560

O-Ring

20016-81250

This part is no longer available and has been replaced by Echo 90072000015

Gasket

20140-81350

This part is no longer available and has been replaced by Shindaiwa V103000730

Cleaner Body Assembly

20140-81700

This part is no longer available and has been replaced by SHINDAIWA P021018690

Back Plate

20018-81721

This part is no longer available and has been replaced by Shindaiwa A244000190

Washer

01610-05080

This part is no longer available and has been replaced by Echo 90060000005

Screw, Carburetor

11203-05658

This part is no longer available and has been replaced by Shindaiwa 9157905065

Filter

20140-82210

This part is no longer available and has been replaced by Shindaiwa A226000580

Cleaner Cover

20140-81790

This part is no longer available and has been replaced by Shindaiwa A232000680

Screw

20140-81810

This part is no longer available and has been replaced by Shindaiwa V252000120

Choke Label

19404-00008

This part is no longer available and has been replaced by Shindaiwa X506000130

Kwik Kit

99909-316

This part is no longer available and has been replaced by SHINDAIWA 70870-98030

Gasket and Diaphragm Kit

99909-159

Price: $21.99

Most Popular Departments and Categories

Most Popular Brands

DIY Categories

DIY Manufacturer

Illustrated Parts Diagrams by Manufacturer

More Illustrated Parts Diagrams

Shindaiwa 22F Trimmer Parts Before Serial 4100001 Illustrated Parts Diagram
