Shindaiwa 446s/EPA Chain Saw Illustrated Parts Diagram
|
 |
Search for OEM Shindaiwa Parts
|
 |
| We are an Authorized Shindaiwa dealer carrying a large selection of
Shindaiwa 446s Parts. The following are the most popular Shindaiwa
446s Parts. If you do not see the
Shindaiwa 446s Parts you need,
please complete the Lawn Mower
Parts Request Form
and we will be happy to assist you. |
|
Shindaiwa Illustrated Parts Diagrams |
|
|
 |
|
No |
Description
|
Part No
|
Order
|
|
1
|
CYLINDER
|
39311-12110
|
|
|
2
|
GASKET
|
39311-12120
|
|
|
3
|
BOLT
|
01020-05180
|
|
|
4
|
SPRING
|
22160-12160
|
|
|
5
|
BOOT
|
39311-12210
|
|
|
6
|
SLEEVE
|
22156-14140
|
|
|
7
|
BRACKET
|
39311-12220
|
|
|
8
|
ADHESIVE BOLT
|
11060-04163
|
|
|
9
|
MUFFLER ASSEMBLY (9-13)
|
69028-15311
|
|
|
10
|
TAIL PIPE
|
22197-15130
|
|
|
11
|
MUFFLER SCREEN
|
72311-15190
|
|
|
12
|
TAIL PLATE
|
69028-15320
|
|
|
13
|
SCREW, PM
|
11203-04060
|
|
|
14
|
GASKET
|
39311-15210
|
|
|
15
|
BOLT
|
01020-05180
|
|
 |
|
No |
Description
|
Part No
|
Order
|
|
1
|
CRANKCASE M COMPLETE (1-4)
|
39312-21010
|
|
|
2
|
BEARING
|
12900-62010
|
|
|
3
|
OIL SEAL
|
22150-21250
|
|
|
4
|
OIL TANK VALVE
|
22115-57120
|
|
|
5
|
CRANKCASE C COMPLETE (5-11)
|
39312-21020
|
|
|
6
|
BEARING
|
12900-62020
|
|
|
7
|
OIL SEAL
|
22182-21551
|
|
|
8
|
BAR BOLT
|
22160-21520
|
|
|
9
|
PULSE JOINT
|
39010-11020
|
|
|
10
|
ROLLER
|
12492-40080
|
|
|
11
|
ROLLER
|
12492-40110
|
|
|
12
|
CASE GASKET
|
39311-21320
|
|
|
13
|
BOLT
|
22169-21910
|
|
|
14
|
BOLT
|
01020-05180
|
|
|
15
|
CHAIN CATCHER
|
22160-52511
|
|
|
16
|
BOLT
|
22155-12190
|
|
|
17
|
WASHER
|
01610-05080
|
|
|
18
|
CAP ASSEMBLY (18-19)
|
39311-21030
|
|
|
19
|
GASKET
|
38010-32271
|
|
|
20
|
SWITCH ASSEMBLY (20-21)
|
39311-21370
|
|
|
21
|
CAP
|
39311-21380
|
Price: $1.29
|
|
22
|
LEAD WIRE
|
14352-01300
|
|
|
23
|
PLUG
|
22160-22220
|
|
|
24
|
WASHER
|
01613-04080
|
|
|
25
|
SCREW
|
22173-56150
|
|
|
26
|
SLIDE RING
|
39311-21360
|
|
|
27
|
SUPPORT
|
22182-21621
|
|
|
28
|
SUPPORT
|
39311-33330
|
|
 |
|
No |
Description
|
Part No
|
Order
|
|
1
|
CYLINDER COVER
|
39311-31110
|
|
|
2
|
SHUTTER
|
39311-31310
|
|
|
3
|
ADHESIVE BOLT
|
11060-04163
|
|
|
4
|
FRONT HANDLE
|
39311-32110
|
|
|
5
|
TAPPING BOLT
|
11044-05160
|
|
|
6
|
REAR HANDLE SUB ASSEMBLY (6-24)
|
39311-32021
|
|
|
7
|
PIN
|
12420-40255
|
|
|
8
|
PIN
|
02427-40225
|
|
|
9
|
THROTTLE LEVER
|
22182-33325
|
|
|
10
|
COIL SPRING
|
22182-33340
|
|
|
11
|
LOCK LEVER
|
22182-33331
|
|
|
12
|
UPPER GRIP
|
39311-32330
|
Price: $6.39
|
|
13
|
LOWER GRIP
|
22182-33230
|
|
|
14
|
TAPPING SCREW
|
01280-04202 (Replaced by 01280-04222)
|
|
|
15
|
CAP ASSEMBLY (15-16)
|
39309-32040
|
|
|
16
|
GASKET
|
39309-32270
|
|
|
17
|
FUEL PIPE
|
39309-32340
|
|
|
18
|
FUEL FILTER SUB ASSEMBLY (18-20)
|
22115-85401
|
|
|
19
|
FILTER
|
22128-85421
|
|
|
20
|
SCREEN
|
22118-85460
|
Price: $6.99
|
|
21
|
CLIP
|
20020-85540
|
|
|
22
|
PIPE
|
39311-32340
|
|
|
23
|
VALVE
|
22197-33960
|
|
|
24
|
STOPPER CUSHION
|
39311-32370
|
|
|
25
|
CUSHION
|
22182-33742
|
|
|
26
|
BOLT, SPW
|
11022-04100
|
|
|
27
|
CUSHION
|
39311-33310
|
|
|
28
|
PLUG
|
39311-33320
|
|
|
29
|
STOPPER BOLT
|
22160-33770
|
|
 |
| No |
Description
|
Part No
|
Order
|
| 1 |
PISTON
|
39311-41110
|
|
| 2 |
PISTON RING
|
39311-41120
|
|
| 3 |
PISTON PIN
|
22160-41220
|
|
| 4 |
SNAP RING
|
22100-41230
|
|
| 5 |
BEARING, SE
|
22160-41240
|
|
| 6 |
CRANKSHAFT
|
39311-42010 (Replaced by 39311-42011)
|
|
 |
| No |
Description
|
Part No
|
Order
|
| 1 |
ROTOR
|
39311-71110
|
Price: $78.29
|
| 2 |
RATCHET
|
22182-71412
|
|
| 3 |
RATCHET SPRING
|
22182-71421
|
|
| 4 |
WASHER
|
22182-71430
|
|
| 5 |
BOLT
|
22182-71440
|
|
| 6 |
KEY
|
02403-03100 (Replaced by 12408-03100)
|
|
| 7 |
NUT
|
22169-71460
|
|
| 8 |
IGNITION COIL
|
39311-71210
|
|
| 9 |
TUBE
|
39311-71310
|
Price: $2.99
|
| 10 |
SPRING CONNECTOR
|
22154-72230
|
|
| 11 |
SPARK PLUG CAP
|
22160-72220
|
|
| 12 |
SPARK PLUG (Replaced by BPMR7A)
|
13000-13507 (Replaced by BPMR7A)
|
This part is no longer available and has been replaced by Ngk BPMR7A
|
| 13 |
ADHESIVE BOLT
|
11060-04202
|
|
| 14 |
RECOIL STARTER ASSEMBLY (14-25)
|
39311-75010 (Replaced by 39311-75011)
|
|
| 15 |
RECOIL CASE (15-16)
|
39311-75110
|
Price: $27.99
|
| 16 |
GUIDE
|
22182-75120
|
|
| 17 |
REEL
|
39300-75121
|
|
| 18 |
CAM
|
39300-75311
|
|
| 19 |
COIL SPRING
|
39300-75320 (Replaced by 39309-75320)
|
|
| 20 |
RECOIL SPRING
|
39300-75130
|
|
| 21 |
SCREW
|
39300-75330
|
|
| 22 |
ROPE
|
39300-75140
|
|
| 23 |
KNOB
|
39300-75150
|
|
| 24 |
COIL SPRING
|
39300-75340
|
|
| 25 |
SPACER
|
39300-75350
|
|
| 26 |
AIR DEFLECTOR
|
39311-75210
|
Price: $4.29
|
| 27 |
ADHESIVE BOLT
|
11060-04163
|
|
| 28 |
GROMMET
|
69025-75310
|
Price: $1.99
|
| 29 |
TRADE LABEL
|
69025-91322
|
Price: $2.99
|
| 30 |
COVER
|
39311-71320
|
Price: $1.79
|
 |

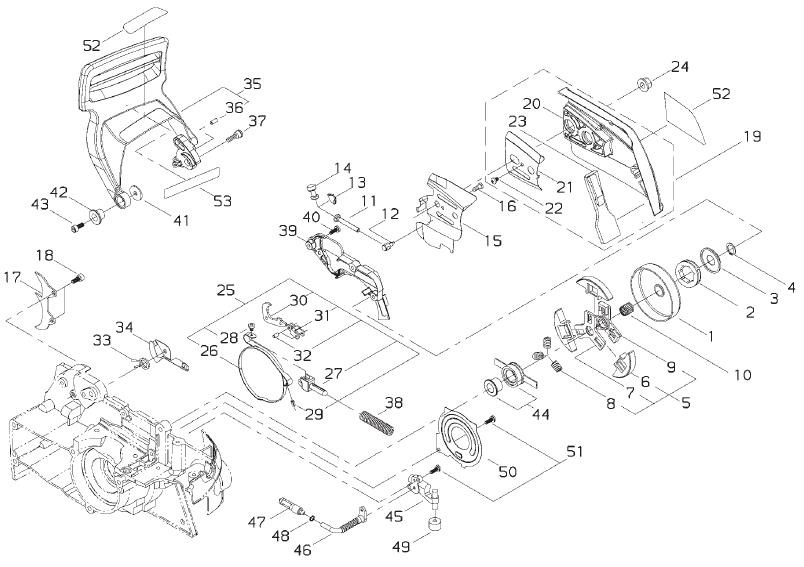

| No |
Description
|
Part No
|
Order
|
| 1 |
CLUTCH DRUM
|
39311-51110
|
|
| 2 |
RIM SPROCKET
|
22131-98120
|
This part is no longer available and has been replaced by Oregon 11892
|
| 3 |
COLLAR
|
39311-51320
|
|
| 4 |
SNAP RING
|
02430-10100
|
|
| 5 |
CLUTCH ASSEMBLY (5-9)
|
39311-51020
|
|
| 6 |
CLUTCH SHOE
|
39311-51120
|
|
| 7 |
CLUTCH BOSS A
|
39311-51130
|
|
| 8 |
CLUTCH SPRING
|
22197-51230
|
|
| 9 |
CLUTCH BOSS B
|
22182-51241
|
|
| 10 |
NEEDLE BEARING
|
22100-51310
|
|
| 11 |
SLIDE SCREW
|
22182-52620
|
|
| 12 |
CHAIN ADJUST NUT
|
22150-52440
|
|
| 13 |
GUIDE
|
22182-52631
|
|
| 14 |
CHAIN ADJUST GEAR
|
22182-52641
|
|
| 15 |
GUIDE PLATE
|
39311-52130
|
|
| 16 |
SCREW
|
22173-56150
|
|
| 17 |
BAR SPIKE
|
39311-52140
|
|
| 18 |
BOLT
|
01020-05120
|
|
| 19 |
CLUTCH COVER ASSEMBLY (19-23)
|
39311-53010
|
|
| 20 |
CLUTCH COVER
|
39311-53110
|
|
| 21 |
GUIDE PLATE
|
39311-53120 (Replaced by 39311-53121)
|
|
| 22 |
TAPPING SCREW
|
01270-04062
|
|
| 23 |
PROTECTOR
|
39311-53130
|
|
| 24 |
NUT
|
22182-52411
|
|
| 25 |
BRAKE BAND COMPLETE (25-32)
|
39311-54310
|
|
| 26 |
BRAKE BAND
|
39311-54110
|
|
| 27 |
HOLDER
|
39311-54320
|
|
| 28 |
TAPPING SCREW
|
01270-04103
|
|
| 29 |
PIN
|
02427-40105
|
|
| 30 |
INNER LEVER
|
39311-54330
|
|
| 31 |
TIE STRAP
|
39311-54340
|
|
| 32 |
ROLLER
|
12492-30110
|
|
| 33 |
COIL SPRING
|
17520-15400
|
|
| 34 |
PLATE
|
39311-54350
|
|
| 35 |
GUARD COMPLETE (35-36)
|
39311-54361
|
|
| 36 |
ROLLER
|
12492-40080
|
|
| 37 |
ADHESIVE BOLT
|
39311-54380
|
|
| 38 |
COIL SPRING
|
17500-12300
|
|
| 39 |
BRAKE COVER
|
39311-54130
|
|
| 40 |
ADHESIVE BOLT
|
11060-04141
|
|
| 41 |
WASHER
|
22169-54670
|
|
| 42 |
COLLAR
|
15401-10119
|
|
| 43 |
BOLT
|
01020-05120
|
|
| 44 |
GEAR
|
22197-55110
|
|
| 45 |
OIL PUMP ASSEMBLY
|
22197-55200
|
|
| 46 |
OIL PIPE
|
22182-55311
|
|
| 47 |
OIL FILTER
|
22182-55330
|
|
| 48 |
CLIP
|
20020-85540
|
|
| 49 |
FILTER
|
22169-55430
|
|
| 50 |
PUMP COVER
|
39311-55231
|
|
| 51 |
ADHESIVE BOLT
|
11060-04141
|
|
| 52 |
TRADE LABEL
|
69025-91332
|
|
| 53 |
CAUTION LABEL
|
19422-00045
|
Price: $3.99
|
|
| No |
Description
|
Part No
|
Order
|
| 1 |
CARBURETOR ASSEMBLY (1-30)
|
69025-81010
|
|
| 2 |
PUMP COVER ASSEMBLY
|
39010-81320
|
|
| 3 |
SCREW
|
22100-81130
|
|
| 4 |
PUMP COVER GASKET
|
22128-81140
|
This part is no longer available and has been replaced by Walbro D10-WAT
|
| 5 |
DIAPHRAGM PUMP
|
22128-81150
|
This part is no longer available and has been replaced by Walbro D10-WAT
|
| 6 |
NEEDLE
|
69024-81320
|
Price: $14.09
|
| 7 |
LEVER
|
22100-81230
|
|
| 8 |
SCREW
|
22100-81240
|
|
| 9 |
PIN
|
22100-81250
|
|
| 10 |
DIAPHRAGM ASSEMBLY
|
22100-81260
|
|
| 11 |
SPRING LEVER
|
72342-81270
|
|
| 12 |
DIAPHRAGM COVER
|
22100-81280
|
|
| 13 |
DIAPHRAGM GASKET
|
22100-81290
|
|
| 14 |
NEEDLE
|
69024-81330
|
Price: $10.99
|
| 15 |
THROTTLE VALVE
|
22197-81340
|
|
| 16 |
SCREW
|
22100-81351
|
|
| 19 |
SCREEN
|
70030-81380
|
|
| 20 |
E-RING
|
70030-81390
|
|
| 21 |
SCREW
|
20803-81150
|
|
| 22 |
RETURN SPRING
|
72320-81420
|
|
| 23 |
NEEDLE VALVE
|
20036-81440
|
|
| 24 |
CHOKE VALVE
|
22156-81710
|
|
| 25 |
CHOKE SHAFT ASSEMBLY
|
22180-81740
|
|
| 26 |
IDLE SPEED SCREW
|
72320-81410
|
|
| 27 |
IDLE SPRING
|
22156-81420
|
|
| 28 |
CHOKE SPRING
|
22180-81460
|
|
| 29 |
LEVER
|
22180-81471
|
Price: $4.79
|
| 30 |
WASHER
|
20036-81185
|
|
| 32 |
GASKET KIT (4,13)
|
22128-81920
|
|
| 33 |
DIAPHRAGM KIT (5, 10)
|
22128-81910
|
Price: $15.99
|
| 34 |
PULSE TUBE
|
39010-11050
|
|
| 35 |
UPPER AIR CLEANER
|
39311-82320
|
|
| 35A |
UPPER AIR CLEANER FLOCKED
|
39223-98340
|
|
| 36 |
LOWER AIR CLEANER
|
39311-82330
|
|
| 36A |
LOWER AIR CLEANER FLOCKED
|
39223-98350
|
|
| 37 |
AIR CLEANER COVER
|
39311-82130
|
|
| 38 |
THUMB SCREW
|
22182-31220
|
|
| 39 |
ELBOW
|
39311-82360
|
|
| 40 |
GASKET
|
39311-82370
|
|
| 41 |
ADHESIVE BOLT
|
11060-04163
|
|
| 42 |
BOLT
|
01020-05480
|
|
| 43 |
WASHER
|
01610-05080
|
|
| 44 |
CHOKE ROD
|
39311-83310
|
|
| 45 |
GROMMET
|
39311-83320
|
Price: $1.99
|
| 46 |
THROTTLE ROD
|
39311-83330
|
|
| 47 |
GROMMET
|
38010-83330
|
|
|
| No |
Description
|
Part No
|
Order
|
| 1 |
TOOL SET (1-5)
|
69023-92310
|
Price: $6.99
|
| 2 |
SPARK PLUG WRENCH
|
22000-91181
|
This part is no longer available and has been replaced by Oregon 57-017
|
| 3 |
HEX WRENCH 4MM
|
09026-03001
|
|
