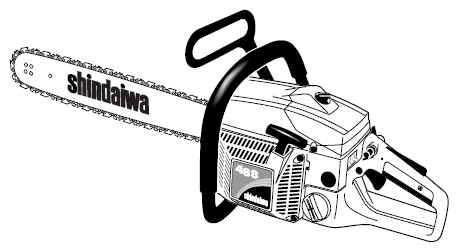

Shindaiwa 488 Chain Saw Illustrated Parts Diagram |
||||||||||
|
||||||||||
|
|
||||||||||
| No | Description | Part No | Order | |||||||
| 1 | Cylinder |
Original Part Number: 22157-12110 Replaced By: A130002080 |
Price: $152.99 |
|||||||
| 2 | Bolt |
Original Part No: 22157-12130 Replaced By: V203001600 |
Price: $1.99 |
|||||||
| 3 | Plug |
Original Part No: 22160-22220 Replaced By: V141000110 |
Price: $0.99 |
|||||||
| 4 | Boot |
Original Part No: 22160-12150 Replaced By: A202000160 |
Price: $20.99 |
|||||||
| 5 | Spring |
Original Part No: 22160-12160 Replaced By: V451000920 |
This part is no longer available and has been replaced by Echo A206000050
|
|||||||
| 6 | Seal |
Original Part No: 22160-12170 Replaced By: V541000280 |
Price: $6.99 |
|||||||
| 7 | Sleeve |
Original Part No: 22115-14140 Replaced By: V359000210 |
Price: $2.99 |
|||||||
| 8 | Cylinder Gasket |
Original Part No: 22160-12120 Replaced By: V100000550 |
Price: $2.99 |
|||||||
| 9 | Bolt |
Original Part No: 22157-15330 Replaced By: V203001500 |
Price: $1.99 |
|||||||
| 10 | Bolt |
Original Part No: 22157-12130 Replaced By: V203001600 |
Price: $1.99 |
|||||||
| - | Muffler Assembly |
Original Part No: 72365-15100 Replaced By: A030000570 |
No Longer Available |
|||||||
| 11 | Screw |
Original Part No: 11204-04080 Replaced By: 9157804006 |
Price: $1.99 |
|||||||
| 12 | Exhaust Tail Plate | 72365-15210 |
This part is no longer available and has been replaced by Shindaiwa A313001540
|
|||||||
| 13 | Screen |
Original Part No: 72311-15190 Replaced By: A310000300 |
Price: $3.99 |
|||||||
| 14 | Muffler Gasket |
Original Part No: 22160-15310 Replaced By: V104001590 |
Price: $3.99 |
|||||||
|
||||||||||
| No | Description | Part No | Order | |||||||
| - | Crankcase Assembly C | 72312-21502 |
This part is no longer available and has been replaced by Shindaiwa P021040962
|
|||||||
| 1 | Bar Bolt | 72312-21520 |
This part is no longer available and has been replaced by Shindaiwa V225000160
|
|||||||
| 2 | Bearing | 12900-62010 |
This part is no longer available and has been replaced by SHINDAIWA V592000330
|
|||||||
| 3 | Oil Seal | 22150-21250 |
This part is no longer available and has been replaced by Shindaiwa V505000140
|
|||||||
| 4 | Dowel Pin | 20000-21140 |
This part is no longer available and has been replaced by Echo 10021502830
|
|||||||
| - | Crankcase Assembly M | 22157-21201 |
This part is no longer available and has been replaced by SHINDAIWA P021022130
|
|||||||
| 2 | Bearing | 12900-62010 |
This part is no longer available and has been replaced by SHINDAIWA V592000330
|
|||||||
| 3 | Oil Seal | 22150-21250 |
This part is no longer available and has been replaced by Shindaiwa V505000140
|
|||||||
| 5 | Valve, Oil Tank | 22115-57120 |
This part is no longer available and has been replaced by Shindaiwa A356000130
|
|||||||
| 6 | Pulse Jet | 22150-21220 |
This part is no longer available and has been replaced by SHINDAIWA V185000000
|
|||||||
| 7 | Case Gasket | 22160-21720 |
This part is no longer available and has been replaced by Shindaiwa V102000170
|
|||||||
| 8 | Spike | 22160-52530 |
This part is no longer available and has been replaced by Shindaiwa C304000140
|
|||||||
| 9 | Bolt | 22157-15330 |
This part is no longer available and has been replaced by Shindaiwa V203001500
|
|||||||
| 10 | Adjusting Screw | 22160-53310 |
This part is no longer available and has been replaced by SHINDAIWA V253000620
|
|||||||
| 11 | Adjusting Stud | 22150-52440 |
This part is no longer available and has been replaced by Shindaiwa C309000110
|
|||||||
| 12 | Guide Plate C | 22160-97630 |
This part is no longer available and has been replaced by Shindaiwa C305000290
|
|||||||
| 13 | Screw | 22173-56150 |
This part is no longer available and has been replaced by ECHO V252000470
|
|||||||
| 14 | Stopper | 22160-22250 |
This part is no longer available and has been replaced by SHINDAIWA V420002820
|
|||||||
| 15a | Gromment (Non EPA) | 22160-82150 |
This part is no longer available and has been replaced by Shindaiwa V131000120
|
|||||||
| 15b | Gromment (EPA) | 72365-82150 |
This part is no longer available and has been replaced by SHINDAIWA V131000160
|
|||||||
| 16 | Plug Switch | 22160-22220 |
This part is no longer available and has been replaced by SHINDAIWA V141000110
|
|||||||
| 17 | Bolt | 22155-12190 |
This part is no longer available and has been replaced by SHINDAIWA V203001460
|
|||||||
| 18 | Washer | 01611-05100 |
This part is no longer available and has been replaced by Shindaiwa 9220305000
|
|||||||
| 19 | Chain Catcher | 22160-52510 |
This part is no longer available and has been replaced by Shindaiwa C310000080
|
|||||||
| 20 | Screw | 22157-21760 |
Price: $0.69 |
|||||||
| 21 | Switch Assembly | 22160-22100 |
This part is no longer available and has been replaced by Shindaiwa A440001660
|
|||||||
| 22 | Bolt | 22157-21750 |
Price: $0.79 |
|||||||
| 23 | Bolt | 22157-12130 |
This part is no longer available and has been replaced by Shindaiwa V203001600
|
|||||||
| 24 | Supporter | 22160-33730 |
This part is no longer available and has been replaced by SHINDAIWA V420002840
|
|||||||
| - | Oil Cap Assembly | 22160-21302 |
This part is no longer available and has been replaced by SHINDAIWA C020000020
|
|||||||
| 25 | Gasket | 22160-21351 |
This part is no longer available and has been replaced by Shindaiwa V107000060
|
|||||||
|
||||||||||
| No | Description | Part No | Order | |||||||
| - | Piston Assembly | 90101 |
This part is no longer available and has been replaced by Shindaiwa P021036090
|
|||||||
| 1 | Piston | 22157-41111 |
This part is no longer available and has been replaced by SHINDAIWA A100000960
|
|||||||
| 2 | Piston Ring Set | 22157-41210 |
This part is no longer available and has been replaced by Shindaiwa A101000520
|
|||||||
| 3 | Snap Ring | 22100-41230 |
This part is no longer available and has been replaced by Shindaiwa V580000110
|
|||||||
| 4 | Piston Pin | 22157-41220 |
This part is no longer available and has been replaced by SHINDAIWA V608000060
|
|||||||
| 5 | Bearing | 22160-41240 |
This part is no longer available and has been replaced by Shindaiwa V555000180
|
|||||||
| - | Cylinder Gasket | 22160-12120 |
This part is no longer available and has been replaced by Shindaiwa V100000550
|
|||||||
| 6 | Crankshaft Assembly | 22160-42001 |
This part is no longer available and has been replaced by SHINDAIWA A011001030
|
|||||||
|
||||||||||
| No | Description | Part No | Order | |||||||
| - | Flywheel Assembly | 22160-71100 |
This part is no longer available and has been replaced by SHINDAIWA A409000850
|
|||||||
| 1 | Spring Ratchet | 22100-71420 |
This part is no longer available and has been replaced by SHINDAIWA V452000780
|
|||||||
| 2 | Washer | 22100-71430 |
This part is no longer available and has been replaced by SHINDAIWA V304000150
|
|||||||
| 3 | Ratchet | 22100-71410 |
This part is no longer available and has been replaced by SHINDAIWA A514000200
|
|||||||
| 4 | Bolt | 22140-71440 |
Price: $1.29 |
|||||||
| 5 | Spring Washer | 01600-08201 |
This part is no longer available and has been replaced by Echo 90060500008
|
|||||||
| 6 | Nut | 22100-43231 |
This part is no longer available and has been replaced by Shindaiwa V265000180
|
|||||||
| - | Ignition Coil | 22160-71702 |
This part is no longer available and has been replaced by Shindaiwa A411001020
|
|||||||
| 7 | Key | 02403-03100 |
This part is no longer available and has been replaced by SHINDAIWA 9311503010
|
|||||||
| 8 | Tube | 22160-72240 |
This part is no longer available and has been replaced by SHINDAIWA V475005240
|
|||||||
| 9 | Screw | 11205-04160 |
This part is no longer available and has been replaced by Shindaiwa 9157304016
|
|||||||
| 10 | Exciter Coil | 22160-71511 |
This part is no longer available and has been replaced by Shindaiwa A410000010
|
|||||||
| 11 | Wire | 22160-71750 |
This part is no longer available and has been replaced by SHINDAIWA V485002010
|
|||||||
| 12 | Wire | 22160-71520 |
This part is no longer available and has been replaced by SHINDAIWA V485002020
|
|||||||
| 13 | Tube | 22160-71530 |
Price: $0.99 |
|||||||
| 14 | Bolt | 11024-04200 |
This part is no longer available and has been replaced by SHINDAIWA V202000190
|
|||||||
| 15 | Plug Cap | 22160-72220 |
This part is no longer available and has been replaced by Shindaiwa A427000060
|
|||||||
| 16 | Spring Clip | 22154-72230 |
This part is no longer available and has been replaced by Shindaiwa A426000040
|
|||||||
| 17 | Seal | 22160-72260 |
This part is no longer available and has been replaced by SHINDAIWA A429000090
|
|||||||
 |
||||||||||
| No | Description | Part No | Order | |||||||
| - | Rear Handle Assembly | 22160-33103 |
This part is no longer available and has been replaced by Shindaiwa P021040762
|
|||||||
| 1 | Stopper R | 22160-33590 |
This part is no longer available and has been replaced by Shindaiwa V420002830
|
|||||||
| 2 | Breather Tube | 22160-33910 |
This part is no longer available and has been replaced by Shindaiwa V470001480
|
|||||||
| 3 | Breather Element | 22157-33950 |
This part is no longer available and has been replaced by Shindaiwa E615000000
|
|||||||
| 4 | Locking Lever | 22160-33360 |
This part is no longer available and has been replaced by Shindaiwa C460000320
|
|||||||
| 5 | Spring Pin | 12420-40255 |
This part is no longer available and has been replaced by ECHO 9306040250
|
|||||||
| 6 | Grip | 22160-33310 |
This part is no longer available and has been replaced by Shindaiwa C403000540
|
|||||||
| 7 | - | 22160-33320 |
Price: $1.99 |
|||||||
| 8 | Screw | 11202-40120 |
Price: $0.99 |
|||||||
| 9 | Side Plate L | 22160-33330 |
This part is no longer available and has been replaced by Shindaiwa C403000560
|
|||||||
| 10 | Throttle Lever | 22160-33351 |
This part is no longer available and has been replaced by SHINDAIWA C450000650
|
|||||||
| 11 | Lever Spring | 22160-33370 |
This part is no longer available and has been replaced by SHINDAIWA V452000890
|
|||||||
| 12 | Bolt Lever | 22160-33380 |
This part is no longer available and has been replaced by SHINDAIWA V203001520
|
|||||||
| 13 | Stopper Assembly | 22160-33401 |
This part is no longer available and has been replaced by SHINDAIWA C461000100
|
|||||||
| 14 | Fuel Tube | 22160-34110 |
This part is no longer available and has been replaced by Shindaiwa V470001490
|
|||||||
| - | Fuel Cap Assembly | 22160-33801 |
This part is no longer available and has been replaced by Shindaiwa A033000380
|
|||||||
| 15 | Gasket | 22160-33821 |
This part is no longer available and has been replaced by Shindaiwa V107000080
|
|||||||
| 16 | Clip | 20020-85540 |
This part is no longer available and has been replaced by Shindaiwa V490000500
|
|||||||
| - | Fuel Filter Assembly | 22115-85401 |
This part is no longer available and has been replaced by Echo A369000460
|
|||||||
| 17 | Fuel Weight | 22128-85410 |
This part is no longer available and has been replaced by Echo A369000460
|
|||||||
| 18 | Screen | 22118-85460 |
Price: $6.99 |
|||||||
| 19 | Ring | 22128-85480 |
This part is no longer available and has been replaced by Echo A369000460
|
|||||||
| 20 | Filter | 22128-85421 |
This part is no longer available and has been replaced by Echo A369000460
|
|||||||
| 21 | Sleeve | 22128-85470 |
No Longer Available |
|||||||
| 22 | Filter Clip | 22128-85440 |
This part is no longer available and has been replaced by Echo A369000460
|
|||||||
| 23 | Cushion | 22160-97810 |
This part is no longer available and has been replaced by Shindaiwa V401000360
|
|||||||
| 24 | Stopper Bolt | 22160-33770 |
This part is no longer available and has been replaced by ECHO V203001480
|
|||||||
| 25 | Dust Cap | 22160-33720 |
This part is no longer available and has been replaced by Shindaiwa V421000050
|
|||||||
| 26 | Cushion | 22160-33710 |
This part is no longer available and has been replaced by Shindaiwa V401000350
|
|||||||
| 27 | Front Handle | 22160-32110 |
This part is no longer available and has been replaced by Shindaiwa C040000580
|
|||||||
| 28 | Screw | 22160-32220 |
This part is no longer available and has been replaced by Shindaiwa V253000550
|
|||||||
| 29 | Screw | 22160-32210 |
This part is no longer available and has been replaced by SHINDAIWA V253000710
|
|||||||
 |
||||||||||
| No | Description | Part No | Order | |||||||
| - | Clutch Drum Assembly | 22160-51501 |
This part is no longer available and has been replaced by Shindaiwa P021037700
|
|||||||
| 1 | Clutch Drum | 22160-51511 |
This part is no longer available and has been replaced by SHINDAIWA A556001140
|
|||||||
| 2 | Rim .325 Inch (7T) | 22131-98120 |
This part is no longer available and has been replaced by Oregon 11892
|
|||||||
| 3 | Rim 3/8 Inch (7T) | 22131-98310 |
Price: $15.99 |
|||||||
| 4 | Cover | 22160-51530 |
This part is no longer available and has been replaced by Shindaiwa V312000030
|
|||||||
| - | Clutch Shoe Assembly | 22160-51200 |
This part is no longer available and has been replaced by Shindaiwa A056000620
|
|||||||
| 5 | Clutch Boss B | 22160-51240 |
This part is no longer available and has been replaced by Shindaiwa A552000260
|
|||||||
| 6 | Clutch Spring | 22160-51230 |
This part is no longer available and has been replaced by Shindaiwa V451000940
|
|||||||
| 7 | Clutch Shoe | 22160-51220 |
This part is no longer available and has been replaced by SHINDAIWA A555000220
|
|||||||
| 8 | Clutch Boss A | 22160-51210 |
This part is no longer available and has been replaced by SHINDAIWA A552000250
|
|||||||
| 9 | Needle Bearing | 22100-51310 |
This part is no longer available and has been replaced by Shindaiwa V555000150
|
|||||||
| 10 | Screw | 22160-56150 |
This part is no longer available and has been replaced by SHINDAIWA V252000460
|
|||||||
| 11 | Pump Cover Assembly | 72317-56100 |
This part is no longer available and has been replaced by Shindaiwa C236000090
|
|||||||
| 12 | Gear | 22154-55110 |
This part is no longer available and has been replaced by Shindaiwa V652000170
|
|||||||
| 13 | Screw | 11205-04160 |
This part is no longer available and has been replaced by Shindaiwa 9157304016
|
|||||||
| 14 | Thrust Plate | 22154-55120 |
This part is no longer available and has been replaced by Shindaiwa V307000330
|
|||||||
| 15 | Gasket Pump | 22150-55411 |
This part is no longer available and has been replaced by Shindaiwa V112000000
|
|||||||
| 16 | Oil Pump Assembly | 22160-55200 |
This part is no longer available and has been replaced by SHINDAIWA C022000130
|
|||||||
| 17 | Sleeve | 22155-55430 |
This part is no longer available and has been replaced by SHINDAIWA V418000010
|
|||||||
| 18 | Connector | 22160-55420 |
This part is no longer available and has been replaced by SHINDAIWA V186000350
|
|||||||
| - | Oil Tube Assembly | 22160-55301 |
This part is no longer available and has been replaced by Shindaiwa C021000040
|
|||||||
| 19 | Oil Filter | 22169-57360 |
This part is no longer available and has been replaced by SHINDAIWA C209000080
|
|||||||
| 20 | Oil Tube | 22160-55310 |
This part is no longer available and has been replaced by SHINDAIWA V470001550
|
|||||||
| 21 | Clip | 22100-57370 |
Price: $0.99 |
|||||||
| - | Air Filter Cover Assembly | 22157-82500 |
This part is no longer available and has been replaced by Shindaiwa P021034390
|
|||||||
| 22 | Cleaner Cover | 22157-82510 |
This part is no longer available and has been replaced by SHINDAIWA A232001210
|
|||||||
| 23 | Knob | 22155-82520 |
This part is no longer available and has been replaced by Shindaiwa A235000280
|
|||||||
| 24 | Caution Label | 72229-75180 |
Price: $0.79 |
|||||||
| 25 | Cylinder Cover | 22160-31110 |
This part is no longer available and has been replaced by SHINDAIWA A160002080
|
|||||||
| 26 | Plug | 22160-31120 |
This part is no longer available and has been replaced by SHINDAIWA A219000050
|
|||||||
| 27 | Bolt | 22160-31150 |
This part is no longer available and has been replaced by SHINDAIWA V203001640
|
|||||||
| 28 | Caution Label | 72311-31150 |
This part is no longer available and has been replaced by SHINDAIWA X505003850
|
|||||||
| 29 | Caution Label | 72164-33221 |
This part is no longer available and has been replaced by SHINDAIWA X505003860
|
|||||||
 |
||||||||||
| No | Description | Part No | Order | |||||||
| - | Brake Lever Assembly | 72311-54014 |
This part is no longer available and has been replaced by Shindaiwa P021032190
|
|||||||
| 1 | Protector | 22160-54160 |
This part is no longer available and has been replaced by SHINDAIWA C302000050
|
|||||||
| 2 | Lever | 22160-54511 |
This part is no longer available and has been replaced by Shindaiwa C320000340
|
|||||||
| 3 | Collar | 72231-54620 |
This part is no longer available and has been replaced by SHINDAIWA V353000500
|
|||||||
| 4 | Stopper Pin | 72231-54610 |
This part is no longer available and has been replaced by SHINDAIWA V641000210
|
|||||||
| 5 | Bolt Lever | 72231-54580 |
This part is no longer available and has been replaced by SHINDAIWA V203001570
|
|||||||
| 6 | Nut Lever | 72231-54590 |
This part is no longer available and has been replaced by SHINDAIWA V263000300
|
|||||||
| 7 | Spring Lever | 22150-54630 |
This part is no longer available and has been replaced by SHINDAIWA V452000920
|
|||||||
| 8 | Inner Lever | 22150-54520 |
This part is no longer available and has been replaced by SHINDAIWA 22150-54522
|
|||||||
| 9 | Bolt | 22160-54220 |
Price: $2.99 |
|||||||
| 10 | Spring Pin | 02427-40125 |
This part is no longer available and has been replaced by SHINDAIWA 90034240012
|
|||||||
| 11 | Brake Band | 22160-54211 |
This part is no longer available and has been replaced by Shindaiwa C328000250
|
|||||||
| 12 | Adjust Rod | 22160-54310 |
Price: $1.99 |
|||||||
| 13 | Washer | 22160-54340 |
This part is no longer available and has been replaced by SHINDAIWA V306000310
|
|||||||
| 14 | Break Spring | 22150-54330 |
This part is no longer available and has been replaced by SHINDAIWA V450001200
|
|||||||
| 15 | Adjust Screw | 22150-54320 |
This part is no longer available and has been replaced by SHINDAIWA A613000060
|
|||||||
| 16 | Block | 22150-54410 |
This part is no longer available and has been replaced by SHINDAIWA C321000030
|
|||||||
| 17 | Guide Plate D | 22160-97640 |
This part is no longer available and has been replaced by Shindaiwa C305000330
|
|||||||
| 18 | Screw | 22160-56150 |
This part is no longer available and has been replaced by SHINDAIWA V252000460
|
|||||||
| 19 | Bracket | 72311-54710 |
Price: $1.99 |
|||||||
| 20 | Screw | 22160-56150 |
This part is no longer available and has been replaced by SHINDAIWA V252000460
|
|||||||
| 21 | Bar Nut | 22154-52410 |
This part is no longer available and has been replaced by Shindaiwa V265000250
|
|||||||
| 22 | Lavel | 72311-54141 |
This part is no longer available and has been replaced by SHINDAIWA X504004240
|
|||||||
 |
||||||||||
| No | Description | Part No | Order | |||||||
| - | Recoil Starter Assembly | 22160-75100 |
This part is no longer available and has been replaced by SHINDAIWA A051002010
|
|||||||
| 1 | Stopper, Knob | 22150-75530 |
This part is no longer available and has been replaced by Shindaiwa V352000220
|
|||||||
| 2 | Pull Knob | 22150-75520 |
This part is no longer available and has been replaced by SHINDAIWA A511000250
|
|||||||
| 3 | Rope | 22160-75510 |
This part is no longer available and has been replaced by Shindaiwa A509000370
|
|||||||
| 4 | Bolt | 01020-05120 |
This part is no longer available and has been replaced by Echo 90010505012
|
|||||||
| 5 | Washer | 22160-75450 |
This part is no longer available and has been replaced by SHINDAIWA V303000300
|
|||||||
| 6 | Reel | 22160-75310 |
This part is no longer available and has been replaced by SHINDAIWA A506000380
|
|||||||
| 7 | Recoil Spring | 22160-75410 |
This part is no longer available and has been replaced by Shindaiwa A504000210
|
|||||||
| 8 | Rope Guide | 22160-75220 |
This part is no longer available and has been replaced by SHINDAIWA A510000140
|
|||||||
| 9 | Model Label | 72311-75231 |
This part is no longer available and has been replaced by SHINDAIWA X504004250
|
|||||||
| 10 | Bolt | 22157-75630 |
This part is no longer available and has been replaced by Shindaiwa V202000200
|
|||||||
| 11 | Air Deflector | 22160-75610 |
This part is no longer available and has been replaced by SHINDAIWA A172001450
|
|||||||
| 12 | Snow Cover | 22160-97510 |
Price: $33.29 |
|||||||
|
||||||||||
| No | Description | Part No | Order | |||||||
| - | Carburetor Assembly | 72365-81000 |
This part is no longer available and has been replaced by Shindaiwa A021003090
|
|||||||
| 1 | Screw | 22100-81130 |
This part is no longer available and has been replaced by ECHO 12311003930
|
|||||||
| 2 | Pump Cover | 72365-81120 |
This part is no longer available and has been replaced by ECHO 12312419830
|
|||||||
| 3 | PUMP GASKET | 22128-81140 |
This part is no longer available and has been replaced by Walbro D10-WAT
|
|||||||
| 4 | Diaphragm, Pump | 22150-81150 |
This part is no longer available and has been replaced by Echo 12311212330
|
|||||||
| 5 | Screen | 70030-81380 |
This part is no longer available and has been replaced by Echo 12312610631
|
|||||||
| 6 | Shaft Assembly | 22160-81740 |
Price: $15.99 |
|||||||
| 7 | Choke Valve | 22160-81710 |
This part is no longer available and has been replaced by ECHO 12313232430
|
|||||||
| 8 | Screw | 22100-81360 |
This part is no longer available and has been replaced by ECHO 12311403930
|
|||||||
| 9 | Screw | 20803-81140 |
This part is no longer available and has been replaced by ECHO 12311405260
|
|||||||
| 10 | Throttle Valve | 22100-81340 |
This part is no longer available and has been replaced by ECHO 12311603930
|
|||||||
| 11 | Shaft Assembly | 22160-81371 |
This part is no longer available and has been replaced by SHINDAIWA P003003110
|
|||||||
| 12 | Return Spring | 22150-81430 |
This part is no longer available and has been replaced by ECHO P003000560
|
|||||||
| 13 | Lever Spring | 72342-81270 |
This part is no longer available and has been replaced by ECHO 12312203660
|
|||||||
| 14 | Needle Valve | 20036-81440 |
This part is no longer available and has been replaced by ECHO 12313719830
|
|||||||
| 15 | Lever | 22150-81230 |
This part is no longer available and has been replaced by ECHO 12312318330
|
|||||||
| 16 | Pin | 22100-81250 |
This part is no longer available and has been replaced by ECHO 12313803930
|
|||||||
| 17 | Screw | 22100-81240 |
This part is no longer available and has been replaced by Echo 12313903930
|
|||||||
| 18 | Spring | 22150-81730 |
This part is no longer available and has been replaced by ECHO 12313510630
|
|||||||
| 19 | Ball | 22150-81720 |
This part is no longer available and has been replaced by ECHO 12313610630
|
|||||||
| 20 | Gasket Diaphragm | 22150-81290 |
This part is no longer available and has been replaced by ECHO 12314016130
|
|||||||
| 21 | Metering Diaphragm | 22150-81260 |
This part is no longer available and has been replaced by Echo P003000030
|
|||||||
| 22 | Cover | 22150-81280 |
This part is no longer available and has been replaced by ECHO 12314217330
|
|||||||
| 23 | Screw | 22100-81351 |
This part is no longer available and has been replaced by ECHO 12313002960
|
|||||||
| 24 | Stopper | 22160-81390 |
This part is no longer available and has been replaced by ECHO 12315630830
|
|||||||
| 25 | Idle Screw | 22156-81410 |
This part is no longer available and has been replaced by SHINDAIWA P003003030
|
|||||||
| 26 | Spring, Idle Screw | 22156-81420 |
This part is no longer available and has been replaced by Echo 12313304260
|
|||||||
| 54 | Limit Cap, L Speed | 99909-25121 |
Price: $0.49 |
|||||||
| 27 | Air Filter | 22157-82400 |
This part is no longer available and has been replaced by Shindaiwa A226001180
|
|||||||
| 28 | Grommet | 22157-82430 |
This part is no longer available and has been replaced by SHINDAIWA 22157-82431
|
|||||||
| 29 | Bolt | 22157-12130 |
This part is no longer available and has been replaced by Shindaiwa V203001600
|
|||||||
| 30 | Washer | 01613-05080 |
This part is no longer available and has been replaced by Echo 90060300005
|
|||||||
| 31 | Elbow, Carburetor | 22157-82450 |
This part is no longer available and has been replaced by SHINDAIWA A204000140
|
|||||||
| 32 | Bolt | 11022-05500 |
This part is no longer available and has been replaced by SHINDAIWA V203001530
|
|||||||
| 33 | Bracket | 22160-82110 |
This part is no longer available and has been replaced by SHINDAIWA A200000860
|
|||||||
| 34 | Bolt | 11024-04160 |
This part is no longer available and has been replaced by Shindaiwa 9111304016
|
|||||||
| 35 | Choke Rod | 22160-82311 |
Price: $4.99 |
|||||||
| 36 | Grommet, Choke | 22160-82321 |
Price: $2.99 |
|||||||
| 37 | Throttle Rod | 22160-82353 |
Price: $3.39 |
|||||||
| 38 | Grommet | 22160-82360 |
This part is no longer available and has been replaced by Shindaiwa V133000050
|
|||||||
| 39 | Pulse Tube | 22160-82210 |
This part is no longer available and has been replaced by Shindaiwa V471002820
|
|||||||
| 40 | Clip | 22150-82140 |
This part is no longer available and has been replaced by Shindaiwa V490000760
|
|||||||
| 41 | Flocked Air Filter | 22160-97550 |
This part is no longer available and has been replaced by Shindaiwa A226001510
|
|||||||
| 42 | Bracket | 22160-82430 |
This part is no longer available and has been replaced by SHINDAIWA A204000140
|
|||||||
| 43 | Seal | 22160-82450 |
No Longer Available |
|||||||
| 44 | Bolt | 01201-05120 |
Price: $1.99 |
|||||||
| - | Air Filter Kit | 99909-488P |
No Longer Available |
|||||||
| 45 | Knob | 22961-82610 |
This part is no longer available and has been replaced by SHINDAIWA A235000320
|
|||||||
| 46 | Cleaner Cover Assembly | 72355-82500 |
This part is no longer available and has been replaced by SHINDAIWA A232001190
|
|||||||
| 47 | Pre-Filter | 22961-82410 |
This part is no longer available and has been replaced by Shindaiwa A226001150
|
|||||||
| 48 | Air Filter | 22961-82420 |
This part is no longer available and has been replaced by Shindaiwa A226001160
|
|||||||
| 49 | Sub Filter | 22961-82430 |
This part is no longer available and has been replaced by Shindaiwa A226001170
|
|||||||
| 50 | Bolt | 01020-05160 |
This part is no longer available and has been replaced by ECHO 90010505016
|
|||||||
| 51 | Bolt | 22961-82450 |
This part is no longer available and has been replaced by SHINDAIWA V204000630
|
|||||||
| 52 | Cleaner Base | 22961-82460 |
This part is no longer available and has been replaced by SHINDAIWA A232001180
|
|||||||
| 53 | Gasket | 22961-82470 |
This part is no longer available and has been replaced by SHINDAIWA A232001170
|
|||||||
| - | Kwik Kit | 22150-81910 |
Price: $9.99 |
|||||||
| - | Gasket and Diaphragm Kit | 80551 |
Price: $52.99 |
|||||||
 |
||||||||||
| No | Description | Part No | Order | |||||||
| - | Carburetor Assembly | 22160-81001 |
This part is no longer available and has been replaced by Shindaiwa A021002971
|
|||||||
| 1 | Screw | 22100-81130 |
This part is no longer available and has been replaced by ECHO 12311003930
|
|||||||
| 2 | Pump Cover Assembly | 72365-81120 |
This part is no longer available and has been replaced by ECHO 12312419830
|
|||||||
| 3 | PUMP GASKET | 22150-81140 |
This part is no longer available and has been replaced by Echo 12312512330
|
|||||||
| 4 | Diaphragm, Pump | 22150-81150 |
This part is no longer available and has been replaced by Echo 12311212330
|
|||||||
| 5 | Screen | 70030-81380 |
This part is no longer available and has been replaced by Echo 12312610631
|
|||||||
| 6 | Shaft Assembly | 22160-81740 |
Price: $15.99 |
|||||||
| 7 | Choke Valve | 22160-81710 |
This part is no longer available and has been replaced by ECHO 12313232430
|
|||||||
| 8 | - | 22100-81360 |
This part is no longer available and has been replaced by ECHO 12311403930
|
|||||||
| 9 | Screw | 20803-81140 |
This part is no longer available and has been replaced by ECHO 12311405260
|
|||||||
| 10 | Throttle Valve | 22100-81340 |
This part is no longer available and has been replaced by ECHO 12311603930
|
|||||||
| 11 | Shaft Assembly | 22160-81371 |
This part is no longer available and has been replaced by SHINDAIWA P003003110
|
|||||||
| 12 | Return Spring | 22150-81430 |
This part is no longer available and has been replaced by ECHO P003000560
|
|||||||
| 13 | Lever Spring | 72342-81270 |
This part is no longer available and has been replaced by ECHO 12312203660
|
|||||||
| 14 | Needle Valve | 20036-81440 |
This part is no longer available and has been replaced by ECHO 12313719830
|
|||||||
| 15 | Lever | 22150-81230 |
This part is no longer available and has been replaced by ECHO 12312318330
|
|||||||
| 16 | Pin | 22100-81250 |
This part is no longer available and has been replaced by ECHO 12313803930
|
|||||||
| 17 | Screw | 22100-81240 |
This part is no longer available and has been replaced by Echo 12313903930
|
|||||||
| 18 | Spring | 22150-81730 |
This part is no longer available and has been replaced by ECHO 12313510630
|
|||||||
| 19 | Ball | 22150-81720 |
This part is no longer available and has been replaced by ECHO 12313610630
|
|||||||
| 20 | Diaphragm Gasket | 22150-81290 |
This part is no longer available and has been replaced by ECHO 12314016130
|
|||||||
| 21 | Metering Diaphragm | 22150-81260 |
This part is no longer available and has been replaced by Echo P003000030
|
|||||||
| 22 | Cover | 22150-81280 |
This part is no longer available and has been replaced by ECHO 12314217330
|
|||||||
| 23 | Screw | 22100-81351 |
This part is no longer available and has been replaced by ECHO 12313002960
|
|||||||
| 24 | Stopper | 22160-81390 |
This part is no longer available and has been replaced by ECHO 12315630830
|
|||||||
| 25 | Idle Screw | 22156-81410 |
This part is no longer available and has been replaced by SHINDAIWA P003003030
|
|||||||
| 26 | Spring, Idle | 22156-81420 |
This part is no longer available and has been replaced by Echo 12313304260
|
|||||||
| 27 | L Needle | 22160-81170 |
This part is no longer available and has been replaced by SHINDAIWA P003003080
|
|||||||
| 28 | Needle Spring | 22160-81160 |
This part is no longer available and has been replaced by ECHO 12312116130
|
|||||||
| 29 | H Needle | 22160-81330 |
Price: $9.99 |
|||||||
| 30 | Needle Spring | 22160-81160 |
This part is no longer available and has been replaced by ECHO 12312116130
|
|||||||
| - | Gasket and Diaphragm Kit | 80551 |
Price: $52.99 |
|||||||
| - | Kwik Kit | 22150-81910 |
Price: $9.99 |
|||||||
| - | Tool Set | 72297-91000 |
This part is no longer available and has been replaced by Shindaiwa P021031991
|
|||||||
| 31 | Plug Wrench | 22150-91410 |
This part is no longer available and has been replaced by SHINDAIWA X602000170
|
|||||||
| 32 | Screw Driver | 22150-91160 |
No Longer Available |
|||||||
| 33 | Tool Bag | 19639-01100 |
This part is no longer available and has been replaced by Shindaiwa X705000130
|
|||||||
| 34 | Wrench, 3mm | 09026-03001 |
This part is no longer available and has been replaced by SHINDAIWA X605000090
|
|||||||
| 35 | Wrench, 4mm | 09026-04001 |
This part is no longer available and has been replaced by ECHO X605000100
|
|||||||
