Shindaiwa 490 EPA2 Chain Saw Illustrated Parts Diagram

	Search for OEM Shindaiwa Parts
We are an Authorized Shindaiwa dealer carrying a large selection of Shindaiwa 490 EPA2 Chain Saw Parts. The following are the most popular Shindaiwa 490 EPA2 Chain Saw Parts. If you do not see the Shindaiwa 490 EPA2 Chain Saw Parts you need, please complete the Lawn Mower Parts Request Form and we will be happy to assist you.
Shindaiwa Illustrated Parts Diagrams

Description

Part No

Order

CYLINDER

22157-12110

This part is no longer available and has been replaced by Shindaiwa A130002080

GASKET

22160-12121

This part is no longer available and has been replaced by Shindaiwa V100000550

BOLT

22157-12130

This part is no longer available and has been replaced by Shindaiwa V203001600

PLUG

22160-22220

This part is no longer available and has been replaced by SHINDAIWA V141000110

BOOT

22160-12150

This part is no longer available and has been replaced by SHINDAIWA A202000160

SPRING

22160-12160

This part is no longer available and has been replaced by ECHO V451000920

SEAL

22160-12170

This part is no longer available and has been replaced by SHINDAIWA V541000280

SLEEVE

22115-14140

This part is no longer available and has been replaced by SHINDAIWA V359000210

MUFFLER ASSEMBLY

69020-15112

This part is no longer available and has been replaced by SHINDAIWA A030000560

SCREEN

72311-15190

This part is no longer available and has been replaced by SHINDAIWA A310000300

TAIL PLATE

69028-15320

This part is no longer available and has been replaced by SHINDAIWA A313001560

SCREW

11203-04060

This part is no longer available and has been replaced by Shindaiwa 9157804006

GASKET

22160-15311

This part is no longer available and has been replaced by Shindaiwa V104001590

BOLT

22157-12130

This part is no longer available and has been replaced by Shindaiwa V203001600

BOLT

22157-15330

This part is no longer available and has been replaced by Shindaiwa V203001500

Description

Part No

Order

PISTON

22157-41112

This part is no longer available and has been replaced by SHINDAIWA A100000960

PISTON RING SET

22157-41210

This part is no longer available and has been replaced by Shindaiwa A101000520

PISTON PIN

22157-41220

This part is no longer available and has been replaced by SHINDAIWA V608000060

SNAP RING

22100-41230

This part is no longer available and has been replaced by Shindaiwa V580000110

BEARING

22160-41240

This part is no longer available and has been replaced by Shindaiwa V555000180

CRANKSHAFT ASSEMBLY

22160-42002

This part is no longer available and has been replaced by SHINDAIWA A011001030

GASKET

22160-12121

This part is no longer available and has been replaced by Shindaiwa V100000550

PISTON ASSEMBLY

72365-98011

This part is no longer available and has been replaced by Shindaiwa P021036090

Description

Part No

Order

CYLINDER COVER

69020-31111

This part is no longer available and has been replaced by Shindaiwa A160002070

PLUG

22160-31120

This part is no longer available and has been replaced by SHINDAIWA A219000050

BOLT

22160-31150

This part is no longer available and has been replaced by SHINDAIWA V203001640

FRONT HANDLE

69020-32111

Price: $54.09

SCREW

22160-32210

This part is no longer available and has been replaced by SHINDAIWA V253000710

SCREW

22160-32220

This part is no longer available and has been replaced by Shindaiwa V253000550

REAR HANDLE ASSEMBLY

69020-32020

This part is no longer available and has been replaced by SHINDAIWA C041000470

THROTTLE LEVER

39309-32240

This part is no longer available and has been replaced by SHINDAIWA C450000650

LOCK LEVER

22160-33360

This part is no longer available and has been replaced by Shindaiwa C460000320

SPRING LEVER

22160-33370

This part is no longer available and has been replaced by SHINDAIWA V452000890

BOLT

22160-33380

This part is no longer available and has been replaced by SHINDAIWA V203001520

12420-40255

This part is no longer available and has been replaced by ECHO 9306040250

CAP

39309-32040

This part is no longer available and has been replaced by Shindaiwa A033000380

GASKET

39309-32270

This part is no longer available and has been replaced by SHINDAIWA V107000070

PIPE

39309-32330

Price: $2.29

VALVE

22197-33960

This part is no longer available and has been replaced by Echo A356000050

CLIP

20020-85540

This part is no longer available and has been replaced by Shindaiwa V490000500

FUEL TUBE

39309-32340

This part is no longer available and has been replaced by SHINDAIWA V470001520

FUEL FILTER ASSEMBLY

22115-85401

This part is no longer available and has been replaced by Echo A369000460

FILTER

22128-85421

This part is no longer available and has been replaced by Echo A369000460

SCREEN

22118-85460

Price: $6.99

CLIP

20020-85540

This part is no longer available and has been replaced by Shindaiwa V490000500

CUSHION

22160-33710

This part is no longer available and has been replaced by Shindaiwa V401000350

PLUG

22160-33720

This part is no longer available and has been replaced by Shindaiwa V421000050

BOLT

22160-33770

This part is no longer available and has been replaced by ECHO V203001480

CUSHION

22160-97810

This part is no longer available and has been replaced by Shindaiwa V401000360

CLEANER COVER

69020-82131

This part is no longer available and has been replaced by SHINDAIWA A232001160

KNOB

69020-82360

This part is no longer available and has been replaced by SHINDAIWA A235000290

Description

Part No

Order

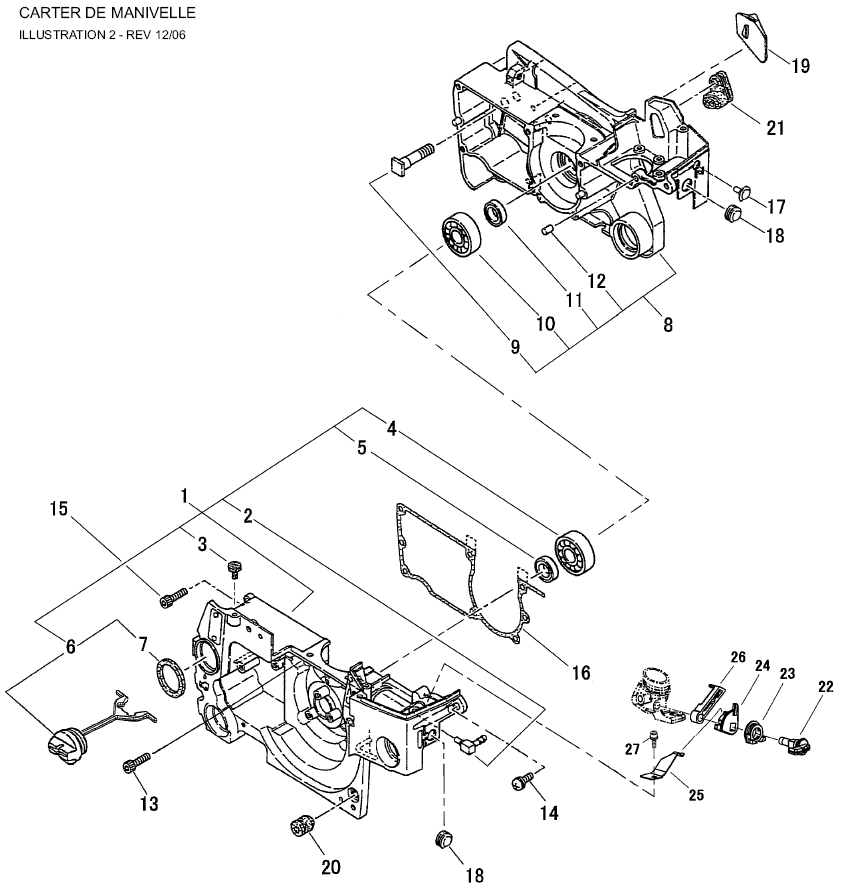

CRANKCASE ASSEMBLY M

39309-21010

Price: $79.99

PULSE TUBE

22150-21220

This part is no longer available and has been replaced by SHINDAIWA V185000000

VALVE

22115-57120

This part is no longer available and has been replaced by Shindaiwa A356000130

BEARING

12900-62010

This part is no longer available and has been replaced by SHINDAIWA V592000330

OIL SEAL

22150-21250

This part is no longer available and has been replaced by Shindaiwa V505000140

CAP

39309-21030

This part is no longer available and has been replaced by SHINDAIWA C020000050

GASKET

39309-21250

This part is no longer available and has been replaced by Shindaiwa V107000060

CRANKCASE ASSEMBLY C

39309-21021

Price: $47.99

BOLT

22160-21520

This part is no longer available and has been replaced by SHINDAIWA V225000150

BEARING

12900-62010

This part is no longer available and has been replaced by SHINDAIWA V592000330

OIL SEAL

22150-21250

This part is no longer available and has been replaced by Shindaiwa V505000140

ROLLER

12492-50100

Price: $2.99

BOLT

22157-21750

Price: $0.79

SCREW

22157-21760

Price: $0.69

BOLT

22157-12130

This part is no longer available and has been replaced by Shindaiwa V203001600

GASKET

22160-21720

This part is no longer available and has been replaced by Shindaiwa V102000170

CLAMP A

15270-02004

Price: $1.19

PLUG

22160-22220

This part is no longer available and has been replaced by SHINDAIWA V141000110

STOPPER

22160-22250

This part is no longer available and has been replaced by SHINDAIWA V420002820

SUPPORT

22160-33730

This part is no longer available and has been replaced by SHINDAIWA V420002840

GROMMET

69026-21310

Price: $2.29

SWITCH

69020-21311

Price: $3.99

BUSHING

69020-21321

Price: $2.29

SWITCH

69020-21332

Price: $2.39

SPRING PLATE

69020-21341

Price: $3.19

CHOKE

69020-21351

Price: $2.19

BOLT

11022-04100

This part is no longer available and has been replaced by SHINDAIWA V202000260

Description

Part No

Order

CLUTCH DRUM ASSEMBLY

22160-51501

This part is no longer available and has been replaced by Shindaiwa P021037700

RIM SPROCKET

22131-98120

This part is no longer available and has been replaced by Oregon 11892

COVER

22160-51530

This part is no longer available and has been replaced by Shindaiwa V312000030

BEARING

22100-51310

This part is no longer available and has been replaced by Shindaiwa V555000150

CLUTCH ASSEMBLY

22160-51200

This part is no longer available and has been replaced by Shindaiwa A056000620

CLUTCH BOSS A

22160-51210

This part is no longer available and has been replaced by SHINDAIWA A552000250

SPRING

22160-51230

This part is no longer available and has been replaced by Shindaiwa V451000940

CLUTCH BOSS B

22160-51240

This part is no longer available and has been replaced by Shindaiwa A552000260

CLUTCH SHOE

22160-51220

This part is no longer available and has been replaced by SHINDAIWA A555000220

NUT

22182-52411

This part is no longer available and has been replaced by Shindaiwa V265000200

GUIDE PLATE

22160-97630

This part is no longer available and has been replaced by Shindaiwa C305000290

SCREW

22173-56150

This part is no longer available and has been replaced by ECHO V252000470

CHAIN CATCHER

22160-52511

This part is no longer available and has been replaced by Shindaiwa C310000080

BOLT

22155-12190

This part is no longer available and has been replaced by SHINDAIWA V203001460

WASHER (5MM)

01611-05100

This part is no longer available and has been replaced by Shindaiwa 9220305000

SPIKE

22160-52530

This part is no longer available and has been replaced by Shindaiwa C304000140

BOLT

22157-15330

This part is no longer available and has been replaced by Shindaiwa V203001500

CLUTCH COVER ASSEMBLY

69020-53010

This part is no longer available and has been replaced by SHINDAIWA P021029780

CLUTCH COVER

69020-53111

This part is no longer available and has been replaced by SHINDAIWA C300000710

BRAKE BAND

69020-53211

This part is no longer available and has been replaced by SHINDAIWA C328000240

LEVER

69020-53221

This part is no longer available and has been replaced by SHINDAIWA C320000330

ROLLER

12492-50210

No Longer Available

COIL

17510-16000

Price: $7.99

COIL

17520-20000

Price: $1.49

COVER

69020-53351

Price: $8.29

SCREW

01280-05142

This part is no longer available and has been replaced by SHINDAIWA 9144905014

LEVER ASSEMBLY

69020-53360

Price: $25.89

INNER LEVER

69020-53311

Price: $9.89

TIE STRAP

69020-53321

Price: $3.69

LEVER

69020-53331

Price: $9.29

ROLLER

12492-30110

This part is no longer available and has been replaced by ECHO V629000010

COVER

69020-52321

This part is no longer available and has been replaced by Shindaiwa P021041240

TAPPING SCREW

01270-03122

Price: $0.69

GUIDE PLATE

69020-53121

This part is no longer available and has been replaced by Shindaiwa C305000300

TAPPING SCREW

22188-54120

Price: $1.99

SLIDE SCREW

69020-52111

This part is no longer available and has been replaced by Shindaiwa V253000670

SLIDE PIN

69020-52121

This part is no longer available and has been replaced by SHINDAIWA C309000120

GEAR

69020-52311

This part is no longer available and has been replaced by SHINDAIWA V654000040

O-RING

02304-00702

This part is no longer available and has been replaced by SHINDAIWA 9250800702

WASHER

11620-10002

Price: $1.99

GEAR

22154-55110

This part is no longer available and has been replaced by Shindaiwa V652000170

PLATE

22154-55120

This part is no longer available and has been replaced by Shindaiwa V307000330

PUMP ASSEMBLY

22160-55200

This part is no longer available and has been replaced by SHINDAIWA C022000130

GASKET

22150-55411

This part is no longer available and has been replaced by Shindaiwa V112000000

ELBOW

22160-55420

This part is no longer available and has been replaced by SHINDAIWA V186000350

FILTER

22155-55430

This part is no longer available and has been replaced by SHINDAIWA V418000010

SCREW

11205-04160

This part is no longer available and has been replaced by Shindaiwa 9157304016

PIPE

22160-55310

This part is no longer available and has been replaced by SHINDAIWA V470001550

FILTER

22169-57360

This part is no longer available and has been replaced by SHINDAIWA C209000080

CLIP

22100-57370

Price: $0.99

COVER

72317-56100

This part is no longer available and has been replaced by Shindaiwa C236000090

SCREW

22160-56150

This part is no longer available and has been replaced by SHINDAIWA V252000460

TRADE LABEL

69020-91330

Price: $3.99

Description

Part No

Order

CARBURETOR ASSEMBLY

69020-81010

This part is no longer available and has been replaced by Shindaiwa A021003080

SCREEN

70030-81380

This part is no longer available and has been replaced by Echo 12312610631

COVER

72365-81120

This part is no longer available and has been replaced by ECHO 12312419830

SCREW

22100-81130

This part is no longer available and has been replaced by ECHO 12311003930

GASKET

22150-81140

This part is no longer available and has been replaced by Echo 12312512330

GASKET

22150-81150

This part is no longer available and has been replaced by Echo 12311212330

NEEDLE VALVE

20036-81440

This part is no longer available and has been replaced by ECHO 12313719830

SPRING LEVER

72342-81270

This part is no longer available and has been replaced by ECHO 12312203660

DIAPHRAGM

22150-81280

This part is no longer available and has been replaced by ECHO 12314217330

DIAPHRAGM

22150-81260

This part is no longer available and has been replaced by Echo P003000030

GASKET

22150-81290

This part is no longer available and has been replaced by ECHO 12314016130

SCREW CIRCUIT PLATE

22100-81240

This part is no longer available and has been replaced by Echo 12313903930

PIN LEVER

22100-81250

This part is no longer available and has been replaced by ECHO 12313803930

LEVER

22160-81230

Price: $4.39

NEEDLE VALVE

69022-81320

Price: $12.59

NEEDLE VALVE

69020-81320

Price: $12.59

SCREW

22156-81410

This part is no longer available and has been replaced by SHINDAIWA P003003030

IDLE SCREW SPRING

22156-81420

This part is no longer available and has been replaced by Echo 12313304260

SCREW ASSEMBLY

20803-81140

This part is no longer available and has been replaced by ECHO 12311405260

SHUTTER PLATE

22100-81340

This part is no longer available and has been replaced by ECHO 12311603930

SPRING

22150-81430

This part is no longer available and has been replaced by ECHO P003000560

SHAFT

39309-81320

Price: $20.29

SCREW

22100-81351

This part is no longer available and has been replaced by ECHO 12313002960

STOPPER

22160-81390

This part is no longer available and has been replaced by ECHO 12315630830

SCREW ASSEMBLY

20803-81150

This part is no longer available and has been replaced by ECHO 12311403930

STOPPER

69020-81330

Price: $10.19

CHOKE VALVE

22160-81710

This part is no longer available and has been replaced by ECHO 12313232430

LEVER

39309-81350

Price: $4.79

SHAFT

39309-81340

This part is no longer available and has been replaced by SHINDAIWA P003003420

WASHER

20036-81185

This part is no longer available and has been replaced by ECHO 12314926030

SPRING

69020-81340

Price: $5.09

E-SPRING

70030-81390

This part is no longer available and has been replaced by ECHO 12312715030

SPRING

69020-81350

Price: $5.59

MOUNT

22160-82111

This part is no longer available and has been replaced by SHINDAIWA A200000860

BOLT

11024-04160

This part is no longer available and has been replaced by Shindaiwa 9111304016

PULSE TUBE

22160-82210

This part is no longer available and has been replaced by Shindaiwa V471002820

CLIP

22150-82140

This part is no longer available and has been replaced by Shindaiwa V490000760

UPPER NYLON AIR CLEANER

69020-82321

This part is no longer available and has been replaced by Shindaiwa A226001130

LOWER NYLON AIR CLEANER

69020-82331

This part is no longer available and has been replaced by Shindaiwa A226001140

ELBOW

69020-82341

Price: $4.19

O-RING

69020-82370

Price: $1.99

BOLT

22157-12130

This part is no longer available and has been replaced by Shindaiwa V203001600

WASHER

01613-05080

This part is no longer available and has been replaced by Echo 90060300005

BOLT

11022-05500

This part is no longer available and has been replaced by SHINDAIWA V203001530

CHOKE ROD

69020-83311

Price: $1.89

THROTTLE ROD

39309-83331

Price: $2.69

GROMMET

22160-82360

This part is no longer available and has been replaced by Shindaiwa V133000050

GASKET KIT

22150-81930

This part is no longer available and has been replaced by SHINDAIWA P050008620

DIAPHRAGM KIT

22150-81940

Price: $30.99

UPPER FLOCKED AIR CLEANER

69020-98321

Price: $7.19

LOWER FLOCKED AIR CLEANER

69020-98331

This part is no longer available and has been replaced by SHINDAIWA A226001210

Description

Part No

Order

ROTOR

69020-71111

This part is no longer available and has been replaced by Shindaiwa A409000930

RATCHET

22182-71412

This part is no longer available and has been replaced by Shindaiwa A514000220

SPRING

22182-71421

This part is no longer available and has been replaced by SHINDAIWA V452000870

BOLT

22182-71440

This part is no longer available and has been replaced by ECHO V204000620

WASHER

22182-71430

This part is no longer available and has been replaced by ECHO V304000270

WASHER

01600-08201

This part is no longer available and has been replaced by Echo 90060500008

NUT

22100-43231

This part is no longer available and has been replaced by Shindaiwa V265000180

KEY

12408-03100

This part is no longer available and has been replaced by Shindaiwa V381000030

COIL ASSEMBLY

69020-71021

This part is no longer available and has been replaced by SHINDAIWA A411001060

PLUG CAP

62905-71250

This part is no longer available and has been replaced by SHINDAIWA A427000110

COIL SPRING

69020-71320

Price: $1.89

TUBE

69020-71331

Price: $10.39

TUBE

69020-71340

Price: $18.39

CONNECTOR

69020-98340

This part is no longer available and has been replaced by SHINDAIWA C152000700

BOLT SW

11024-04200

This part is no longer available and has been replaced by SHINDAIWA V202000190

SPARK PLUG (Replaced by BPMR7A)

13000-13507

This part is no longer available and has been replaced by Ngk BPMR7A

Description

Part No

Order

RECOIL STARTER ASSEMBLY

69020-75012

This part is no longer available and has been replaced by SHINDAIWA A051002080

COVER

69020-75111 (Replaced by 69020-75112)

This part is no longer available and has been replaced by SHINDAIWA 69020-75112

ROPE GUIDE

22182-75120

This part is no longer available and has been replaced by SHINDAIWA A510000130

REEL

22182-75212

This part is no longer available and has been replaced by SHINDAIWA A506000400

RECOIL SPRING WITH CASE

22155-75410

This part is no longer available and has been replaced by SHINDAIWA A504000190

SCREW

72320-75420

Price: $1.99

ROPE

22182-75410

This part is no longer available and has been replaced by ECHO 17722601110

KNOB

22182-75420

Price: $5.09

STOPPER

22104-75430

This part is no longer available and has been replaced by ECHO 17724611120

BOLT

11060-04163

This part is no longer available and has been replaced by Shindaiwa V202000200

AIR PLATE

22160-75613

This part is no longer available and has been replaced by SHINDAIWA A172001450

LABEL

69020-91321

Price: $2.99

Description

Part No

Order

TOOL SET

69023-92310

Price: $6.99

PLUG WRENCH

22000-91181

This part is no longer available and has been replaced by Oregon 57-017

WRENCH

09026-03001

This part is no longer available and has been replaced by SHINDAIWA X605000090

WRENCH

09026-04001

This part is no longer available and has been replaced by ECHO X605000100

POLY-BAG

19639-01100

This part is no longer available and has been replaced by Shindaiwa X705000130

Most Popular Departments and Categories

Most Popular Brands

DIY Categories

DIY Manufacturer

Illustrated Parts Diagrams by Manufacturer

More Illustrated Parts Diagrams

Shindaiwa 490 EPA2 Chain Saw Illustrated Parts Diagram
