Shindaiwa 757EPA Chain Saw Illustrated Illustrated Parts Diagram

Shindaiwa 757EPA Illustrated Parts Diagrams available online. We are an Authorized Shindaiwa dealer carrying a large selection of Shindaiwa 757EPA Chain Saw Parts. The following are the most popular Shindaiwa 757EPA Parts. If you do not see the Shindaiwa 757EPA Chain Saw Parts you need, please complete the Lawn Mower Parts Request Form and we will be happy to assist you.

Shindaiwa Illustrated Parts Diagrams

Shindaiwa 757EPA Cylinder - Muffler Parts Diagram

No	Description	Part No	Order
1	CYLINDER	22169-12111	This part is no longer available and has been replaced by Shindaiwa A130001670
2	CYLINDER GASKET	22169-12120	This part is no longer available and has been replaced by Shindaiwa V100000570
3	BOLT	22169-12190	This part is no longer available and has been replaced by Shindaiwa V204000690
4	BAFFLE PLATE	22169-12140	This part is no longer available and has been replaced by Shindaiwa A200000880
5	BOOT	22150-12152	This part is no longer available and has been replaced by Shindaiwa A202000180
6	SLEEVE	22150-12170	This part is no longer available and has been replaced by SHINDAIWA V360000120
7	BRACKET	22150-12180	This part is no longer available and has been replaced by SHINDAIWA A565000070
8	SCREW	01201-04160	This part is no longer available and has been replaced by SHINDAIWA 90021204016
-	MUFFLER ASSEMBLY	72330-15103	This part is no longer available and has been replaced by Shindaiwa A030000600
9	MUFFLER	22169-15113	This part is no longer available and has been replaced by Shindaiwa A030000610
10	SPARK ARRESTER	72330-15160	This part is no longer available and has been replaced by Shindaiwa A310000320
11	TAIL PLATE	22169-15170	This part is no longer available and has been replaced by SHINDAIWA A313001590
12	SCREW PM	11203-05080	This part is no longer available and has been replaced by Shindaiwa 9157805008
13	MUFFLER GASKET	22169-15212	This part is no longer available and has been replaced by Shindaiwa V104001610
14	BOLT	22169-15220	This part is no longer available and has been replaced by SHINDAIWA V204000680
15	BOLT	22169-15231	This part is no longer available and has been replaced by SHINDAIWA V204000660

Shindaiwa 757EA Crankcase Parts Diagram

Shindaiwa 757EPA Crankcase Parts Diagram

No	Description	Part No	Order
-	CRANKCASE M COMPLETE	22169-21203	This part is no longer available and has been replaced by SHINDAIWA P021022520
2	PULSE JOINT	22150-21220	This part is no longer available and has been replaced by SHINDAIWA V185000000
3	BEARING	02030-06202	This part is no longer available and has been replaced by Echo 90081036202
4	OIL SEAL	22155-21630	This part is no longer available and has been replaced by SHINDAIWA V508000080
5	OIL TANK VALVE	22115-57120	This part is no longer available and has been replaced by Shindaiwa A356000130
-	CAP ASSEMBLY	22169-21300	This part is no longer available and has been replaced by SHINDAIWA C020000070
7	GASKET	22160-33821	This part is no longer available and has been replaced by Shindaiwa V107000080
-	CRANKCASE C COMPLETE	22169-21503	This part is no longer available and has been replaced by SHINDAIWA P021022530
9	BAR BOLT	22169-21520	This part is no longer available and has been replaced by Shindaiwa V225000180
10	DOWEL PIN	20000-21140	This part is no longer available and has been replaced by Echo 10021502830
11	BEARING	02030-06203	This part is no longer available and has been replaced by ECHO 90081036203
12	OIL SEAL	22169-21630	This part is no longer available and has been replaced by SHINDAIWA V510000030
13	BOLT	22169-21910	This part is no longer available and has been replaced by SHINDAIWA V203001450

Shindaiwa 757EA Cylinder Cover Parts Diagram

Shindaiwa 757EPA Cylinder Cover Parts Diagram

Description

Part No

Order

CYLINDER COVER

22169-31110

This part is no longer available and has been replaced by SHINDAIWA A160002110

PLUG

22102-32140

This part is no longer available and has been replaced by SHINDAIWA V162000430

BOLT SPW

22169-31250

This part is no longer available and has been replaced by SHINDAIWA V203001620

FRONT HANDLE

22169-32112

This part is no longer available and has been replaced by SHINDAIWA C040000610

BOLT PC

22169-32210

This part is no longer available and has been replaced by SHINDAIWA V204000670

REAR HANDLE ASSEMBLY

69014-32030

This part is no longer available and has been replaced by Shindaiwa P021029740

REAR HANDLE

22169-33201

Price: $72.99

GRIP PLATE

22169-33310

No Longer Available

Replaced by C412000570

THROTTLE LEVER

22169-33321

This part is no longer available and has been replaced by SHINDAIWA C450000660

LOCK LEVER

22169-33330

This part is no longer available and has been replaced by ECHO C460000330

SPRING LEVER

22150-33340

This part is no longer available and has been replaced by Shindaiwa V452000930

THROTTLE ROD

22169-33360

Price: $7.99

SUB CLEANER

22169-33380

This part is no longer available and has been replaced by Shindaiwa A226001240

PLUG

22169-33390

This part is no longer available and has been replaced by Shindaiwa V162000470

SPRING PIN

12420-50284

Price: $1.99

STOPPER

72171-33170

Price: $6.99

SPRING

22100-33180

Price: $1.99

STOPPER KNOB

22100-33190

Price: $1.99

TAPPING SCREW

01280-04102

This part is no longer available and has been replaced by Shindaiwa 9144904010

CHOKE GROMMET

22150-33410

This part is no longer available and has been replaced by SHINDAIWA V130000160

GASKET

69014-81210

Price: $1.19

ADJUST SCREW

22155-33450

This part is no longer available and has been replaced by SHINDAIWA A613000070

SPRING ADJUST

22155-33460

Price: $1.99

SWITCH ASSEMBLY

22155-33501

This part is no longer available and has been replaced by Shindaiwa P021022030

NUT

22155-33530

This part is no longer available and has been replaced by SHINDAIWA V268000050

EARTH PLATE

2216-33540

Currently Unavailable

EARTH CORD

22169-33550

Price: $4.99

PLUG

22150-33630

This part is no longer available and has been replaced by Shindaiwa V162000410

GROMMET

22150-33640

This part is no longer available and has been replaced by Shindaiwa V144000330

CUSHION, 26

72330-33710

This part is no longer available and has been replaced by Shindaiwa V401000430

PLUG, 26

22150-33720

This part is no longer available and has been replaced by Shindaiwa V421000060

CUSHION

22169-33740

This part is no longer available and has been replaced by SHINDAIWA V401000390

STOPPER BOLT

22169-33770

This part is no longer available and has been replaced by SHINDAIWA V203001650

SCREW PC

22160-32210

This part is no longer available and has been replaced by SHINDAIWA V253000710

CAP ASSEMBLY

22160-33801

This part is no longer available and has been replaced by Shindaiwa A033000380

GASKET

22160-33821

This part is no longer available and has been replaced by Shindaiwa V107000080

PIPE

22169-33940

This part is no longer available and has been replaced by Shindaiwa V470001580

ELEMENT

22157-33950

This part is no longer available and has been replaced by Shindaiwa E615000000

FUEL PIPE

22169-34110

This part is no longer available and has been replaced by Shindaiwa V470001590

FUEL FILTER ASSEMBLY

22169-35400

This part is no longer available and has been replaced by Shindaiwa A369000101

FUEL LINE WEIGHT

22128-85410

This part is no longer available and has been replaced by Echo A369000460

FILTER

22169-35420

This part is no longer available and has been replaced by SHINDAIWA A369000110

FILTER CLIP

22128-85440

This part is no longer available and has been replaced by Echo A369000460

SCREEN

22118-85460

Price: $6.99

SLEEVE

22128-85470

No Longer Available

O-RING

22128-85480

This part is no longer available and has been replaced by Echo A369000460

CLIP

20020-85540

This part is no longer available and has been replaced by Shindaiwa V490000500

BOLT PC

22169-32220

This part is no longer available and has been replaced by SHINDAIWA 22169-32220

CAUTION PLATE

72330-92150

This part is no longer available and has been replaced by SHINDAIWA X505003880

Shindaiwa 757EA Piston Parts Diagram

No	Description	Part No	Order
1	PISTON	69014-41110	This part is no longer available and has been replaced by Shindaiwa A100000890
2	PISTON RING	22169-41210	This part is no longer available and has been replaced by Shindaiwa A101000560
3	PISTON PIN	22169-41220	This part is no longer available and has been replaced by Shindaiwa V610000010
4	SNAP RING	22155-41230	This part is no longer available and has been replaced by SHINDAIWA V580000060
5	BEARING, SE	22155-41281	This part is no longer available and has been replaced by Shindaiwa V557000030
6	CRANKSHAFT ASSEMBLY	22169-42000	This part is no longer available and has been replaced by SHINDAIWA A011001060
7	KEY	02403-03100	This part is no longer available and has been replaced by SHINDAIWA 9311503010
-	PISTON ASSEMBLY	72330-98010	This part is no longer available and has been replaced by Shindaiwa P021032391

Shindaiwa 757EA Flywheel - Ignition Coil Parts Diagram

Shindaiwa 757EPA Flywheel - Ignition Coil Parts Diagram

No	Description	Part No	Order
1	ROTOR ASSEMBLY	22169-71100	This part is no longer available and has been replaced by SHINDAIWA P021022590
2	RATCHET	22150-71120	This part is no longer available and has been replaced by Shindaiwa A514000230
3	RATCHET SPRING	22155-71130	This part is no longer available and has been replaced by SHINDAIWA V452000960
4	WASHER	22100-71430	This part is no longer available and has been replaced by SHINDAIWA V304000150
5	BOLT	22100-71441	This part is no longer available and has been replaced by SHINDAIWA V204000720
6	NUT	22169-71460	This part is no longer available and has been replaced by SHINDAIWA V265000220
7	EXCITER COIL	22169-71510	This part is no longer available and has been replaced by Shindaiwa A410000030
8	BOLT SPW	11022-05200	This part is no longer available and has been replaced by Shindaiwa V203000351
9	IGNITION COIL	22169-71700	This part is no longer available and has been replaced by Shindaiwa A411001080
12	BOLT SPW	11022-04160	This part is no longer available and has been replaced by SHINDAIWA V202000580
13	PLUG CAP	22169-72220	This part is no longer available and has been replaced by Shindaiwa A427000150
14	SPARK PLUG SPRING	20000-72230	This part is no longer available and has been replaced by Shindaiwa A426000050
15	BAND	15210-12305	This part is no longer available and has been replaced by SHINDAIWA V495002400
16	TUBE	22155-72280	This part is no longer available and has been replaced by Shindaiwa V475005280

Shindaiwa 757EA Brake Handle Parts Diagram

Shindaiwa 757EPA Brake Handle Parts Diagram

Description

Part No

Order

CLUTCH DRUM ASSEMBLY

22169-51100

This part is no longer available and has been replaced by SHINDAIWA P021022560

CLUTCH DRUM

22169-51110

This part is no longer available and has been replaced by Shindaiwa A556001170

RIM

22150-51520

This part is no longer available and has been replaced by Oregon 68210

WASHER

22169-51130

This part is no longer available and has been replaced by SHINDAIWA V309000080

SNAP RING

22169-51140

This part is no longer available and has been replaced by Shindaiwa V582000200

NUT

22169-51170

This part is no longer available and has been replaced by SHINDAIWA V265000240

CLUTCH ASSEMBLY

22169-51200

This part is no longer available and has been replaced by Shindaiwa A056000650

CLUTCH BOSS A

22169-51210

This part is no longer available and has been replaced by Shindaiwa A552000290

CLUTCH SHOE

22169-51220

This part is no longer available and has been replaced by SHINDAIWA A555000260

CLUTCH SPRING

22150-51230

This part is no longer available and has been replaced by SHINDAIWA A566000210

CLUTCH BOSS B

22169-51240

This part is no longer available and has been replaced by SHINDAIWA A552000300

BEARING

22150-51310

This part is no longer available and has been replaced by Shindaiwa V558000000

NUT

22154-52410

This part is no longer available and has been replaced by Shindaiwa V265000250

ADJUST SCREW

22169-53310

This part is no longer available and has been replaced by Shindaiwa V255000030

ADJUST STUD

22150-52440

This part is no longer available and has been replaced by Shindaiwa C309000110

GUIDE PLATE A

22169-52460

This part is no longer available and has been replaced by Shindaiwa C305000370

SCREW PMPW

11205-04100

This part is no longer available and has been replaced by Shindaiwa 9157304010

CHAIN CATCHER

22169-52510

This part is no longer available and has been replaced by Shindaiwa C310000100

LONG SPIKE

22150-97320

This part is no longer available and has been replaced by Shindaiwa C304000170

BOLT SPW

11022-05200

This part is no longer available and has been replaced by Shindaiwa V203000351

BOLT

22157-12130

This part is no longer available and has been replaced by Shindaiwa V203001600

CLUTCH COVER

22169-53111

This part is no longer available and has been replaced by SHINDAIWA C300000740

GUIDE PLATE B

22169-53120

This part is no longer available and has been replaced by Shindaiwa C305000380

TAPPING SCREW

01280-04102

This part is no longer available and has been replaced by Shindaiwa 9144904010

TRADE LABEL

72330-82170

Currently Unavailable

BRAKE ASSEMBLY

22169-54103

This part is no longer available and has been replaced by SHINDAIWA P021022580

BRAKE HOLDER

22169-54112

This part is no longer available and has been replaced by SHINDAIWA C340000000

BRAKE BAND

22169-54211

This part is no longer available and has been replaced by SHINDAIWA C328000270

02427-40105

This part is no longer available and has been replaced by ECHO 9304240100

ADJUST PLATE

72316-54310

No Longer Available

SPRING HOLDER

22169-54320

Price: $17.99

BRAKE SPRING

22169-54330

Price: $2.99

STOPPER

22169-54340

Price: $2.29

LEVER

22169-54510

This part is no longer available and has been replaced by Shindaiwa C347000020

INNER LEVER

22169-54520

Price: $3.19

TIE STRAP

22169-54540

Price: $6.99

COLLAR

22169-54550

Price: $1.29

RIVET

22169-54570

Price: $0.69

LEVER BOLT

22169-54580

This part is no longer available and has been replaced by SHINDAIWA V203001610

WASHER

01613-08160

This part is no longer available and has been replaced by ECHO 90060300008

SPACER

22169-54620

Price: $4.99

SPRING LEVER

22169-54630

This part is no longer available and has been replaced by Shindaiwa V452000950

SNAP RING

02430-08080

This part is no longer available and has been replaced by SHINDAIWA 9242308000

SPRING COVER

22169-54640

Price: $3.59

GUARD

72330-54651

This part is no longer available and has been replaced by Shindaiwa C320000370

SPACER

22169-54660

This part is no longer available and has been replaced by Shindaiwa V356000590

WASHER

22169-54670

This part is no longer available and has been replaced by SHINDAIWA V303000320

BOLT SPW

11022-05200

This part is no longer available and has been replaced by Shindaiwa V203000351

BOLT SPW

11022-05200

This part is no longer available and has been replaced by Shindaiwa V203000351

BOLT

01020-05250

This part is no longer available and has been replaced by Echo 90010505025

BOLT

01020-04120

Price: $1.99

GEAR

22169-55110

This part is no longer available and has been replaced by SHINDAIWA V652000190

COLLAR

22169-55130

This part is no longer available and has been replaced by Shindaiwa V358000140

OIL PUMP ASSEMBLY

22169-55200

This part is no longer available and has been replaced by Echo C022000121

OIL PIPE

22169-55310

This part is no longer available and has been replaced by Shindaiwa V470001600

OIL FILTER

22169-57360

This part is no longer available and has been replaced by SHINDAIWA C209000080

OIL CLIP

22154-85540

This part is no longer available and has been replaced by Shindaiwa V490000720

FILTER

22169-55430

This part is no longer available and has been replaced by Shindaiwa C211000010

SCREW PM

11205-04160

This part is no longer available and has been replaced by Shindaiwa 9157304016

PUMP COVER

22169-56110

This part is no longer available and has been replaced by Shindaiwa C236000130

SCREW PMPW

11205-04100

This part is no longer available and has been replaced by Shindaiwa 9157304010

STOPPER

22169-54690

This part is no longer available and has been replaced by SHINDAIWA C326000020

PROTECTOR

22169-53140

Price: $3.09

Shindaiwa 757EA Recoil Starter Assembly Parts Diagram

Shindaiwa 757EPA Recoil Starter Assembly Parts Diagram

Description

Part No

Order

RECOIL STARTER ASSEMBLY

22169-75101

This part is no longer available and has been replaced by SHINDAIWA A051002100

RECOIL CASE

22169-75211

This part is no longer available and has been replaced by SHINDAIWA A408000010

GUIDE

22169-75230

This part is no longer available and has been replaced by SHINDAIWA A510000140

REEL

22150-75310

This part is no longer available and has been replaced by Shindaiwa A506000410

RECOIL SPRING ASSEMBLY

22155-75410

This part is no longer available and has been replaced by SHINDAIWA A504000190

WASHER

22150-75450

Price: $1.99

BOLT

01020-05120

This part is no longer available and has been replaced by Echo 90010505012

ROPE

22150-75510

This part is no longer available and has been replaced by SHINDAIWA A509000400

RECOIL KNOB

22150-75520

This part is no longer available and has been replaced by SHINDAIWA A511000250

KNOB STOPPER

22150-75530

This part is no longer available and has been replaced by Shindaiwa V352000220

TAPE

20010-75230

This part is no longer available and has been replaced by Shindaiwa X707000050

AIR PLATE

22169-75610

Price: $6.99

BOLT SPW

22169-31250

This part is no longer available and has been replaced by SHINDAIWA V203001620

TRADE LABEL

72330-92180

No Longer Available

Shindaiwa 757EA Service Tools Parts Diagram

Shindaiwa 757EPA Service Tools Parts Diagram

Description

Part No

Order

TOOL SET

72330-91000

Price: $7.99

POLY BAG

19639-01100

This part is no longer available and has been replaced by Shindaiwa X705000130

SCREWDRIVER

22150-91160

No Longer Available

PLUG WRENCH

22167-91410

This part is no longer available and has been replaced by Shindaiwa X602000180

HEX WRENCH 3MM

09026-04001

This part is no longer available and has been replaced by ECHO X605000100

HEX WRENCH 4MM

09026-03001

This part is no longer available and has been replaced by SHINDAIWA X605000090

HEX WRENCH 5MM

09026-05001

This part is no longer available and has been replaced by ECHO X605000070

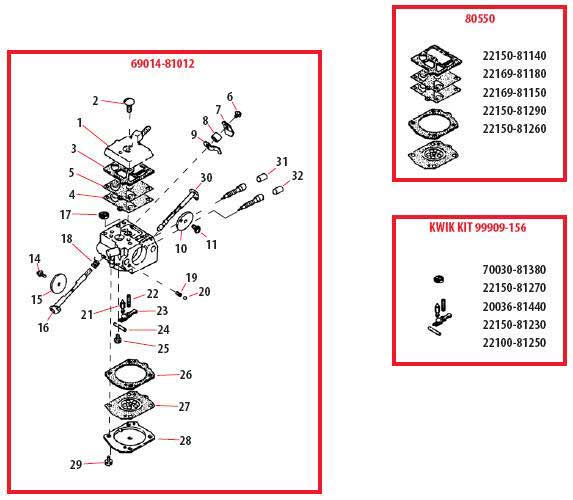

Shindaiwa 757EA Carburetor Parts Diagram

Shindaiwa 757EPA Air Filter Parts Diagram

Shindaiwa 757EPA Carburetor Parts Diagram

Description

Part No

Order

CARBURETOR ASSEMBLY

69014-81012

This part is no longer available and has been replaced by SHINDAIWA A021003130

PUMP COVER

22150-81120

Price: $1.99

SCREW

22150-81130

This part is no longer available and has been replaced by ECHO 12311016130

PUMP GASKET

22150-81140

This part is no longer available and has been replaced by Echo 12312512330

PUMP DIAPHRAGM

22169-81150

This part is no longer available and has been replaced by Shindaiwa P003003130

PUMP DIAPHRAGM

22169-81180

This part is no longer available and has been replaced by Shindaiwa P003003150

SCREW

22150-81420

No Longer Available

THROTTLE LEVER

22150-81380

Price: $3.99

SPACER

22150-81410

This part is no longer available and has been replaced by SHINDAIWA P003002910

STOPPER

22150-81390

This part is no longer available and has been replaced by ECHO 12315612330

CHOKE VALVE

22160-81710

This part is no longer available and has been replaced by ECHO 12313232430

SCREW

22100-81360

This part is no longer available and has been replaced by ECHO 12311403930

SCREW

22100-81360

This part is no longer available and has been replaced by ECHO 12311403930

THROTTLE VALVE

22169-81340

This part is no longer available and has been replaced by ECHO 12313216130

SHAFT ASSEMBLY

22169-81370

This part is no longer available and has been replaced by Shindaiwa P003003170

SCREEN

70030-81380

This part is no longer available and has been replaced by Echo 12312610631

RETURN SPRING

22150-81430

This part is no longer available and has been replaced by ECHO P003000560

SPRING

22150-81730

This part is no longer available and has been replaced by ECHO 12313510630

BALL

22150-81720

This part is no longer available and has been replaced by ECHO 12313610630

NEEDLE VALVE

20036-81440

This part is no longer available and has been replaced by ECHO 12313719830

LEVER SPRING

22150-81270

Price: $1.99

LEVER

22150-81230

This part is no longer available and has been replaced by ECHO 12312318330

22100-81250

This part is no longer available and has been replaced by ECHO 12313803930

SCREW

22100-81240

This part is no longer available and has been replaced by Echo 12313903930

DIAPHRAGM GASKET

22150-81290

This part is no longer available and has been replaced by ECHO 12314016130

DIAPHRAGM ASSEMBLY

22150-81260

This part is no longer available and has been replaced by Echo P003000030

DIAPHRAGM COVER

22150-81280

This part is no longer available and has been replaced by ECHO 12314217330

SCREW

22100-81351

This part is no longer available and has been replaced by ECHO 12313002960

SHAFT ASSEMBLY

22150-81740

Price: $7.99

L LIMITER CAP

99909-25121

Price: $0.49

H LIMITER CAP

69014-81130

Price: $1.99

KWIK KIT

99909-156

Price: $9.99

GASKET/DIAPHRAGM KIT

80550

Price: $30.99

GASKET KIT

22150-81930

This part is no longer available and has been replaced by SHINDAIWA P050008620

PULSE TUBE

22155-82111

This part is no longer available and has been replaced by Shindaiwa V470001640

PULSE CLIP

22150-82140

This part is no longer available and has been replaced by Shindaiwa V490000760

CHOKE ROD

69014-83110

Price: $3.69

ELBOW

22169-82211

This part is no longer available and has been replaced by SHINDAIWA A204000170

BOLT

11021-05650

This part is no longer available and has been replaced by Shindaiwa V203001590

BOLT SPW

11022-05200

This part is no longer available and has been replaced by Shindaiwa V203000351

CLEANER BASE

22169-82251

This part is no longer available and has been replaced by SHINDAIWA A225000530

PLUG

22150-33630

This part is no longer available and has been replaced by Shindaiwa V162000410

BOLT

22169-82271

This part is no longer available and has been replaced by SHINDAIWA V203001630

FILTER

22169-82310

This part is no longer available and has been replaced by Shindaiwa A226001250

CLEANER COVER

22169-82410

This part is no longer available and has been replaced by SHINDAIWA A232001270

PRE FILTER

72330-82320

This part is no longer available and has been replaced by Shindaiwa A226001260

SHOP WITH CONFIDENCE
35 YEARS EXPERIENCE
365 DAY RETURN POLICY
FREE TECH SUPPORT
WE SHIP ANYWHERE
MILLIONS OF PARTS
Need help finding the correct repair parts?

Get Help!
Recommend This Page.
"Two Oregon 9" edger blades. Could not be found locally in South Florida. Thanks for having them at a great price. A very easy transaction. Would recommend Lawnmowerpros.com to anybody. Thanks again,"

- David B.

"thanks thousand the tanks has arrived. A reliable seller"

- Tony

"Thank you so much. It's rare to find good service like this. I appreciate it."

- Ron W.

"I will keep your company book-marked and order from you first in the future! Your kind of service is exceptional!"

- Bill

"It's nice to do business with good people like you."

- Michael B.

"Many thanks for the prompt parts order. I waited over 4 months for my local repair shop to get the part and they ended up with the wrong one. Next time I will do it myself."

- Robin C.
