Shindaiwa AHS231 Hedge Trimmer Illustrated Parts Diagram

Shindaiwa AHS231 Illustrated Parts Diagrams avilable online. We are an Authorized Shindaiwa dealer carrying a large selection of Shindaiwa AHS231 Parts. The following are the most popular Shindaiwa AHS231 Parts. If you do not see the Shindaiwa AHS231 Parts you need, please complete the Lawn Mower Parts Request Form and we will be happy to assist you.
Shindaiwa AHS231 Hedge Trimmer Parts

Shindaiwa AHS231 Cylinder Parts Diagram

Shindaiwa AHS231 Cylinder Parts Diagram

No Description Part No Order
1 Cylinder 62023-12111
2 Cylinder Gasket 62023-12120
3 Bolt 01020-05250
4 Insulator
5 Gasket 62023-12220
7 Bolt SW 11022-05300
8 Muffler Assembly 62023-15011
10 Screen 62023-15130
11 Tail Plate 62023-15160
12 Screw, PM 11203-04060
13 Muffler Cover 62023-15381
14 Muffler Gasket 62023-15211
15 Gasket 62023-15421 Price: $6.99


16 Gasket 62023-15430
17 Washer 01610-05085
18 Bolt 01020-05605
19 Bolt 01020-05200
20 Bolt 01020-05080

Shindaiwa AHS231 Piston Parts Diagram

Shindaiwa AHS231 Piston Parts Diagram
No Description Part No Order
1 Piston 62023-41110
2 Piston Ring 20000-41210
3 Piston Pin 20016-41310
4 Snap Ring 70030-41320
5 Needle Bearing 20016-41330
6 Thrust Washer 20016-41340
7 Crankcase Assembly 20016-42002
8 Clutch Shoe Assembly 70140-51102
10 Coil Spring 37013-51310
11 Bolt 20087-51210
12 Spring Plate 20087-51231
13 Washer 22100-71430

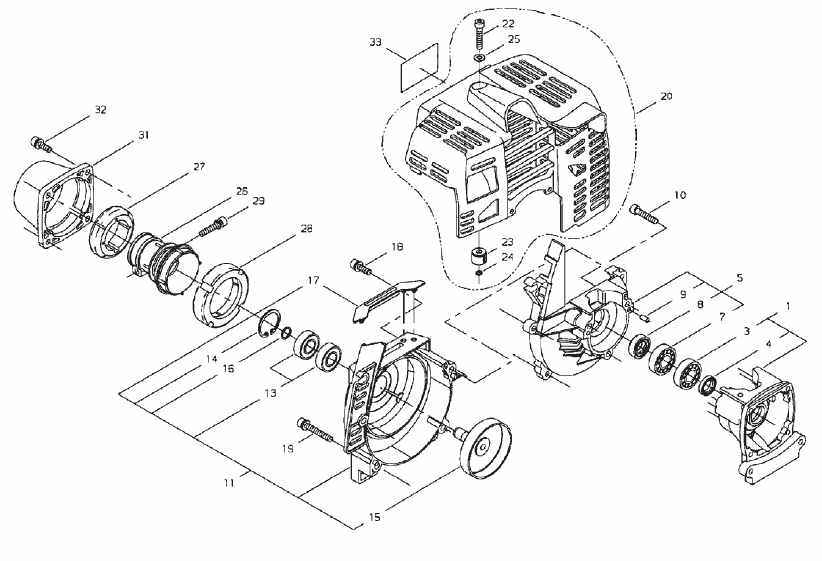

Shindaiwa AHS231 Crankcase Parts Diagram

Shindaiwa AHS231 Crankcase Parts Diagram
No Description Part No Order
1 Crankcase S Complete 20016-21100
3 Bearing 12900-60010
4 Oil Seal 22150-21250
5 Crankcase M Complete 20016-21200
7 Bearing 12900-60010
8 Oil Seal 20000-21211
9 Roller 12492-40080
10 Bolt 01020-05250
11 Fan Cover Complete 62010-31011
13 Bearing 02002-06000
14 Snap Ring 02432-26120
15 Clutch Drum 20087-31210
16 Snap Ring 22000-13320
17 Cushion 70140-31130
18 Bolt SPW 11022-05160
19 Bolt SPW 11022-05450
20 Cylinder Cover Assembly 62023-32010
22 Bolt 01020-05250
23 Insulator 20018-31260
24 Clip 20018-31270
25 Washer 01613-05080
26 Joint 20018-31410
27 Front Cushion 20018-31420
28 Rear Cushion 20018-31430
29 Bolt SW 11023-05250
31 Cap 70135-31470
32 Bolt SPW 11022-05160
33 Trade Label 68142-91320 Price: $2.99


Shindaiwa AHS231 Ignition Coil Parts Diagram

Shindaiwa AHS231 Ignition Coil Parts Diagram
No Description Part No Order
1 Rotor 20016-71200
2 Key 02403-03100
3 Nut 20035-71220
4 Coil Assembly 20016-71601
5 Cord 20016-71641
6 Plug Cap 22102-72220
7 Spark Plug Spring 20000-72230
8 Tube 20016-71651
9 Grommet 20010-82110
Currently Unavailable

10 Tube 20016-71660
11 Insulator 70030-71620
12 Bolt SLPW 11024-04261

Shindaiwa AHS231 Recoil Starter Parts Diagram

Shindaiwa AHS231 Recoil Starter Parts Diagram
No Description Part No Order
1 Recoil Starter Sub Assembly 72933-75900
2 Starter Case 70064-75110
3 Reel 72933-75120
4 Recoil Spring 70064-75130
5 Dog 72933-75140
6 Wave Washer 70064-75150
7 Screw 72933-75160
8 Retainer 72933-75170
9 Washer 72933-75180
10 Rope 70064-75190
11 Knob 32004-75150
12 Starter Pulley 70064-75310
13 Nut 01511-08051
14 Bolt Adhesive 11060-04162
15 Trade Label 62023-91040

Shindaiwa AHS231 Carburetor Parts Diagram

Shindaiwa AHS231 Carburetor Parts Diagram
No Description Part No Order
1 Carburetor Assembly 62023-81010
2 Valve Assembly 62023-81310
3 Screw 70064-81290
4 O-Ring 70097-81220
5 Main Jet #37.5 62023-81330 Price: $5.19


6 Gasket Pump 70097-81310
7 Diaphragm 70097-81320
8 Pump Body Assembly 72933-81411
9 Screen 70030-81380
10 Needle Valve 20036-81440
11 Spring 72933-81270
12 Screw 20016-81450
13 Pin 22100-81250
14 Lever 22100-81230
15 Diaphragm Assembly 22100-81260
16 Gasket 20016-81280
17 Pump Base Complete 20016-81420
18 Pump Cover 20016-81510
19 Primer Pump 20036-81670
20 Screw 20016-81140
21 O-Ring 20016-81250
22 Gasket 20089-81532
23 Cleaner Body Complete 70140-81710
24 Filter 60023-98031
25 Cleaner Cover 70140-81760
26 Cleaner Cover Knob 20115-81780
27 O-Ring 22100-82430
28 Cone Washer 20024-81790
29 Back Plate 20018-81721
30 Screw PMSW 11203-05605
31 Choke Label 19404-00008
32 Plug 62074-81320
33 Main Jet #36.5 60084-98320 Price: $5.39


34 Main Jet #35.5 60084-98330 Price: $5.39


Shindaiwa AHS231 Fuel Tank Parts Diagram

Shindaiwa AHS231 Fuel Tank Parts Diagram
No Description Part No Order
1 Fuel Tank Assembly 62023-85015
2 Fuel Tank 62023-85111
3 Fuel Cap Sub Assembly 70043-85201
4 Fuel Cap 70168-85210
5 Gasket 20000-85221
6 Fuel Pipe 62023-85310 Price: $1.99


7 Grommet 62023-85320
8 Clip 20020-85540
9 Fuel Filter 20016-85400
10 Pipe 72933-85611
11 Joint 20087-85340
12 Valve 20035-85522
13 Valve Holder 20016-12310
14 Clip 20020-85540
15 Clip 37013-85310
16 Tank Cushion 20024-86120
17 Tank Guard 62902-85320
18 Bolt SPW 11022-05180

Shindaiwa AHS231 Main Shaft Parts Diagram

Shindaiwa AHS231 Main Shaft Parts Diagram
No Description Part No Order
1 Outer Pipe Complete 65005-62010
2 Bush 22035-12120
3 Main Shaft 68142-64310
4 Grip 63901-62140
5 Throttle Lever Assembly 63002-62161
6 Right Body 63002-62320
7 Left Body 63002-62330
8 Lever 63002-62340
9 Lock Lever 63901-62352
10 Holder 63002-62350
11 Coil Spring 63880-65350
12 Coil Spring 63901-62370
13 Switch 63002-62360
14 Tapping Screw 63880-65360
15 PMSPW Screw 11206-05201
16 Nut 01501-05030
17 Lug 63880-65411
18 Throttle Cable Assembly 63023-62330
19 Throttle Cable 63023-62170
20 Nut 01501-06041
21 Tube 22422-14540
22 Caution Label 19402-00287

Shindaiwa AHS231 Gearcase Parts Diagram

Shindaiwa AHS231 Gearcase Parts Diagram
No Description Part No Order
1 Gearcase Complete 63840-61011
2 Gear Case 63840-61111
3 Main Shaft 68120-61320
4 Shaft 63840-61320
5 Pinion Shaft 63840-61330
6 Bearing 37074-63310
7 Bearing 02002-06001
8 Snap Ring 02430-12100
9 Snap Ring 02432-28120
10 Case Cover 68120-61120
11 Cover 63840-61340
12 Bevel Gear 63840-61350
13 Collar 15401-11010
14 Washer 01613-06100
15 Cone Washer 20024-81790
16 Nut 63840-61370
17 Pin 02421-16150
18 Cam Gear 68120-61130
19 Colar 15401-10025
20 Rod 68120-61170
21 Plate 68120-61331
22 Packing 68120-61340
23 Gasket 68120-61351
24 Grease Nipple 20870-61640
25 Bolt 01020-04100
26 Upper Gearcase 63840-63310
27 Pinion Bevel 63840-63320
28 Bearing 02000-00609
No Longer Available

29 Bearing 02002-00609
30 Snap Ring 22420-13350
31 Snap Ring 02432-24120
32 O-Ring 02304-03150
33 Shim 22000-13420
34 Bolt, SW 11023-05250
35 Bolt 01020-05120
36 Cutter Assembly 68142-62010
37 Guide Bar 18501-50000
38 Blade 18500-50102
39 Bolt 20870-62110
40 Washer 20870-62131
41 Lock Nut 22011-97840
42 Protector 68122-62320
43 Holder 68120-62331
44 Flange Nut 11526-05212
45 Lock Nut 22011-97840
46 Adjust Plate 63840-66310
47 Stopper Plate 68142-66310
48 Screw 68142-66320
49 Lock Lever 63840-66320
50 Safety Lever 63840-66330
51 Ratchet Pin 22106-71441
52 Coil Spring 17520-18601
53 Handle 63840-66350
54 Truss Screw 01215-06208
55 Blade Cover 19601-01506

Shindaiwa AHS231 Handle Parts Diagram

Shindaiwa AHS231 Handle Parts Diagram
No Description Part No Order
1 Handle Assembly 62901-64013
2 Handle 62901-64113
3 Clamp 62901-64120
4 SPW Bolt 11022-05250

Shindaiwa AHS231 Service Tool Kit Parts Diagram

Shindaiwa AHS231 Service Tool Kit Parts Diagram
No Description Part No Order
1 Tool Set 62023-92021
2 Tool Bag 19639-01400
3 Plug Wrench 22000-91181
4 Hex Wrench 09026-04001
5 Spanner 22000-91120
6 Scraper 62023-92010
7 Hex Wrench 09026-03001
