Shindaiwa B45 Brushcutter Illustrated Parts Diagram

Shindaiwa B45 Illustrated Parts Diagrams available online. We are an Authorized Shindaiwa dealer carrying a large selection of Shindaiwa B45 Brushcutter Parts. The following are the most popular Shindaiwa B45 Brushcutter Parts. If you do not see the Shindaiwa Parts you need, please complete the Lawn Mower Parts Request Form and we will be happy to assist you.

Shindaiwa Illustrated Parts Diagrams

Shindaiwa B45 Cylinder Assembly Parts Diagram

Description

Part No

Order

Spark Plug

CJ8

Price: $4.99

Cylinder

20021-12110

This part is no longer available and has been replaced by Shindaiwa A130001330

Insulator Gasket

20021-12220

This part is no longer available and has been replaced by Shindaiwa V103001000

Insulator

20021-12210

This part is no longer available and has been replaced by SHINDAIWA A200000670

Bolt

11022-05250

This part is no longer available and has been replaced by Shindaiwa V203000630

Nut

20011-12260

This part is no longer available and has been replaced by Shindaiwa V263000260

Cylinder Gasket

20010-12120

This part is no longer available and has been replaced by Shindaiwa V100000470

Bolt

01020-05250

This part is no longer available and has been replaced by Echo 90010505025

Spring Washer

01600-05131

This part is no longer available and has been replaced by Echo 90060500005

Muffler Gasket

70196-15210

This part is no longer available and has been replaced by Shindaiwa V104001330

Muffler Assembly

70200-15101

This part is no longer available and has been replaced by Shindaiwa A030000240

Spark Arrestor

70200-15151

This part is no longer available and has been replaced by SHINDAIWA A310000210

Bolt

11024-05120

This part is no longer available and has been replaced by Shindaiwa V203000820

Bolt

01020-06250

This part is no longer available and has been replaced by ECHO 90010506025

Bolt

11024-05100

This part is no longer available and has been replaced by SHINDAIWA V203000830

Muffler Cover

70200-15311

This part is no longer available and has been replaced by Shindaiwa A320000740

Washer

70196-32150

This part is no longer available and has been replaced by SHINDAIWA V340000260

Cushion

70196-32160

This part is no longer available and has been replaced by SHINDAIWA A459000020

Bolt

11020-05100

This part is no longer available and has been replaced by SHINDAIWA V203000930

Shindaiwa B45 Cylinder Cover Parts Diagram

No	Description	Part No	Order
1	Fan Cover	70012-31111	This part is no longer available and has been replaced by Echo A172002310
2	Name Label	70080-31150	Currently Unavailable
3	Snap Ring	20011-31230	This part is no longer available and has been replaced by Shindaiwa V583000181
4	Snap Ring	02432-32120	This part is no longer available and has been replaced by Shindaiwa 9242432000
5	Bearing	02006-06002	This part is no longer available and has been replaced by ECHO 90080206002
6	Bolt	11022-05200	This part is no longer available and has been replaced by Shindaiwa V203000351
7	Stand	70200-33112	This part is no longer available and has been replaced by Shindaiwa A175000180
8	Bolt	11022-05160	This part is no longer available and has been replaced by Shindaiwa V203000590
9	Cylinder Cover	70012-32110	This part is no longer available and has been replaced by SHINDAIWA A160001720
10	Bolt	11024-05140	This part is no longer available and has been replaced by SHINDAIWA V203001140
-	Clutch Drum Set	20021-31200	This part is no longer available and has been replaced by Shindaiwa A055000020
11	Snap Ring	20021-31220	This part is no longer available and has been replaced by SHINDAIWA V582000090

Shindaiwa B45 Crankcase Parts Diagram

No	Description	Part No	Order
-	Crankcase M Assembly	99909-307	This part is no longer available and has been replaced by SHINDAIWA P021033182
1	Oil Seal	20010-21211	This part is no longer available and has been replaced by Shindaiwa V508000050
2	Bearing		This part is no longer available and has been replaced by Echo 90081036202
3	Dowel Pin	20000-21140	This part is no longer available and has been replaced by Echo 10021502830
-	Crankcase S Assembly	99909-306	This part is no longer available and has been replaced by Shindaiwa P021033432
1	Oil Seal	20010-21211	This part is no longer available and has been replaced by Shindaiwa V508000050
2	Bearing	02030-06202	This part is no longer available and has been replaced by Echo 90081036202
4	Bolt	01020-05300	This part is no longer available and has been replaced by Echo 90010505030

Shindaiwa B45 Piston Parts Diagram

1	Crankshaft Assembly	20021-42002	This part is no longer available and has been replaced by SHINDAIWA A011000810
-	Piston Assembly	99909-304	This part is no longer available and has been replaced by Shindaiwa P021031631
2	Snap Ring		This part is no longer available and has been replaced by Shindaiwa V580000100
3	Piston Pin	20021-41311	This part is no longer available and has been replaced by SHINDAIWA V609000040
4	Thrust Washer	20021-41341	This part is no longer available and has been replaced by SHINDAIWA V308000060
5	Needle Bearing	20021-41330	This part is no longer available and has been replaced by Shindaiwa V556000020
6	Piston	20021-41112	This part is no longer available and has been replaced by SHINDAIWA P021031640
7	Piston Ring Set	20021-41210	This part is no longer available and has been replaced by Shindaiwa A101000350
-	Cylinder Gasket	20010-12120	This part is no longer available and has been replaced by Shindaiwa V100000470
-	Clutch Shoe Assembly	20021-51102	This part is no longer available and has been replaced by Shindaiwa P021017990
8	Washer	22100-71430	This part is no longer available and has been replaced by SHINDAIWA V304000150
9	Clutch Bolt	20021-51131	This part is no longer available and has been replaced by SHINDAIWA A557000100
10	Clutch Spring	20021-51120	This part is no longer available and has been replaced by Shindaiwa A566000130

Shindaiwa B45 Flywheel and Ignition Coil

Parts Diagram

No	Description	Part No	Order
1	Coil	20011-71611	No Longer Available
2	Grommet		This part is no longer available and has been replaced by SHINDAIWA V135000080
3	Tube	20011-71660	This part is no longer available and has been replaced by SHINDAIWA V475004880
4	Grommet	20011-72120	This part is no longer available and has been replaced by SHINDAIWA V136000060
5	Coil Spacer	20010-71631	This part is no longer available and has been replaced by SHINDAIWA V352000140
6	Bolt	01020-04260	No Longer Available
7	Spring Washer	01600-04101	This part is no longer available and has been replaced by Echo 90060500004
8	Washer	20010-71650	This part is no longer available and has been replaced by SHINDAIWA V302000010
9	Spark Plug Spring	20000-72230	This part is no longer available and has been replaced by Shindaiwa A426000050
10	Plug Cap	20010-72221	This part is no longer available and has been replaced by Shindaiwa A427000090
11	Flywheel	20021-71202	This part is no longer available and has been replaced by Shindaiwa P021045130
12	Key	02403-03100	This part is no longer available and has been replaced by SHINDAIWA 9311503010
13	Nut	01511-10061	This part is no longer available and has been replaced by ECHO 90050300010
14	Spring Washer	01600-10251	This part is no longer available and has been replaced by ECHO 90060500010
15	Switch	72930-14210	This part is no longer available and has been replaced by SHINDAIWA A045000340
16	Bracket	70014-74120	This part is no longer available and has been replaced by SHINDAIWA A439000510
17	Unit, Electronic	72920-71711	This part is no longer available and has been replaced by Shindaiwa A416000000
18	Bolt	11024-04120	This part is no longer available and has been replaced by Shindaiwa 9111304012
19	Band	20000-72250	This part is no longer available and has been replaced by Shindaiwa V495001440
20	Cap Cover	20000-72241	This part is no longer available and has been replaced by Shindaiwa A429000110

Shindaiwa B45 Recoil Starter Assembly Parts Diagram

No	Description	Part No	Order
-	Recoil Starter Assembly	70020-75100	This part is no longer available and has been replaced by SHINDAIWA A050000240
1	Trade Label	19420-00027	This part is no longer available and has been replaced by SHINDAIWA X504002770
2	Recoil Spring	20020-75140	No Longer Available
3	Reel	20020-75120	This part is no longer available and has been replaced by Shindaiwa A506000270
4	Return Spring	20000-75220	This part is no longer available and has been replaced by SHINDAIWA V452000560
5	Friction Spring	20000-75160	This part is no longer available and has been replaced by SHINDAIWA V452000550
6	Ratchet	20000-75130	This part is no longer available and has been replaced by SHINDAIWA A514000130
7	Friction Plate	20000-75150	This part is no longer available and has been replaced by SHINDAIWA A518000050
8	Screw	20000-75170	This part is no longer available and has been replaced by SHINDAIWA V253000470
9	Rope	20020-75180	This part is no longer available and has been replaced by Shindaiwa A509000190
10	Knob	20010-75190	This part is no longer available and has been replaced by Echo 17722827030
11	Stopper	20010-75210	This part is no longer available and has been replaced by SHINDAIWA A522000040
12	Nut	20000-76210	This part is no longer available and has been replaced by Shindaiwa V265000170
13	Starter Pulley	70000-75230	This part is no longer available and has been replaced by Shindaiwa A520000171
14	Bolt	11022-04160	This part is no longer available and has been replaced by SHINDAIWA V202000580
15	Recoil Gasket	20020-76110	This part is no longer available and has been replaced by Shindaiwa V105000031

Shindaiwa B45 Fuel Tank Assembly Parts Diagram

No	Description	Part No	Order
-	Fuel Tank Assembly	20021-85002	This part is no longer available and has been replaced by Shindaiwa P021018001
-	Breather Assembly	20000-85500	This part is no longer available and has been replaced by Shindaiwa A039000020
1	Breather Body	20000-85511	This part is no longer available and has been replaced by SHINDAIWA A362000000
2	Fuel Valve	22100-85260	This part is no longer available and has been replaced by Shindaiwa E263000040
3	Breather Washer	22100-85250	This part is no longer available and has been replaced by SHINDAIWA V303000170
4	Breather Retainer	22100-85240	This part is no longer available and has been replaced by SHINDAIWA A359000010
5	Breather Holder	20000-85521	This part is no longer available and has been replaced by SHINDAIWA A358000030
6	Breather Grommet	20000-85579	This part is no longer available and has been replaced by Shindaiwa V138000020
	Fuel Cap Assembly	20000-85201	This part is no longer available and has been replaced by Shindaiwa A033000070
7	Fuel Gasket	20000-85221	This part is no longer available and has been replaced by Shindaiwa V107000010
8	Clamp (A)	20000-85340	This part is no longer available and has been replaced by SHINDAIWA V451000850
9	Fuel Tube	20021-85310	This part is no longer available and has been replaced by SHINDAIWA V470001100
10	Clamp (B)	20000-85350	This part is no longer available and has been replaced by Shindaiwa V490000610
11	Joint	20000-85321	This part is no longer available and has been replaced by Shindaiwa V186000220
-	Fuel Filter Assembly	20011-85401	This part is no longer available and has been replaced by Shindaiwa A037000000
12	Pick-Up Tube	20011-85451	This part is no longer available and has been replaced by Shindaiwa V470001110
13	Check Valve	20000-85440	This part is no longer available and has been replaced by Shindaiwa A356000080
14	Clip	22102-85440	This part is no longer available and has been replaced by Shindaiwa V490000590
15	Filter (B)	22100-85431	This part is no longer available and has been replaced by Shindaiwa A368000030
16	Fuel Weight	22100-85411	This part is no longer available and has been replaced by Shindaiwa A369000030
17	Filter (A)	22100-85420	This part is no longer available and has been replaced by Shindaiwa A368000020
18	Cushion	20010-86130	This part is no longer available and has been replaced by Shindaiwa V420002390
19	Bracket (M)	20011-86120	This part is no longer available and has been replaced by Shindaiwa A393000190
20	Bracket (S)	20021-86110	This part is no longer available and has been replaced by SHINDAIWA A393000180
21	-	70005-86131	This part is no longer available and has been replaced by Shindaiwa A175000200
22	Band	20010-86140	This part is no longer available and has been replaced by Shindaiwa A392000070

Shindaiwa B45 Main Shaft Parts Diagram

Description

Part No

Order

Trade Label

19420-00028

No Longer Available

Caution Label

72460-12530

This part is no longer available and has been replaced by Shindaiwa X505005890

Handle Label

72017-12150

This part is no longer available and has been replaced by SHINDAIWA X524002380

Outer Tube Assembly

22021-12100

This part is no longer available and has been replaced by Shindaiwa C050001871

Bushing

22021-12120

This part is no longer available and has been replaced by SHINDAIWA C501000080

Protector

22019-17110

This part is no longer available and has been replaced by Shindaiwa V420002401

Main Shaft Assembly

22021-12400

This part is no longer available and has been replaced by Shindaiwa C504000730

Stopper

22021-12420

This part is no longer available and has been replaced by SHINDAIWA V585000040

Snap Ring

02432-40170

This part is no longer available and has been replaced by Shindaiwa 9242440000

Stopper

22020-12210

This part is no longer available and has been replaced by Shindaiwa V314000110

Snap Ring

22015-12130

This part is no longer available and has been replaced by Shindaiwa V582000100

Swivel Joint

22020-11110

This part is no longer available and has been replaced by SHINDAIWA A575000380

Washer

22000-13410

This part is no longer available and has been replaced by SHINDAIWA V304000180

Bolt

01010-06080

This part is no longer available and has been replaced by SHINDAIWA V204000430

Nut

01500-06051

This part is no longer available and has been replaced by Echo 90050000006

Spring Washer

01600-06151

This part is no longer available and has been replaced by ECHO 90060500006

Screw

11210-06160

This part is no longer available and has been replaced by SHINDAIWA 9114206016

Screw

11210-06300

Price: $0.69

Clamp

22011-11320

This part is no longer available and has been replaced by SHINDAIWA V495001500

Hanger

22019-11313

This part is no longer available and has been replaced by SHINDAIWA C624000070

O-Ring

22015-11120

This part is no longer available and has been replaced by Shindaiwa V581000220

Joint Cap

72020-11120

This part is no longer available and has been replaced by SHINDAIWA A575000390

Swivel Lock Assembly

22015-11501

This part is no longer available and has been replaced by SHINDAIWA P021021240

Bolt

22011-97821

No Longer Available

Replaced by V204000420

Lock Nut

22011-97840

This part is no longer available and has been replaced by Echo 43302206460

Wing Nut

01520-10630

This part is no longer available and has been replaced by SHINDAIWA 9219106000

Washer

22100-71430

This part is no longer available and has been replaced by SHINDAIWA V304000150

Bolt

11022-05200

This part is no longer available and has been replaced by Shindaiwa V203000351

Shindaiwa B45 Gearcase Parts Diagram

No	Description	Part No	Order
-	Gear Case Assembly	72080-13010	This part is no longer available and has been replaced by Shindaiwa C051000603
1	Snap Ring	02432-28120	This part is no longer available and has been replaced by Shindaiwa 9242428000
2	Snap Ring	20000-31140	This part is no longer available and has been replaced by Echo 90070100012
3	Bearing	02002-06001	This part is no longer available and has been replaced by SHINDAIWA 90080406001
4	Bearing	02000-06001	This part is no longer available and has been replaced by ECHO 90080036001
5	Pinion Kit	22021-13390	This part is no longer available and has been replaced by SHINDAIWA V651000550
6	Shim	22011-13450	This part is no longer available and has been replaced by SHINDAIWA V340000280
7	Washer	01610-06080	This part is no longer available and has been replaced by Echo 90060000006
8	Spring Washer	01600-06151	This part is no longer available and has been replaced by ECHO 90060500006
9	Bolt	11022-06280	This part is no longer available and has been replaced by SHINDAIWA V204000410
10	Bolt	01020-06120	This part is no longer available and has been replaced by ECHO 90010506012
11	Bolt	22015-13410	This part is no longer available and has been replaced by Shindaiwa V206000250
12	Gasket	22015-13420	This part is no longer available and has been replaced by SHINDAIWA V307000230
13	Bearing	02006-06000	This part is no longer available and has been replaced by Echo 90080206000
14	Bevel Gear	22015-13220	This part is no longer available and has been replaced by SHINDAIWA V651000540
15	Gear Shaft	22015-13210	This part is no longer available and has been replaced by Shindaiwa P021039360
16	Bearing	02000-06202	This part is no longer available and has been replaced by Echo 90081036202
17	Collar	22015-13230	This part is no longer available and has been replaced by SHINDAIWA V358000130
18	Oil Seal	22015-13120	This part is no longer available and has been replaced by SHINDAIWA V513000000
19	Snap Ring	02432-35150	This part is no longer available and has been replaced by Shindaiwa 9242435000
20	Holder (A)	22015-13241	This part is no longer available and has been replaced by Shindaiwa C535000770
21	Slide Pin	22015-13290	This part is no longer available and has been replaced by Shindaiwa V641000140
22	Holder (B)	22015-13251	This part is no longer available and has been replaced by Shindaiwa C535000780
23	Bolt Guard	22015-13270	This part is no longer available and has been replaced by Shindaiwa C535000780
24	Bolt	22015-13261	This part is no longer available and has been replaced by Shindaiwa V206000220

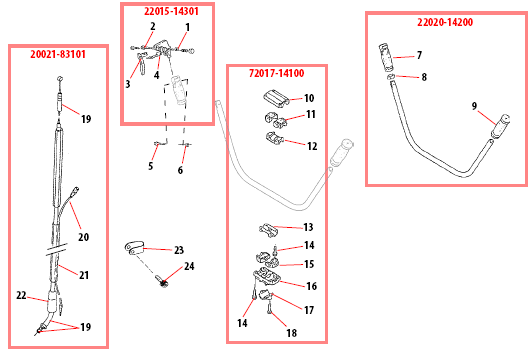

Shindaiwa B45 Handle Parts Diagram

Description

Part No

Order

Throttle Lever Assembly

22015-14301

This part is no longer available and has been replaced by Shindaiwa C044000830

Lock Nut

22015-14350

This part is no longer available and has been replaced by SHINDAIWA V263000240

Bolt

22015-14340

This part is no longer available and has been replaced by SHINDAIWA V203000810

Throttle Lever

22015-14331

This part is no longer available and has been replaced by SHINDAIWA C450000510

Throttle Lever Stopper

22015-14321

This part is no longer available and has been replaced by SHINDAIWA C617000410

Bolt

01020-04240

This part is no longer available and has been replaced by SHINDAIWA 9110004024

Nylon Nut

22015-14390

This part is no longer available and has been replaced by SHINDAIWA V262000080

Handle Assembly

22020-14200

This part is no longer available and has been replaced by SHINDAIWA P021035490

Right Grip

22015-14220

This part is no longer available and has been replaced by SHINDAIWA C403000400

Cable Holder

22015-14290

This part is no longer available and has been replaced by SHINDAIWA C487000240

Left Grip

22015-14230

Price: $8.19

Bracket Assembly

72017-14100

This part is no longer available and has been replaced by SHINDAIWA P021033250

Upper Cap

72017-14130

This part is no longer available and has been replaced by SHINDAIWA C423000740

Cushion (A)

22015-14170

This part is no longer available and has been replaced by SHINDAIWA V420002470

Upper Clamp

22015-14150

This part is no longer available and has been replaced by SHINDAIWA C423000770

Lower Clamp

22015-14140

This part is no longer available and has been replaced by SHINDAIWA C423000760

Bolt

11022-05250

This part is no longer available and has been replaced by Shindaiwa V203000630

Cushion (B)

22015-14160

This part is no longer available and has been replaced by SHINDAIWA V420002460

Lower Cap

72017-14110

This part is no longer available and has been replaced by SHINDAIWA C423000700

Clamp

72017-14120

This part is no longer available and has been replaced by SHINDAIWA C423000720

Bolt

11210-06250

This part is no longer available and has been replaced by SHINDAIWA 9114206025

Throttle Cable Assembly

20021-83101

This part is no longer available and has been replaced by Shindaiwa V043000480

Throttle Cable

20021-83110

This part is no longer available and has been replaced by SHINDAIWA V430002860

Wire

20011-83130

This part is no longer available and has been replaced by SHINDAIWA V485001620

Protective Tube

20011-83120

This part is no longer available and has been replaced by SHINDAIWA V475004740

Cable Cap

20005-83160

This part is no longer available and has been replaced by Shindaiwa A246000020

Cable Clamp

20050-83170

This part is no longer available and has been replaced by Shindaiwa C487000300

Bolt

11024-04120

This part is no longer available and has been replaced by Shindaiwa 9111304012

Shindaiwa B45 Strap and Debris Shield Parts Diagram

No	Description	Part No	Order
-	Debris Shield Assembly	72441-16002	This part is no longer available and has been replaced by Shindaiwa P021032702
1	Bolt	11022-05450	This part is no longer available and has been replaced by Shindaiwa V203000610
2	Upper Clamp	72480-16210	This part is no longer available and has been replaced by Shindaiwa C551000060
3	Debris Shield	72480-16112	This part is no longer available and has been replaced by Shindaiwa C550000391
4	Bolt	11022-06400	This part is no longer available and has been replaced by SHINDAIWA V204000450
5	Lower Clamp	72017-16130	This part is no longer available and has been replaced by SHINDAIWA C551000110
6	Screw	11202-40100	This part is no longer available and has been replaced by SHINDAIWA V252000240
7	Washer	01613-06100	This part is no longer available and has been replaced by ECHO 90060300006
8	Nut	01500-06051	This part is no longer available and has been replaced by Echo 90050000006
9	Nut	22420-16120	This part is no longer available and has been replaced by Shindaiwa V263000130
10	Cutter	72480-16121	This part is no longer available and has been replaced by Shindaiwa C554000040
11	Bolt	11020-05160	This part is no longer available and has been replaced by Shindaiwa 9112205016
-	Harness Assembly	72451-17203	This part is no longer available and has been replaced by Shindaiwa C062000430
12	Pad, Right	72451-17241	This part is no longer available and has been replaced by SHINDAIWA 64007-67330
13	Pad, Left	72451-17251	This part is no longer available and has been replaced by SHINDAIWA 64007-67340
14	Buckle	72451-17230	This part is no longer available and has been replaced by SHINDAIWA C645000000
15	Protector	22007-17220	This part is no longer available and has been replaced by SHINDAIWA C652000040
16	Hook	72451-17271	No Longer Available
17	Pad	72451-17262	This part is no longer available and has been replaced by Shindaiwa 72451-17370

Shindaiwa B45 Trimmer Head Parts Diagram

Description

Part No

Order

Tool Set

22015-91000

Currently Unavailable

Tool Bag

19610-02600

This part is no longer available and has been replaced by Shindaiwa 19639-01700

Spanner D

22011-97130

This part is no longer available and has been replaced by SHINDAIWA X600000000

Spark Plug Wrench

22015-91180

This part is no longer available and has been replaced by SHINDAIWA X602000140

Wrench 3mm

09026-04001

This part is no longer available and has been replaced by ECHO X605000100

Wrench 4mm

09026-05001

This part is no longer available and has been replaced by ECHO X605000070

Wrench 5mm

09026-03001

This part is no longer available and has been replaced by SHINDAIWA X605000090

Screwdriver

22100-91150

Price: $4.99

Trimmer Head Assembly

UN32-10L (Replaced by UN32)

No Longer Available

Eyelet

72005-92630

Price: $2.99

Housing

99909-15700

Price: $22.99

Shaft Bolt

99909-15740

Price: $7.99

Spring

99909-15520

Price: $2.99

Spool

99909-15580

Price: $14.99

Button

99909-15590

Price: $6.99

Cover

99909-15610

Price: $17.99

Shindiawa Brushcutter Blade (30 Tooth)

22000-92167

No Longer Available

Shindaiwa Tornado Brushcutter Blade (6 Tooth)

LP6-9

No Longer Available

Shindiawa Tornado Brushcutter Blade (12 Tooth)

LP12-9

No Longer Available

Shindaiwa B45 Carburetor Parts Diagram

Description

Part No

Order

Carburetor Assembly

20021-81021

This part is no longer available and has been replaced by SHINDAIWA A021002520

Cable Adjuster

20055-81810

This part is no longer available and has been replaced by SHINDAIWA 12415846630

Lock Nut

20000-81260

This part is no longer available and has been replaced by ECHO 12411105810

Adjust Tube

20055-81830

This part is no longer available and has been replaced by Shindaiwa 12416849930

Grommet

20021-81130

This part is no longer available and has been replaced by SHINDAIWA P004001900

Body Cap

20021-81121

This part is no longer available and has been replaced by SHINDAIWA P004001890

Spring

20020-81140

This part is no longer available and has been replaced by ECHO 12411411120

Spring Receive

20020-81150

This part is no longer available and has been replaced by ECHO 12411511120

Needle

20021-81171

This part is no longer available and has been replaced by SHINDAIWA P004001910

Slide Valve

20021-81180

This part is no longer available and has been replaced by SHINDAIWA P004001920

Slow Air Screw

20000-81330

This part is no longer available and has been replaced by Shindaiwa P004000880

Spring

20000-81340

This part is no longer available and has been replaced by Shindaiwa P004000890

Idle Adjust Screw

20000-81310

This part is no longer available and has been replaced by Shindaiwa 12415905530

Adjust Spring

20010-81820

This part is no longer available and has been replaced by Echo 12416011120

Main Adjust Screw

20020-81351

This part is no longer available and has been replaced by Shindaiwa P004001770

Spring

20011-81360

This part is no longer available and has been replaced by Shindaiwa 12435521330

Overflow Valve

20011-81550

This part is no longer available and has been replaced by Shindaiwa P004001360

Spring

20011-81680

This part is no longer available and has been replaced by Echo 12436721330

Gasket

20011-81630

This part is no longer available and has been replaced by Shindaiwa P050009310

Diaphragm

20011-81621

This part is no longer available and has been replaced by Shindaiwa P050009310

Pump Valve

20020-81660

This part is no longer available and has been replaced by Shindaiwa P004001880

Pump Cover

20021-81640

This part is no longer available and has been replaced by SHINDAIWA P004001960

Screw

20000-81650

This part is no longer available and has been replaced by SHINDAIWA P004001030

Spring

20021-81430

This part is no longer available and has been replaced by Shindaiwa P004001930

Jet

20020-81410

This part is no longer available and has been replaced by Shindaiwa P004001780

Needle Valve

20000-81441

This part is no longer available and has been replaced by Shindaiwa P004000930

Jet Holder

20020-81420

Price: $3.69

Lever

20021-81451

This part is no longer available and has been replaced by SHINDAIWA P004001940

20000-81460

This part is no longer available and has been replaced by SHINDAIWA P004000950

Screw

20000-81470

This part is no longer available and has been replaced by SHINDAIWA P004000960

Gasket

20020-81510

This part is no longer available and has been replaced by SHINDAIWA P004001810

Metering Diaphragm

20021-81520

This part is no longer available and has been replaced by SHINDAIWA P004001820

Cover

20020-81530

This part is no longer available and has been replaced by SHINDAIWA P004001830

Screw

20000-81540

This part is no longer available and has been replaced by Shindaiwa P004001000

Spring

20011-81571

This part is no longer available and has been replaced by Shindaiwa P004001380

Tickler Lever

20021-81560

This part is no longer available and has been replaced by SHINDAIWA P004001950

Collar

20011-81590

This part is no longer available and has been replaced by Shindaiwa P004001420

Screw

20011-81581

This part is no longer available and has been replaced by Shindaiwa P004001410

Air Filter Assembly

20021-81700

This part is no longer available and has been replaced by Shindaiwa A027000150

Cleaner Body

20010-81711

This part is no longer available and has been replaced by SHINDAIWA A225000500

Plate

20021-81790

This part is no longer available and has been replaced by Shindaiwa A244000160

Screw

20000-81730

This part is no longer available and has been replaced by SHINDAIWA V252000220

Net (B)

20010-81760

This part is no longer available and has been replaced by Shindaiwa A230000040

Air Filter

20000-81740

This part is no longer available and has been replaced by Shindaiwa A226000670

Net (A)

20000-81750

This part is no longer available and has been replaced by Shindaiwa A230000030

Clip

20010-81781

This part is no longer available and has been replaced by Shindaiwa A238000060

Screw

20000-81735

This part is no longer available and has been replaced by Shindaiwa V252000230

Filter Cover

20010-81771

This part is no longer available and has been replaced by Shindaiwa A232000870

Bolt

11020-05480

This part is no longer available and has been replaced by SHINDAIWA V203000940

Gasket

20021-83410

This part is no longer available and has been replaced by Shindaiwa V103001010

Clip

20020-85540

This part is no longer available and has been replaced by Shindaiwa V490000500

Tube

20000-83312

This part is no longer available and has been replaced by SHINDAIWA V471002630

Needle/Jet Kit

20021-81931(Kit)

This part is no longer available and has been replaced by SHINDAIWA P050009280

Gasket and Diaphragm Kit

99909-126(Kit)

This part is no longer available and has been replaced by SHINDAIWA P050009290

SHOP WITH CONFIDENCE
35 YEARS EXPERIENCE
365 DAY RETURN POLICY
FREE TECH SUPPORT
WE SHIP ANYWHERE
MILLIONS OF PARTS
Need help finding the correct repair parts?

Get Help!
Recommend This Page.
"Two Oregon 9" edger blades. Could not be found locally in South Florida. Thanks for having them at a great price. A very easy transaction. Would recommend Lawnmowerpros.com to anybody. Thanks again,"

- David B.

"thanks thousand the tanks has arrived. A reliable seller"

- Tony

"Thank you so much. It's rare to find good service like this. I appreciate it."

- Ron W.

"I will keep your company book-marked and order from you first in the future! Your kind of service is exceptional!"

- Bill

"It's nice to do business with good people like you."

- Michael B.

"Many thanks for the prompt parts order. I waited over 4 months for my local repair shop to get the part and they ended up with the wrong one. Next time I will do it myself."

- Robin C.
