Shindaiwa C350 Brushcutter Illustrated Parts Diagrams

Search for OEM Shindaiwa Parts

Shindaiwa C350 Brushcutter Parts available online at LawnMowerPros. We are an Authorized Shindaiwa dealer carrying a large selection of Shindaiwa C350 Brushcutter Parts ready to ship direct to your door. The following are the most popular Shindaiwa C350 Parts. If you do not see the Brushcutter Parts you need, please complete the Lawn Mower Parts Request Form and we will be happy to assist you.

Shindaiwa Illustrated Parts Diagrams

Description

Part No

Order

Spark Plug

CJ8

Price: $4.99

Spark Plug

BRMR6A

Currently Unavailable

CYLINDER

70196-12110

This part is no longer available and has been replaced by Shindaiwa A130001371

BOLT

01020-05250

This part is no longer available and has been replaced by Echo 90010505025

SPRING WASHER

01600-05131

This part is no longer available and has been replaced by Echo 90060500005

GASKET

20011-12220

This part is no longer available and has been replaced by Shindaiwa V103000950

INSULATOR

20060-12210

This part is no longer available and has been replaced by SHINDAIWA A200000640

NUT

20024-12260

This part is no longer available and has been replaced by Shindaiwa V263000180

BOLT

11022-05250

This part is no longer available and has been replaced by Shindaiwa V203000630

CYLINDER GASKET

20010-12120

This part is no longer available and has been replaced by Shindaiwa V100000470

MUFFLER GASKET

70210-15211

This part is no longer available and has been replaced by Shindaiwa V104001330

MUFFLER ASSEMBLY

70200-15101

This part is no longer available and has been replaced by Shindaiwa A030000240

SPARK ARRESTER

70200-15151

This part is no longer available and has been replaced by SHINDAIWA A310000210

BOLT

11024-05120

This part is no longer available and has been replaced by Shindaiwa V203000820

BOLT

01020-06250

This part is no longer available and has been replaced by ECHO 90010506025

MUFFLER COVER

70200-15311

This part is no longer available and has been replaced by Shindaiwa A320000740

BOLT

11024-05100

This part is no longer available and has been replaced by SHINDAIWA V203000830

BOLT

11020-05100

This part is no longer available and has been replaced by SHINDAIWA V203000930

COVER

70196-32160

This part is no longer available and has been replaced by SHINDAIWA A459000020

WASHER

70196-32150

This part is no longer available and has been replaced by SHINDAIWA V340000260

PISTON ASSEMBLY

99909-308

This part is no longer available and has been replaced by Shindaiwa P021033350

PISTON RING SET

20010-41210

This part is no longer available and has been replaced by Shindaiwa A101000380

PISTON

20010-41110

This part is no longer available and has been replaced by SHINDAIWA P021031570

SNAP RING

22100-41230

This part is no longer available and has been replaced by Shindaiwa V580000110

THRUST WASHER

70200-41340

This part is no longer available and has been replaced by SHINDAIWA V307000220

NEEDLE BEARING

20010-41330

This part is no longer available and has been replaced by Shindaiwa V555000090

PISTON PIN

20010-41310

This part is no longer available and has been replaced by Shindaiwa V608000020

CRANKSHAFT ASSEMBLY

20010-42002

This part is no longer available and has been replaced by SHINDAIWA A011000860

KEY

02403-03100

This part is no longer available and has been replaced by SHINDAIWA 9311503010

CLUTCH SHOE ASSEMBLY

70210-51100

This part is no longer available and has been replaced by Shindaiwa A056000452

CLUTCH BOSS

20020-51112

No Longer Available

CLUTCH SHOE

20020-51121

This part is no longer available and has been replaced by SHINDAIWA A555000130

CLUTCH SPRING

20020-51131

This part is no longer available and has been replaced by SHINDAIWA A566000220

PLATE

20020-51140

This part is no longer available and has been replaced by SHINDAIWA A551000120

SCREW

70210-51160

This part is no longer available and has been replaced by SHINDAIWA V203000880

CLUTCH BOLT

20020-51150

This part is no longer available and has been replaced by SHINDAIWA A557000120

CRANKCASE ASSEMBLY M

99909-307

This part is no longer available and has been replaced by SHINDAIWA P021033182

BEARING

02030-06202

This part is no longer available and has been replaced by Echo 90081036202

OIL SEAL

20010-21211

This part is no longer available and has been replaced by Shindaiwa V508000050

DOWEL PIN

12492-50100

Price: $2.99

BOLT

01020-05300

This part is no longer available and has been replaced by Echo 90010505030

CRANKCASE ASSEMBLY S

99909-306

This part is no longer available and has been replaced by Shindaiwa P021033432

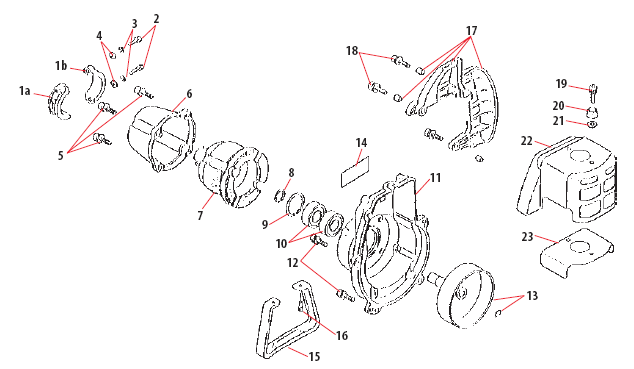

No	Description	Part No	Order
1A	CLAMP A	20011-35141	This part is no longer available and has been replaced by SHINDAIWA A575000420
1B	CLAMP B	20011-35151	This part is no longer available and has been replaced by SHINDAIWA A575000430
2	BOLT	01020-05250	This part is no longer available and has been replaced by Echo 90010505025
3	SPRING WASHER	01600-05131	This part is no longer available and has been replaced by Echo 90060500005
4	WASHER	01610-05080	This part is no longer available and has been replaced by Echo 90060000005
5	BOLT	11022-05200	This part is no longer available and has been replaced by Shindaiwa V203000351
6	JOINT CAP	70012-35130	This part is no longer available and has been replaced by SHINDAIWA A575000410
7	CUSHION	20011-35110	This part is no longer available and has been replaced by SHINDAIWA A575000400
8	SNAP RING	20011-31230	This part is no longer available and has been replaced by Shindaiwa V583000181
9	SNAP RING	02432-32120	This part is no longer available and has been replaced by Shindaiwa 9242432000
10	BEARING	02006-06002	This part is no longer available and has been replaced by ECHO 90080206002
11	FAN COVER	70012-31111	This part is no longer available and has been replaced by Echo A172002310
12	BOLT	11022-05200	This part is no longer available and has been replaced by Shindaiwa V203000351
13	CLUTCH DRUM	20011-31200	This part is no longer available and has been replaced by Shindaiwa A556001640
14	MODEL LABEL	70200-31151	This part is no longer available and has been replaced by SHINDAIWA X504002490
15	STAND	70200-33112	This part is no longer available and has been replaced by Shindaiwa A175000180
16	BOLT	11022-05160	This part is no longer available and has been replaced by Shindaiwa V203000590
17	PROTECTOR	20011-34100	This part is no longer available and has been replaced by Shindaiwa A162000180
18	BOLT	11024-04160	This part is no longer available and has been replaced by Shindaiwa 9111304016
19	BOLT	11020-05140	This part is no longer available and has been replaced by SHINDAIWA V203000840
20	COVER	70196-32160	This part is no longer available and has been replaced by SHINDAIWA A459000020
21	WASHER	70196-32150	This part is no longer available and has been replaced by SHINDAIWA V340000260
22	CYLINDER COVER	70196-32110	This part is no longer available and has been replaced by SHINDAIWA A160001600
23	GASKET	70196-32141	This part is no longer available and has been replaced by Shindaiwa V101000020

No	Description	Part No	Order
1	COIL	70200-71610	This part is no longer available and has been replaced by Shindaiwa A411000780
2	WIRE		This part is no longer available and has been replaced by SHINDAIWA A412000030
3	GROMMET	20011-72120	This part is no longer available and has been replaced by SHINDAIWA V136000060
4	GROMMET	20011-72110	This part is no longer available and has been replaced by SHINDAIWA V135000080
5	BOLT	01020-04240	This part is no longer available and has been replaced by SHINDAIWA 9110004024
6	SPRING WASHER	01600-04101	This part is no longer available and has been replaced by Echo 90060500004
7	WASHER	20010-71650	This part is no longer available and has been replaced by SHINDAIWA V302000010
8	INSULATOR	20010-71631	This part is no longer available and has been replaced by SHINDAIWA V352000140
9	TUBE	20011-71660	This part is no longer available and has been replaced by SHINDAIWA V475004880
10	SPARK PLUG SPRING	20000-72230	This part is no longer available and has been replaced by Shindaiwa A426000050
11	PLUG CAP COVER		This part is no longer available and has been replaced by Shindaiwa A429000110
12	PROTECTOR		This part is no longer available and has been replaced by SHINDAIWA V151000050
13	PLUG CAP	20010-72221	This part is no longer available and has been replaced by Shindaiwa A427000090
14	BAND	20000-72250	This part is no longer available and has been replaced by Shindaiwa V495001440
15	FLYWHEEL	70200-71200	This part is no longer available and has been replaced by SHINDAIWA A409000640
16	SPRING WASHER	01600-10251	This part is no longer available and has been replaced by ECHO 90060500010
17	NUT	01511-10061	This part is no longer available and has been replaced by ECHO 90050300010

Description

Part No

Order

RECOIL STARTER ASSEMBLY

70131-75100

This part is no longer available and has been replaced by SHINDAIWA P021035720

STARTER CASE

70131-75110

This part is no longer available and has been replaced by SHINDAIWA A500000840

LABEL

19420-00027

This part is no longer available and has been replaced by SHINDAIWA X504002770

RECOIL SPRING

20024-75130

This part is no longer available and has been replaced by Echo 17722040630

REEL

70131-75120

This part is no longer available and has been replaced by Echo 17721543130

ROPE

20020-75180

This part is no longer available and has been replaced by Shindaiwa A509000190

WASHER

70131-75150

Currently Unavailable

SCREW

20035-75170

This part is no longer available and has been replaced by SHINDAIWA V253000560

KNOB

20010-75190

This part is no longer available and has been replaced by Echo 17722827030

STOPPER

20010-75210

This part is no longer available and has been replaced by SHINDAIWA A522000040

NUT

20000-76210

This part is no longer available and has been replaced by Shindaiwa V265000170

GASKET

20020-76110

This part is no longer available and has been replaced by Shindaiwa V105000031

CAUTION LABEL

70080-75310

Price: $1.19

BOLT

11022-04160

This part is no longer available and has been replaced by SHINDAIWA V202000580

STARTER PULLEY ASSEMBLY

70131-75200

This part is no longer available and has been replaced by Shindaiwa A052000370

RATCHET

20024-75220

This part is no longer available and has been replaced by Shindaiwa A514000120

RETURN SPRING

20024-75230

This part is no longer available and has been replaced by Echo 17723440630

STARTER PULLEY

70131-75211

This part is no longer available and has been replaced by SHINDAIWA A520000150

E-RING

20024-75240

This part is no longer available and has been replaced by Echo P022002100

Description

Part No

Order

FUEL TANK ASSEMBLY

70200-85001

This part is no longer available and has been replaced by Shindaiwa P021036463

BREATHER ASSEMBLY

20000-85500

This part is no longer available and has been replaced by Shindaiwa A039000020

BREATHER BODY

20000-85511

This part is no longer available and has been replaced by SHINDAIWA A362000000

BREATHER VALVE

22100-85260

This part is no longer available and has been replaced by Shindaiwa E263000040

WASHER

22100-85250

This part is no longer available and has been replaced by SHINDAIWA V303000170

RETAINER

22100-85240

This part is no longer available and has been replaced by SHINDAIWA A359000010

HOLDER

20000-85521

This part is no longer available and has been replaced by SHINDAIWA A358000030

BREATHER GROMMET

20000-85579

This part is no longer available and has been replaced by Shindaiwa V138000020

FUEL CAP ASSEMBLY

70168-85201

This part is no longer available and has been replaced by Shindaiwa A033000330

GASKET

20000-85221

This part is no longer available and has been replaced by Shindaiwa V107000010

FUEL FILTER ASSEMBLY

22169-35400

This part is no longer available and has been replaced by Shindaiwa A369000101

FILTER

22128-85421

This part is no longer available and has been replaced by Echo A369000460

FILTER SCREEN

22118-85460

Price: $6.99

CLIP

20020-85540

This part is no longer available and has been replaced by Shindaiwa V490000500

FUEL TUBE

70200-85320

This part is no longer available and has been replaced by Shindaiwa V471002660

GROMMET

70200-85350

This part is no longer available and has been replaced by Shindaiwa V137000080

FUEL TUBE

70200-85310

This part is no longer available and has been replaced by Shindaiwa V471002650

JOINT

72935-85330

This part is no longer available and has been replaced by Shindaiwa V186000230

CUSHION

20010-86130

This part is no longer available and has been replaced by Shindaiwa V420002390

BRACKET M

20011-86120

This part is no longer available and has been replaced by Shindaiwa A393000190

BRACKET S

20021-86110

This part is no longer available and has been replaced by SHINDAIWA A393000180

TANK GUARD

70005-86131

This part is no longer available and has been replaced by Shindaiwa A175000200

BAND

20020-86140

This part is no longer available and has been replaced by Shindaiwa A392000060

Description

Part No

Order

GEAR CASE ASSEMBLY

72017-13011

This part is no longer available and has been replaced by SHINDAIWA P021048490

SNAP RING

02432-28120

This part is no longer available and has been replaced by Shindaiwa 9242428000

SNAP RING

20000-31140

This part is no longer available and has been replaced by Echo 90070100012

BEARING

02002-06001

This part is no longer available and has been replaced by SHINDAIWA 90080406001

BEARING

02000-06001

This part is no longer available and has been replaced by ECHO 90080036001

PINION

22015-13390

This part is no longer available and has been replaced by SHINDAIWA V651000520

SHIM

22011-13450

This part is no longer available and has been replaced by SHINDAIWA V340000280

BOLT

01020-06120

This part is no longer available and has been replaced by ECHO 90010506012

BOLT

01020-06280

Price: $0.69

SPRING WASHER

01600-06151

This part is no longer available and has been replaced by ECHO 90060500006

WASHER

01610-06080

This part is no longer available and has been replaced by Echo 90060000006

BOLT

22015-13410

This part is no longer available and has been replaced by Shindaiwa V206000250

GASKET

22015-13420

This part is no longer available and has been replaced by SHINDAIWA V307000230

BEARING

02006-06000

This part is no longer available and has been replaced by Echo 90080206000

BEVEL GEAR

22015-13220

This part is no longer available and has been replaced by SHINDAIWA V651000540

GEAR SHAFT

22015-13210

This part is no longer available and has been replaced by Shindaiwa P021039360

BEARING

02000-06202

This part is no longer available and has been replaced by Echo 90081036202

COLLAR

22015-13230

This part is no longer available and has been replaced by SHINDAIWA V358000130

OIL SEAL

22015-13120

This part is no longer available and has been replaced by SHINDAIWA V513000000

SNAP RING

02432-35150

This part is no longer available and has been replaced by Shindaiwa 9242435000

HOLDER A

22015-13241

This part is no longer available and has been replaced by Shindaiwa C535000770

SLIDE PIN

22015-13290

This part is no longer available and has been replaced by Shindaiwa V641000140

HOLDER B

22015-13251

This part is no longer available and has been replaced by Shindaiwa C535000780

BOLT GUARD

22015-13270

This part is no longer available and has been replaced by Shindaiwa C535000780

BOLT

22015-13261

This part is no longer available and has been replaced by Shindaiwa V206000220

No	Description	Part No	Order
-	THROTTLE LEVER ASSEMBLY	72451-14502	This part is no longer available and has been replaced by Shindaiwa C044000870
1	RIGHT BODY	72451-14600	This part is no longer available and has been replaced by SHINDAIWA P022025110
2	SPRING	72451-14590	This part is no longer available and has been replaced by SHINDAIWA V452000540
3	LOCK LEVER	72451-14540	This part is no longer available and has been replaced by SHINDAIWA C460000210
4	BUTTON	72451-14500	This part is no longer available and has been replaced by Shindaiwa C044000870
5	LEVER	72451-14530	This part is no longer available and has been replaced by SHINDAIWA C450000530
6	RETURN SPRING	72451-14580	This part is no longer available and has been replaced by SHINDAIWA V452000530
7	SCREW	72451-14620	This part is no longer available and has been replaced by SHINDAIWA V252000190
8	SCREW	11203-05351	This part is no longer available and has been replaced by SHINDAIWA 9158005035
9	LEFT BODY	72451-14600	This part is no longer available and has been replaced by SHINDAIWA P022025110
10	THROTTLE CABLE ASSEMBLY	72451-14570	This part is no longer available and has been replaced by Shindaiwa V043000530
11	CLAMP	72451-14560	This part is no longer available and has been replaced by SHINDAIWA V495001510
12	NUT	72451-14610	This part is no longer available and has been replaced by SHINDAIWA V264000140
13	BOLT	01020-06200	This part is no longer available and has been replaced by ECHO 90010506020
14	NUT	72451-14630	This part is no longer available and has been replaced by SHINDAIWA 9201705000
-	HANDLE ASSEMBLY	72450-14201	Currently Unavailable
15	LEFT GRIP	72451-14320	This part is no longer available and has been replaced by SHINDAIWA C403000420
-	BRACKET ASSEMBLY	72017-14100	This part is no longer available and has been replaced by SHINDAIWA P021033250
16	UPPER CAP	72017-14130	This part is no longer available and has been replaced by SHINDAIWA C423000740
17	UPPER CUSHION	22015-14170	This part is no longer available and has been replaced by SHINDAIWA V420002470
18	UPPER CLAMP	22015-14150	This part is no longer available and has been replaced by SHINDAIWA C423000770
19	LOWER CLAMP	22015-14140	This part is no longer available and has been replaced by SHINDAIWA C423000760
20	BOLT	11022-05250	This part is no longer available and has been replaced by Shindaiwa V203000630
21	LOWER CUSHION	22015-14160	This part is no longer available and has been replaced by SHINDAIWA V420002460
22	GROUND WIRE	72514-14190	This part is no longer available and has been replaced by SHINDAIWA A430000000
23	HANDLE BRACKET	72017-14110	This part is no longer available and has been replaced by SHINDAIWA C423000700
24	LOWER CAP	72017-14120	This part is no longer available and has been replaced by SHINDAIWA C423000720
25	BOLT	11022-05250	This part is no longer available and has been replaced by Shindaiwa V203000630
26	BOLT	11210-06250	This part is no longer available and has been replaced by SHINDAIWA 9114206025

No	Description	Part No	Order
-	DEBRIS SHIELD ASSEMBLY	72441-16003	This part is no longer available and has been replaced by Shindaiwa P021032702
1	BOLT	11022-05450	This part is no longer available and has been replaced by Shindaiwa V203000610
2	UPPER CLAMP	72480-16210	This part is no longer available and has been replaced by Shindaiwa C551000060
3	DEBRIS SHIELD	72480-16113	This part is no longer available and has been replaced by Shindaiwa C550000391
4	BOLT	11022-06400	This part is no longer available and has been replaced by SHINDAIWA V204000450
5	LOWER CLAMP	72480-16130	This part is no longer available and has been replaced by Shindaiwa C551000150
6	SCREW	11202-40100	This part is no longer available and has been replaced by SHINDAIWA V252000240
7	WASHER	01613-06100	This part is no longer available and has been replaced by ECHO 90060300006
8	NUT	01500-06051	This part is no longer available and has been replaced by Echo 90050000006
9	NUT	22420-16120	This part is no longer available and has been replaced by Shindaiwa V263000130
10	CUTTER	72480-16121	This part is no longer available and has been replaced by Shindaiwa C554000040
11	BOLT	11020-05160	This part is no longer available and has been replaced by Shindaiwa 9112205016
12	MAINSHAFT	72540-12410	This part is no longer available and has been replaced by Shindaiwa C504000690
13	MODEL LABEL	19420-00028	No Longer Available
14	CAUTION LABEL	72460-12530	This part is no longer available and has been replaced by Shindaiwa X505005890
15	HANGER	22017-12210	This part is no longer available and has been replaced by SHINDAIWA C063000030
16	BOLT	01020-05120	This part is no longer available and has been replaced by Echo 90010505012
17	SPRING WASHER	01600-05131	This part is no longer available and has been replaced by Echo 90060500005
18	NUT	01500-05041	This part is no longer available and has been replaced by Echo 90050000005
-	OUTER TUBE ASSEMBLY	72540-12102	This part is no longer available and has been replaced by SHINDAIWA C050001830
19	BUSHING	22015-12120	This part is no longer available and has been replaced by SHINDAIWA C501000070
20	CAUTION LABEL	72005-12140	This part is no longer available and has been replaced by SHINDAIWA X505002860
21	PROTECTOR	22019-17110	This part is no longer available and has been replaced by Shindaiwa V420002401

Description

Part No

Order

TOOL SET

72518-91000

No Longer Available

TOOL BAG

19610-02600

This part is no longer available and has been replaced by Shindaiwa 19639-01700

SPANNER

22011-97130

This part is no longer available and has been replaced by SHINDAIWA X600000000

WRENCH

72518-91180

This part is no longer available and has been replaced by SHINDAIWA X602000140

WRENCH

22000-91120

This part is no longer available and has been replaced by SHINDAIWA X600000020

WRENCH 3MM

09026-03001

This part is no longer available and has been replaced by SHINDAIWA X605000090

WRENCH 4MM

09026-04001

This part is no longer available and has been replaced by ECHO X605000100

WRENCH 5MM

09026-05001

This part is no longer available and has been replaced by ECHO X605000070

TRIMMER HEAD ASSEMBLY

UN-32-10L

Currently Unavailable

EYELET

72005-92630

Price: $2.99

HOUSING

99909-15700

Price: $22.99

SHAFT BOLT

99909-15740

Price: $7.99

SPRING

99909-15520

Price: $2.99

SPOOL

99909-15580

Price: $14.99

BUTTON

99909-15590

Price: $6.99

COVER

99909-15610

Price: $17.99

30T BLADE

22000-92167

No Longer Available

6T TORNADO BLADE

LP6-9

No Longer Available

12T TORNADO BLADE

LP12-9

No Longer Available

HARNESS ASSEMBLY

72451-17203

This part is no longer available and has been replaced by Shindaiwa C062000430

RIGHT PAD

72451-17241

This part is no longer available and has been replaced by SHINDAIWA 64007-67330

LEFT PAD

72451-17251

This part is no longer available and has been replaced by SHINDAIWA 64007-67340

BUCKLE

72451-17230

This part is no longer available and has been replaced by SHINDAIWA C645000000

PROTECTOR

22007-17220

This part is no longer available and has been replaced by SHINDAIWA C652000040

HOOK

72451-17271

No Longer Available

PAD

72451-17262

This part is no longer available and has been replaced by Shindaiwa 72451-17370

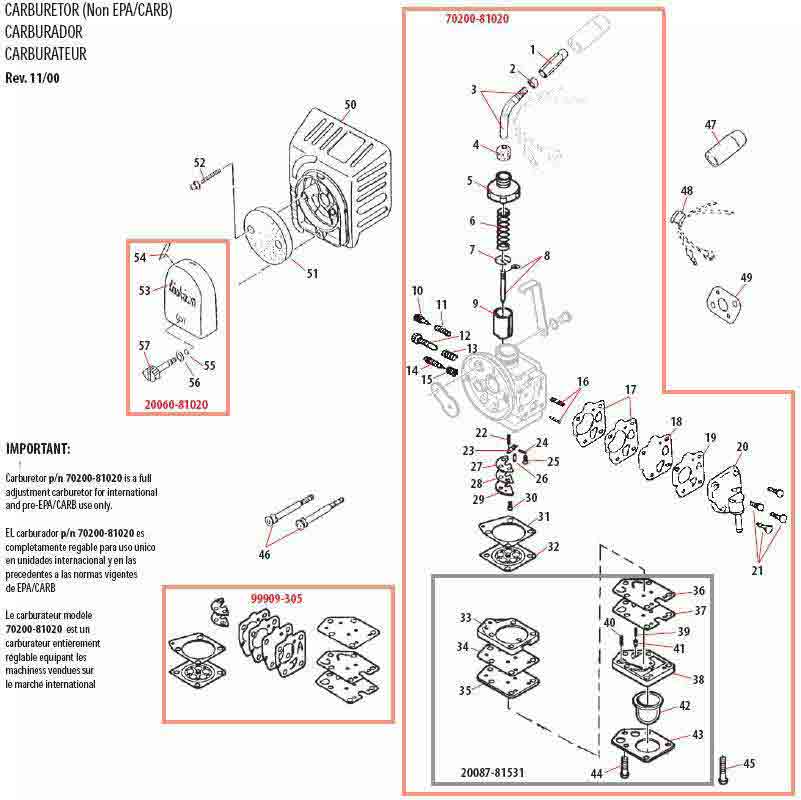

Description

Part No

Order

CARBURETOR ASSEMBLY

70203-81020

This part is no longer available and has been replaced by Shindaiwa A021002500

CABLE ADJUSTER

20055-81810

This part is no longer available and has been replaced by SHINDAIWA 12415846630

LOCK NUT

20000-81260

This part is no longer available and has been replaced by ECHO 12411105810

ADJUST TUBE

70107-81830

This part is no longer available and has been replaced by SHINDAIWA P004002870

GROMMET

20055-81130

This part is no longer available and has been replaced by Shindaiwa P004002180

BODY CAP

20055-81120

This part is no longer available and has been replaced by Shindaiwa P004000700

SPRING

20011-81140

This part is no longer available and has been replaced by SHINDAIWA P004000440

RECEIVE SPRING

20000-81150

This part is no longer available and has been replaced by Echo 12411505530

JET NEEDLE

70203-81170

This part is no longer available and has been replaced by Shindaiwa A021002500

THROTTLE VALVE

70131-81180

This part is no longer available and has been replaced by Shindaiwa P004002900

IDLE ADJUST SCREW

20000-81310

This part is no longer available and has been replaced by Shindaiwa 12415905530

SPRING

20000-81320

This part is no longer available and has been replaced by Shindaiwa 12433305630

SPRING

20040-81680

This part is no longer available and has been replaced by Echo 12435550130

GASKET

20011-81630

This part is no longer available and has been replaced by Shindaiwa P050009310

DIAPHRAGM

20011-81621

This part is no longer available and has been replaced by Shindaiwa P050009310

PUMP VALVE

20087-81660

This part is no longer available and has been replaced by SHINDAIWA P004002550

PUMP COVER

20087-81640

This part is no longer available and has been replaced by Shindaiwa P004003230

SCREW

20000-81650

This part is no longer available and has been replaced by SHINDAIWA P004001030

SPRING

20040-81430

This part is no longer available and has been replaced by SHINDAIWA 12433149930

LEVER

20011-81451

This part is no longer available and has been replaced by Shindaiwa P004001340

20011-81460

This part is no longer available and has been replaced by Shindaiwa 12433221330

SCREW

20011-81470

Price: $1.99

NEEDLE VALVE

20000-81441

This part is no longer available and has been replaced by Shindaiwa P004000930

GASKET

20087-81420

This part is no longer available and has been replaced by SHINDAIWA P004002510

CHECK VALVE

20087-81411

This part is no longer available and has been replaced by SHINDAIWA P004002500

PLATE

70200-81430

This part is no longer available and has been replaced by Shindaiwa P004002950

SCREW

20011-81470

Price: $1.99

GASKET

20087-81510

This part is no longer available and has been replaced by ECHO 12435849930

METERING DIAPHRAGM

20087-81520

This part is no longer available and has been replaced by Echo 12434149930

PRIMER PUMP ASSEMBLY

20087-81531

This part is no longer available and has been replaced by Shindaiwa P004002520

PUMP BASE

20087-81550

This part is no longer available and has been replaced by SHINDAIWA 12437949930

GASKET

20087-81890

This part is no longer available and has been replaced by Shindaiwa P004002600

PUMP PLATE

20087-81560

This part is no longer available and has been replaced by Shindaiwa 12436049930

CHECK VALVE

20087-81571

This part is no longer available and has been replaced by Shindaiwa P004002530

GASKET

20087-81540

This part is no longer available and has been replaced by Shindaiwa 12435949930

PUMP BASE

20087-81811

This part is no longer available and has been replaced by Shindaiwa P004002570

SPRING

20087-81851

This part is no longer available and has been replaced by SHINDAIWA P004002580

SPRING

20087-81870

This part is no longer available and has been replaced by Echo 12435550130

VALVE

20087-81861

This part is no longer available and has been replaced by SHINDAIWA P004002590

PUMP

20087-81820

This part is no longer available and has been replaced by Walbro 188-12-1

PLATE

20087-81830

Price: $2.39

SCREW

20087-81840

This part is no longer available and has been replaced by Shindaiwa 12431049930

SCREW

20087-81880

Price: $0.69

BOLT

11022-05550

This part is no longer available and has been replaced by SHINDAIWA V203000890

CABLE CAP

This part is no longer available and has been replaced by Shindaiwa A246000020

PROTECTIVE TUBE

20060-83180

This part is no longer available and has been replaced by Shindaiwa V475004760

CARBURETOR GASKET

20011-83410

This part is no longer available and has been replaced by Shindaiwa V103000960

CLEANER BODY

70102-81710

This part is no longer available and has been replaced by Shindaiwa A225000490

AIR FILTER

20056-81740

This part is no longer available and has been replaced by Shindaiwa A226000650

SCREW

11207-04250

This part is no longer available and has been replaced by Shindaiwa V252000200

CLEANER COVER ASSEMBLY

20060-81760

This part is no longer available and has been replaced by Shindaiwa A232000820

CLEANER COVER

20060-81770

This part is no longer available and has been replaced by Shindaiwa A232000830

CHOKE LABEL

19404-00008

This part is no longer available and has been replaced by Shindaiwa X506000130

O-RING

22100-82430

This part is no longer available and has been replaced by Shindaiwa V581000200

WASHER

20024-81790

This part is no longer available and has been replaced by Shindaiwa V347000030

KNOB

20060-81781

This part is no longer available and has been replaced by Shindaiwa A235000220

GASKET/DIAPHRAGM KIT

99909-305

This part is no longer available and has been replaced by Shindaiwa P050009190

Description

Part No

Order

CARBURETOR ASSEMBLY

70200-81020

This part is no longer available and has been replaced by Shindaiwa A021002470

CABLE ADJUSTER

20055-81810

This part is no longer available and has been replaced by SHINDAIWA 12415846630

LOCK NUT

20000-81260

This part is no longer available and has been replaced by ECHO 12411105810

ADJUST TUBE

70107-81830

This part is no longer available and has been replaced by SHINDAIWA P004002870

GROMMET

20055-81130

This part is no longer available and has been replaced by Shindaiwa P004002180

BODY CAP

20055-81120

This part is no longer available and has been replaced by Shindaiwa P004000700

SPRING

20011-81140

This part is no longer available and has been replaced by SHINDAIWA P004000440

RECEIVE SPRING

20000-81150

This part is no longer available and has been replaced by Echo 12411505530

NEEDLE JET

70200-81170

This part is no longer available and has been replaced by SHINDAIWA P004002940

THROTTLE VALVE

70131-81180

This part is no longer available and has been replaced by Shindaiwa P004002900

SLOW AIR SCREW

20000-81330

This part is no longer available and has been replaced by Shindaiwa P004000880

SPRING

20000-81340

This part is no longer available and has been replaced by Shindaiwa P004000890

IDLE ADJUST SCREW

20000-81310

This part is no longer available and has been replaced by Shindaiwa 12415905530

SPRING

20000-81320

This part is no longer available and has been replaced by Shindaiwa 12433305630

MAIN ADJUST SCREW

20011-81351

This part is no longer available and has been replaced by Shindaiwa P004001300

SPRING

20011-81360

This part is no longer available and has been replaced by Shindaiwa 12435521330

SPRING

20040-81680

This part is no longer available and has been replaced by Echo 12435550130

GASKET

20011-81630

This part is no longer available and has been replaced by Shindaiwa P050009310

DIAPHRAGM

20011-81621

This part is no longer available and has been replaced by Shindaiwa P050009310

PUMP VALVE

20087-81660

This part is no longer available and has been replaced by SHINDAIWA P004002550

PUMP COVER

20087-81640

This part is no longer available and has been replaced by Shindaiwa P004003230

SCREW

20000-81650

This part is no longer available and has been replaced by SHINDAIWA P004001030

SPRING

20011-81430

This part is no longer available and has been replaced by Echo 12433121330

LEVER

20011-81451

This part is no longer available and has been replaced by Shindaiwa P004001340

20011-81460

This part is no longer available and has been replaced by Shindaiwa 12433221330

SCREW

20011-81470

Price: $1.99

NEEDLE VALVE

20000-81441

This part is no longer available and has been replaced by Shindaiwa P004000930

GASKET

20087-81420

This part is no longer available and has been replaced by SHINDAIWA P004002510

CHECK VALVE

20087-81411

This part is no longer available and has been replaced by SHINDAIWA P004002500

PLATE

70200-81430

This part is no longer available and has been replaced by Shindaiwa P004002950

SCREW

20011-81470

Price: $1.99

GASKET

20087-81510

This part is no longer available and has been replaced by ECHO 12435849930

METERING DIAPHRAGM

20087-81520

This part is no longer available and has been replaced by Echo 12434149930

PRIMER PUMP ASSEMBLY

20087-81531

This part is no longer available and has been replaced by Shindaiwa P004002520

PUMP BASE

20087-81550

This part is no longer available and has been replaced by SHINDAIWA 12437949930

GASKET

20087-81890

This part is no longer available and has been replaced by Shindaiwa P004002600

PUMP PLATE

20087-81560

This part is no longer available and has been replaced by Shindaiwa 12436049930

CHECK VALVE

20087-81571

This part is no longer available and has been replaced by Shindaiwa P004002530

GASKET

20087-81540

This part is no longer available and has been replaced by Shindaiwa 12435949930

PUMP BASE

20087-81811

This part is no longer available and has been replaced by Shindaiwa P004002570

SPRING

20087-81851

This part is no longer available and has been replaced by SHINDAIWA P004002580

SPRING

20087-81870

This part is no longer available and has been replaced by Echo 12435550130

VALVE

20087-81861

This part is no longer available and has been replaced by SHINDAIWA P004002590

PUMP

20087-81820

This part is no longer available and has been replaced by Walbro 188-12-1

PLATE

20087-81830

Price: $2.39

SCREW

20087-81840

This part is no longer available and has been replaced by Shindaiwa 12431049930

SCREW

20087-81880

Price: $0.69

BOLT

11022-05550

This part is no longer available and has been replaced by SHINDAIWA V203000890

CABLE CAP

20005-83160

This part is no longer available and has been replaced by Shindaiwa A246000020

PROTECTIVE TUBE

20060-83180

This part is no longer available and has been replaced by Shindaiwa V475004760

CARBURETOR GASKET

20011-83410

This part is no longer available and has been replaced by Shindaiwa V103000960

CLEANER BODY

70102-81710

This part is no longer available and has been replaced by Shindaiwa A225000490

AIR FILTER

20056-81740

This part is no longer available and has been replaced by Shindaiwa A226000650

SCREW

11207-04250

This part is no longer available and has been replaced by Shindaiwa V252000200

CLEANER COVER ASSEMBLY

20060-81760

This part is no longer available and has been replaced by Shindaiwa A232000820

CLEANER COVER

20060-81770

This part is no longer available and has been replaced by Shindaiwa A232000830

CHOKE LABEL

20011-83410

This part is no longer available and has been replaced by Shindaiwa V103000960

O-RING

22100-82430

This part is no longer available and has been replaced by Shindaiwa V581000200

WASHER

20024-81790

This part is no longer available and has been replaced by Shindaiwa V347000030

KNOB

20060-81781

This part is no longer available and has been replaced by Shindaiwa A235000220

GASKET/DIAPHRAGM KIT

99909-305

This part is no longer available and has been replaced by Shindaiwa P050009190

SHOP WITH CONFIDENCE
35 YEARS EXPERIENCE
365 DAY RETURN POLICY
FREE TECH SUPPORT
WE SHIP ANYWHERE
MILLIONS OF PARTS
Need help finding the correct repair parts?

Get Help!
Recommend This Page.
"Two Oregon 9" edger blades. Could not be found locally in South Florida. Thanks for having them at a great price. A very easy transaction. Would recommend Lawnmowerpros.com to anybody. Thanks again,"

- David B.

"thanks thousand the tanks has arrived. A reliable seller"

- Tony

"Thank you so much. It's rare to find good service like this. I appreciate it."

- Ron W.

"I will keep your company book-marked and order from you first in the future! Your kind of service is exceptional!"

- Bill

"It's nice to do business with good people like you."

- Michael B.

"Many thanks for the prompt parts order. I waited over 4 months for my local repair shop to get the part and they ended up with the wrong one. Next time I will do it myself."

- Robin C.
