Shindaiwa EB45 Backpack Blower Illustrated Parts Diagram
|
 |
Search for OEM Shindaiwa Parts
|
 |
|
Shindaiwa EB45 Backpack Blower Parts available online at LawnMowerPros. We are an Authorized Shindaiwa dealer carrying a large selection of
Shindaiwa EB45 Backpack Blower Parts ready to ship direct to your door. The following are the most
popular Shindaiwa
EB45 Backpack Blower Parts. If you do not see the Backpack Blower Parts you need,
please complete the Lawn Mower
Parts Request Form
and we will be happy to assist you. |
|
Shindaiwa Illustrated Parts Diagrams |
|
|
 |
|
NOTE: Quantity in parenthesis the quantity required. |
|
No |
Description
|
Part No
|
Order
|
|
A1
|
Insulator Gasket
|
20021-12220
|
|
|
Nut
|
20011-12260
|
|
|
A2
|
Insulator
|
70029-12210
|
Price: $11.99
|
|
- |
01022-05250
|
Currently Unavailable
|
|
A3
|
Bolt SW
|
11020-05250
|
|
|
Cylinder
|
70029-12110
|
Price: $141.99
|
|
Cylinder Gasket
|
20010-12120
|
|
 |
|
No |
Description
|
Part No
|
Order
|
|
B1
|
Muffler Assembly |
70029-15100
|
No Longer Available
|
|
B2
|
Guard Spacer
|
70029-15410
|
No Longer Available
|
|
B3
|
Muffler Guard
|
70029-15310
|
Price: $35.89
|
|
B4
|
Muffler Assembly |
70029-15110
|
|
|
Arrestor
|
70029-15120
|
Price: $2.99
|
|
B5
|
Bolt
|
01020-06700
|
|
|
Washer
|
01610-06080
|
|
|
Muffler Gasket
|
70029-15210
|
Price: $3.99
|
|
B6
|
Gasket
|
70029-15140
|
No Longer Available
|
|
Tail Pipe
|
70029-15130
|
No Longer Available
|
|
Screw PM
|
11206-04120
|
Price: $1.99
|
|
B7
|
Guard Gasket
|
70029-15320
|
No Longer Available
|
|
Screw PM
|
11206-04080
|
Price: $1.99
|
|
B8
|
Bolt
|
11024-05120
|
|
 |
|
No |
Description
|
Part No
|
Order
|
|
C1 |
Bolt
|
11024-05140
|
|
|
Cylinder Cover
|
70029-32110
|
No Longer Available
|
|
C2
|
Piston Ring Assembly |
20021-41210
|
|
|
- |
20021-41111
|
|
|
Snap Ring, 8mm
|
99900-01734
|
Price: $1.99
|
|
C3
|
- |
70029-32210
|
Currently Unavailable
|
|
C4
|
Thrust Washer
|
20021-41341
|
|
|
Crankshaft Assembly |
70029-42002
|
No Longer Available
|
|
C5
|
Piston Pin
|
20021-41310
|
|
|
C6
|
Bolt SPW
|
11022-06300
|
Price: $1.99
|
|
C7
|
- |
- |
-- |
|
C8
|
Crankcase M
|
70029-21120
|
No Longer Available
|
|
Oil Seal
|
20010-21211
|
|
|
Ball Bearing
|
02030-06202
|
|
|
C9
|
- |
99909-136
|
|
|
C10
|
Dowel Pin
|
20000-21140
|
|
|
C13
|
Bolt SPW
|
11022-06400
|
|
|
C14
|
Ball Bearing
|
02030-06202
|
|
|
Oil Seal
|
20010-21211
|
|
|
Crankcase S
|
70062-21110
|
|
 |
| No |
Description
|
Part No
|
Order
|
| D1 |
Cushion A
|
72930-12210
|
Price: $23.99
|
|
- |
72930-12150
|
No Longer Available
|
| D2 |
- |
72930-12140
|
No Longer Available
|
| D3 |
Cushion B
|
72930-12220
|
Price: $13.69
|
|
Nut
|
01500-05041
|
|
| D4 |
Bolt
|
01020-06250
|
|
| D5 |
Fan
|
72930-12130
|
No Longer Available
|
|
Grommet B
|
72930-12160
|
No Longer Available
|
| D6 |
Screw PM
|
11206-05300
|
|
|
Fan Case A
|
72930-12110
|
No Longer Available
|
| D7 |
Cushion
|
72930-12230
|
Price: $12.89
|
| D8 |
Spring Washer
|
01600-06151
|
|
|
Washer
|
01610-06080
|
|
| D9 |
Air Plate
|
72930-12120
|
No Longer Available
|
| D10 |
Screw PM
|
11206-05450
|
Price: $0.49
|
|
Screw PM
|
11206-05800
|
Price: $0.69
|
| D11 |
Washer
|
20010-15320 |
|
|
Spring Washer
|
01600-05131
|
|
|
Nut
|
01500-05041
|
|
| D12 |
Cable Clip
|
70029-83140
|
No Longer Available
|
|
Screw PM
|
11206-05450
|
Price: $0.49
|
| D13 |
Nut
|
01500-05041
|
|
|
Spring Washer
|
01600-05131
|
|
|
Washer
|
20010-15320 |
|
| D14 |
Washer
|
70029-82260
|
Price: $0.09
|
|
Spring Washer
|
01600-06151
|
|
|
Nut
|
01500-06051
|
|
 |
| No |
Description
|
Part No
|
Order
|
| E1 |
Nut
|
20000-76210
|
|
| E2 |
Starter Gasket
|
20020-76110 |
|
| E3 |
- |
70020-75090
|
No Longer Available
|
| E4 |
Knob Tape
|
20010-75230
|
|
|
Starter Knob
|
20010-75190
|
|
| E5 |
Screw
|
20000-75170
|
|
|
Friction Plate
|
20000-75150
|
|
|
Ratchet
|
20000-75130
|
|
| E6 |
Pulley Starter
|
70000-75230
|
|
|
Knob Tape
|
20010-75230
|
|
| E7 |
Friction Spring
|
20000-75160
|
|
|
Return Spring
|
20000-75220
|
|
| E8 |
Rope
|
20020-75180
|
|
| E9 |
Starter Case
|
70020-75110
|
|
| E10 |
Reel
|
20020-75120
|
|
|
Recoil Spring
|
20020-75140
|
Price: $9.99
|
| E11 |
Name Plate
|
70020-75240
|
Price: $3.09
|
| E12 |
Bolt
|
11022-04160
|
|
 |
| No |
Description
|
Part No
|
Order
|
| F1 |
Nut
|
01511-10061
|
|
|
Spring Washer
|
01600-10251
|
|
| F2 |
Rotor
|
70029-71200
|
No Longer Available
|
|
Key
|
02403-03100
|
|
| F3 |
Cap Plug
|
22102-72220
|
|
|
Spark Plug Spring
|
20000-72230
|
|
| F4 |
Bolt
|
11022-05200
|
|
|
- |
70029-71610
|
No Longer Available
|
| F5 |
Bolt SPW
|
11022-04100
|
|
| F6 |
Pipe Support
|
70029-72130
|
No Longer Available
|
|
Grommet
|
70029-72110
|
|
|
Tube
|
70029-72120
|
No Longer Available
|
| F7 |
- |
70029-71710
|
No Longer Available
|
|
Cord
|
70029-71720
|
Price: $1.79
|
| F8 |
Pipe Support
|
70029-72130
|
No Longer Available
|
| F9 |
Cord Clip
|
70029-72140
|
No Longer Available
|
| F10 |
Ground Cord B
|
70029-72310
|
No Longer Available
|
 |
| No |
Description
|
Part No
|
Order
|
| G1 |
Name Plate Label
|
70029-85120
|
No Longer Available
|
| G2 |
Fuel Pipe
|
70029-85312
|
Price: $1.99
|
|
Clip
|
20020-85540
|
|
|
Fuel Joint
|
70029-85350
|
No Longer Available
|
|
Clip
|
20020-85540
|
|
| G3 |
- |
70029-85308
|
No Longer Available
|
| G4 |
Fuel Pipe Complete
|
70030-85300 |
No Longer Available
|
| G5 |
- |
20040-85210
|
|
|
Valve
|
20040-85260 |
|
| G6 |
- |
70029-85112
|
No Longer Available
|
| G7 |
Fuel Cap Assembly |
20040-85202 |
No Longer Available
|
| G8 |
Holder Complete
|
20040-85232
|
|
|
Packing
|
20040-85220
|
|
| G9 |
Screen
|
22118-85460
|
Price: $6.99
|
|
Ring
|
22128-85480
|
|
|
Filter
|
22128-85421
|
|
| G10 |
Fuel Weight
|
22128-85410
|
|
|
- |
22120-85440
|
Currently Unavailable
|
| G11 |
Name Plate Label
|
70029-85120
|
No Longer Available
|
| G12 |
Fuel Filter Assembly |
22115-85401
|
|
| G13 |
Sleeve
|
22128-85470
|
No Longer Available
|
|
Filter Clip
|
22128-85440
|
|
| G14 |
- |
70029-85002
|
No Longer Available
|
| G15 |
Cushion
|
70029-86121 |
Price: $4.29
|
|
Cushion
|
70029-85130 |
|
| G16 |
Tank Holder
|
70029-86111
|
Price: $1.49
|
|
Bolt
|
01020-05100
|
|
 |

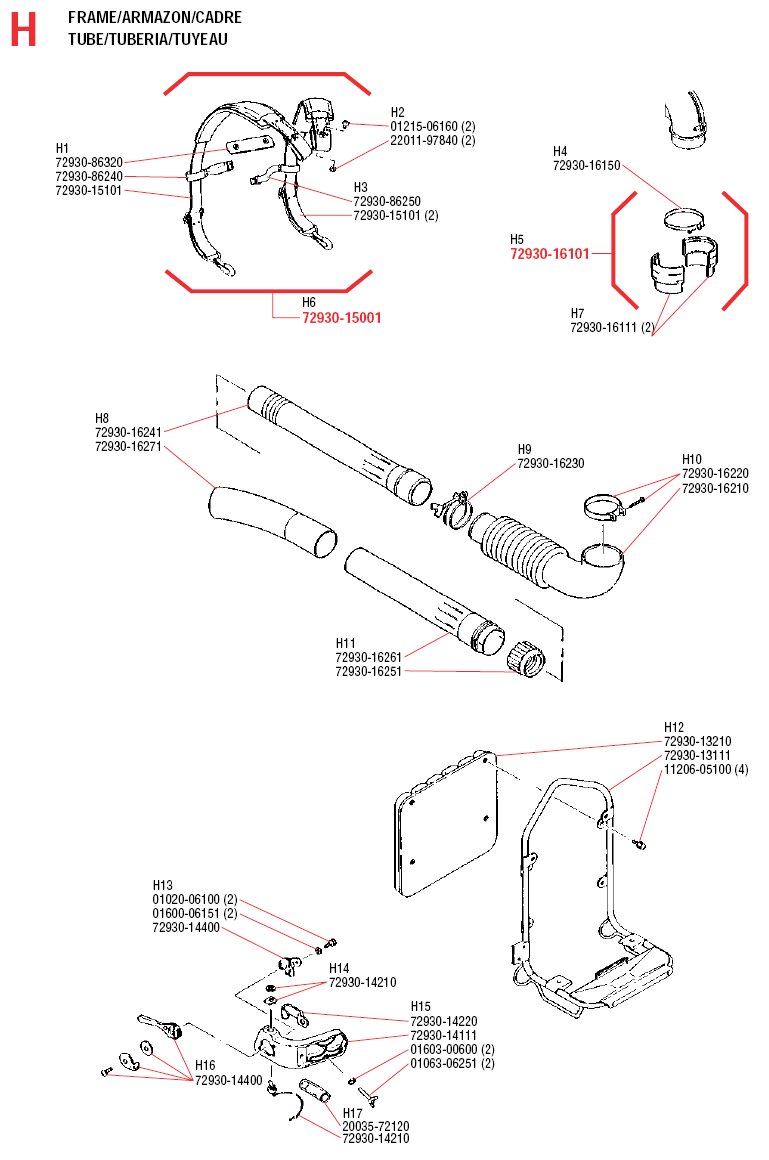

| No |
Description
|
Part No
|
Order
|
| H1 |
Joint Band
|
72930-86320
|
Price: $1.19
|
|
Front Left Band
|
72930-86240
|
No Longer Available
|
|
Band
|
72930-15101
|
No Longer Available
|
| H2 |
Screw
|
01215-06160
|
Price: $0.39
|
|
Lock Nut
|
22011-97840
|
|
| H3 |
Front Right Band
|
72930-86250
|
No Longer Available
|
|
Band
|
72930-15101
|
No Longer Available
|
| H4 |
Band
|
72930-16150
|
Price: $1.49
|
| H5 |
- |
72930-16101
|
No Longer Available
|
| H6 |
- |
72930-15001
|
No Longer Available
|
| H7 |
Swivel Joint |
72930-16111
|
No Longer Available
|
| H8 |
Joint Pipe
|
72930-16241
|
Price: $63.09
|
|
Curved Pipe
|
72930-16271
|
Price: $15.19
|
| H9 |
Clamp B
|
72930-16230
|
Price: $5.49
|
| H10 |
Clamp
|
72930-16220 |
|
|
Flexible Pipe
|
72930-16210
|
No Longer Available
|
| H11 |
Straight Pipe
|
72930-16261
|
Price: $42.99
|
|
Ring Nut
|
72930-16251
|
Price: $5.99
|
| H12 |
- |
72930-13210
|
No Longer Available
|
|
Frame
|
72930-13111
|
Price: $73.99
|
|
Screw PM
|
11206-05100
|
Price: $0.29
|
| H13 |
Bolt
|
01020-06100
|
|
|
Spring Washer
|
01600-06151
|
|
|
Throttle Lever Assembly |
72930-14400
|
No Longer Available
|
| H14 |
Switch
|
72930-14210
|
|
| H15 |
Wire Clamp
|
72930-14220
|
Price: $0.79
|
|
- |
72930-14111
|
No Longer Available
|
|
Tooth Washer
|
01603-00600
|
No Longer Available
|
|
Wing Bolt
|
01063-06251
|
No Longer Available
|
| H16 |
Throttle Lever Assembly |
72930-14400
|
No Longer Available
|
| H17 |
Tube
|
20035-72120
|
Price: $0.29
|
|
Switch
|
72930-14210
|
|
 |
| No |
Description
|
Part No
|
Order
|
| J1 |
- |
70029-82001
|
No Longer Available
|
| J2 |
Caution Label
|
70029-82220
|
Price: $0.79
|
|
Cleaner Case
|
70029-82211
|
Price: $28.99
|
|
Rubber Band
|
70029-82240
|
Price: $1.99
|
| J3 |
- |
70029-82230
|
No Longer Available
|
|
Screw
|
11204-06400
|
Price: $0.39
|
|
Washer
|
70029-82260
|
Price: $0.09
|
| J4 |
Nut
|
01500-06051
|
|
| J5 |
Choke Label
|
19404-00008
|
|
| J6 |
- |
70029-82101
|
No Longer Available
|
| J7 |
Spring
|
70029-82320
|
Price: $3.99
|
|
Duct
|
70029-82310
|
Price: $21.99
|
| J8 |
- |
70029-82001
|
No Longer Available
|
| J9 |
Carburetor Gasket
|
70029-81710
|
Price: $0.99
|
| J10 |
Drain Pipe Complete
|
70029-81800
|
No Longer Available
|
| J11 |
- |
70029-83101
|
No Longer Available
|
| J12 |
Bolt
|
01020-05550
|
|
| J13 |
Washer
|
01610-05080
|
|
|
Spring Washer
|
01600-05131
|
|
| J14 |
Nut
|
01501-06041
|
|
|
- |
70029-83110
|
No Longer Available
|
|
Ground Cord A
|
70029-83130
|
Price: $2.69
|
| J15 |
Tube
|
70029-83120
|
No Longer Available
|
| J16 |
- |
70029-82400
|
No Longer Available
|
 |
| No |
Description
|
Part No
|
Order
|
| L1 |
Screw
|
22135-81530
|
Price: $1.99
|
|
Cover
|
22135-81510
|
Price: $2.99
|
| L2 |
Priming Pump
|
70029-81480 |
|
|
Pump Body Assembly |
70029-81470
|
No Longer Available
|
| L3 |
Throttle Lever
|
70029-81420
|
Price: $1.39
|
| L4 |
Diaphragm Assembly |
22100-81260 (Replaced by Walbro D10-WAT)
|
Price: $22.99
|
|
Metering/Diaphragm Gasket
|
22135-81290
|
Price: $3.99
|
|
- |
84-546
|
Currently Unavailable
|
|
Screw Circuit Plate
|
22100-81240
|
|
| L5 |
Swivel Lever
|
70029-81450
|
|
|
Shaft Assembly |
70029-81370
|
Price: $2.79
|
|
E-Ring
|
70030-81390
|
|
|
E-Ring
|
70029-81460
|
No Longer Available
|
|
Pin Metering Lever
|
22100-81250
|
|
| L6 |
Screw
|
22100-81360
|
|
|
Throttle Shutter
|
22100-81340
|
|
|
High Speed Needle Spring
|
22100-81320
|
|
| L7 |
Idle Needle Spring
|
22100-81160
|
|
| L8 |
Needle Valve
|
22100-81310
|
|
|
Metering Lever
|
22100-81230
|
|
|
Spring
|
22100-81270
|
|
| L9 |
Fuel Inlet Screen
|
70030-81380
|
|
|
Fuel Pump Diaphragm
|
22128-81150 (Replaced by Walbro D10-WAT)
|
Price: $22.99
|
| L10 |
Needle L
|
70029-81170
|
No Longer Available
|
|
Needle H
|
70029-81330
|
No Longer Available
|
|
Shaft Spring
|
22100-81410
|
Price: $0.99
|
|
Shaft Assembly |
70029-81370
|
Price: $2.79
|
| L11 |
Fuel Pump Gasket
|
22128-81140
(Replaced by Walbro D10-WAT) |
Price: $22.99
|
|
Pump Cover Assembly |
70029-81120
|
|
| L12 |
Spring
|
70029-83220
|
|
|
Idle Needle
|
70029-83210
|
Price: $0.89
|
| L13 |
Screw
|
22100-81130
|
|
| L14 |
Carburetor Assembly |
70029-81000
|
No Longer Available
|
| L15 |
Gasket and Diaphragm Kit WT
|
99909-137
(Replaced by Walbro K10-WAT) |
Price: $30.99
|
| L16 |
Kwik Kit
|
99909-140
(Replaced by Walbro K10-WAT) |
Price: $30.99
|
