Shindaiwa F21 Trimmer Illustrated Parts Diagram
|
 |
Search for OEM Shindaiwa Parts
|
 |
|
Shindaiwa F21 Parts available online at LawnMowerPros. We are an Authorized Shindaiwa dealer carrying a large selection of
Shindaiwa F21 Parts ready to ship direct to your door. The following are the most popular Shindaiwa
F21 Parts. If you do not see the
Shindaiwa Parts you need,
please complete the Lawn Mower
Parts Request Form
and we will be happy to assist you. |
|
Shindaiwa Illustrated Parts Diagrams |
|
|
 |
|

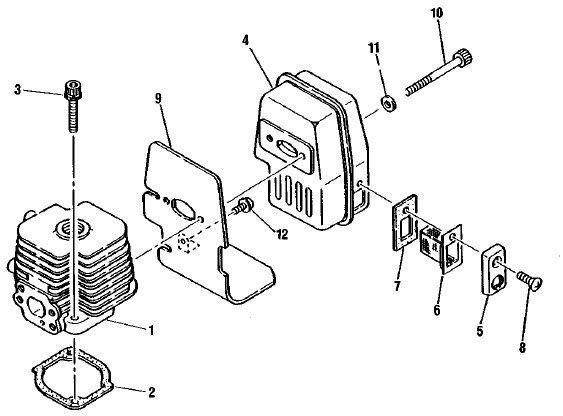

No |
Description
|
Part No
|
Order
|
| 1 |
CYLINDER, REPLACES 20035-12110
|
20035-12111
|
No Longer Available
|
| 2 |
GASKET
|
20035-12120
|
|
| 3 |
BOLT SPW
|
11022-05250
|
|
| - |
MUFFLER ASSEMBLY
|
70036-15101
|
No Longer Available
|
| 4 |
MUFFLER
|
70036-15110
|
No Longer Available
|
| 5 |
CAP
|
70036-15171
|
No Longer Available
|
| 6 |
Spark ARRESTOR
|
70036-15181
|
Price: $6.99
|
| 7 |
Cap Gasket
|
70036-15190
|
Price: $0.99
|
| 8 |
SCREW
|
01200-04120
|
Price: $1.99
|
| 9 |
MUFFLER GASKET
|
70097-15120
|
No Longer Available
|
| 10 |
BOLT
|
01020-05550
|
|
| 11 |
WASHER
|
01610-05080
|
|
| 12 |
SCREW
|
11206-05120
|
|
|
|
No |
Description
|
Part No
|
Order
|
| 1 |
CRANKCASE S
|
70097-21110
|
No Longer Available
|
| 2 |
CRANKCASE M, REPLACED BY 20036-21122
|
20036-21121
|
|
| 3 |
DOWEL PIN
|
70030-21140
|
|
| 4 |
BALL BEARING
|
02030-06001
|
|
| 5 |
OIL SEAL
|
20000-21211
|
|
| 6 |
OIL SEAL, REPLACES 70030-21220, 22155-21250
|
22150-21250
|
|
| 7 |
BOLT
|
01020-05250
|
|
-
|
--
|
70097-21111
|
No Longer Available
|
| 8 |
FAN COVER
|
70097-31111
|
No Longer Available
|
| 9 |
BALL BEARING
|
02006-06201
|
|
| 10 |
SNAP RING
|
02432-32120
|
|
| 11 |
CLUTCH DRUM
|
70030-31120
|
Price: $22.99
|
| 12 |
SNAP RING
|
20000-31140
|
|
| 13 |
THRUST WASHER
|
70097-31150
|
No Longer Available
|
| 14 |
SCREW PM
|
11207-04160
|
|
| 15 |
CYLINDER COVER
|
20040-32110
|
Price: $23.99
|
16
|
--
|
70097-32170
|
No Longer Available
|
| 17 |
SCREW
|
11206-05160
|
|
| 18 |
BOLT SPW
|
11022-05250
|
|
| 19 |
SHIM
|
20035-31460
|
|
20
|
--
|
20035-33110
|
No Longer Available
|
| 21 |
SCREW
|
11206-05350
|
|
|
|
No |
Description
|
Part No
|
Order
|
| - |
PISTON ASSEMBLY, REPLACED BY 99909-104
|
99909-96
|
No Longer Available
|
| 1 |
Piston
|
20035-41110
|
Price: $35.99
|
| 2 |
PISTON RING
|
20035-41210
|
|
| 3 |
Piston Pin
|
20035-41311
|
|
| 4 |
SNAP RING
|
70030-41320
|
|
| 5 |
NEEDLE BEARING SE
|
70030-41330
|
|
| 6 |
THRUST WASHER, REPLACED BY 37013-41240
|
70030-41340
|
|
| 2 |
GASKET
|
20035-12120
|
|
7
|
--
|
70097-42002
|
No Longer Available
|
| - |
CLUTCH ASSEMBLY, REPLACED BY 70000-51104
|
70000-51103
|
|
8
|
--
|
|
No Longer Available
|
| 9 |
CLUTCH BOLT
|
20000-51212
|
|
| 10 |
SPRING
|
70000-51220
|
|
| 11 |
WASHER
|
22100-71430
|
|
|
| No |
Description
|
Part No
|
Order
|
| 1a |
FLYWHEEL, REPLACES 20035-71200
|
20077-71200
|
Price: $67.99
|
| 1b |
ROTOR, REPLACED BY 20077-71200
|
20035-71200
|
|
| - |
COIL W/WIRE
|
20077-71600
|
No Longer Available
|
| 2 |
USE A411000880
|
20077-71610
|
|
| 3 |
CORD
|
20077-71640
|
Price: $3.99
|
| 4 |
CLAMP
|
20077-72130
|
|
| 5 |
KEY
|
22100-43210
|
|
| 6 |
NUT
|
20035-71220
|
|
7
|
--
|
70030-71610
|
No Longer Available
|
| 8 |
INSULATOR UNIT
|
70030-71620
|
|
| 9 |
BOLT
|
01020-04260
|
No Longer Available
|
| 10 |
SPRING WASHER
|
01600-04101
|
|
| 11 |
WASHER
|
20010-71650
|
|
| - |
UNIT ASSEMBLY, REPLACES 20035-71710
|
20035-71700
|
No Longer Available
|
| 12 |
CORD
|
20035-71720
|
No Longer Available
|
| 13 |
SCREW PM
|
11207-04120
|
|
| 14 |
GROMMET
|
20040-72110
|
|
| 15 |
CLAMP
|
20077-72130
|
|
| 16 |
CAP PLUG
|
22102-72220
|
|
| 17 |
SPARK PLUG SPRING
|
20000-72230
|
|
| 18 |
SWITCH
|
70036-31510
|
No Longer Available
|
 |
| No |
Description
|
Part No
|
Order
|
| - |
STARTER ASSEMBLY
|
70036-75100
|
|
| 1 |
STARTER CASE, REPLACED BY 70036-75111
|
70036-75110
|
|
| 2 |
NAME PLATE LABEL
|
70036-75116
|
|
| 3 |
REEL
|
70030-75120
|
|
| 4 |
RECOIL SPRING
|
70030-75130
|
|
| 5 |
Washer
|
70030-75140
|
Price: $2.99
|
| 6 |
SCREW
|
20035-75170
|
|
| 7 |
ROPE
|
70030-75160
|
|
| 8 |
ROPE GUIDE
|
20035-75180
|
|
9
|
--
|
20035-75190
|
No Longer Available
|
| - |
PULLEY ASSEMBLY
|
20035-75200
|
|
| 10 |
STARTER PULLEY
|
70030-75210
|
|
| 11 |
RATCHET
|
70030-75220
|
|
| 12 |
RETURN SPRING
|
20035-75230
|
|
| 13 |
E-RING
|
70030-75240
|
|
| 14 |
NUT
|
20035-43230
|
|
| 15 |
SCREW PM
|
11207-04120
|
|
|
| No |
Description
|
Part No
|
Order
|
| 1 |
CARBURETOR ASSEMBLY
|
70097-81002
|
No Longer Available
|
| 2 |
Cable Adjuster
|
20036-81110
|
Price: $6.99
|
| 3 |
NUT
|
20036-81120
|
|
| 4 |
BRACKET
|
70097-81130
|
No Longer Available
|
| 5 |
SCREW
|
70097-81290
|
|
| 6 |
IDLE ADJUST SCREW
|
20036-81310
|
Price: $1.99
|
| 7 |
SPRING
|
20036-81320
|
Price: $1.99
|
| 8 |
VALVE ASSEMBLY
|
70097-81181
|
No Longer Available
|
| 9 |
SWIVEL LEVER
|
70029-81450
|
|
| 10 |
WASHER
|
20036-81185
|
|
| 11 |
E-RING
|
20036-81195
|
|
12
|
--
|
|
No Longer Available
|
| 13 |
O-RING
|
70097-81220
|
|
| 14 |
MAIN JET #44
|
70097-81231
|
Price: $2.99
|
| 15 |
RING GASKET
|
70097-81250
|
Price: $10.99
|
| 16 |
SLEEVE
|
70097-81260
|
No Longer Available
|
| 17 |
PUMP GASKET
|
70097-81310
|
|
| 18 |
DIAPHRAGM
|
70097-81320
|
|
| 19 |
PUMP PLATE
|
70097-81330
|
Price: $2.99
|
| 20 |
PLATE GASKET
|
70097-81340
|
Price: $1.99
|
| 21 |
PUMP BODY COMPLETE
|
70097-81412
|
Price: $16.99
|
| 22 |
SCREEN
|
22100-81380
|
|
| 23 |
METERING/DIAPHRAGM GASKET
|
22135-81290
|
Price: $3.99
|
| 24 |
DIAPHRAGM ASSEMBLY
|
22100-81260
|
|
| 25 |
PUMP BASE
|
70097-81420
|
Price: $10.99
|
| 26 |
PRIMING PUMP
|
70029-81480
|
|
| 27 |
Cover
|
22135-81510
|
Price: $2.99
|
| 28 |
SCREW
|
70097-81141
|
|
| 29 |
PIPE
|
70097-83310
|
No Longer Available
|
| 30 |
CLIP
|
20020-85540
|
|
| 31 |
METERING LEVER
|
22100-81230
|
|
| 32 |
PIN METERING LEVER
|
22100-81250
|
|
| 33 |
SPRING
|
22100-81270
|
|
| 34 |
NEEDLE VALVE, REPLACES 20016-81440
|
20036-81440
|
|
35
|
--
|
72097-81510
|
No Longer Available
|
| 36 |
INSULATOR GASKET, REPLACES 70097-81520
|
70097-81521
|
No Longer Available
|
| 37 |
CARBURETOR GASKET
|
70097-81530
|
No Longer Available
|
| - |
CLEANER ASSEMBLY
|
70097-82000
|
No Longer Available
|
| 38 |
SHUTTER COMPLETE
|
70097-82101
|
Price: $13.99
|
| 39 |
SCREW
|
11206-05650
|
No Longer Available
|
| 40 |
CLEANER COVER
|
70097-82311
|
Price: $3.99
|
| 41 |
FILTER
|
70097-82320
|
No Longer Available
|
| 42 |
SCREW PM
|
11207-04160
|
|
| 43 |
THROTTLE CABLE
|
70097-83110
|
No Longer Available
|
| 44 |
CLAMP B
|
20000-85350
|
|
| - |
Kwik Kit, Replaces 99909-133
|
99909-134
|
Price: $6.99
|
34
|
--
|
|
No Longer Available
|
31
|
--
|
|
No Longer Available
|
32
|
--
|
|
No Longer Available
|
33
|
--
|
|
No Longer Available
|
22
|
--
|
|
No Longer Available
|
-
|
--
|
99909-98
|
No Longer Available
|
23
|
--
|
|
No Longer Available
|
17
|
--
|
|
No Longer Available
|
20
|
--
|
|
No Longer Available
|
24
|
--
|
|
No Longer Available
|
18
|
--
|
|
No Longer Available
|
|
| No |
Description
|
Part No
|
Order
|
| - |
OUTER PIPE COMPLETE
|
72097-12191
|
No Longer Available
|
1
|
--
|
|
No Longer Available
|
| 2 |
FLEX LINER
|
72097-12121
|
No Longer Available
|
| 3 |
FLEX SHAFT
|
72097-12410
|
No Longer Available
|
| 4 |
GRIP
|
72097-12130
|
No Longer Available
|
| 5 |
HANGER
|
72097-12250
|
No Longer Available
|
| 6 |
SCREW
|
11206-05120
|
|
7
|
--
|
01500-06041
|
No Longer Available
|
| - |
THROTTLE LEVER
|
72097-12310
|
No Longer Available
|
| 8 |
LEVER
|
72030-12330
|
No Longer Available
|
| 9 |
RETURN SPRING
|
72030-12340
|
No Longer Available
|
| 10 |
SCREW
|
11203-05250
|
Price: $1.99
|
| 11 |
SCREW
|
11203-05250
|
Price: $1.99
|
| 12 |
NUT
|
11525-05000
|
Price: $1.99
|
| 13 |
WASHER
|
01610-05080
|
|
| 14 |
BOLT
|
01014-05250
|
|
| 15 |
CAUTION LABEL
|
19402-00024
|
|
| 16 |
L HANDLEABEL
|
72017-12150
|
|
| 17 |
NAME PLATE LABEL, REPLACED BY 19420-00028
|
72005-12510
|
No Longer Available
|
| - |
SHAFT CASE ASSEMBLY
|
72097-13100
|
No Longer Available
|
| 19 |
SHAFT CASE
|
72097-13110
|
|
| 20 |
BALL BEARING
|
02006-06001
|
|
| 21 |
SHAFT
|
72097-13120
|
No Longer Available
|
| 22 |
COLLAR A
|
72030-13130
|
|
| 23 |
COLLAR B
|
72030-13140
|
|
| 24 |
SNAP RING
|
02432-28120
|
|
| 25 |
HOLDER A
|
72048-13151
|
No Longer Available
|
26
|
--
|
22000-13251
|
No Longer Available
|
| 27 |
BOLT GUARD
|
22000-13290
|
|
| 28 |
BOLT
|
72097-13510
|
Price: $2.99
|
| 29 |
BOLT SPW
|
11022-05250
|
|
| 30 |
SHIM
|
22000-13420
|
|
| 31 |
BOLT SPW
|
11022-05100
|
|
| - |
HANDLE ASSEMBLY
|
72097-14100
|
No Longer Available
|
32
|
--
|
72097-14110
|
No Longer Available
|
| 33 |
LOWER CAP
|
72097-14120
|
No Longer Available
|
| 34 |
BOLT
|
72097-14150
|
No Longer Available
|
| 35 |
NUT
|
01500-05041
|
|
 |
| No |
Description
|
Part No
|
Order
|
| - |
FUEL TANK ASSEMBLY
|
70097-85002
|
No Longer Available
|
1
|
--
|
70097-85110
|
No Longer Available
|
| - |
FUEL CAP ASSEMBLY
|
20000-85200
|
|
2
|
--
|
|
No Longer Available
|
| 3 |
FUEL GASKET
|
20000-85220
|
|
| 4 |
FUEL TUBE
|
70097-85300
|
No Longer Available
|
| - |
Fuel Filter Assembly
|
70030-85401
|
|
| 5 |
Filter Weight
|
70030-85411
|
|
| 6 |
FILTER A
|
70030-85420
|
|
| 7 |
FILTER B
|
70030-85431
|
|
| 8 |
FILTER CLIP
|
70030-85440
|
Price: $2.99
|
| 9 |
CLIP
|
20020-85540
|
|
| - |
BREATHER ASSEMBLY
|
70097-85501
|
No Longer Available
|
| 10 |
BREATHER TUBE
|
20035-85510
|
No Longer Available
|
| 11 |
CLIP
|
20020-85540
|
|
| 12 |
VALVE
|
70064-85520
|
|
| 13 |
CLAMP
|
70097-85610
|
Price: $3.99
|
| 14 |
TANK CUSHION
|
20035-86120
|
|
 |
| No |
Description
|
Part No
|
Order
|
-
|
--
|
72097-15100
|
No Longer Available
|
| 1 |
8MM RH SHAFT BOLT
|
72097-15110
|
No Longer Available
|
2
|
--
|
72097-15122
|
No Longer Available
|
| 4 |
SPOOL HOUSING
|
72030-15141
|
No Longer Available
|
| 5 |
OBS
|
72030-15150
|
No Longer Available
|
| 6 |
KNOB RH
|
72097-15160
|
No Longer Available
|
| 7 |
SPRING
|
72030-15171
|
No Longer Available
|
| - |
GUARD ASSEMBLY, REPLACED BY 72097-16101
|
72097-16100
|
No Longer Available
|
| 8 |
GUARD
|
72030-16113
|
|
| 9 |
CUTTER
|
72097-16120
|
No Longer Available
|
| 10 |
SCREW
|
11204-04160
|
|
| 11 |
NUT
|
72030-16150
|
|
| 12 |
CAUTION LABEL
|
72030-16140
|
|
| 13 |
SCREW
|
11206-05160
|
|
 |
| No |
Description
|
Part No
|
Order
|
| - |
SERVICE TOOL KIT
|
72030-91000
|
No Longer Available
|
1
|
--
|
72030-91110
|
No Longer Available
|
| 2 |
SCREW DRIVER
|
22100-91150
|
Price: $4.99
|
| 3 |
PLUG WRENCH
|
22000-91181
|
This part is no longer available and has been replaced by Oregon 57-017
|
| 4 |
WRENCH 4MM, REPLACED BY 09026-04001
|
22100-91561
|
|
| - |
STRAP ASSEMBLY
|
72036-17200
|
No Longer Available
|
5
|
--
|
|
No Longer Available
|
| 6 |
HOOK
|
22044-17220
|
Price: $8.99
|
| 7 |
PROTECTOR
|
22044-17230
|
|
 |
| No |
Description
|
Part No
|
Order
|
-
|
--
|
72097-97100
|
No Longer Available
|
-
|
--
|
72005-14100
|
No Longer Available
|
| 1 |
HANDLE BRACKET
|
72051-14110
|
|
| 2 |
LOWER CAP
|
72051-14120
|
|
| 3 |
UPPER CAP
|
72051-14131
|
Price: $7.99
|
| 4 |
BOLT SPW
|
11022-05250
|
|
5
|
--
|
01510-05080
|
No Longer Available
|
| - |
HANDLE ASSEMBLY
|
72006-14201
|
No Longer Available
|
6
|
--
|
-
|
No Longer Available
|
| 7 |
HANDLE GRIP
|
22000-14520
|
Price: $7.99
|
| 8 |
THROTTLE LEVER COLLAR, REPLACED BY 22000-14251
|
22000-14250
|
|
| 9 |
THROTTLE LEVER ASSEMBLY
|
72910-14320
|
No Longer Available
|
| 10 |
HANDLE SPACER
|
22042-14260
|
Price: $2.99
|
| 11 |
CLAMP
|
20000-83150
|
|
| 12 |
THROTTLE CABLE
|
70097-83190
|
Price: $3.99
|
13
|
--
|
72097-92158
|
No Longer Available
|
14
|
--
|
22070-92710
|
No Longer Available
|
15
|
--
|
22035-92710
|
No Longer Available
|
