Shindaiwa F230 Illustrated Parts Diagram

		Search for OEM Shindaiwa Parts
Shindaiwa F230 Parts available online at LawnMowerPros. We are an Authorized Shindaiwa dealer carrying a large selection of Shindaiwa F230 Parts ready to ship direct to your door. The following are the most popular Shindaiwa F230 Parts. If you do not see the Shindaiwa Parts you need, please complete the Lawn Mower Parts Request Form and we will be happy to assist you.
Shindaiwa Illustrated Parts Diagrams

Shindaiwa F230 Illustrated Parts List

Description

Part No

Order

20016-12220

This part is no longer available and has been replaced by Shindaiwa V103001200

01500-05041

This part is no longer available and has been replaced by Echo 90050000005

01020-05250

This part is no longer available and has been replaced by Echo 90010505025

20016-12110

This part is no longer available and has been replaced by Shindaiwa A130001391

20016-12120

This part is no longer available and has been replaced by Shindaiwa V100000490

20016-12210

This part is no longer available and has been replaced by Shindaiwa 99909-12212

20016-12310

This part is no longer available and has been replaced by Shindaiwa A358000040

11022-05250

This part is no longer available and has been replaced by Shindaiwa V203000630

Description

Part No

Order

20016-15121

This part is no longer available and has been replaced by Shindaiwa V104001500

01020-05500

This part is no longer available and has been replaced by Echo 90010505050

01610-05080

This part is no longer available and has been replaced by Echo 90060000005

01020-05120

This part is no longer available and has been replaced by Echo 90010505012

70135-15110

This part is no longer available and has been replaced by SHINDAIWA A300000890

70135-15100

This part is no longer available and has been replaced by Shindaiwa A030000120

01270-03062

This part is no longer available and has been replaced by Shindaiwa 9137403006

70103-15150

This part is no longer available and has been replaced by Shindaiwa A310000260

Description

Part No

Order

20018-31250

This part is no longer available and has been replaced by Shindaiwa V299000420

70157-32120

Price: $1.19

70140-32110

This part is no longer available and has been replaced by Shindaiwa A160001841

20018-31260

This part is no longer available and has been replaced by Shindaiwa V353000430

20018-31270

This part is no longer available and has been replaced by Shindaiwa V490000680

70135-31470

This part is no longer available and has been replaced by SHINDAIWA A575000460

20018-31420

This part is no longer available and has been replaced by SHINDAIWA V420002640

70157-31410

Currently Unavailable

70157-32100

Price: $31.99

70140-31480

This part is no longer available and has been replaced by Shindaiwa V203000450

11023-05250

This part is no longer available and has been replaced by SHINDAIWA V203000560

20018-33110

No Longer Available

20035-31460

This part is no longer available and has been replaced by Shindaiwa V340000250

20018-31430

This part is no longer available and has been replaced by SHINDAIWA V420002650

20000-31140

This part is no longer available and has been replaced by Echo 90070100012

11022-05160

This part is no longer available and has been replaced by Shindaiwa V203000590

11022-05350

This part is no longer available and has been replaced by Shindaiwa V203000600

70149-31210

This part is no longer available and has been replaced by SHINDAIWA A556000680

70140-31111

This part is no longer available and has been replaced by SHINDAIWA A172001560

01020-05250

This part is no longer available and has been replaced by Echo 90010505025

20016-21120

This part is no longer available and has been replaced by SHINDAIWA A120000490

20016-21200

This part is no longer available and has been replaced by SHINDAIWA P021017920

20000-21211

This part is no longer available and has been replaced by Shindaiwa V505000080

70030-21140

This part is no longer available and has been replaced by SHINDAIWA 1249240080

12900-60010

This part is no longer available and has been replaced by SHINDAIWA V592000310

20016-21001

No Longer Available

12900-60010

This part is no longer available and has been replaced by SHINDAIWA V592000310

22150-21250

This part is no longer available and has been replaced by Shindaiwa V505000140

20016-21100

This part is no longer available and has been replaced by SHINDAIWA P021017910

20016-21111

This part is no longer available and has been replaced by SHINDAIWA A120000480

Description

Part No

Order

20000-41210

This part is no longer available and has been replaced by Shindaiwa A101000400

20075-41110

This part is no longer available and has been replaced by Shindaiwa A100000730

70030-41320

This part is no longer available and has been replaced by Shindaiwa V580000070

20016-41340

This part is no longer available and has been replaced by Shindaiwa 81593

20016-42001

This part is no longer available and has been replaced by Shindaiwa A011000930

20016-41330

This part is no longer available and has been replaced by Shindaiwa 81593

20016-41340

This part is no longer available and has been replaced by Shindaiwa 81593

20016-41310

This part is no longer available and has been replaced by Shindaiwa V606000060

70030-41320

This part is no longer available and has been replaced by Shindaiwa V580000070

99909-158

This part is no longer available and has been replaced by Shindaiwa P021030500

70000-51104

This part is no longer available and has been replaced by Shindaiwa A056000260

20000-51212

This part is no longer available and has been replaced by SHINDAIWA A557000040

22100-71430

This part is no longer available and has been replaced by SHINDAIWA V304000150

20000-51114

This part is no longer available and has been replaced by SHINDAIWA A555000110

70000-51220

This part is no longer available and has been replaced by Shindaiwa A566000070

Description

Part No

Order

20016-71640

This part is no longer available and has been replaced by SHINDAIWA V485001960

20016-71651

This part is no longer available and has been replaced by Shindaiwa V475005140

20016-71600

This part is no longer available and has been replaced by Shindaiwa A411000880

20010-72110

Price: $1.99

This part is no longer available and has been replaced by Shindaiwa A426000050

22102-72220

This part is no longer available and has been replaced by Shindaiwa A427000100

20016-71660

This part is no longer available and has been replaced by Shindaiwa V475004840

01020-04260

No Longer Available

01600-04101

This part is no longer available and has been replaced by Echo 90060500004

01612-00400

Currently Unavailable

20035-71220

This part is no longer available and has been replaced by SHINDAIWA V265000140

70030-71620

This part is no longer available and has been replaced by Shindaiwa V322000040

20016-71200

This part is no longer available and has been replaced by SHINDAIWA A409000730

02403-03100

This part is no longer available and has been replaced by SHINDAIWA 9311503010

Description

Part No

Order

Recoil Starter Assembly

70064-75101

This part is no longer available and has been replaced by Shindaiwa P021034871

11024-04120

This part is no longer available and has been replaced by Shindaiwa 9111304012

70064-75101

This part is no longer available and has been replaced by Shindaiwa P021034871

70064-75310

This part is no longer available and has been replaced by Shindaiwa A520000080

70064-75160

Price: $1.99

70064-75180

Price: $0.69

70064-75170

Price: $1.99

01511-08051

This part is no longer available and has been replaced by ECHO 90050300008

70064-75150

This part is no longer available and has been replaced by Shindaiwa P022034810

70064-75140

This part is no longer available and has been replaced by Shindaiwa C533000060

70064-75220

This part is no longer available and has been replaced by SHINDAIWA A522000020

70064-75211

This part is no longer available and has been replaced by SHINDAIWA A511000150

70064-75190

This part is no longer available and has been replaced by SHINDAIWA A509000320

70064-75121

Price: $3.59

70064-75130

This part is no longer available and has been replaced by Shindaiwa P022034790

70064-75110

This part is no longer available and has been replaced by SHINDAIWA A500001060

70064-75250

This part is no longer available and has been replaced by Shindaiwa X504006130

Description

Part No

Order

20035-85522

This part is no longer available and has been replaced by Shindaiwa A356000040

20035-83310

This part is no longer available and has been replaced by Shindaiwa V471002790

20020-85540

This part is no longer available and has been replaced by Shindaiwa V490000500

20018-85350

No Longer Available

20020-85540

This part is no longer available and has been replaced by Shindaiwa V490000500

20035-83310

This part is no longer available and has been replaced by Shindaiwa V471002790

20016-85400

This part is no longer available and has been replaced by Shindaiwa A369000440

20020-85540

This part is no longer available and has been replaced by Shindaiwa V490000500

70064-85311

This part is no longer available and has been replaced by Shindaiwa V470001210

70043-85200

This part is no longer available and has been replaced by Shindaiwa A033000070

20016-85111

This part is no longer available and has been replaced by Shindaiwa A350001530

20000-85220

This part is no longer available and has been replaced by Shindaiwa V107000010

70043-85210

This part is no longer available and has been replaced by Shindaiwa A033000330

20016-85000

This part is no longer available and has been replaced by Shindaiwa A038000430

20024-86120

This part is no longer available and has been replaced by Shindaiwa V420002630

Description

Part No

Order

72451-12510

No Longer Available

72414-12130

This part is no longer available and has been replaced by SHINDAIWA C412000270

72495-12130

This part is no longer available and has been replaced by SHINDAIWA C511000090

72495-12410

This part is no longer available and has been replaced by Shindaiwa C506000170

72495-12120

This part is no longer available and has been replaced by SHINDAIWA C507000290

72495-12190

This part is no longer available and has been replaced by SHINDAIWA C050001670

Description

Part No

Order

11022-05250

This part is no longer available and has been replaced by Shindaiwa V203000630

11022-05100

This part is no longer available and has been replaced by Shindaiwa V203001710

22000-13420

This part is no longer available and has been replaced by Shindaiwa V340000300

72443-13110

This part is no longer available and has been replaced by SHINDAIWA C530000050

72414-13120

This part is no longer available and has been replaced by Shindaiwa C534000540

72443-13000

This part is no longer available and has been replaced by SHINDAIWA P021032710

02006-06001

This part is no longer available and has been replaced by ECHO 9404206001

72030-13130

This part is no longer available and has been replaced by Shindaiwa V357000170

02006-06001

This part is no longer available and has been replaced by ECHO 9404206001

02432-28120

This part is no longer available and has been replaced by Shindaiwa 9242428000

72030-13140

This part is no longer available and has been replaced by SHINDAIWA V357000180

72030-13151

This part is no longer available and has been replaced by SHINDAIWA C535000480

Description

Part No

Order

11204-04160

This part is no longer available and has been replaced by SHINDAIWA 9157204016

72030-16150

This part is no longer available and has been replaced by SHINDAIWA V262000070

72416-16120

This part is no longer available and has been replaced by Shindaiwa C554000060

72030-16113

This part is no longer available and has been replaced by SHINDAIWA C550000360

11206-05160

This part is no longer available and has been replaced by SHINDAIWA 9157405016

22044-17230

This part is no longer available and has been replaced by SHINDAIWA C652000040

22000-17130

This part is no longer available and has been replaced by SHINDAIWA C649000170

11020-05120

This part is no longer available and has been replaced by SHINDAIWA V203000700

22410-12210

This part is no longer available and has been replaced by SHINDAIWA C670000070

01500-05041

This part is no longer available and has been replaced by Echo 90050000005

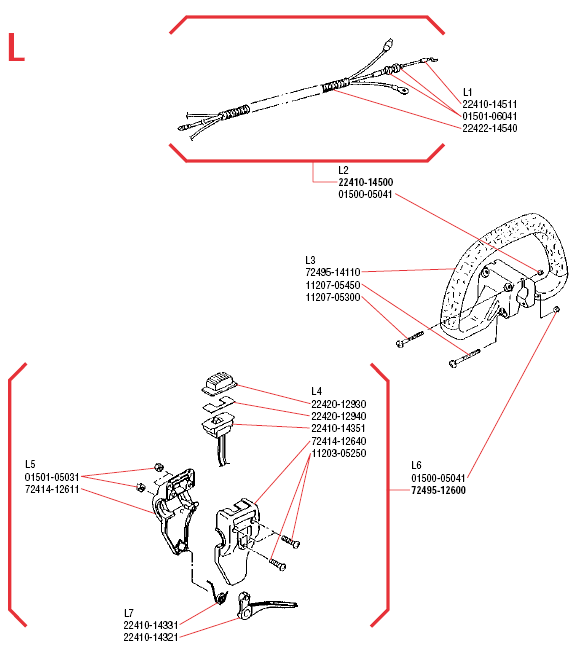

22410-17201

This part is no longer available and has been replaced by Shindaiwa C062000340

22036-14130

Price: $4.99

Description

Part No

Order

22410-14511

This part is no longer available and has been replaced by Shindaiwa V430002700

01501-06041

This part is no longer available and has been replaced by ECHO 90050200006

22422-14540

This part is no longer available and has been replaced by SHINDAIWA V475004520

22410-14500

This part is no longer available and has been replaced by Shindaiwa P021023240

01500-05041

This part is no longer available and has been replaced by Echo 90050000005

72495-14110

This part is no longer available and has been replaced by SHINDAIWA C400000700

11207-05450

This part is no longer available and has been replaced by SHINDAIWA 9157705045

11207-05300

This part is no longer available and has been replaced by SHINDAIWA 9157705030

22420-12930

This part is no longer available and has been replaced by Shindaiwa A444000090

22420-12940

This part is no longer available and has been replaced by SHINDAIWA X510000500

22410-14351

This part is no longer available and has been replaced by SHINDAIWA A440001430

72414-12640

This part is no longer available and has been replaced by SHINDAIWA 72414-12641

11203-05250

Price: $1.99

01501-05031

This part is no longer available and has been replaced by ECHO 90050200005

72414-12611

This part is no longer available and has been replaced by SHINDAIWA 72414-12612

01500-05041

This part is no longer available and has been replaced by Echo 90050000005

72495-12600

Price: $22.19

22410-14331

This part is no longer available and has been replaced by Shindaiwa V452000440

22410-14321

This part is no longer available and has been replaced by Shindaiwa C450000460

Description

Part No

Order

19639-01100

This part is no longer available and has been replaced by Shindaiwa X705000130

22000-91181

This part is no longer available and has been replaced by Oregon 57-017

22000-91120

This part is no longer available and has been replaced by SHINDAIWA X600000020

09026-04001

This part is no longer available and has been replaced by ECHO X605000100

22410-91000

This part is no longer available and has been replaced by Shindaiwa P021048890

Description

Part No

Order

20021-96650

Price: $7.99

20021-96660

Price: $7.99

20000-96640

No Longer Available

20021-96670

No Longer Available

20021-96420

This part is no longer available and has been replaced by Shindaiwa X644000070

20021-96621

No Longer Available

20021-96611

Price: $3.99

20035-96630

Price: $11.99

20000-96631

This part is no longer available and has been replaced by Shindaiwa X648000090

20021-96630

No Longer Available

01211-06120

Price: $1.99

20021-96601

This part is no longer available and has been replaced by Shindaiwa Y089000250

20000-96130

No Longer Available

20000-96104

No Longer Available

22100-96121

Price: $10.99

20000-96411

Price: $6.99

20000-96210

This part is no longer available and has been replaced by Shindaiwa X623000030

20000-96140

No Longer Available

20000-96114

No Longer Available

Description

Part No

Order

72414-15100

No Longer Available

72417-15100

Currently Unavailable

72414-15110

Price: $17.99

72414-15110

Price: $17.99

72414-15120

Price: $21.99

72005-92630

Price: $2.99

72414-15140

No Longer Available

72005-92660

Price: $2.99

72414-15160

Price: $4.79

72078-15220

Price: $18.99

72005-92630

Price: $2.99

72417-15130

No Longer Available

72078-15240

Price: $2.99

72078-15260

No Longer Available

72078-15280

This part is no longer available and has been replaced by Shindaiwa 99909-15780

72078-15290

No Longer Available

Description

Part No

Order

22154-81270

This part is no longer available and has been replaced by ECHO 12314644330

20016-81180

This part is no longer available and has been replaced by Echo 12311605160

70064-81290

This part is no longer available and has been replaced by ECHO 12311444330

20016-81250

This part is no longer available and has been replaced by Echo 90072000015

20016-81530

This part is no longer available and has been replaced by Shindaiwa V103001210

20016-81710

No Longer Available

Air Filter

70064-82210

This part is no longer available and has been replaced by Shindaiwa A226000590

70097-81220

This part is no longer available and has been replaced by Echo 12318305960

70064-81230

This part is no longer available and has been replaced by SHINDAIWA 12318411810

70097-81310

This part is no longer available and has been replaced by Echo 12312540630

70097-81320

This part is no longer available and has been replaced by ECHO 12311240630

70030-81380

This part is no longer available and has been replaced by Echo 12312610631

20016-81410

This part is no longer available and has been replaced by Echo P003000440

20016-81270

This part is no longer available and has been replaced by SHINDAIWA P003000450

22100-81230

This part is no longer available and has been replaced by Echo 12312338330

22100-81250

This part is no longer available and has been replaced by ECHO 12313803930

20016-81790

This part is no longer available and has been replaced by Shindaiwa P021030510

20016-81450

This part is no longer available and has been replaced by ECHO 12313905560

20036-81440

This part is no longer available and has been replaced by ECHO 12313719830

11203-05658

This part is no longer available and has been replaced by Shindaiwa 9157905065

20016-81280

This part is no longer available and has been replaced by Echo 12314005560

22100-81260

This part is no longer available and has been replaced by Echo 12314103930

20016-81420

This part is no longer available and has been replaced by ECHO 12318005560

70029-81480

This part is no longer available and has been replaced by Walbro 188-12-1

20016-81510

This part is no longer available and has been replaced by Echo 12314205560

20016-81140

This part is no longer available and has been replaced by Echo 12311005560

20016-81021

This part is no longer available and has been replaced by Shindaiwa A021002190

99909-160

Price: $9.99

Q10

99909-159

Price: $21.99

Most Popular Departments and Categories

Most Popular Brands

DIY Categories

DIY Manufacturer

Illustrated Parts Diagrams by Manufacturer

More Illustrated Parts Diagrams

Shindaiwa F230 Illustrated Parts Diagram
