Shindaiwa GP25 Pump Illustrated Parts Diagram
|
 |
Search for OEM Shindaiwa Parts
|
 |
|
Shindaiwa GP25 Parts available online at LawnMowerPros. We are an Authorized Shindaiwa dealer carrying a large selection of
Shindaiwa GP25 Parts ready to ship direct to your door. The following are the most popular Shindaiwa
GP25 Parts. If you do not see the
Shindaiwa Parts you need,
please complete the Lawn Mower
Parts Request Form
and we will be happy to assist you. |
|
Shindaiwa Illustrated Parts Diagrams |
|
|
Diagram A
|
| No |
Description |
Part No |
Order |
| A1 |
INSULATOR GASKET
|
20003-12220
|
No Longer Available
Replaced by V103001260
|
| A1 |
INLET PIPE
|
20003-12231
|
Price: $11.99
|
| A1 |
Screw Spw
|
01213-05250
|
|
| A2 |
CYLINDER
|
20003-12112
|
|
| A2 |
BOLT SPW
|
11020-05180
|
|
| A2 |
CYLINDER GASKET
|
20000-12120
|
|
| A3 |
INSULATOR
|
20003-12210
|
Price: $21.99
|
|
Diagram B
|
|
No |
Description |
Part No |
Order |
| B1 |
BOLT
|
01020-05500
|
|
| B1 |
SPRING WASHER
|
01600-05131
|
|
| B1 |
WASHER
|
01610-05080
|
|
| B2 |
Screw Pm
|
11206-04080
|
Price: $1.99
|
| B2 |
ARRESTER GASKET
|
70000-15140
|
|
| B3 |
MUFFLER INSULATOR
|
20000-15131
|
|
| B3 |
SCREW SW
|
01213-05120
|
|
| B4 |
SPARK ARRESTER
|
70000-15121
|
No Longer Available
|
| B4 |
MUFFLER CAP
|
70000-15130
|
Price: $7.99
|
| B5 |
GUARD MUFFLER
|
70000-15150
|
No Longer Available
|
| B5 |
Muffler Assembly
|
70000-15100
|
Price: $41.99
|
| B5 |
SCREW SW
|
01213-04080
|
|
|
Diagram C
|
| No |
Description |
Part No |
Order |
| C1 |
BOLT, SW
|
01017-05120
|
|
| C1 |
CYLINDER COVER
|
70006-31210
|
|
| C2 |
SCREW
|
01213-05200
|
|
| C2 |
SWITCH (BRACKET NOT INCLUDED)
|
22011-11411
|
|
| C2 |
BRACKET
|
20000-72520
|
|
| C2 |
FAN COVER
|
20003-31110
|
|
| C3 |
GROMMET B
|
20003-72120
|
|
| C4 |
CRANKCASE ASSEMBLY
|
20003-21000
|
|
| C5 |
DOWEL PIN
|
20000-21140
|
|
| C5 |
OIL SEAL
|
20000-21211
|
|
| C6 |
CRANKCASE M
|
20003-21120
|
|
| C6 |
BALL BEARING
|
02030-06201
|
|
| C7 |
CRANKCASE S
|
20003-21110
|
|
| C7 |
BOLT
|
01020-05250
|
|
|
Diagram D
|
| No |
Description |
Part No |
Order |
| D1 |
PISTON RING
|
20000-41210
|
|
| D1 |
PISTON
|
20000-41111
|
|
| D1 |
SNAP RING
|
20000-41320
|
|
| D1 |
THRUST WASHER
|
20000-41341
|
|
| D1 |
CRANKSHAFT ASSEMBLY
|
20000-42002
|
Price: $95.99
|
| D1 |
NEEDLE BEARING
|
20000-41330
|
|
| D1 |
THRUST WASHER
|
20000-41341
|
|
| D1 |
PISTON PIN
|
20000-41310
|
|
| D1 |
SNAP RING
|
20000-41320
|
|
| D2 |
PISTON ASSEMBLY, REPLACED BY 72005-98010
|
99909-121
|
No Longer Available
|
|
Diagram E
|
| No |
Description |
Part No |
Order |
| E1 |
BOLT
|
01020-04240
|
|
| E1 |
SPRING WASHER
|
01600-04101
|
|
| E1 |
WASHER
|
01610-04050
|
|
| E2 |
CAP PLUG
|
22102-72220
|
|
| E2 |
SPARK PLUG SPRING
|
20000-72230
|
|
| E2 |
GROMMET A
|
20003-72110
|
No Longer Available
|
| E2 |
COIL
|
70000-71612
|
|
| E3 |
BOLT
|
01011-08250
|
|
| E3 |
PUMP SHAFT
|
20003-58110
|
Price: $33.99
|
| E4 |
NUT
|
22100-43231
|
|
| E4 |
SPRING WASHER
|
01600-08201
|
|
| E4 |
INSULATOR
|
20000-71810
|
No Longer Available
|
| E4 |
UNIT, REPLACES 72920-71710
|
72920-71711
|
|
| E4 |
SCREW PM
|
11207-04120
|
|
| E5 |
FLYWHEEL
|
20003-71201
|
|
| E5 |
KEY
|
22100-43210
|
|
|

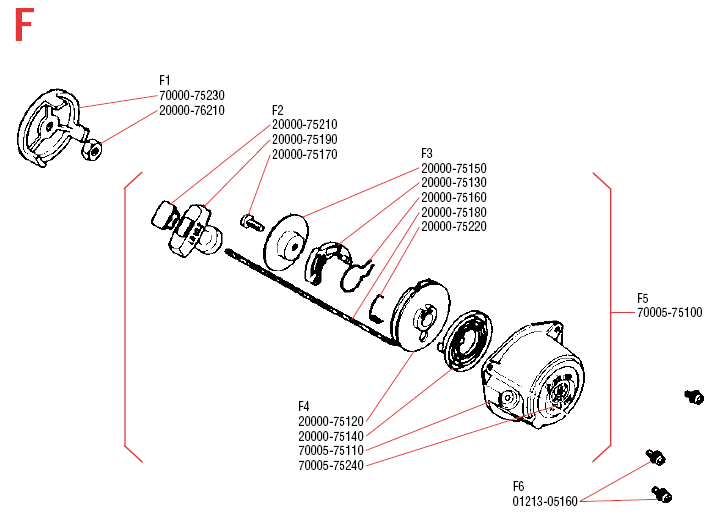

Diagram F
|
| No |
Description |
Part No |
Order |
| F1 |
STARTER PULLEY
|
70000-75230
|
|
| F1 |
NUT
|
20000-76210
|
|
| F2 |
CAP KNOB
|
20000-75210
|
|
| F2 |
STARTER KNOB
|
20000-75190
|
|
| F2 |
SCREW
|
20000-75170
|
|
| F3 |
FRICTION PLATE
|
20000-75150
|
|
| F3 |
RATCHET
|
20000-75130
|
|
| F3 |
FRICTION SPRING
|
20000-75160
|
|
| F3 |
ROPE
|
20000-75180
|
|
| F3 |
RETURN SPRING
|
20000-75220
|
|
| F4 |
REEL
|
20000-75120
|
|
| F4 |
RECOIL SPRING
|
20000-75140
|
|
| F4 |
STARTER CASE
|
70005-75110
|
Price: $23.99
|
| F4 |
Name Plate
|
70005-75240
|
Price: $1.99
|
| F5 |
STARTER ASSEMBLY
|
70005-75100
|
|
| F6 |
SCREW SW
|
01213-05160
|
|
|
Diagram G
|
| No |
Description |
Part No |
Order |
| G1 |
FUEL CAP ASSEMBLY
|
20010-85201
|
|
| G2 |
BAND
|
20001-86140
|
|
| G3 |
FUEL TANK ASSEMBLY, REPLACED BY 70006-85002
|
70006-85001
|
No Longer Available
|
| G4 |
NAME PLATE LABEL, REPLACED BY 70006-85121
|
70006-85120
|
|
| G4 |
FUEL TANK
|
20010-85111
|
|
| G4 |
FUEL COCK ASSEMBLY
|
20010-85301
|
|
| G4 |
FUEL TUBE
|
20003-85410
|
|
| G5 |
FUEL TUBE SPRING
|
20003-85510
|
Price: $2.99
|
| G5 |
BOLT, SW
|
01017-05120
|
|
| G6 |
CUSHION
|
20003-86130
|
|
| G6 |
TANK BRACKET
|
20003-86111
|
No Longer Available
|
|
Diagram H
|
| No |
Description |
Part No |
Order |
| H1 |
BASE
|
22901-21112
|
No Longer Available
|
| H1 |
BOLT
|
01017-06120
|
No Longer Available
|
| H2 |
CAP CUSHION
|
22901-21320
|
No Longer Available
|
| H2 |
CUSHION, REPLACED BY 22903-21310
|
22901-21310
|
|
| H2 |
SPACER
|
22901-21330
|
No Longer Available
|
| H2 |
WASHER
|
22901-21340
|
No Longer Available
|
| H2 |
SCREW
|
01211-06200
|
No Longer Available
|
H3
|
--
|
22901-21300
|
No Longer Available
|
| H3 |
SCREW
|
01211-05120
|
|
|
Diagram J
|
| No |
Description |
Part No |
Order |
| J1 |
UNION ASSEMBLY
|
22901-14200
|
Price: $20.99
|
| J2 |
HOSE NUT
|
22901-31220
|
No Longer Available
|
| J2 |
JOINT
|
22901-14210
|
Price: $9.99
|
| J2 |
GASKET
|
22901-31230
|
No Longer Available
|
| J2 |
ELBOW
|
22901-14160
|
No Longer Available
|
J3
|
--
|
22901-21220
|
No Longer Available
|
| J3 |
HANDLE, REPLACED BY 22903-21211
|
22901-21211
|
No Longer Available
|
| J4 |
HANDLE ASSEMBLY, REPLACED BY 22903-21201
|
22901-21200
|
|
| J5 |
SPRING WASHER
|
01600-06150
|
|
| J5 |
NUT
|
01500-06050
|
Price: $1.99
|
| J5 |
BOLT
|
01017-06150
|
No Longer Available
|
| J6 |
CAP
|
22901-14120
|
No Longer Available
|
| J6 |
O-RING
|
22901-14130
|
No Longer Available
|
| J6 |
SCREW
|
01213-06140
|
Price: $1.99
|
| J7 |
BOLT
|
01010-06300
|
Price: $1.99
|
| J7 |
WASHER, REPLACES 01600-06080
|
01610-06080
|
|
| J7 |
PUMP BODY
|
22901-14110
|
No Longer Available
|
| J8 |
SUCTION COVER
|
22901-15110
|
Price: $39.99
|
| J8 |
CHECK VALVE
|
22901-15210
|
Price: $17.99
|
| J8 |
SCREW
|
01213-06200
|
|
| J9 |
MECHANICAL SEAL ASSEMBLY
|
22901-12200
|
No Longer Available
|
| J9 |
GASKET
|
22901-12310
|
Price: $1.99
|
| J10 |
BOLT
|
22901-14141
|
Price: $1.99
|
| J10 |
GASKET
|
22901-14151
|
Price: $0.39
|
| J10 |
CAUTION LABEL
|
72901-14190
|
No Longer Available
|
| J10 |
O-RING
|
22901-13120
|
Price: $1.99
|
| J11 |
Volute Case
|
22901-13110
|
Price: $32.99
|
| J11 |
IMPELLER
|
22901-12110
|
Price: $34.99
|
| J11 |
SHIM 0.2MM, REPLACES 22901-12121
|
22901-12120
|
Price: $0.99
|
| J11 |
SHIM, REPLACED BY 22901-12120
|
22901-12121
|
|
| J11 |
SCREW
|
01210-06160
|
Price: $1.99
|
| J11 |
WASHER
|
22901-11130
|
Price: $0.99
|
| J12 |
SCREW
|
01210-05160
|
Price: $0.99
|
| J13 |
GASKET
|
22901-11120
|
Price: $8.99
|
| J13 |
END PLATE
|
22901-11110
|
Price: $71.99
|
| J13 |
ADAPTER
|
22901-16110
|
No Longer Available
|
|
Diagram K
|
| No |
Description |
Part No |
Order |
K1
|
--
|
22000-91110
|
No Longer Available
|
| K1 |
SCREW DRIVER
|
22100-91150
|
Price: $4.99
|
K2
|
--
|
22900-91001
|
No Longer Available
|
| K3 |
WRENCH 4MM, REPLACED BY 09026-04001
|
22100-91561
|
|
| K3 |
PLUG WRENCH
|
22900-91180
|
|
K3
|
--
|
22901-91120
|
No Longer Available
|
| K4 |
CLAMP
|
22901-31130
|
No Longer Available
|
| K4 |
SUCTION HOSE
|
22901-31110
|
Price: $54.99
|
| K5 |
UNION ASSEMBLY
|
22901-31200
|
|
| K6 |
HOSE ASSEMBLY, SUCTION, REPLACED BY 22901-31000
|
22901-31100
|
|
| K6 |
HOSE NUT
|
22901-31220
|
No Longer Available
|
| K6 |
UNION
|
22901-31210
|
Price: $9.99
|
| K6 |
GASKET
|
22901-31230
|
No Longer Available
|
|
Diagram L
|
| No |
Description |
Part No |
Order |
| L1 |
BOLT
|
20000-96130
|
No Longer Available
|
| L1 |
Center Bolt
|
22100-96121
|
Price: $10.99
|
| L1 |
BOLT
|
20000-96140
|
No Longer Available
|
L1
|
--
|
20000-96113
|
No Longer Available
|
| L1 |
ROTOR SPANNER
|
20000-96411
|
Price: $6.99
|
| L2 |
STOPPER
|
20021-96420
|
|
| L3 |
PULLER ASSEMBLY SERVICE TOOL
|
20021-96601
|
|
L4
|
--
|
20000-96103
|
No Longer Available
|
| L5 |
PIN ADAPTOR
|
20021-96650
|
Price: $7.99
|
| L5 |
BOSS
|
20000-96640
|
No Longer Available
|
| L6 |
GUIDE PIN
|
20021-96630
|
No Longer Available
|
| L6 |
GUIDE PIN
|
20000-96631
|
|
| L7 |
PIN ADAPTOR
|
20021-96670
|
No Longer Available
|
| L7 |
PIN ADAPTOR
|
20021-96660
|
Price: $7.99
|
| L8 |
SCREW
|
01211-06120
|
Price: $1.99
|
| L8 |
PULLER
|
20021-96611
|
Price: $3.99
|
| L8 |
BOLT
|
20021-96621
|
No Longer Available
|
| L9 |
GUIDE PIN
|
20035-96630
|
Price: $11.99
|
L10
|
--
|
20021-96002
|
No Longer Available
|
| L10 |
AIR GAP GAUGE
|
20000-96210
|
|
| L11 |
T-WRENCH, 3MM
|
22155-96521
|
|
| L11 |
T-WRENCH, 4MM
|
22155-96531
|
|
| L11 |
T-WRENCH, 5MM
|
22155-96540
|
This part is no longer available and has been replaced by ECHO 91045
|
|
Diagram M
|
| No |
Description |
Part No |
Order |
| M1 |
SPRING THROTTLE
|
20003-81140
|
|
| M1 |
SPRING RECEIVER
|
20000-81150
|
|
| M1 |
THROTTLE VALVE
|
20010-81180
|
Price: $13.99
|
| M2 |
NEEDLE SEAT
|
20001-81370
|
No Longer Available
|
| M2 |
PACKING
|
20010-81570
|
|
| M3 |
BODY BAND
|
20010-81511
|
No Longer Available
|
| M3 |
BOLT
|
20010-81521
|
Price: $1.99
|
| M3 |
ADJUST SPRING
|
20010-81820
|
|
| M3 |
SLOW STOP SCREW
|
20000-81310
|
|
M3
|
--
|
20001-81920
|
No Longer Available
|
| M4 |
Cleaner Body
|
20000-81710
|
Price: $8.99
|
| M4 |
SCREW
|
20000-81735
|
|
| M4 |
NET B
|
20010-81760
|
|
| M4 |
FILTER
|
20000-81740
|
|
| M5 |
FLOAT HINGE
|
20001-81350
|
Price: $9.99
|
| M5 |
HINGE PIN
|
20010-81362
|
Price: $1.99
|
| M6 |
NEEDLE VALVE
|
20010-81380
|
|
| M6 |
MAIN JET
|
20003-81240
|
Price: $8.99
|
| M6 |
FLOAT
|
20010-81340
|
Price: $9.99
|
| M6 |
GASKET
|
20010-81330
|
|
| M7 |
STAY
|
20001-81910
|
|
| M7 |
AIR FILTER ASSEMBLY
|
20000-81701
|
Price: $43.99
|
| M8 |
FLOAT CHAMBER
|
20001-81310
|
Price: $9.99
|
| M8 |
SCREW
|
20010-81320
|
No Longer Available
|
| M8 |
GASKET
|
20010-81550
|
|
| M8 |
BOLT
|
20010-81560
|
Price: $1.99
|
| M9 |
NET A
|
20000-81750
|
|
| M9 |
SEAL
|
20000-81760
|
|
| M9 |
SCREW
|
20000-81735
|
|
| M9 |
AIR CLEANER COVER
|
20000-81770
|
|
| M10 |
THROTTLE WIRE
|
20003-81920
|
Price: $11.99
|
| M10 |
HOLDER BOLT
|
20000-81890
|
No Longer Available
|
M10
|
--
|
20000-81830
|
No Longer Available
|
M10
|
--
|
20000-81810
|
No Longer Available
|
M10
|
--
|
20000-81870
|
No Longer Available
|
M10
|
--
|
20000-81880
|
No Longer Available
|
| M11 |
GASKET 70326707
|
20000-81840
|
No Longer Available
|
M11
|
--
|
20000-81850
|
No Longer Available
|
M11
|
--
|
20000-81820
|
No Longer Available
|
| M11 |
GASKET 70326707
|
20000-81840
|
No Longer Available
|
| M11 |
WASHER
|
20000-81860
|
No Longer Available
|
| M11 |
GASKET KIT
|
20000-81910
|
No Longer Available
|
| M12 |
THROTTLE LEVER ASSEMBLY
|
20003-81800
|
|
| M13 |
CARBURETOR ASSEMBLY
|
20003-81000
|
No Longer Available
|
| M14 |
NEEDLE/JET KIT
|
99909-135
|
No Longer Available
|
| M15 |
GASKET KIT
|
20010-81910
|
Price: $4.99
|
