Shindaiwa HT230 Hedge Trimmers Illustrated Parts Diagram

	Search for OEM Shindaiwa Parts
Shindaiwa HT230 Hedge Trimmer Parts available online at LawnMowerPros. We are an Authorized Shindaiwa dealer carrying a large selection of Shindaiwa HT230 Hedge Trimmer Parts ready to ship direct to your door. If you do not see the Hedge Trimmer Parts you need, please complete the Lawn Mower Parts Request Form and we will be happy to assist you.
Shindaiwa Illustrated Parts Diagrams

Description

Part No

Order

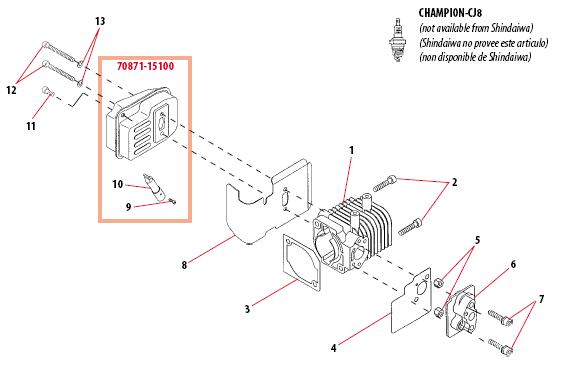

Cylinder

20870-12110

This part is no longer available and has been replaced by Shindaiwa A130001381

Bolt

01020-05250

This part is no longer available and has been replaced by Echo 90010505025

Gasket

20870-12120

This part is no longer available and has been replaced by SHINDAIWA V100000480

Gasket

20870-12220

This part is no longer available and has been replaced by SHINDAIWA V103001170

Nut

20011-12260

This part is no longer available and has been replaced by Shindaiwa V263000260

Insulator

20016-12210

This part is no longer available and has been replaced by Shindaiwa 99909-12212

Bolt

11022-05250

This part is no longer available and has been replaced by Shindaiwa V203000630

Gasket

20870-15122

This part is no longer available and has been replaced by SHINDAIWA V104001450

Muffler Assembly

70871-15100

This part is no longer available and has been replaced by Shindaiwa A030000300

Screw

01270-03062

This part is no longer available and has been replaced by Shindaiwa 9137403006

Spark Arrestor

70871-15120

This part is no longer available and has been replaced by SHINDAIWA A310000240

Bolt

01020-05120

This part is no longer available and has been replaced by Echo 90010505012

Bolt

01020-05500

This part is no longer available and has been replaced by Echo 90010505050

Washer

01610-05080

This part is no longer available and has been replaced by Echo 90060000005

Description

Part No

Order

CRANKCASE ASSEMBLY M

20870-21301

This part is no longer available and has been replaced by SHINDAIWA P021018910

OIL SEAL

20000-21211

This part is no longer available and has been replaced by Shindaiwa V505000080

DOWEL PIN

12492-40080

This part is no longer available and has been replaced by ECHO 90033040080

BEARING

12900-60010

This part is no longer available and has been replaced by SHINDAIWA V592000310

CRANKCASE ASSEMBLY S

20870-21100

This part is no longer available and has been replaced by SHINDAIWA P021018900

OIL SEAL

22150-21250

This part is no longer available and has been replaced by Shindaiwa V505000140

BOLT

01020-05250

This part is no longer available and has been replaced by Echo 90010505025

Description

Part No

Order

CYLINDER COVER

20870-32111

This part is no longer available and has been replaced by SHINDAIWA A160001780

BOLT

11060-04123

This part is no longer available and has been replaced by SHINDAIWA V202000320

GROMMET

20011-72120

This part is no longer available and has been replaced by SHINDAIWA V136000060

BOLT

11060-05202

This part is no longer available and has been replaced by SHINDAIWA V203001010

COVER

20870-33111

This part is no longer available and has been replaced by SHINDAIWA A160001800

COLLAR

23627-21220

This part is no longer available and has been replaced by Shindaiwa V323000080

KNOB

20870-33120

This part is no longer available and has been replaced by SHINDAIWA V299000410

TRADE LABEL

70871-91120

This part is no longer available and has been replaced by Shindaiwa X504003190

Description

Part No

Order

PISTON RING

20000-41210

This part is no longer available and has been replaced by Shindaiwa A101000400

PISTON

20075-41110

This part is no longer available and has been replaced by Shindaiwa A100000730

SNAP RING

70030-41320

This part is no longer available and has been replaced by Shindaiwa V580000070

PISTON PIN

20075-41310

This part is no longer available and has been replaced by Shindaiwa V606000060

THRUST WASHER

70030-41340

This part is no longer available and has been replaced by Shindaiwa V306000250

NEEDLE BEARING

70030-41330

This part is no longer available and has been replaced by Shindaiwa V553000080

CRANKSHAFT ASSEMBLY

20870-42101

This part is no longer available and has been replaced by SHINDAIWA A011000910

KEY

02403-03100

This part is no longer available and has been replaced by SHINDAIWA 9311503010

CLUTCH BOSS

20870-51210

This part is no longer available and has been replaced by SHINDAIWA A552000130

WASHER

22100-71430

This part is no longer available and has been replaced by SHINDAIWA V304000150

CLUTCH SHOE ASSEMBLY

70140-51011

This part is no longer available and has been replaced by Shindaiwa A056000510

SLUTCH SPRING

70140-51220

This part is no longer available and has been replaced by Shindaiwa A566000201

SPRING WASHER

20087-51231

This part is no longer available and has been replaced by SHINDAIWA V346000040

CLUTCH BOLT

20087-51210

This part is no longer available and has been replaced by SHINDAIWA A557000040

WASHER

22100-71430

This part is no longer available and has been replaced by SHINDAIWA V304000150

BOLT

20870-51220

This part is no longer available and has been replaced by SHINDAIWA V204000480

PISTON ASSEMBLY

99909-315

This part is no longer available and has been replaced by SHINDAIWA P021030570

Description

Part No

Order

BOLT

01020-04260

No Longer Available

SPRING WASHER

01600-04101

This part is no longer available and has been replaced by Echo 90060500004

WASHER

01613-04080

This part is no longer available and has been replaced by ECHO 90060300004

COIL ASSEMBLY

20870-71201

This part is no longer available and has been replaced by Shindaiwa A411000861

WIRE

20870-71221

This part is no longer available and has been replaced by SHINDAIWA V485001930

PLUG SPRING

20000-72230

Currently Unavailable

PLUG CAP

22160-72220

This part is no longer available and has been replaced by Shindaiwa A427000060

TUBE

20016-71651

This part is no longer available and has been replaced by Shindaiwa V475005140

INSULATOR

70030-71620

This part is no longer available and has been replaced by Shindaiwa V322000040

RATCHET

20870-71120

This part is no longer available and has been replaced by SHINDAIWA A514000190

SPRING

20870-71130

This part is no longer available and has been replaced by Shindaiwa V452000620

NUT

20035-71220

This part is no longer available and has been replaced by SHINDAIWA V265000140

FLYWHEEL

20870-71110

This part is no longer available and has been replaced by SHINDAIWA A409000720

Description

Part No

Order

BOLT

11060-05202

This part is no longer available and has been replaced by SHINDAIWA V203001010

RECOIL STARTER ASSEMBLY

20870-31102

This part is no longer available and has been replaced by SHINDAIWA A051001830

NAME PLATE

70117-75311

This part is no longer available and has been replaced by Shindaiwa X504006130

FAN COVER

20870-31112

This part is no longer available and has been replaced by SHINDAIWA A500001010

RECOIL SPRING

70030-75130

This part is no longer available and has been replaced by Echo 17722042030

REEL

70030-75120

This part is no longer available and has been replaced by Shindaiwa A506000340

ROPE

70030-75160

This part is no longer available and has been replaced by SHINDAIWA P022006800

KNOB

20010-75190

This part is no longer available and has been replaced by Echo 17722827030

STOPPER

20010-75210

This part is no longer available and has been replaced by SHINDAIWA A522000040

WASHER

70030-75140

Price: $2.99

SCREW

20035-75170

This part is no longer available and has been replaced by SHINDAIWA V253000560

Description

Part No

Order

FUEL TANK ASSEMBLY

20870-85000

This part is no longer available and has been replaced by Shindaiwa 81016

FUEL CAP ASSEMBLY

20870-85150

This part is no longer available and has been replaced by Shindaiwa A033000110

FUEL CAP

20040-85211

This part is no longer available and has been replaced by Shindaiwa A033000110

PACKING

20870-85211

This part is no longer available and has been replaced by SHINDAIWA V540000280

VALVE

20040-85260

This part is no longer available and has been replaced by Shindaiwa E263000040

HOLDER

20870-85170

This part is no longer available and has been replaced by SHINDAIWA P021035110

PACKING

20870-85160

This part is no longer available and has been replaced by SHINDAIWA V107000050

FUEL FILTER ASSEMBLY

20016-85400

This part is no longer available and has been replaced by Shindaiwa A369000440

CLAMP

20000-85350

This part is no longer available and has been replaced by Shindaiwa V490000610

TANK FUEL TUBE

20870-85121

This part is no longer available and has been replaced by Shindaiwa V470001190

JOINT

72933-85620

This part is no longer available and has been replaced by Shindaiwa V186000210

CLIP

20020-85540

This part is no longer available and has been replaced by Shindaiwa V490000500

FUEL TUBE

20870-85140

This part is no longer available and has been replaced by Shindaiwa V471002780

JOINT

20087-85340

This part is no longer available and has been replaced by Shindaiwa V186000270

RETURN TUBE

20870-85131

This part is no longer available and has been replaced by Shindaiwa V471002760

BOLT

20870-85240

This part is no longer available and has been replaced by Shindaiwa V203001690

WASHER

20870-85230

This part is no longer available and has been replaced by SHINDAIWA V324000000

WASHER

20870-85220

This part is no longer available and has been replaced by SHINDAIWA V303000240

CAUTION LABEL

19402-00144

This part is no longer available and has been replaced by Shindaiwa X505003380

LABEL

19426-00036

No Longer Available

Description

Part No

Order

NUT

11525-06210

This part is no longer available and has been replaced by SHINDAIWA V264000160

WASHER

01613-06100

This part is no longer available and has been replaced by ECHO 90060300006

HANDLE ASSEMBLY

20870-64102

This part is no longer available and has been replaced by SHINDAIWA C040000390

GRIP

20870-64121

This part is no longer available and has been replaced by SHINDAIWA C403000450

NUT

11525-06210

This part is no longer available and has been replaced by SHINDAIWA V264000160

FLANGE NUT

11526-05212

This part is no longer available and has been replaced by SHINDAIWA V263000330

HOLDER

20870-62210

This part is no longer available and has been replaced by SHINDAIWA V152002330

FLANGE NUT

11526-05212

This part is no longer available and has been replaced by SHINDAIWA V263000330

CAUTION LABEL

19402-00110

This part is no longer available and has been replaced by Shindaiwa X505003400

BOLT

20870-63120

This part is no longer available and has been replaced by Shindaiwa V203001130

WASHER

23627-21220

This part is no longer available and has been replaced by Shindaiwa V323000080

PROTECTOR

20870-63211

This part is no longer available and has been replaced by Shindaiwa V152002350

PLATE (A)

20870-61611

This part is no longer available and has been replaced by SHINDAIWA V150002430

PLATE (B)

20870-61621

This part is no longer available and has been replaced by SHINDAIWA C538000140

BOLT

01020-05120

This part is no longer available and has been replaced by Echo 90010505012

Description

Part No

Order

CUTTER ASSEMBLY (30")

70872-62101

No Longer Available

CUTTER ASSEMBLY (40")

70875-62101

This part is no longer available and has been replaced by SHINDAIWA X041000110

GUIDE BAR (30")

20870-62201

This part is no longer available and has been replaced by SHINDAIWA P021018940

GUIDE BAR (40")

70875-62201

This part is no longer available and has been replaced by SHINDAIWA 80006

NUT

11525-06210

This part is no longer available and has been replaced by SHINDAIWA V264000160

BOLT

20870-63120

This part is no longer available and has been replaced by Shindaiwa V203001130

GUIDE PLATE

20870-62141

This part is no longer available and has been replaced by SHINDAIWA V152002340

UPPER CUTTER (30")

18500-70000

This part is no longer available and has been replaced by Shindaiwa X411000870

UPPER CUTTER (40")

18500-90000

This part is no longer available and has been replaced by SHINDAIWA X411000940

LOWER CUTTER (30")

18500-70001

This part is no longer available and has been replaced by SHINDAIWA X411000880

LOWER CUTTER (40")

18500-90001

This part is no longer available and has been replaced by SHINDAIWA X411000950

BOLT

20870-62110

This part is no longer available and has been replaced by Shindaiwa V204000570

WASHER

20870-62131

This part is no longer available and has been replaced by Shindaiwa V304000240

BOLT

20870-62120

This part is no longer available and has been replaced by SHINDAIWA V204000520

BOLT

20870-62150

This part is no longer available and has been replaced by SHINDAIWA V204000510

Description

Part No

Order

GEARCASE ASSEMBLY

70872-61000

This part is no longer available and has been replaced by SHINDAIWA P021030590

CLUTCH DRUM

20870-61420

This part is no longer available and has been replaced by SHINDAIWA A556000930

CAUTION LABEL

19402-00134

This part is no longer available and has been replaced by Shindaiwa X505003390

GREASE FITTING

20870-61640

This part is no longer available and has been replaced by Shindaiwa V187000080

BOLT

01020-06160

This part is no longer available and has been replaced by SHINDAIWA 90010506016

GEARCASE COMPLETE

20870-61102

This part is no longer available and has been replaced by SHINDAIWA P021018920

BEARING

02002-06000

This part is no longer available and has been replaced by Shindaiwa 9404406000

BEARING

02006-06201

This part is no longer available and has been replaced by Echo 90081206201

CASE COVER COMPLETE

20870-61202

This part is no longer available and has been replaced by SHINDAIWA P021030590

THRUST WASHER

15401-11008

This part is no longer available and has been replaced by SHINDAIWA V307000240

PINION GEAR

20870-61410

This part is no longer available and has been replaced by SHINDAIWA V655000050

FELT PACKING

20870-61630

This part is no longer available and has been replaced by SHINDAIWA V541000210

CONNECTING ROD ASSEMBLY

20870-61500

This part is no longer available and has been replaced by Shindaiwa C532000210

GEAR

20870-61301

This part is no longer available and has been replaced by SHINDAIWA V060000080

BOLT

01020-04140

This part is no longer available and has been replaced by SHINDAIWA 90010504014

CASE GASKET

20870-61650

This part is no longer available and has been replaced by Shindaiwa V110000130

Description

Part No

Order

THROTTLE LEVER ASSEMBLY

70871-65100

This part is no longer available and has been replaced by Shindaiwa C044001042

PLUG

22150-33630

This part is no longer available and has been replaced by Shindaiwa V162000410

LOCK LEVER

70871-65140

This part is no longer available and has been replaced by SHINDAIWA C460000240

SPRING

70871-65150

This part is no longer available and has been replaced by SHINDAIWA V450001020

SWITCH ASSEMBLY

70871-65200

This part is no longer available and has been replaced by SHINDAIWA A440001530

LEFT BODY

70871-65120

This part is no longer available and has been replaced by SHINDAIWA P021035600

SCREW

70871-65310

This part is no longer available and has been replaced by SHINDAIWA V252000360

SCREW

This part is no longer available and has been replaced by SHINDAIWA V252000370

SCREW

70871-65320

This part is no longer available and has been replaced by SHINDAIWA V253000580

THROTTLE CABLE

70871-65190

This part is no longer available and has been replaced by SHINDAIWA V430003140

THROTTLE LEVER

70871-65130

This part is no longer available and has been replaced by SHINDAIWA C450000580

THROTTLE SPRING

70871-65160

This part is no longer available and has been replaced by SHINDAIWA V452000690

RIGHT BODY

70871-65110

This part is no longer available and has been replaced by SHINDAIWA P021035600

NUT

01501-05030

This part is no longer available and has been replaced by SHINDAIWA 9201705000

NUT

70871-65340

This part is no longer available and has been replaced by SHINDAIWA V262000100

BUTTON

70871-65170

This part is no longer available and has been replaced by SHINDAIWA C461000080

SPRING

70871-65180

This part is no longer available and has been replaced by SHINDAIWA V450001010

BAND

15210-12305

This part is no longer available and has been replaced by SHINDAIWA V495002400

PROTECTIVE TUBE

20019-83140

This part is no longer available and has been replaced by SHINDAIWA V475005090

CUSHION

20870-65420

This part is no longer available and has been replaced by SHINDAIWA V420002580

COLLAR

15401-10200

This part is no longer available and has been replaced by SHINDAIWA V354000300

HANDLE STAY

20870-65412

This part is no longer available and has been replaced by SHINDAIWA C415000080

SHIM

22000-13420

This part is no longer available and has been replaced by Shindaiwa V340000300

BOLT

01020-05120

This part is no longer available and has been replaced by Echo 90010505012

BOLT

11023-05250

This part is no longer available and has been replaced by SHINDAIWA V203000560

PLATE

20870-65430

This part is no longer available and has been replaced by SHINDAIWA V304000220

BOLT

11020-06350

This part is no longer available and has been replaced by SHINDAIWA 9112206035

HANDLE

20870-65311

This part is no longer available and has been replaced by SHINDAIWA C410000700

Description

Part No

Order

TOOL SET

70871-92100

This part is no longer available and has been replaced by Shindaiwa P021030580

TOOL BAG

19610-02600

This part is no longer available and has been replaced by Shindaiwa 19639-01700

SPARK PLUG WRENCH

22150-91410

This part is no longer available and has been replaced by SHINDAIWA X602000170

SCREW DRIVER

22150-91160

No Longer Available

SPANNER

22000-91120

This part is no longer available and has been replaced by SHINDAIWA X600000020

WRENCH

09026-04001

This part is no longer available and has been replaced by ECHO X605000100

WRENCH

09026-05001

This part is no longer available and has been replaced by ECHO X605000070

COVER (30")

22910-13310

This part is no longer available and has been replaced by SHINDAIWA X495000310

COVER (40")

72914-13310

This part is no longer available and has been replaced by Shindaiwa X495000360

DEBRIS DEFLECTOR ASSEMBLY

99909-317

This part is no longer available and has been replaced by Shindaiwa P021034930

BOLT

20870-63120

This part is no longer available and has been replaced by Shindaiwa V203001130

CLUTCH DRUM WRENCH

99909-20230

Price: $32.99

Description

Part No

Order

CARBURETOR ASSEMBLY

70871-81100

This part is no longer available and has been replaced by Shindaiwa A021003440

SWIVEL

72933-81450

This part is no longer available and has been replaced by ECHO 12317245130

SCREW

70097-81290

This part is no longer available and has been replaced by ECHO 12311440630

WASHER

20089-81185

This part is no longer available and has been replaced by ECHO 12314954230

BRACKET

20089-81130

This part is no longer available and has been replaced by ECHO 12312854230

NUT

20036-81120

This part is no longer available and has been replaced by ECHO 12315356430

CABLE ADJUSTER

20089-81110

This part is no longer available and has been replaced by ECHO 12316156431

E-RING

20036-81195

This part is no longer available and has been replaced by ECHO 12317307930

RING GASKET

72933-81250

This part is no longer available and has been replaced by ECHO 12314312110

O-RING

70097-81220

This part is no longer available and has been replaced by Echo 12318305960

MAIN JET

72934-81230

This part is no longer available and has been replaced by ECHO 12318444330

PUMP GASKET

70097-81310

This part is no longer available and has been replaced by Echo 12312540630

DIAPHRAGM

70097-81320

This part is no longer available and has been replaced by ECHO 12311240630

PUMP BODY ASSEMBLY

72933-81410

This part is no longer available and has been replaced by SHINDAIWA P003003690

SCREEN

70030-71380

Currently Unavailable

SPRING

72933-81270

This part is no longer available and has been replaced by Echo 12312205560

22100-81250

This part is no longer available and has been replaced by ECHO 12313803930

LEVER

22100-81230

This part is no longer available and has been replaced by Echo 12312338330

NEEDLE VALVE

20036-81440

This part is no longer available and has been replaced by ECHO 12313719830

SCREW

20016-81450

This part is no longer available and has been replaced by ECHO 12313905560

GASKET

20016-81280

This part is no longer available and has been replaced by Echo 12314005560

METERING DIAPHRAGM

22100-81260

This part is no longer available and has been replaced by Echo 12314103930

PUMP BASE

20016-81420

This part is no longer available and has been replaced by ECHO 12318005560

VALVE

99909-207

Price: $2.99

PUMP PRIMER

20036-81670

This part is no longer available and has been replaced by Walbro 188-12-1

PUMP COVER

20016-81510

This part is no longer available and has been replaced by Echo 12314205560

SCREW

20016-81140

This part is no longer available and has been replaced by Echo 12311005560

THROTTLE VALVE ASSEMBLY

99909-34739

Price: $16.69

GASKET

20870-82411

This part is no longer available and has been replaced by Shindaiwa V103001180

CLEANER BODY ASSEMBLY

20870-82100

This part is no longer available and has been replaced by SHINDAIWA A023000220

CHOKE LEVER

20870-82120

This part is no longer available and has been replaced by SHINDAIWA A242000120

CLEANER BODY

20870-82111

This part is no longer available and has been replaced by SHINDAIWA A225000520

CHOKE PLATE

20115-82120

Currently Unavailable

SPRING WASHER

01600-06151

This part is no longer available and has been replaced by ECHO 90060500006

NUT

11524-06211

This part is no longer available and has been replaced by SHINDAIWA V264000110

CHOKE SHAFT

20110-82140

This part is no longer available and has been replaced by SHINDAIWA E140000090

WASHER

01610-05080

This part is no longer available and has been replaced by Echo 90060000005

SPRING WASHER

01600-05131

This part is no longer available and has been replaced by Echo 90060500005

BOLT

01020-05600

This part is no longer available and has been replaced by ECHO 90010505060

AIR FILTER

20870-82210

This part is no longer available and has been replaced by Shindaiwa A226000730

AIR FILTER COVER

20870-82312

This part is no longer available and has been replaced by Shindaiwa A232000931

SEAL

23627-21220

This part is no longer available and has been replaced by Shindaiwa V323000080

KNOB

20870-33120

This part is no longer available and has been replaced by SHINDAIWA V299000410

KWIK KIT

99909-316

This part is no longer available and has been replaced by SHINDAIWA 70870-98030

GASKET/DIAPHRAGM KIT

99909-159

Price: $21.99

Most Popular Departments and Categories

Most Popular Brands

DIY Categories

DIY Manufacturer

Illustrated Parts Diagrams by Manufacturer

More Illustrated Parts Diagrams

Shindaiwa HT230 Hedge Trimmers Illustrated Parts Diagram
