Shindaiwa M2510 Multi-Tool Illustrated Parts Diagram
|
 |
Search for OEM Shindaiwa Parts
|
 |
|
Shindaiwa M2510 Parts available online at LawnMowerPros. We are an Authorized Shindaiwa dealer carrying a large selection of Shindaiwa M2510 Parts ready to ship direct to your door. If you do not see the Shindaiwa Parts you need, please complete the Lawn Mower Parts Request Form and we will be happy to assist you.
|
|
Shindaiwa Illustrated Parts Diagrams |
|
|
 |
| No |
Description |
Part No |
Order
|
| 1-1 |
CYLINDER BLOCK ASSEMBLY, REPLACES 60902-98011
|
60908-98330
|
|
| 2 |
BOLT SW
|
01020-05160
|
|
| 3 |
Roller
|
12492-40080
|
|
| 4 |
REED VALVE, REPLACES 62901-12310
|
62902-12310
|
|
| 5 |
LEAD WIRE
|
14350-01101
|
|
| 6 |
HEAT DEFLECTOR ASSEMBLY
|
62902-12320
|
|
| 7 |
HEAT DEFLECTOR, REPLACES 62910-12320
|
62901-12320
|
|
| 8 |
GASKET
|
62901-12220
|
|
| 9 |
SCREW
|
11206-05225
|
|
| 10 |
MUFFLER ASSEMBLY, REPLACES 62902-15011, 62902-15110
|
62907-15011
|
|
| 12 |
SCREEN
|
62902-15131
|
|
| 13 |
TAIL PLATE, REPLACES 62907-15160
|
62907-15161
|
|
| 14 |
SCREW PM
|
11204-04060
|
|
| 15 |
MUFFLER GASKET
|
62901-15210
|
|
| 16 |
BOLT
|
62901-15310
|
|
| 17 |
BOLT SW
|
01020-05160
|
|
| 18 |
WASHER
|
01610-05080
|
|
| 19 |
Bracket, Throttle Cable
|
62901-83310
|
Price: $3.99
|
| 20 |
CABLE ADJUSTER, REPLACES 20123-81120
|
62902-83310
|
|
| 21 |
NUT
|
01501-06048
|
|
|
|
No |
Description
|
Part No
|
Order
|
| 2-1 |
INSULATOR
|
62901-21320
|
|
| 2 |
VALVE
|
72320-83121
|
|
| 3 |
STOPPER
|
72320-83132
|
|
| 4 |
SCREW SW
|
01211-03100
|
|
| 5 |
COVER
|
62901-21120
|
|
| 6 |
GASKET
|
62901-21130
|
|
| 7 |
BOLT
|
11022-04120
|
|
| 8 |
FAN COVER ASSEMBLY
|
60902-98021
|
|
| 9 |
FAN COVER ASSEMBLY
|
62901-31011
|
|
| 11 |
BALL BEARING 6000ZZ
|
02002-06000
|
|
| 12 |
SNAP RING
|
02432-26120
|
|
| 13 |
CLUTCH DRUM
|
20087-31210
|
|
| 14 |
Snap Ring
|
22000-13320
|
|
| 15 |
JOINT
|
20087-31410
|
|
| 16 |
SNAP RING
|
02432-40170
|
|
| 18 |
BOLT SW
|
11020-05220
|
|
| 19 |
BOLT SW
|
01020-05160
|
|
| 20 |
BOLT
|
11022-05450
|
|
| 21 |
CYLINDER COVER, REPLACES 62901-32110
|
62901-32111
|
|
| 22 |
GROMMET, REPLACES 62901-32311
|
62901-32312
|
|
| 23 |
LABEL
|
80826
|
|
| 24 |
TRADE LABEL
|
68800-91320
|
Price: $6.69
|
| 25 |
Bolt
|
11024-04160
|
|
|
|
No |
Description |
Part No |
Order |

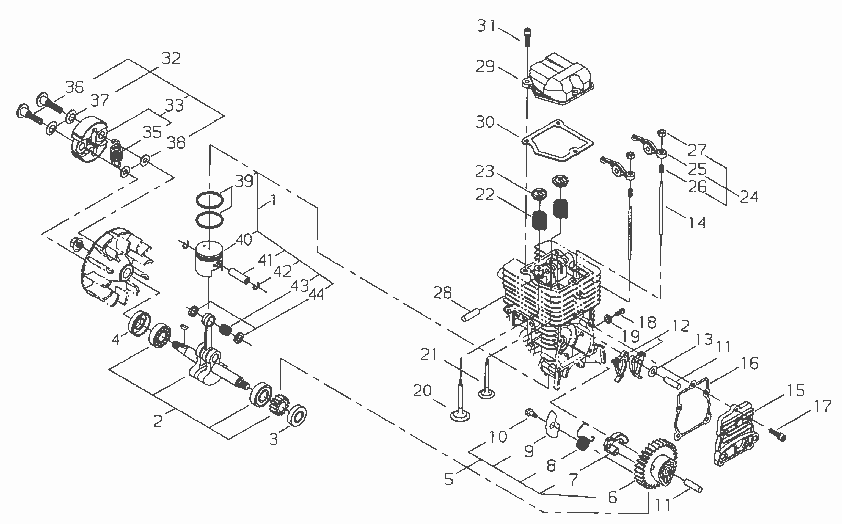

| 3-1 |
PISTON KIT, REPLACES 62901-41310
|
62902-41310
|
|
| 39 |
PISTON RING, REPLACES 62901-41120
|
62902-41120
|
|
| 40 |
PISTON, REPLACES 62901-41110
|
62902-41110
|
|
| 41 |
PISTON PIN
|
62901-41210
|
|
| 42 |
SNAP RING
|
20000-41320
|
|
| 43 |
NEEDLE BEARING
|
62901-41230
|
|
| 44 |
THRUST WASHER, REPLACES 20000-41341
|
37019-41240
|
|
| 2 |
CRANKSHAFT ASSEMBLY, REPLACES 62901-42020
|
62902-42020
|
|
| 3 |
OIL SEAL
|
62901-42260
|
|
| 4 |
OIL SEAL
|
62901-42270
|
|
| 5 |
CAM GEAR ASSEMBLY
|
62905-43010
|
|
| 6 |
CAM GEAR ASSEMBLY, REPLACES 62901-43010
|
62902-43310
|
|
| 7 |
WEIGHT
|
62907-43120
|
|
| 8 |
SPRING, REPLACES 17520-09000
|
17520-08900
|
|
| 9 |
PLATE
|
62905-43130
|
|
| 10 |
TAPPING SCREW
|
01280-04062
|
|
| 11 |
SHAFT
|
12492-50290
|
|
| 12 |
LIFTER, REPLACES 62901-43210
|
62907-43210
|
|
| 13 |
WASHER
|
11620-10000
|
|
| 14 |
PUSH ROD
|
62908-43220
|
|
| 15 |
CAM GEAR COVER
|
62901-43330
|
|
| 16 |
GASKET, REPLACES 62910-43240
|
62901-43240
|
|
| 17 |
BOLT, REPLACES 11022-44140
|
11022-04140
|
|
| 18 |
SCREW
|
62901-43310
|
|
| 19 |
COLLAR
|
15401-10028
|
|
| 20 |
INTAKE VALVE
|
62902-44110
|
|
| 21 |
PISTON RING, REPLACES 62901-41120
|
62902-41120
|
|
| 22 |
VALVE SPRING
|
62901-44130
|
|
| 23 |
RETAINER
|
62901-44140
|
|
| 24 |
ROCKER ARM ASSEMBLY
|
62907-44010
|
|
| 25 |
ROCKER ARM
|
62901-44210
|
|
| 26 |
ADJUST SCREW
|
62907-44220
|
|
| 27 |
NUT, REPLACES 62901-42230
|
62901-44231
|
|
| 28 |
ROLLER
|
12492-50310
|
|
| 29 |
ROCKER ARM COVER
|
62901-44241
|
|
| 30 |
GASKET
|
62901-44250
|
|
| 31 |
BOLT
|
11022-04120
|
|
| 32 |
CLUTCH KIT
|
62901-51011
|
|
| 33 |
CLUTCH SHOE ASSEMBLY
|
62901-51021
|
|
| 35 |
Spring, Replaces 17510-11500
|
70140-51220
|
|
| 36 |
CLUTCH BOLT
|
20087-51210
|
|
| 37 |
SPRING PLATE
|
20087-51231
|
|
| 38 |
WASHER
|
22100-71430
|
|
|
| No |
Description |
Part No |
Order
|
| 4-1 |
FLYWHEEL
|
62905-71110
|
|
| 2 |
KEY
|
02403-03100
|
|
| 3 |
NUT
|
20035-71220
|
|
| 4 |
COIL ASSEMBLY
|
62905-71310
|
|
| 5 |
PLUG CAP
|
62905-71250
|
|
| 6 |
PLUG SPRING
|
62905-71320
|
|
| 7 |
LEAD WIRE
|
14350-02001
|
|
| 8 |
GROMMET
|
62901-71310
|
|
| 9 |
INSULATOR UNIT
|
70030-71620
|
|
| 10 |
BOLT SW
|
11024-04265
|
|
| 11 |
SPARK PLUG, REPLACED BY CMR5H
|
80966
|
This part is no longer available and has been replaced by Ngk CMR5H
|
|
| No |
Description |
Part No |
Order |
| 5-1 |
RECOIL STARTER ASSEMBLY, REPLACES 62901-75011
|
62901-75012
|
|
| 3 |
REEL
|
62901-75120
|
|
| 4 |
RECOIL SPRING
|
70064-75130
|
|
| 5 |
DOG
|
62901-75310
|
|
| 6 |
WAVE WASHER
|
70064-75150
|
|
| 7 |
Bolt
|
72933-75160
|
|
| 8 |
Retainer
|
72933-75170
|
|
| 9 |
WASHER
|
72933-75180
|
|
| 10 |
ROPE, REPLACES 32004-75140
|
70064-75190
|
|
| 11 |
KNOB
|
32004-75150
|
|
| 12 |
STARTER PULLEY
|
70064-75310
|
|
| 13 |
NUT
|
01511-08051
|
|
| 14 |
Bolt
|
11024-04160
|
|
| 15 |
LABEL, REPLACED BY 19420-00070
|
80823
|
|
|
| No |
Description |
Part No |
Order |
| 6-1 |
CARBURETOR ASSEMBLY, REPLACES 60908-98310
|
62908-81011
|
|
| 2 |
VALVE
|
62908-81311
|
Price: $25.09
|
| 3 |
COLLAR THROTTLE SCREW
|
70064-81290
|
|
| 4 |
SWIVEL
|
72933-81450
|
|
| 5 |
WASHER
|
20089-81185
|
|
| 6 |
E-RING
|
20036-81195
|
|
| 7 |
PUMP GASKET
|
70097-81310
|
|
| 8 |
MAIN JET
|
60084-98320
|
Price: $5.39
|
| 9 |
PUMP GASKET
|
70097-81310
|
|
| 10 |
DIAPHRAGM
|
70097-81320
|
|
| 11 |
PUMP BODY ASSEMBLY
|
37013-81350
|
|
| 12 |
FUEL INLET SCREEN
|
70030-81380
|
|
| 13 |
METERING LEVER SPRING
|
72933-81270
|
|
| 14 |
NEEDLE VALVE, REPLACES 20016-81440
|
20036-81440
|
|
| 15 |
METERING LEVER
|
22100-81230
|
|
| 16 |
METERING LEVER PIN SCREW
|
20016-81450
|
|
| 17 |
PIN METERING LEVER
|
22100-81250
|
|
| 18 |
METERING/DIAPHRAGM GASKET
|
20016-81280
|
|
| 19 |
DIAPHRAGM
|
37013-81310
|
|
| 20 |
AIR PURGE BODY ASSEMBLY
|
20016-81420
|
|
| 21 |
PRIMING PUMP, REPLACES 70029-81480
|
20036-81670
|
|
| 22 |
PRIMER PUMP COVER
|
20016-81510
|
|
| 23 |
COVER SCREW
|
20016-81140
|
|
| 24 |
O-RING
|
20016-81250
|
|
| 25 |
GASKET KIT
|
60902-98030
|
|
| 26 |
KWIK KIT
|
60908-98360
|
Price: $34.49
|
| 27 |
MAIN JET
|
60084-98330
|
Price: $5.39
|
| 28 |
MAIN JET
|
60908-98350
|
No Longer Available
|
| 29 |
GASKET
|
62901-81211
|
|
| 30 |
CLEANER BODY ASSEMBLY
|
62905-82010
|
|
| 31 |
WASHER, REPLACES 20010-15320
|
01613-05080
|
|
| 32 |
SCREW
|
11203-05605
|
|
| 33 |
FILTER, REPLACES 62901-82120
|
62902-82120
|
|
| 34 |
CLEANER COVER ASSEMBLY
|
62902-82030
|
|
| 35 |
CLEANER COVER
|
62901-82131
|
No Longer Available
|
| 36 |
Knob, Air Filter
|
62901-82330
|
|
|
| No |
Description |
Part No |
Order |
| 7-1 |
Fuel Tank Assembly, Replaces 62906-85310
|
62903-85310
|
|
| 3 |
FUEL CAP ASSEMBLY
|
70168-85201
|
|
| 4 |
FUEL CAP
|
70168-85210
|
|
| 9 |
FUEL GASKET
|
20000-85221
|
|
| 10 |
FUEL PIPE ASSEMBLY
|
20016-85310
|
|
| 11 |
Fuel Filter
|
20016-85400
|
|
| 12 |
GROMMET
|
20144-85350
|
|
| 13 |
VALVE
|
22197-33960
|
|
| 14 |
JOINT
|
72933-85620
|
|
| 15 |
PIPE, REPLACES 20140-83311 & 20112-85360
|
20112-85361
|
|
| 16 |
CLIP
|
20020-85540
|
|
| 17 |
CLIP
|
37013-85310
|
|
| 18 |
TANK CUSHION
|
62901-85220
|
|
| 19 |
TANK GUARD
|
62902-85320
|
|
| 20 |
Bolt
|
11022-05200
|
|
|
| No |
Description |
Part No |
Order
|
| 9-1 |
OUTER TUBE ASSEMBLY W/CAUTION LABEL
|
80504
|
Price: $59.99
|
| 2 |
BUSHING
|
22035-12120
|
|
| 23 |
CAUTION LABEL
|
19402-00218
|
|
| 3 |
MAIN SHAFT
|
63880-64340
|
|
| 4 |
GRIP
|
63901-62140
|
|
| 5 |
THROTTLE LEVER ASSEMBLY, REPLACES 63901-62313
|
63904-62020
|
|
| 6 |
RIGHT BODY
|
72549-62320
|
|
| 7 |
LEFT BODY
|
63002-62330
|
|
| 8 |
LEVER
|
63002-62340
|
|
| 9 |
LOCK LEVER
|
63901-62352
|
|
| 10 |
HOLDER
|
63002-62350
|
|
| 11 |
COIL SPRING
|
63880-65350
|
|
| 12 |
COIL SPRING
|
63901-62370
|
|
| 13 |
SWITCH
|
63901-62380
|
|
| 14 |
TRUSS SCREW
|
63880-65360
|
|
| 15 |
SCREW, PM SPW
|
11206-05201
|
|
| 16 |
NUT
|
01501-05030
|
|
| 17 |
PLUG
|
63880-65411
|
|
| 18 |
BUTTON
|
70871-65170
|
|
| 19 |
COIL SPRING
|
70871-65180
|
|
| 20 |
THROTTLE CABLE
|
63901-62173
|
|
| 21 |
TUBE
|
63901-62440
|
|
| 22 |
CAUTION LABEL
|
19402-00287
|
|
|
| No |
Description |
Part No |
Order |
| 1 |
JOINT CASE COMPLETE
|
63880-64350
|
|
| 2 |
JOINT CASE
|
37000-62220
|
|
| 3 |
JOINT SHAFT
|
63880-64360
|
|
| 4 |
BALL BEARING
|
02002-00609
|
|
| 5 |
SNAP RING
|
22420-13350
|
|
| 6 |
WASHER
|
72030-14130
|
|
| 7 |
COLLAR
|
17901-06220
|
|
| 8 |
KNOB
|
63880-64380
|
|
| 9 |
NUT
|
63880-64410
|
|
| 10 |
LOCK LEVER
|
37000-62310
|
|
| 11 |
COIL SPRING
|
17500-06001
|
|
| 12 |
COVER
|
37000-62340
|
|
| 13 |
COIL SPRING
|
17520-12400
|
|
| 14 |
COLLAR
|
15401-00004
|
|
| 15 |
SCREW PM SLPW, REPLACES 63880-64420
|
11207-05120
|
|
| 16 |
SHIM
|
22000-13420
|
|
| 17 |
SCREW
|
11203-05250
|
Price: $1.99
|
| 18 |
BOLT SW
|
01020-05120
|
|
| 19 |
INSTRUCTION LABEL
|
19401-00168
|
|
|
| No |
Description |
Part No |
Order |
| 10-1 |
HANDLE ASSEMBLY, REPLACES 62901-64012
|
62901-64013
|
|
| 2 |
HANDLE, REPLACES 62901-64112
|
62901-64113
|
|
| 3 |
CLAMP
|
62901-64120
|
|
| 4 |
BOLT SPW
|
11022-05250
|
|
|
| No |
Description |
Part No |
Order |
| 11-1 |
SERVICE TOOL KIT, REPLACES 49005-92010
|
62901-92010
|
|
| 2 |
SPANNER
|
22000-91120
|
|
| 3 |
PLUG WRENCH
|
22580-91180
|
|
| 5 |
HEX WRENCH, REPLACES 22100-91561
|
09026-04001
|
|
| 6 |
TOOL BAG
|
19639-01400
|
|
