Shindaiwa PB230 PowerBroom Illustrated Parts Diagram

Shindaiwa Parts

Search for OEM Shindaiwa Parts

Shindaiwa PB230 PowerBroom Parts
Shindaiwa PB230 PowerBroom Parts available online at LawnMowerPros. We are an Authorized Shindaiwa dealer carrying a large selection of Shindaiwa PB230 PowerBroom Parts ready to ship direct to your door.  The following are the most popular Shindaiwa PB230 PowerBroom Parts.  If you do not see the PowerBroom Parts you need,  please complete the Lawn Mower Parts Request Form and we will be happy to assist you.

Shindaiwa Illustrated Parts Diagrams

No Description Part No Internet Price Order

1 20016-12110 CYLINDER CILINDRO CYLINDRE 1





1 20016-12120 GASKET,CYLINDER EMPAQUETADURA JOINT, CYLINDRE 1





3 01020-05250 BOLT PERNO BOULON 2





4 20016-12222 GASKET EMPAQUETADURA JOINT 1




5 20016-12210 INSULATOR BLOCK AISLADOR ISOLATEUR
6 20011-12260 NUT TUERCA ÉCROU 2
7 20016-12310 GUIDE GUIA GUIDE 1
8 11022-05250
  70135-15100

9 01270-03062 SCREW TORNILLO VIS 1





10 70103-15150 SPARK ARRESTOR GUARDACHISPAS PARE ÉTINCELLES 1





11 20016-15121 GASKET, MUFFLER EMPAQUETADURA JOINT 1





12 01610-05080 WASHER ARANDELA RONDELLE 2





13 01020-05120 BOLT PERNO BOULON 1




14 01020-05500 BOLT PERNO BOULON 2




  CHAMPION-CJ8



No Description Part No Internet Price Order
--

20016-21100

1 22150-21250 OIL SEAL RETEN JOINT D’ ETANCHEITE 1



2 12900-60010 BEARING COJINETE ROULEMENT A BILLES 1



--

20016-21200

2 12900-60010 BEARING COJINETE ROULEMENT A BILLES 1



3 12492-40080 DOWEL PIN PASADOR GOUPILLE, AIGUILLE 2



4 20000-21211 OIL SEAL RETEN JOINT D’ ETANCHEITE 1



5 01020-05250 BOLT PERNO BOULON 3



No Description Part No Internet Price Order
1 70135-31470 CAP TAPA CAPUCHON 1
2 11022-05160 BOLT PERNO BOULON 4
3 20018-31420 FRONT CUSHION AMORTIGUADOR COUSSIN 1

4 11023-05250 BOLT PERNO BOULON 1



5 20018-31410 JOINT UNION JOINT 1





6 20018-31460 SHIM ESPACIADOR CALE 1





7 20018-31430 REAR CUSHION AMORTIGUADOR COUSSIN 1





8 11022-05160 BOLT PERNO BOULON 2





9 11022-05350 BOLT PERNO BOULON 2




--

70140-31103 FAN COVER ASSY. TAPA COMPLETA CAGE DU VENTILATEUR COMPLET 1



10 70140-31113 FAN COVER TAPA CAGE DU VENTILATEUR 1





11 20087-31210 CLUTCH DRUM TAMBOR DEL EMBRAGUE TAMBOUR D’EMBRAYAGE 1




12 02002-06000 BEARING COJINETE ROULEMENT À BILLES 2

13 02432-26120 SNAP RING ANILLO RETENEDOR ANNEAU D’ARRÊT 1





14 70140-31130 CUSHION AMORTIGUADOR COUSSIN 1





15 22000-13320 SNAP RING ANILLO RETENEDOR ANNEAU D’ARRÊT 1




--

70140-32104 CYLINDER COVER ASSY. TAPA COMPLETA COUVERCLE DE CYLINDRE 1



16 20018-31251 KNOB ASIDERO POIGNÉE 1





17 70225-32120 LABEL PLACA DE AVISO DÉCALQUE D’AVERTISSEMENT 1





18 70140-32111 CYLINDER COVER TAPA COUVERCLE 1




19 20018-31260 INSULATOR AISLADOR ISOLATEUR 1

20 20018-31270 CLIP SUJETADOR ATTACHE 1




21 20024-81790 WASHER ARANDELA RONDELLE 1




No Description Part No Internet Price Order

1 20016-42002 CRANKSHAFT ASSY. CIGUEÑAL COMP. VILEBREQUINCOMPLET 1






99909-158 PISTON ASSY. PISTON COMP. PISTON COMPLET 1



2 20075-41110 PISTON PISTON PISTON 1





3 20000-41210 RINGS ANILLO RINGS 2





4 20016-41330 NEEDLE BEARING COJINETE ROULEMENT À AIGUILLES 1




5 20016-41340 THRUST WASHER ARANDELA DE PRESION RONDELLE PRESSION 2
6 20016-41310 PISTON PIN PASADOR DEL PISTON AXE DE PISTON 1
7 70030-41320 SNAP RING ANILLO RETENEDOR ANNEAU D’ARRÊT 2
8 02403-03100 KEY CHAVETA CLAVETTE 1
  70140-51102 CLUTCH SHOE ASSY. ZAPATA DEL EMBRAGUE COMP. SABOT D’EMBRAYAGE COMPLET 1
9 20087-51210 CLUTCH BOLT PERNO BOULON D’EMBRAYAGE 2

10 20087-51231 SPRING WASHER ARANDELA MUELLE RONDELLE A RESSORT 2




11 22100-71430 WASHER ARANDELA RONDELLE
12 70140-51220 CLUTCH SPRING RESORTE RESSORT D’EMBRAYAGE 1




No Description Part No Internet Price Order

1 20016-71200 FLYWHEEL VOLANTE ROTOR 1







2 20035-71220 NUT TUERCA ECROU 1




3 70030-71620 INSULATOR AISLADOR ISOLATEUR 2

4 20016-71660 COIL TUBE TUBO, BOBINA TUBE PROTECTEUR 1







5 22102-72220 PLUG CAP TAPON DE BUJIA CAPUCHON 1






6 20000-72230 SPRING, PLUG RESORTE DE BUJIA RESSORT, BOUGIE 1 20016-71600 COIL ASSY. CONDENSADOR COMP. BOBINE D’ALLUMAGE COMPLET 1

7 20016-71640 WIRE ALAMBRE CÂBLE 1





8 20016-71651 TUBE TUBERIA TUYAU 1





9 20010-72110 GROMMET RETENEDOR PASSE-CÂBLE 1





10 01020-04260 BOLT PERNO BOULON 2





11 01600-04101 SPRING WASHER ARANDELA MUELLE RONDELLE À RESSORT 2




12 01613-04080 WASHER ARANDELA RONDELLE 2




No Description Part No Internet Price Order
--

72933-75101

1 72933-75120 REEL TAMBOR BOBINE 1





2 70064-75130 RECOIL SPRING RESORTE ESPIRAL RESSORT DE RAPPEL 1





3 70117-75311 LABEL PLACA DE AVISO DÉCALQUE D’AVERTISSEMENT 1





4 70064-75220 STOPPER RETENEDOR ARRÊT 1





5 72933-75210 KNOB ASIDERO POIGNÉE 1





6 70064-75190 ROPE CUERDA CORDE 1





7 72933-75140 RATCHET TRINQUETE ROCHET 1





8 70064-75150 WAVE WASHER ARANDELA RONDELLE 1





9 72933-75170 RETAINER RETENEDOR ATTACHE 1





10 72933-75180 WASHER ARANDELA RONDELLE 1





11 72933-75160 BOLT PERNO BOULON 1





12 01511-08051 NUT TUERCA ÉCROU 1





13 70064-75310 STARTER PULLEY POLEA POULIE DU DÉMARREUR 1




14 11024-04120 BOLT PERNO BOULON 4




No Description Part No Internet Price Order
--

20016-85002

1 20035-85522



2 20020-85540



3 20089-83310



4 20016-12310



5 20087-85340



6 70064-85311



7 20016-85400



8 20089-85350


--

70043-85201

9 20000-85221



10 70135-86130



11 11022-05120


12 20024-86120
No Description Part No Internet Price Order
--

72959-13000

1 11217-05108



2 72953-13280



3 72953-13290



4 72959-13210



5 01020-05120



6 01600-05131



7 01610-05080



8 72953-13271



9 02432-22100



10 72953-13170


11 11022-06300
12 72953-13321
13 72953-13311

14 02000-06902


15 02432-28120

16 72953-13250



17 72953-13260



18 02000-06901



19 72953-13160



20 72953-13150



21 72953-13140



22 72959-13130



23 02000-06001



24 02432-28120



25 72953-13121



26 72953-13230



27 72953-13221 DRIVE SHAFT EJE PRINCIPAL AXE PRINCIPAL 1




28 72959-13330 SPACER SEPARADOR CALE 1




No Description Part No Internet Price Order
--

99909-22000

--

99909-22027

1 99909-33003



2 99909-33018



3 99909-33008



4 99909-33020



5 99909-33016



6 99909-33004



7 99909-33007



8 99909-22005



9 61215



10 72959-13330


--

72951-14100

11 72030-14141



12 72030-14120



13 72030-14130


14 01500-06051
No Description Part No Internet Price Order

1 01500-05041



2 22410-12210



3 01020-05120



4 22036-14130



5 72460-12530



6 72017-12150



7 72953-12511



8 99909-33003



9 22422-12610


--

72432-12100

10 22035-12120


11 22070-12410
No Description Part No Order

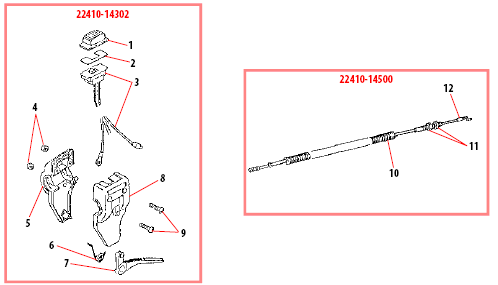

- THROTTLE LEVER ASSEMBLY, REPLACES 22410-14301 22410-14302
1 KNOB 22420-12930
2 PLATE 22420-12940
3 SWITCH ASSEMBLY, REPLACES 22410-12351 22410-14351
4 NUT 01501-05031
5 R BRACKET 22410-14312
6 SPRING 22410-14331
7 LEVER 22410-14321
8 L BRACKET, REPLACES 22410-14340 22410-14341
9 SCREW 11203-05250 Price: $0.69


- CABLE ASSEMBLY 22410-14500
10 TUBE 22422-14540
11 NUT 01501-06041
12 THROTTLE CABLE 22410-14511
No Description Part No Order
- Powerbroom Debris Shield Assembly 99909-33021 Price: $68.99


- STRAP 22410-17201
1 PROTECTOR 22044-17230
2 HOOK 22000-17130
- SERVICE TOOL KIT 22410-91000 Price: $2.89


3 POLY BAG, REPLACES 19639-01400, 19639-01401, 19610-02100 19639-01100
4 SPANNER 22000-91120
5 PLUG WRENCH 22000-91181
6 HEX WRENCH, REPLACES 22100-91561 09026-04001
No Description Part No Order
- CARBURETOR ASSEMBLY, REPLACED BY 70173-81021 70173-81020
1 PLUG 22154-81270
2 COLLAR THROTTLE SCREW 70064-81290
3 THROTTLE VALVE ASSEMBLY 99909-34570

No Longer Available

4 O-RING 70097-81220
5 MAIN JET 70173-81230
6 PUMP GASKET 70097-81310
7 DIAPHRAGM 70097-81320
- PUMP BODY COMPLETE 20016-81410
8 FUEL INLET SCREEN 70030-81380
9 NEEDLE VALVE, REPLACES 20016-81440 20036-81440
10 SPRING 20016-81270
11 METERING LEVER 22100-81230
12 PIN METERING LEVER 22100-81250
13 METERING LEVER PIN SCREW 20016-81450
14 METERING/DIAPHRAGM GASKET 20016-81280
15 DIAPHRAGM ASSEMBLY 22100-81260
16 AIR PURGE BODY ASSEMBLY 20016-81420
17 Check Valve 99909-207 Price: $1.99


18 PRIMING PUMP 70029-81480
19 PRIMER PUMP COVER 20016-81510
20 COVER SCREW 20016-81140
- AIR FILTER ASSEMBLY 99909-320
21 SCREW PM 70140-81810
22 GASKET 20016-81530
23 O-RING 20016-81250
24 USE 20140-81720 99909-231
25 CLEANER BODY 70140-81710
26 USE 20140-81730 99909-232
27 BACK PLATE 20018-81721
28 Air Filter 20018-81750
29 CLEANER COVER 70140-81760
30 CHOKE LABLE 19404-00008
31 WASHER 20024-81790
32 O-RING 22100-82430
33 KNOB, REPLACES 20024-81781 20115-81780
- Carburetor Kwik Kit 99909-160 Price: $5.99


- Gasket/diaphragm Kit, Replaces 99909-187 99909-159 Price: $11.99


No Description Part No Order
- CARBURETOR ASSEMBLY, REPLACES 20016-81020 20016-81021
1 COLLAR THROTTLE SCREW 70064-81290
2 O-RING 70097-81220
3 MAIN JET 20016-81230
4 PUMP GASKET 70097-81310
5 DIAPHRAGM 70097-81320
- PUMP BODY COMPLETE 20016-81410
6 FUEL INLET SCREEN 70030-81380
7 SPRING 20016-81270
8 METERING LEVER 22100-81230
9 PIN METERING LEVER 22100-81250
10 METERING LEVER PIN SCREW 20016-81450
11 NEEDLE VALVE, REPLACES 20016-81440 20036-81440
12 METERING/DIAPHRAGM GASKET 20016-81280
13 DIAPHRAGM ASSEMBLY 22100-81260
14 AIR PURGE BODY ASSEMBLY 20016-81420
15 Check Valve 99909-207 Price: $1.99


16 PRIMING PUMP 70029-81480
17 PRIMER PUMP COVER 20016-81510
18 COVER SCREW 20016-81140
19 VALVE ASSEMBLY, REPLACES 68120-81320 20016-81180 Price: $21.69


-- Carburetor Kwik Kit 99909-160 Price: $5.99


-- Gasket/diaphragm Kit, Replaces 99909-187 99909-159 Price: $11.99





  Customer Service About Us Contact Us
  Home Page
Ordering Information
Customer Service
Help
Privacy Policy
Articles
How To
Shipping Policy
Return Policy
Site Map
DIY
About Us
Contact Us
Blog
Testimonials
Employment
News
Disclaimer
Local Store

Phone
316-522-2006

Address
H and H Lawncare Equipment
7048 S. Broadway
Haysville, KS
67060
United States

Find us on:

Facebook Youtube Twttier Pinterest



Copyright © 2017 H and H Lawncare Equipment, LLC
All Rights Reserved Worldwide
