Shindaiwa T195s Illustrated Parts Diagram
  Shindaiwa Parts and Accessories

Search for OEM Shindaiwa Parts
Shindaiwa T195S Parts available online at LawnMowerPros. We are an Authorized Shindaiwa dealer carrying a large selection of Shindaiwa T195S Parts ready to ship direct to your door.  The following are the most popular Shindaiwa T195S Parts.  If you do not see the Shindaiwa Parts you need,  please complete the Lawn Mower Parts Request Form and we will be happy to assist you.

Shindaiwa Illustrated Parts Diagrams

  Shindaiwa T195s Illustrated Parts List
No Description Part No Internet Price Order
1- 1
CYLINDER ASSEMBLY 62088-12310 $152.99
3
COVER S 62088-12320 $3.99
4
COVER M 62088-12330 $4.09
5
GASKET 62088-12340 $1.49
6
SCREW 62088-12350 $0
No Longer Available
7
STUD BOLT 62088-12360 $8.99
8
CYLINDER GASKET 62088-12120 $5.99
9
BOLT 62088-12370 $0
No Longer Available
10
INSULATOR 62088-12210 $26.99
11
Insulator Gasket 62088-12220 $3.99
12
SCREW 62088-12380 $0
No Longer Available
13
MUFFLER ASSEMBLY 62088-15010 $60.89
14
MUFFLER 62088-15110 $83.99
15
SPARK ARRESTER 62088-15310 -- SHINDAIWA 62088-15310 Replaced By Shindaiwa A310000190


Price: $32.99
16
SCREW 62088-15320 $0
No Longer Available
17
Muffler Gasket 62088-15210 $7.99
18
NUT 62088-15330 $8.99
No Description Part No Internet Price Order
2-1
S ASSEMBLY CRANKCASE 62088-21010 $0
No Longer Available
3
BEARING 62088-21310 $0
No Longer Available
4
OIL SEAL 62088-21120 $15.99
5
M ASSEMBLY CRANKCASE 62088-21020 $50.09
7
BEARING 62088-21310 $0
No Longer Available
8
OIL SEAL 62088-21120 $15.99
9
S GUIDE 62088-21320 $2.99
10
M GUIDE 62088-21330 $2.99
11
GASKET 62088-21340 $0
No Longer Available
12
ROLLER 62088-21350 $1.99
13
SCREW 62088-21360 $0
No Longer Available
14
FAN COVER 62088-31110 $121.59
15
CLUTCH DRUM 62088-31210 $0
No Longer Available
16
SNAP RING 62088-31310 $1.69
17
JOINT 20087-31411 -- SHINDAIWA 20087-31411 Replaced By Shindaiwa A575000470


Price: $21.99
18
STOPPER 20142-31420 -- SHINDAIWA 20142-31420 Replaced By SHINDAIWA C617000400


Price: $6.99
19
SCREW 62088-33310 $0
No Longer Available
20
SCREW 62088-33320 $0
No Longer Available
21
BOLT 62088-31320 $3.39
22
CYLINDER COVER 62088-32110 $42.69
23
INSULATOR 62088-32310 $1.99
24
SCREW 62088-32320 $0
No Longer Available
25
SCREW 62088-32330 $2.39
26
MUFFLER COVER 62088-32340 -- SHINDAIWA 62088-32340 Replaced By Shindaiwa A320000620


Price: $12.99
27
SCREW 62088-32350 $4.99
28
FEATURE LABEL 62088-91320 $0
No Longer Available
29
MODEL LABEL 80869 $1.39
No Description Part No Internet Price Order
3-1
PISTON 62088-41110 $58.99
2
PISTON RING 62088-41120 $11.99
3
PISTON PIN 62088-41210 $6.99
4
SNAP RING 62088-41220 $1.99
5
NEEDLE BEARING 62088-41230 $16.99
6
CRANKSHAFT ASSEMBLY 62088-42010 $151.79
7
Clutch Shoe Assembly 62088-51020 -- Shindaiwa 62088-51020 Replaced By SHINDAIWA A056000350


Price: $111.99
8
CLUTCH SHOE 62088-51110 $47.99
9
SPRING 62088-51310 $8.39
10
CLUTCH BOLT 62088-51210 $8.99
11
SPRING PLATE 62088-51220 $1.99
12
CLUTCH WASHER 62088-51320 $0
No Longer Available
No Description Part No Internet Price Order
4-1
ROTOR 62088-71110 $165.99
2
NUT 62088-71310 $1.19
3
COIL ASSEMBLY 62088-71020 -- SHINDAIWA 62088-71020 Replaced By SHINDAIWA A411000710


Price: $183.99
4
PLUG CAP 62088-71250 $5.89
5
PLUG SPRING 62088-71320 $2.99
6
BOLT 62088-71340 $0
No Longer Available
7
LEAD WIRE 62088-71350 $0
No Longer Available
8
ROTOR GROMMET 62088-71360 $0
No Longer Available
9
SPARK PLUG 62088-71370 $0
No Longer Available

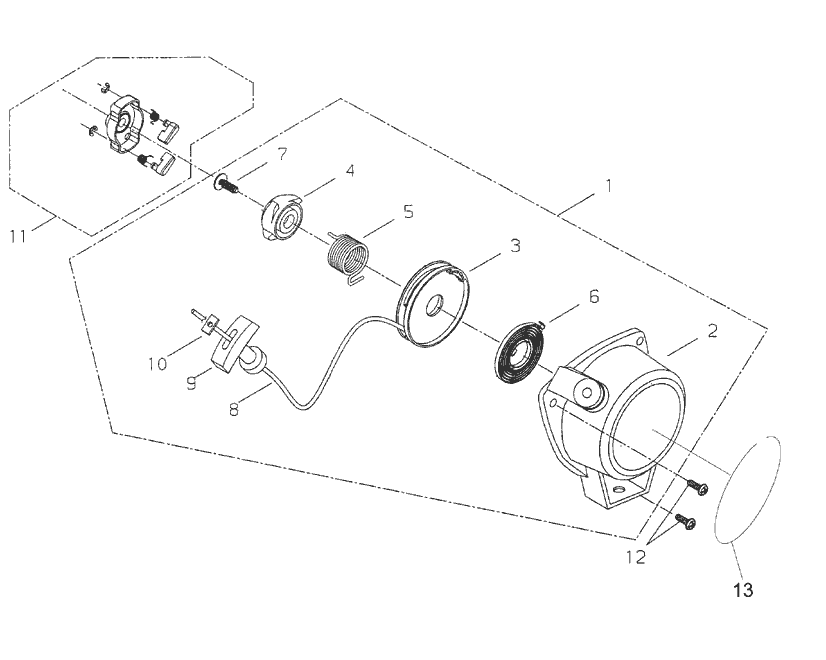

No Description Part No Internet Price Order
5-1
RECOIL STARTER ASSEMBLY 62088-75010 $47.99
2
STARTER CASE 62088-75110 $13.39
3
REEL 37076-75120 -- SHINDAIWA 37076-75120 Replaced By Echo P050009900


Price: $22.99
4
CAM 37076-75310 $0
No Longer Available
5
COIL SPRING 37076-75320 -- SHINDAIWA 37076-75320 Replaced By Echo P022008270


Price: $11.99
6
RECOIL SPRING 70030-75130 -- SHINDAIWA 70030-75130 Replaced By Echo 17722042030
7
SCREW 37013-75310 -- SHINDAIWA 37013-75310 Replaced By Shindaiwa V253000310


Price: $2.99
8
ROPE 37076-75140 -- SHINDAIWA 37076-75140 Replaced By SHINDAIWA A509000310


Price: $1.79
9
STARTER KNOB 20010-75190 -- SHINDAIWA 20010-75190 Replaced By Echo 17722827030


Price: $7.99
10
STOPPER 20010-75210 -- SHINDAIWA 20010-75210 Replaced By SHINDAIWA A522000040


Price: $2.99
11
STARTER PULLEY ASSEMBLY 37076-75020 $6.09
12
SCREW 62088-32330 $2.39
13
TRADE RECOIL LABEL 80868 $0
No Longer Available

No Description Part No Internet Price Order
6-1
CARBURETOR ASSEMBLY 62088-81010 $0
No Longer Available
2
SCREW 62088-81310 $5.99
3
O-RING 62088-81320 $4.89
4
MAIN JET 62088-81330 $0
No Longer Available
5
PUMP GASKET 62088-81340 $0
No Longer Available
6
DIAPHRAGM 62088-81350 $11.99
7
PUMP COMPLETE BODY 62088-81360 $0
No Longer Available
8
SCREEN 62088-81510 $0
No Longer Available
9
LEVER 62088-81520 $0
No Longer Available
10
PIN 62088-81530 $0
No Longer Available
11
SPRING 62088-81540 $0
No Longer Available
12
NEEDLE VALVE 62088-81550 $0
No Longer Available
13
SCREW 62088-81560 $0
No Longer Available
14
DIAPHRAGM 62088-81370 $0
No Longer Available
15
GASKET 62088-81380 $6.99
16
PUMP BASE COMPLETE 62088-81390 $59.99
17
PUMP COVER 62088-81400 $0
No Longer Available
18
Primer Pump 62088-81410 $0
No Longer Available
19
SCREW 62088-81420 $4.99
20
RING GASKET 62088-81430 $4.39
21
SWIVEL 62088-81440 $6.59
22
WASHER 62088-81450 $1.99
23
CLIP 62088-81460 $1.69
24
CABLE BRACKET 62088-81470 $36.99
25
CABLE ADJUSTER 62088-81480 $18.99
26
NUT 62088-81490 $1.69
27
CARBURETOR GASKET 62088-81210 -- SHINDAIWA 62088-81210 Replaced By Shindaiwa V103000830


Price: $2.99
28
CLEANER BODY 62088-82110 -- SHINDAIWA 62088-82110 Replaced By Shindaiwa A225000430


Price: $20.99
29
FILTER 62088-82120 -- SHINDAIWA 62088-82120 Replaced By Shindaiwa A226000630
30
CLEANER COVER ASSEMBLY 62088-82030 $0
No Longer Available
31
Screw 62088-82320 $1.99
32
Screw 62088-82310 $2.99
No Description Part No Internet Price Order
7-1
FUEL TANK ASSEMBLY 62088-85010 $0
No Longer Available
2
Fuel Tank 62088-85110 -- Shindaiwa 62088-85110 Replaced By Shindaiwa A350001200


Price: $63.99
3
FUEL CAP ASSEMBLY 62088-85020 -- SHINDAIWA 62088-85020 Replaced By Shindaiwa A033000040
4
FUEL CAP 62088-85120 -- SHINDAIWA 62088-85120 Replaced By Shindaiwa A355000190
5
PACKING 62088-85310 -- SHINDAIWA 62088-85310 Replaced By SHINDAIWA V107000030
6
VALVE 62088-85320 $23.99
7
CAP 62088-85330 $5.99
8
SPONGE 62088-85340 $5.99
9
FUEL PIPE 62088-85350 -- SHINDAIWA 62088-85350 Replaced By Shindaiwa V471002540


Price: $26.99
10
FUEL FILTER 62088-85360 $34.99
11
CLIP 62088-85370 $0
No Longer Available
12
PIPE 62088-85380 $0
No Longer Available
13
Grommet 62088-85390 -- Shindaiwa 62088-85390 Replaced By Shindaiwa V137000050


Price: $7.99
14
TANK GUARD 62088-85400 $26.99
15
CUSHION 62088-85410 $7.99
16
SCREW 62088-85420 -- SHINDAIWA 62088-85420 Replaced By Shindaiwa V253000430


Price: $1.99
No Description Part No Internet Price Order
8-1
Outer Tube W/caution Label, Replaces 22553-12101 80030 $79.99
3
BUSH 22410-12120 -- SHINDAIWA 22410-12120 Replaced By SHINDAIWA C501000030


Price: $4.99
4
GRIP 22036-12612 -- SHINDAIWA 22036-12612 Replaced By Shindaiwa C412000300


Price: $11.99
5
MAIN SHAFT 63054-62210 -- SHINDAIWA 63054-62210 Replaced By Shindaiwa C504000510


Price: $30.99
6
THROTTLE LEVER ASSEMBLY 63054-62160 $21.89
7
R BRACKET 22410-14312 -- SHINDAIWA 22410-14312 Replaced By SHINDAIWA C401000080


Price: $6.99
8
LEVER 22410-14321 -- SHINDAIWA 22410-14321 Replaced By Shindaiwa C450000460


Price: $9.99
9
SPRING 22410-14331 -- SHINDAIWA 22410-14331 Replaced By Shindaiwa V452000440


Price: $1.99
10
L BRACKET, REPLACES 22410-14340 22410-14341 -- SHINDAIWA 22410-14341 Replaced By SHINDAIWA C401000090


Price: $6.99
11
SWITCH 63054-62310 $0
No Longer Available
12
KNOB 22420-12930 -- SHINDAIWA 22420-12930 Replaced By Shindaiwa A444000090


Price: $2.99
13
PLATE 22420-12940 -- SHINDAIWA 22420-12940 Replaced By SHINDAIWA X510000500


Price: $2.99
14
SCREW PM 11206-05300 -- SHINDAIWA 11206-05300 Replaced By Shindaiwa 9157405030


Price: $0.99
15
NUT 01501-05031 -- SHINDAIWA 01501-05031 Replaced By ECHO 90050200005


Price: $0.99
16
THROTTLE CABLE, REPLACES 37015-62170 37015-98010 -- SHINDAIWA 37015-98010 Replaced By Shindaiwa V043000690


Price: $7.99
17
TUBE 63901-62440 -- SHINDAIWA 63901-62440 Replaced By SHINDAIWA V475006830


Price: $1.99
18
CAUTION LABEL 19422-00028 -- SHINDAIWA 19422-00028 Replaced By SHINDAIWA X505005990


Price: $4.99
19
INSTRUCTION LABEL 19401-00269 -- SHINDAIWA 19401-00269 Replaced By SHINDAIWA X505002850


Price: $1.99
20
TRADE LABEL, SHAFT 80867 $0
No Longer Available
No Description Part No Internet Price Order
9-1
Gearcase Assembly, Replaces 67007-63020 67007-63021 -- Shindaiwa 67007-63021 Replaced By Shindaiwa P021029192


Price: $122.99
2
GEARCASE, REPLACES 22035-13112 22035-13113 -- SHINDAIWA 22035-13113 Replaced By SHINDAIWA C531000710
3
BEARING 02000-00626 -- SHINDAIWA 02000-00626 Replaced By ECHO 90081000626


Price: $8.09
4
BEARING, REPLACES 02006-06000 37004-63310 -- SHINDAIWA 37004-63310 Replaced By Echo 90080206000


Price: $17.99
5
SNAP RING 02432-26120 -- SHINDAIWA 02432-26120 Replaced By Shindaiwa 9242426000


Price: $1.99
6
BOLT 01014-06100 -- SHINDAIWA 01014-06100 Replaced By SHINDAIWA 9103006010


Price: $1.99
7
GASKET 22000-13410 -- SHINDAIWA 22000-13410 Replaced By SHINDAIWA V304000180


Price: $1.99
8
GEAR SHAFT 22410-13210 -- SHINDAIWA 22410-13210 Replaced By Shindaiwa C534000680


Price: $19.99
9
BEVEL GEAR, REPLACES 22550-13220 22035-13220 -- SHINDAIWA 22035-13220 Replaced By Shindaiwa V651000690


Price: $19.99
10
PINION 22035-13391 -- SHINDAIWA 22035-13391 Replaced By Shindaiwa V651000700


Price: $25.99
11
BALL BEARING 02000-00608 -- SHINDAIWA 02000-00608 Replaced By SHINDAIWA 90080000608


Price: $6.99
12
BALL BEARING 02002-00608 -- SHINDAIWA 02002-00608 Replaced By ECHO 90080400608


Price: $14.99
13
SNAP RING 22035-13340 -- SHINDAIWA 22035-13340 Replaced By Shindaiwa 9241108000


Price: $1.99
14
SNAP RING 02432-22100 -- SHINDAIWA 02432-22100 Replaced By SHINDAIWA 9242422000


Price: $1.99
15
BOLT SPW 11022-05160 -- SHINDAIWA 11022-05160 Replaced By Shindaiwa V203000590
17
SHIM 22000-13420 -- SHINDAIWA 22000-13420 Replaced By Shindaiwa V340000300


Price: $1.99
18
BOLT SPW 11022-05350 -- SHINDAIWA 11022-05350 Replaced By Shindaiwa V203000600
19
WASHER, REPLACES 20010-15320 01613-05080 -- SHINDAIWA 01613-05080 Replaced By Echo 90060300005


Price: $0.99
20
NUT 01500-05041 -- SHINDAIWA 01500-05041 Replaced By Echo 90050000005


Price: $0.99
21
LOWER CLAMP 72480-16130 -- SHINDAIWA 72480-16130 Replaced By Shindaiwa C551000150


Price: $5.99
22
COLLAR 72432-13230 -- SHINDAIWA 72432-13230 Replaced By SHINDAIWA V356000490


Price: $4.99
23
HOLDER 72432-13240 -- SHINDAIWA 72432-13240 Replaced By Shindaiwa C535000500


Price: $7.99
24
CLIP 72432-13250 -- SHINDAIWA 72432-13250 Replaced By SHINDAIWA V491000270


Price: $1.99
No Description Part No Internet Price Order
10-1
HANDLE ASSEMBLY, REPLACES 62039-64010, 72495-14110, 22450-14110 62039-64011 -- SHINDAIWA 62039-64011 Replaced By SHINDAIWA P021027830


Price: $44.99
2
HANDLE, REPLACES 62901-64321 62901-64322 -- SHINDAIWA 62901-64322 Replaced By SHINDAIWA C400000640


Price: $19.99
3
CLAMP 62901-64120 -- SHINDAIWA 62901-64120 Replaced By SHINDAIWA C423000430


Price: $3.59
4
BOLT SPW 11022-05250 -- SHINDAIWA 11022-05250 Replaced By Shindaiwa V203000630


Price: $1.99
5
SHIELD ASSEMBLY 62901-66321 -- SHINDAIWA 62901-66321 Replaced By Shindaiwa P021028362


Price: $49.99
7
CUTTING ATTACHMENT GUARD 62901-66110 -- SHINDAIWA 62901-66110 Replaced By Shindaiwa C550000340
8
CUTTER 72480-16121 -- SHINDAIWA 72480-16121 Replaced By Shindaiwa C554000040


Price: $6.99
10
BOLT SW 11020-05160 -- SHINDAIWA 11020-05160 Replaced By Shindaiwa 9112205016


Price: $1.99
11
NUT 22420-16120 -- SHINDAIWA 22420-16120 Replaced By Shindaiwa V263000130


Price: $1.99
12
UPPER CLAMP 72480-16210 -- SHINDAIWA 72480-16210 Replaced By Shindaiwa C551000060


Price: $2.99
13
SPACER 72480-16220 -- SHINDAIWA 72480-16220 Replaced By Shindaiwa V375000340


Price: $1.99
14
BOLT 11022-05450 -- SHINDAIWA 11022-05450 Replaced By Shindaiwa V203000610


Price: $2.99
No Description Part No Internet Price Order
11-1
SERVICE TOOL KIT 22410-91000 -- SHINDAIWA 22410-91000 Replaced By Shindaiwa P021048890


Price: $8.99
2
PLUG WRENCH 22000-91181 -- SHINDAIWA 22000-91181 Replaced By Oregon 57-017


Price: $7.99
3
HEX WRENCH, REPLACES 22100-91561 09026-04001 -- SHINDAIWA 09026-04001 Replaced By ECHO X605000100


Price: $3.99
4
SPANNER 22000-91120 -- SHINDAIWA 22000-91120 Replaced By SHINDAIWA X600000020


Price: $2.99
5
TOOL BAG 19639-01400 -- SHINDAIWA 19639-01400 Replaced By Shindaiwa X705000130


Price: $2.99



  Customer Service About Us Contact Us
  Home Page
 Ordering Information
 Customer Service
 Help
 Privacy Policy
 Articles
 How To
 Shipping Policy
 Return Policy
Site Map
 DIY		 About Us
 Contact Us
Blog
Testimonials
 Employment
 News
Disclaimer
 Local Store

Phone
316-522-2006

Address
H and H Lawncare Equipment
7048 S. Broadway
Haysville, KS
67060
United States

Find us on:

Facebook Youtube Twttier Pinterest



Copyright © 2018 H and H Lawncare Equipment, LLC
All Rights Reserved Worldwide
