Shindaiwa T222 Trimmer Illustrated Parts Diagram
|
 |
Search for OEM Shindaiwa Parts
|
 |
|
Shindaiwa T222 Trimmer Parts available online at LawnMowerPros. We are an Authorized Shindaiwa dealer carrying a large selection of
Shindaiwa T222 Parts ready to ship direct to your door. The following are the most popular Shindaiwa
T222 Parts. If you do not see the Trimmer Parts you need,
please complete the Lawn Mower
Parts Request Form
and we will be happy to assist you. |
|
Shindaiwa Illustrated Parts Diagrams |
|
|
 |
|
No |
Description
|
Order
|
|
1
|
SHINDAIWA
62100-12111
CYLINDER
|
|
|
2
|
SHINDAIWA
62100-12120
GASKET
|
|
|
3
|
SHINDAIWA
01020-05160
BOLT (M5X16)
|
|
|
4
|
SHINDAIWA
62100-12212
INSULATOR
|
|
|
5
|
SHINDAIWA
62100-12220
GASKET
|
|
|
6
|
SHINDAIWA
11022-05300
BOLT, SPW (M5X30)
|
|
|
7
|
SHINDAIWA
37033-15212
GASKET
|
|
|
8
|
SHINDAIWA
62100-15012
MUFFLER ASSEMBLY
|
|
|
10
|
SHINDAIWA
62100-15370
SCREEN
|
|
|
11
|
SHINDAIWA
62100-15401
GASKET
|
|
|
12
|
SHINDAIWA
62100-15381
TAIL PLATE (A)
|
Price: $1.59
|
|
13
|
SHINDAIWA
62100-15392
TAIL PLATE (B)
|
|
|
14
|
SHINDAIWA
01211-04080
SCREW, SW (M4X8)
|
|
|
15
|
SHINDAIWA
01020-05555
BOLT (M5X55)
|
|
|
16
|
SHINDAIWA
01610-05085
WASHER (5MM)
|
|
|
17
|
SHINDAIWA
01020-05120
BOLT (M5X12)
|
|
 |
|
No |
Description
|
Order
|
|
1
|
SHINDAIWA
62100-21010
CRANKCASE "S" ASSEMBLY
|
|
|
2
|
SHINDAIWA
62100-21111
CRANKCASE "S"
|
|
|
3
|
SHINDAIWA
12900-60010
BALL BEARING
|
|
|
4
|
SHINDAIWA
37013-21120
OIL SEAL
|
|
|
5
|
SHINDAIWA
62100-21020
CRANKCASE "M" ASSEMBLY
|
|
|
6
|
SHINDAIWA
62100-21211
CRANKCASE "M"
|
|
|
7
|
SHINDAIWA
12900-60010
BALL BEARING
|
|
|
8
|
SHINDAIWA
20000-21211
OIL SEAL
|
|
|
9
|
SHINDAIWA
12492-40080
ROLLER
|
|
|
10
|
SHINDAIWA
01020-05250
BOLT (M5X25)
|
|
|
11
|
SHINDAIWA
62123-31012
FAN COVER ASSEMBLY
|
|
|
12
|
SHINDAIWA
62123-31110
FAN COVER
|
|
|
13
|
SHINDAIWA
62123-31211
CLUTCH DRUM
|
|
|
14
|
SHINDAIWA
20000-31140
SNAP RING
|
|
|
15
|
SHINDAIWA
11024-05180
BOLT, SLPW
|
|
|
16
|
SHINDAIWA
20087-31411
JOINT
|
|
|
17
|
SHINDAIWA
02432-40170
SNAP RING (40MM)
|
|
|
18
|
SHINDAIWA
11020-05220
BOLT, SW (M5X22)
|
|
|
19
|
SHINDAIWA
11500-04000
NUT
|
No Longer Available
|
|
20
|
SHINDAIWA
62100-32111
CYLINDER COVER
|
|
|
21
|
SHINDAIWA
62123-32310
MUFFLER COVER
|
|
|
22
|
SHINDAIWA
11024-04160
BOLT, SLPW (M4X16)
|
|
|
23
|
SHINDAIWA
19406-00114
TRADE LABEL
|
|
 |
|
No |
Description
|
Order
|
|
1
|
SHINDAIWA
62123-41110
PISTON
|
|
|
2
|
SHINDAIWA
72933-41210
PISTON RING
|
|
|
3
|
SHINDAIWA
72933-41310
PISTON PIN
|
|
|
4
|
SHINDAIWA
70030-41320
SNAP RING
|
|
|
5
|
SHINDAIWA
37013-41230
NEEDLE BEARING
|
|
|
6
|
SHINDAIWA
37013-41240
THRUST WASHER
|
|
|
7
|
SHINDAIWA
62100-42011
CRANKSHAFT
|
|
|
8
|
SHINDAIWA
67000-51020
CLUTCH SHOE ASSEMBLY
|
|
|
9
|
SHINDAIWA
20035-51111
CLUTCH SHOE
|
|
|
10
|
SHINDAIWA
20035-51221
COIL SPRING
|
|
|
11
|
SHINDAIWA
20142-51210
BOLT
|
|
|
12
|
SHINDAIWA
20087-51231
SPRING PLATE
|
|
|
13
|
SHINDAIWA
22100-71430
WASHER
|
|
|
14
|
SHINDAIWA
60132-98310
PISTON ASSEMBLY
|
|
 |
| No |
Description
|
Part No
|
Internet Price
|
Order
|
| 1 |
ROTOR
|
SHINDAIWA
37019-71110
|
|
|
| 2 |
KEY
|
SHINDAIWA
02403-03100
|
|
|
| 3 |
NUT
|
SHINDAIWA
20035-71220
|
|
|
| 4 |
COIL ASSEMBLY
|
SHINDAIWA
62100-71021
|
|
|
| 10 |
PLUG SPRING
|
SHINDAIWA
20000-72230
|
|
|
| 11 |
LEAD WIRE
|
SHINDAIWA
14352-02100
|
|
|
| 12 |
TUBE
|
SHINDAIWA
62100-71310
|
|
|
| 13 |
INSULATOR
|
SHINDAIWA
70030-71620
|
|
|
| 14 |
ADHESIVE BOLT (M4X20)
|
SHINDAIWA
11060-04204
|
|
|
| 17 |
SPARK PLUG (Replaced by NGK BPMR6A)
|
SHINDAIWA
13000-13506
|
|
This part is no longer available and has been replaced by Ngk BPMR6A
|
| 18 |
PLUG CAP
|
SHINDAIWA
22160-72220
|
|
|
| 19 |
SEAL
|
SHINDAIWA
22160-72260
|
|
|
 |
| No |
Description
|
Part No
|
Internet Price
|
Order
|
| 1 |
CARBURETOR ASSEMBLY (1-33)
|
SHINDAIWA
62123-81010
|
|
|
| 2 |
SPRING
|
SHINDAIWA
62123-81570
|
|
Price: $2.19
|
| 3 |
LEVER
|
SHINDAIWA
62123-81560
|
|
Price: $3.39
|
| 4 |
NEEDLE VALVE
|
SHINDAIWA
20019-81440
|
|
|
| 5 |
PIN
|
SHINDAIWA
20011-81460
|
|
|
| 6 |
SCREW
|
SHINDAIWA
62123-81550
|
|
Price: $0.69
|
| 7 |
O-RING
|
SHINDAIWA
62123-81540
|
|
Price: $2.99
|
| 8 |
MAIN JET
|
SHINDAIWA
62123-81530
|
|
Price: $10.39
|
| 9 |
CHECK VALVE
|
SHINDAIWA
62123-81520
|
|
|
| 10 |
O-RING
|
SHINDAIWA
62123-81510
|
|
Price: $2.99
|
| 11 |
PLATE
|
SHINDAIWA
62123-81500
|
|
Price: $2.39
|
| 12 |
SCREW
|
SHINDAIWA
62123-81490
|
|
Price: $0.69
|
| 13 |
PRIMING PUMP
|
SHINDAIWA
68501-81460
|
|
This part is no longer available and has been replaced by Zama 0057030
|
| 14 |
PUMP COVER ASSEMBLY
|
SHINDAIWA
62123-81480
|
|
Price: $27.99
|
| 15 |
VALVE
|
SHINDAIWA
68501-81340
|
|
|
| 16 |
PUMP COVER
|
SHINDAIWA
62123-81470
|
|
|
| 17 |
SCREEN
|
SHINDAIWA
62123-81460
|
|
Price: $4.99
|
| 18 |
PLATE
|
SHINDAIWA
62123-81450
|
|
|
| 19 |
GASKET
|
SHINDAIWA
62123-81440
|
|
|
| 20 |
PUMP PLATE
|
SHINDAIWA
62123-81430
|
|
Price: $8.49
|
| 21 |
DIAPHRAGM PLATE
|
SHINDAIWA
62123-81420
|
|
|
| 22 |
GASKET
|
SHINDAIWA
62123-81410
|
|
|
| 23 |
SCREW
|
SHINDAIWA
62123-81400
|
|
|
| 24 |
DIAPHRAGM
|
SHINDAIWA
62123-81390
|
|
|
| 25 |
DIAPHRAGM COVER
|
SHINDAIWA
62123-81380
|
|
Price: $3.19
|
| 26 |
SCREW
|
SHINDAIWA
62123-81370
|
|
Price: $0.69
|
| 27 |
CABLE ADJUSTER
|
SHINDAIWA
62123-81360
|
|
Price: $8.49
|
| 28 |
IDLE SPEED SCREW
|
SHINDAIWA
62123-81350
|
|
|
| 29 |
SWIVEL
|
SHINDAIWA
62123-81340
|
|
Price: $13.19
|
| 30 |
WASHER
|
SHINDAIWA
62123-81330
|
|
Price: $1.49
|
| 31 |
SNAP RING
|
SHINDAIWA
62123-81320
|
|
Price: $0.69
|
| 32 |
SCREW
|
SHINDAIWA
62123-81310
|
|
Price: $1.49
|
| 33 |
RING GASKET
|
SHINDAIWA
20019-81280
|
|
|
| 34 |
GASKET
|
SHINDAIWA
62100-81210
|
|
|
| 35 |
CLEANER BODY ASSEMBLY
|
SHINDAIWA
62100-82012
|
|
|
| 36 |
CHOKE LEVER
|
SHINDAIWA
37076-82331
|
|
No Longer Available
|
| 37 |
WAVE WASHER
|
SHINDAIWA
37013-82310
|
|
|
| 38 |
CHOKE PLATE
|
SHINDAIWA
37076-82321
|
|
|
| 39 |
BACK PLATE
|
SHINDAIWA
62100-82310
|
|
|
| 40 |
BOLT (M5X60)
|
SHINDAIWA
01020-05605
|
|
|
| 41 |
FILTER
|
SHINDAIWA
62100-82120
|
|
|
| 42 |
CLEANER COVER ASSEMBLY
|
SHINDAIWA
62123-82030
|
|
|
| 43 |
CLEANER COVER
|
SHINDAIWA
62123-82130
|
|
|
| 44 |
COLLAR
|
SHINDAIWA
23627-21220
|
|
|
| 45 |
KNOB
|
SHINDAIWA
37033-82320
|
|
|
 |
| No |
Description
|
Part No
|
Internet Price
|
Order
|
| 1 |
RECOIL STARTER ASSEMBLY
|
SHINDAIWA
37019-75011
|
|
|
| 2 |
STARTER CASE
|
SHINDAIWA
37019-75111
|
|
|
| 3 |
REEL
|
SHINDAIWA
37013-75120
|
|
|
| 4 |
RECOIL SPRING
|
SHINDAIWA
37013-75130
|
|
|
| 5 |
ROPE
|
SHINDAIWA
37013-75140
|
|
|
| 6 |
STARTER KNOB
|
SHINDAIWA
20024-75190
|
|
|
| 7 |
SCREW
|
SHINDAIWA
37013-75310
|
|
|
| 8 |
COLALR
|
SHINDAIWA
37013-75320
|
|
|
| 9 |
SWING ARM
|
SHINDAIWA
37013-75330
|
|
|
| 10 |
STARTER PULLEY
|
SHINDAIWA
37013-75210
|
|
|
| 11 |
BOLT, SLPW (M4X16)
|
SHINDAIWA
11024-04160
|
|
|
| 12 |
NUT (M5)
|
SHINDAIWA
01500-05041
|
|
|
 |
| No |
Description
|
|
|
Order
|
| CALIFORNIA MODELS ONLY USE THESE
PART NUMBERS |
|
|
|
|
| 1 |
FUEL TANK ASSEMBLY
|
SHINDAIWA
62124-85010
|
|
|
| 2 |
FUEL TANK
|
SHINDAIWA
62117-85110
|
|
|
|
|
|
|
|
| 1 |
FUEL TANK ASSEMBLY
|
SHINDAIWA
62123-85010
|
|
Price: $33.99
|
| 2 |
FUEL TANK
|
SHINDAIWA
62100-85113
|
|
|
| 3 |
FUEL CAP ASSEMBLY
|
SHINDAIWA
70043-85201
|
|
|
| 4 |
GASKET
|
SHINDAIWA
20000-85221
|
|
|
| 5 |
FUEL TUBE
|
SHINDAIWA
62123-85310
|
|
|
| 6 |
FUEL FILTER
|
SHINDAIWA
20016-85400
|
|
|
| 7 |
GROMMET
|
SHINDAIWA
72933-85350
|
|
|
| 8 |
VALVE
|
SHINDAIWA
20035-85522
|
|
|
| 9 |
JOINT
|
SHINDAIWA
20087-85340
|
|
|
| 10 |
FUEL TUBE
|
SHINDAIWA
20140-83311
|
|
|
| 11 |
CLIP
|
SHINDAIWA
20020-85540
|
|
|
| 12 |
CLIP
|
SHINDAIWA
37013-85310
|
|
|
| 13 |
TANK CUSHION
|
SHINDAIWA
62901-85220
|
|
|
| 14 |
TANK GUARD
|
SHINDAIWA
62100-85310
|
|
|
| 15 |
BOLT, SLPW
|
SHINDAIWA
11024-05180
|
|
|
| 16 |
BOLT, SPW (M5X40)
|
SHINDAIWA
11022-05400
|
|
|
| 17 |
CLIP
|
SHINDAIWA
20020-85540
|
|
|
 |
| No |
Description
|
Part No
|
Internet Price
|
Order
|
| 1 |
OUTER PIPE ASSEMBLY
|
SHINDAIWA
22553-12101
|
|
No Longer Available
|
| 2 |
OUTER PIPE
|
SHINDAIWA
22553-12110
|
|
|
| 3 |
BUSHING
|
SHINDAIWA
22410-12120
|
|
|
| 4 |
GRIP
|
SHINDAIWA
22036-12612
|
|
|
| 5 |
FLEXIBLE SHAFT
|
SHINDAIWA
63054-62210
|
|
|
| 6 |
THROTTLE LEVER ASSEMBLY
|
SHINDAIWA
67000-62160
|
|
No Longer Available
|
| 7 |
RIGHT BODY
|
SHINDAIWA
22410-14312
|
|
|
| 8 |
LEVER
|
SHINDAIWA
22410-14321
|
|
|
| 9 |
SPRING
|
SHINDAIWA
22410-14331
|
|
|
| 10 |
LEFT BODY
|
SHINDAIWA
22410-14341
|
|
|
| 11 |
SWITCH
|
SHINDAIWA
67000-62310
|
|
|
| 12 |
KNOB
|
SHINDAIWA
22420-12930
|
|
|
| 13 |
PLATE
|
SHINDAIWA
22420-12940
|
|
|
| 14 |
SCREW PM-SPW
|
SHINDAIWA
11206-05300
|
|
|
| 15 |
NUT
|
SHINDAIWA
01501-05031
|
|
|
| 16 |
THROTTLE CABLE
|
SHINDAIWA
37015-98010
|
|
|
| 17 |
TUBE
|
SHINDAIWA
63901-62440
|
|
|
| 18 |
CAUTION LABEL
|
SHINDAIWA
19422-00028
|
|
|
| 19 |
INSTRUCTION LABEL
|
SHINDAIWA
19401-00269
|
|
|
 |
| No |
Description
|
Part No
|
Internet Price
|
Order
|
| 1 |
GEARCASE ASSEMBLY
|
SHINDAIWA
60114-98320
|
|
|
| 2 |
GEARCASE
|
SHINDAIWA
63076-63110
|
|
|
| 3 |
BALL BEARING
|
SHINDAIWA
12900-06260
|
|
Price: $6.99
|
| 4 |
GEAR SHAFT
|
SHINDAIWA
63076-63130
|
|
|
| 5 |
BALL BEARING
|
SHINDAIWA
12900-60002
|
|
Price: $9.99
|
| 6 |
SNAP RING
|
SHINDAIWA
02432-26120
|
|
|
| 7 |
OIL SEAL
|
SHINDAIWA
22035-13140
|
|
|
| 8 |
COLLAR
|
SHINDAIWA
22035-13230
|
|
|
| 9 |
BEVEL PINION
|
SHINDAIWA
63076-63150
|
|
|
| 10 |
BEVEL GEAR
|
SHINDAIWA
63076-63140
|
|
|
| 11 |
BALL BEARING
|
SHINDAIWA
12900-06090
|
|
Price: $4.09
|
| 12 |
BALL BEARING
|
SHINDAIWA
12900-06091
|
|
Price: $4.69
|
| 13 |
SNAP RING
|
SHINDAIWA
02430-09100
|
|
Price: $0.99
|
| 14 |
SNAP RING
|
SHINDAIWA
02432-24120
|
|
|
| 15 |
WASHER
|
SHINDAIWA
01610-06080
|
|
|
| 16 |
BOLT (M6X10)
|
SHINDAIWA
01014-06100
|
|
|
| 17 |
BOLT (M5X10)
|
SHINDAIWA
01020-05100
|
|
|
| 18 |
BOLT, SPW (M5X40)
|
SHINDAIWA
11022-05400
|
|
|
| 19 |
WASHER
|
SHINDAIWA
01613-05080
|
|
|
| 20 |
NUT
|
SHINDAIWA
01500-05041
|
|
|
| 21 |
LOWER CLAMP
|
SHINDAIWA
63076-63310
|
|
|
| 22 |
HOLDER
|
SHINDAIWA
63076-63160
|
|
|
| 23 |
CLIP
|
SHINDAIWA
63076-63320
|
|
Price: $1.99
|
 |
| No |
Description
|
Part No
|
Internet Price
|
Order
|

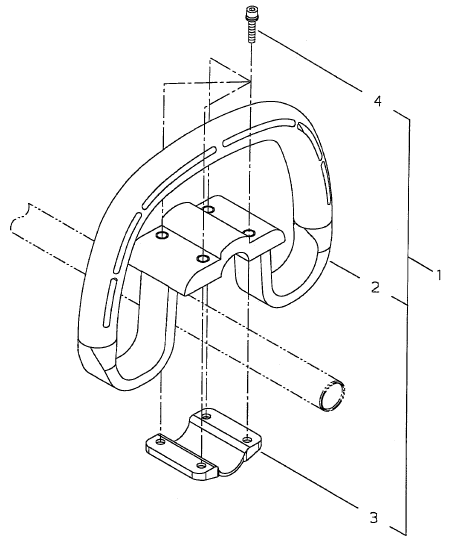

| 1 |
HANDLE ASSEMBLY
|
SHINDAIWA
62039-64011
|
|
|
| 2 |
HANDLE
|
SHINDAIWA
62901-64322
|
|
|
| 3 |
CLAMP
|
SHINDAIWA
62901-64120
|
|
|
| 4 |
BOLT SPW
|
SHINDAIWA
11022-05250
|
|
|
 |
| No |
Description
|
Part No
|
Internet Price
|
Order
|
| 1 |
DEBRIS SHIELD SET
|
SHINDAIWA
62901-66323
|
|
|
| 2 |
DEBRIS SHIELD ASSEMBLY
|
SHINDAIWA
62901-66313
|
|
|
| 3 |
CUTTER
|
SHINDAIWA
72480-16121
|
|
|
| 4 |
BOLT, SW (M5X16)
|
SHINDAIWA
11020-05160
|
|
|
| 5 |
NUT
|
SHINDAIWA
22420-16120
|
|
|
| 6 |
UPPER CLAMP
|
SHINDAIWA
72480-16210
|
|
|
| 7 |
SPACER
|
SHINDAIWA
72480-16220
|
|
|
| 8 |
BOLT, SPW (M5X45)
|
SHINDAIWA
11022-05450
|
|
|
 |
| No |
Description
|
Order
|
| 1 |
SHINDAIWA
22000-96101
ROD BUSHING ASSEMBLY
|
Price: $43.09
|
| 2 |
SHINDAIWA
30054-98460
ROD
|
No Longer Available
|
| 3 |
SHINDAIWA
30054-98470
ROD
|
Price: $15.29
|
| 4 |
SHINDAIWA
37083-98320
ROD
|
Price: $16.09
|
| 5 |
SHINDAIWA
22035-96500
PULLER SUB ASSEMBLY
|
No Longer Available
|
| 6 |
SHINDAIWA
22035-96510
PULLER
|
Price: $6.29
|
| 7 |
SHINDAIWA
22035-96520
BOLT
|
Price: $8.79
|
| 8 |
SHINDAIWA
22035-96600
PULLER SUB ASSEMBLY
|
Price: $6.29
|
| 9 |
SHINDAIWA
22035-96610
HOLDER
|
Price: $9.69
|
| 10 |
SHINDAIWA
22000-96621
BOLT
|
Price: $14.89
|
| 11 |
SHINDAIWA
22000-96630
NUT
|
Price: $1.99
|
 |
| No |
Description
|
Order
|
| 1 |
SHINDAIWA
60114-98350
SPRING ASSISTED RECOIL SET
|
Currently Unavailable
|
| 2 |
SHINDAIWA
37076-75010
RECOIL STARTER ASSEMBLY
|
|
| 3 |
SHINDAIWA
37076-75110
STARTER CASE
|
Price: $13.19
|
| 4 |
SHINDAIWA
37076-75120
REEL
|
|
| 5 |
SHINDAIWA
37076-75310
CAM
|
No Longer Available
|
| 6 |
SHINDAIWA
37076-75320
COIL SPRING
|
|
| 7 |
SHINDAIWA
70030-75130
RECOIL SPRING
|
|
| 8 |
SHINDAIWA
37013-75310
SCREW
|
|
| 9 |
SHINDAIWA
37076-75140
ROPE
|
|
| 10 |
SHINDAIWA
20010-75190
STARTER KNOB
|
|
| 11 |
SHINDAIWA
20010-75210
STOPPER
|
|
| 12 |
SHINDAIWA
37076-75020
STARTER PULLEY ASSEMBLY
|
Price: $6.09
|
| 13 |
SHINDAIWA
37076-85211
TANK BRACKET
|
|
| 14 |
SHINDAIWA
11024-04200
BOLT SW
|
|
 |
| No |
Description
|
Order
|
| 1 |
SHINDAIWA
64114-92310
TOOL SET
|
|
| 2 |
SHINDAIWA
19639-01400
TOOL BAG
|
|
| 3 |
SHINDAIWA
72320-91410
PLUG WRENCH
|
|
| 4 |
SHINDAIWA
62023-92010
SCRAPER
|
|
