Shindaiwa T230, C230, X230 Trimmer Illustrated Parts Diagrams

Search for OEM Shindaiwa Parts

Shindaiwa T230, C230, X230 Trimmer Parts available online at LawnMowerPros. We are an Authorized Shindaiwa Dealer carrying a large selection of Shindaiwa T230, C230, X230 Trimmer Repair Parts ready to ship direct to your door. The following are the most popular Shindaiwa C230, T230 and X230 Replacement Parts. Don't see the part you need or need help finding the correct part for your equipment? Complete our Parts Help Request Form and we will be happy to assist you.
Shindaiwa T230, C230 and X230 Trimmer - Brushcutter Parts


Cylinder/Muffler/Crankcase
Shindaiwa T230, C230 and X230 Trimmer Parts
No Description Part No Order
1 Cylinder 20016-12110
2 Bolt 01020-05250
3 Gasket 20016-12222
- Insulator Kit 99909-12212 Price: $8.99


4 Insulator 20016-12212
5 Bolt 11022-05300
6 Nut 20011-12260
7 Cylinder Gasket 20016-12120
8 Muffler Gasket 20016-15122
- Muffler Assembly 70135-15100
9 Spark Arrestor 70103-15150
10 Screw 01270-03062
11 Bolt 01020-05500
12 Washer 01610-05080
13 Bolt 01020-05120
- Piston Assembly 70234-98010
14 Piston Ring Set 20000-41210
15 Piston 20075-41110
16 Snap Ring 70030-41320
17 Piston Pin 20016-41310
18 Thrust Washer 20016-41340
19 Needle Bearing 20016-41330
20 Crankshaft Assembly 20016-42002
21 Key 02403-03100
- Clutch Shoe Assembly 70140-51102
22 Clutch Bolt 20087-51210
23 Spring Washer 20087-51231
24 Washer 22100-71430
25 Clutch Spring 70140-51220
- Crankcase Assembly M 20016-21200
26 Bearing 12900-60010
27 Oil Seal 20000-21211
28 Dowel Pin 12492-40080
29 Bolt 01020-05250
- Crankcase Assembly S 20016-21100
30 Oil Seal 22150-21250
Fan Cover
Shindaiwa T230, C230 and X230 Trimmer Parts
No Description Part No Order
1a Cap 70135-31470
1b Cap 70118-31470 Price: $5.69


2 Bolt 11022-05160
3 Front Cushion 20018-31420
4 Bolt 11023-05250
5 Joint 20015-31410 (Replaced by 20018-31410)
6 Shim 20018-31460 Price: $0.99


7 Rear Cushion 20018-31430
8 Bolt 11022-05160
9 Bolt 11022-05350
a Fan Cover Assembly 70140-31103
b Fan Cover Assembly 70118-31103
10a Fan Cover 70140-31113
10b Fan Cover 70118-31113
11 Clutch Drum 20087-31210
12 Bearing 02002-06000
13 Snap Ring 02432-26120
14 Cushion 70140-31130
15 Snap Ring 22000-13320
a Cylinder Cover Assembly 70140-32104
b Cylinder Cover Assembly 70108-32102
16 Knob 20018-31251
17a Label 70140-32121
17b Label 70118-32121 Price: $1.39


17c Label 70204-32120 Price: $1.49


17d Label 70117-32121 Price: $1.19


18a Cylinder Cover 70140-32111
18b Cylinder Cover 70118-32110
19 Insulator 20018-31260
20 Clip 20018-31270
Flywheel/Coil
Shindaiwa T230, C230 and X230 Trimmer Parts
No Description Part No Order
1 Flywheel 20016-71200
2 Nut 20035-71220
3 Insulator 70030-71620
4 Tube 20016-71660
5 Plug Cap 22102-72220
6 Spring, Plug 20000-72230
- Coil Assembly 20016-71600
7 Wire 20016-71640
8 Tube 20016-71651
9 Grommet 20010-72110 Price: $0.99


10 Bolt 01020-04260
11 Spring Washer 01600-04101
12 Washer 01613-04080
13 Plug Cap Cover 20000-72241
14 Protector 70180-72260
15 Plug Cap 20010-72221
16 Band 20000-72250
Recoil Starter
Shindaiwa T230, C230 and X230 Trimmer Parts

Note:

  • Index number ending with (a) for red unit, T230.

  • Index number ending with (b) for blue unit, T230XB.

No Description Part No Order
- Recoil Starter Assembly 72933-75900
1 Reel 72933-75120
2 Recoil Spring 70064-75130
3 Knob 32004-75150
4 Rope 70064-75190
5 Ratchet 72933-75140
6 Wave Washer 70064-75150
7 Retainer 72933-75170
8 Washer 72933-75180
9 Bolt 72933-75160
10 Nut 01511-08051
11 Starter Pulley 70064-75310
12 Bolt 11024-04120
13 Spring 20140-75150
14 Retainer 20140-75170 Price: $1.19


15 Washer 20140-75180
16 Screw 20140-75160 Price: $1.19


17 Reel 20064-75120
18 Recoil Spring 20140-75130
19 Starter Pulley 20140-75310 Price: $1.99


20A Label 70117-75311
20b Label 70118-75311 Price: $1.59


Fuel Tank
Shindaiwa T230, C230 and X230 Trimmer Parts
No Description Part No Order
- Fuel Tank Assembly 20016-85002
1 Breather 20035-85522
2 Clip 20020-85540
3 Return Tube 20089-83310
4 Valve Holder 20016-12310
5 Connector 20087-85340
6 Fuel Tube 70064-85311
7 Fuel Filter Assembly 20016-85400
8 Grommet 20089-85350
- Fuel Cap Assembly 70043-85201
9 Gasket 20000-85221
10 Tank Guard 70135-86130
11 Bolt 11022-05120
12 Cushion 20024-86120
Outer Tube
Shindaiwa T230, C230 and X230 Trimmer Parts
No Description Part No Order
1 Mainshaft 22070-12410
2A Model Label 72460-12511
2b Model Label 72404-12511
3 Caution Label 72460-12530
4 Hanger 22410-12210
5 Bolt 01020-05120
6 Nut 01500-05041
- Outer Tube Assembly 22070-12101
7 Bushing 22035-12120
8 Protector (C230) 22057-17110
- Strap Assembly (C,X230) 22410-17201
9 Pad 22044-17230
10 Hook 22000-17130
11 Grip (T230) 22422-12610
Gearcase
Shindaiwa T230, C230 and X230 Trimmer Parts
No Description Part No Order
- Gearcase Assembly (T230) 72480-13011
- Gearcase Assembly (C,X230) 22410-13011
1 Snap Ring 02432-22100
2 Snap Ring 22035-13340 Price: $0.69


3 Bearing 02002-00608
4 Bearing 02000-00608
5 Pinion Gear 22035-13391
6 Shim 22000-13420
7 Washer 01610-05080
8 Spring Washer 01600-05131
9 Bolt 01020-05120
10 Bolt 01020-05120
11 Bolt 01014-06100
12 Seal 22000-13410
13 Bearing 02006-00626
14 Bevel Gear 22035-13220
15 Gear Shaft 22410-13210
16 Bearing 02000-06000
17 Snap Ring 02432-26120
18A Collar (T230) 72432-13230
18b Collar (C230) 20035-132030
Currently Unavailable

19 Oil Seal 22035-13140
20 Holder (T230) 72432-13240
21 Holder (A) (C,X230) 22035-13242
22 Slide Pin (C,X230) 22410-13530
23 Holder (B) (C,X230) 22410-13251
24 Bolt Guard (C,X230) 22035-13290
25 Bolt (7mm, LH) (C,X230) 22035-13271
Throttle Lever
Shindaiwa T230, C230 and X230 Trimmer Parts

Note:

  • Index number ending with (a) for red unit, T230.

  • Index number ending with (b) for blue unit, T230XB.

No Description Part No Order
- Throttle Lever Assembly 22410-14302
1 Knob 22420-12930
2 Plate 22420-12940
3 Switch Assembly 22410-14351
4 Nut 01501-05031
5 Body, Right 22410-14312
6 Throttle Spring 22410-14331
7 Throttle Lever 22410-14321
8 Body, Left 22410-14341
9 Bolt 11203-05300
- Throttle Cable Assembly 22410-14500
10 Tube 22422-14540
11 Nut 01501-06041
12 Throttle Cable 22410-14511
A Front Handle Assembly 22410-14100
b Front Handle Assembly 22413-14100 Price: $22.99


13 Bolt 11024-05300 Price: $1.19


14A Front Handle 22410-14110
14b Front Handle 22413-14110 Price: $19.99


15 Lower Cap 22410-14120
16 Nut 01500-05041
Throttle Lever
Shindaiwa T230, C230 and X230 Trimmer Parts
No Description Part No Order
- Throttle Lever Assembly 22411-14302
1 Knob 22420-12930
2 Plate 22420-12940
3 Switch Assembly 22411-14351
4 Body, Left 22410-14341
5 Bolt 11203-05250 Price: $0.69


6 Throttle Lever 22410-14321
7 Throttle Spring 22410-14331
8 Body, Right 22410-14312
9 Nut 01501-05031
10 Cap 22411-14611
- Handle Assembly 72481-14200
11 Grip, Right 22421-14220
12 Grip, Left 22421-14230 Price: $8.99


- Bracket Assembly 22045-14101
13 Bolt 11022-05250
14 Upper Bracket 22045-14131 Price: $4.09


15 Lower Bracket 22045-14120 Price: $3.79


16 Shim 01610-05080
17 Lower Cap 22045-14120 Price: $3.79


18 Bolt 11022-05250
19 Collar 22036-14130 Price: $2.49


- Throttle Cable Assembly 22411-14500
20 Throttle Cable 22411-14511
21 Nut 01501-06041
22 Tube 22421-14542 Price: $2.39


Debris Shield
Shindaiwa T230, C230 and X230 Trimmer Parts
No Description Part No Order
- Debris Shield Assembly (Black) 72480-16003
- Debris Shield Assembly (Blue) 72404-16003
1 Bolt 11022-05450
2 Upper Clamp 72480-16210
3 Shim 72480-16220
4 Nut 22420-16120
5A Debris Shield (Black) 72480-16113
5b Debris Shield (Blue) 72404-16113
6 Bolt 11022-05350
7 Lower Clamp 72480-16130
8 Screw 11202-40100
9 Washer 01613-05080
10 Nut 01500-05041
11 Cutter 72480-16121
12 Bolt 11020-05160
Tools Set
Shindaiwa T230, C230 and X230 Trimmer Parts
No Description Part No Order
- Tool Set 22410-91000 Price: $2.89


1 Tool Bag 19639-01100
2 Wrench 22000-91120
3 Spark Plug Wrench 22000-91181
4 Wrench (4mm) 09026-04001
- Trimmer Head Assembly UN32-7L (Replaced by UN32)
No Longer Available

5 Housing 99909-15700 Price: $13.99


6 Eyelet 72005-92630 Price: $1.99


7 Shaft Bolt (7mm, LH) 99909-15720 Price: $5.99


8 Spring 99909-15520 Price: $1.99


9 Spool 99909-15580 Price: $9.99


10 Button 99909-15590 Price: $3.99


11 Cover 99909-15610 Price: $11.99


12 Shindaiwa Tornado Brushcutter Blade (6 Tooth) (C230) LP6-9
13 Blade (30T) (C230) 22000-92157
No Longer Available

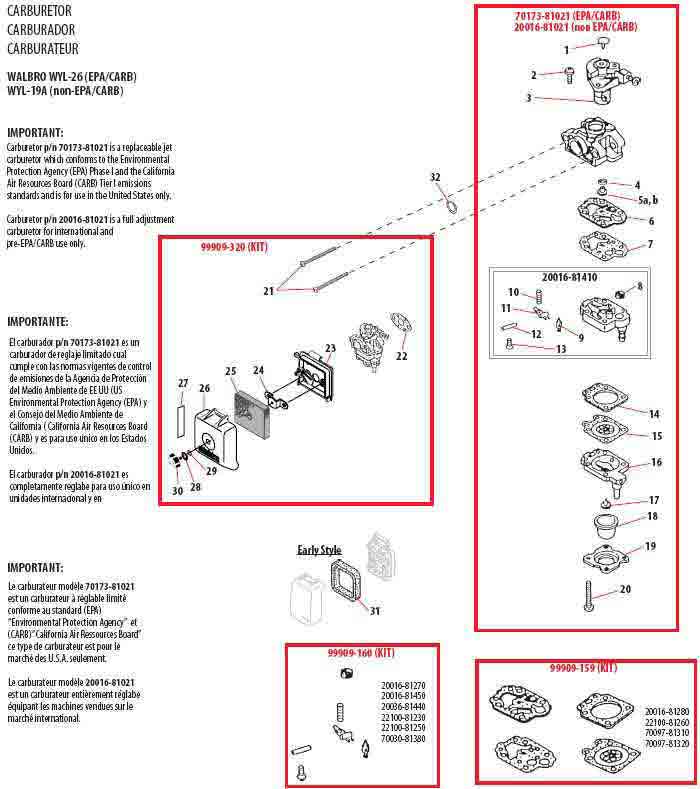

Carburetor
Shindaiwa T230, C230 and X230 Trimmer Parts
Shindaiwa T230, C230 and X230 Trimmer Parts
No Description Part No Order
- Carburetor Assembly (EPA) 70173-81021
- Carburetor Assembly (Non-EPA) 20016-81021
1 Plug (Non-EPA) 22154-81270
2 Screw 70064-81290
3 Throttle Valve Assembly 99909-34570

No Longer Available

4 O-Ring 70097-81220
5A Main Jet (#38) 70173-81230
5b Main Jet (#40) 70064-81230
6 PUMP GASKET 70097-81310
7 Diaphragm 70097-81320
- Pump Body Assembly 20016-81410
8 Screen 70030-81380
9 Needle Valve 20036-81440
10 Spring 20016-81270
11 Metering Lever 22100-81230
12 Pin 22100-81250
13 Screw 20016-81450
14 Gasket 20016-81280
15 Metering Diaphragm 22100-81260
16 Pump Base 20016-81420
17 Valve 99909-207 Price: $1.99


18 Primer, Pump 70029-81480
19 Pump Cover 20016-81510
20 Screw 20016-81140
- Air Filter Assembly 99909-320
21 Screw 70140-81810
22 Gasket 20016-81530
23 Cleaner Body Assembly 70140-81710
24 Bracket 20018-81721
25 Air Filter 20018-81750
26 Air Filter Cover 70140-81760
27 Label 19404-00008
28 Washer 20024-81790
29 O-Ring 22100-82430
30 Knob 20115-81780
31 Air Filter 70064-82210
32 O-Ring 20016-81250
- Kwik Kit 99909-160 Price: $5.99


- Gasket and Diaphragm Kit 99909-159 Price: $11.99


9 Products Found


SHINDAIWA 60413 COMPARISON GUIDE T230 VS COMPETITION




THIS PART ALSO REPLACES:

  • Echo 60413
  • and others

Price: $0.95



SHINDAIWA 61461 HT230 COMPARISON GUIDE




THIS PART ALSO REPLACES:

  • Echo 61461
  • and others

Price: $0.95



SHINDAIWA 70118-32121 T230XB TRADE LABEL




THIS PART ALSO REPLACES:

  • Echo 70118-32121
  • and others

Price: $1.39



SHINDAIWA 70118-75311 T230XB TRADE LABEL




THIS PART ALSO REPLACES:

  • Echo 70118-75311
  • and others

Price: $1.59



SHINDAIWA 70871-09651 HT230 REAR HANDLE ASSEMBLY




THIS PART ALSO REPLACES:

  • Echo 70871-09651
  • and others

Price: $72.69



Shindaiwa 80559 Barrier Bar Conversion Kit Complete. Replaces Ckt230


GENUINE SHINDAIWA 80559 BARRIER BAR CONVERSION KIT COMPLETE. FITS SHINDAIWA T230, T2500, M230 WITH 65001.

This kit includes all components required to convert small trimmers to operate with a brushcutter blade. (Kit does not include blade).

Kit includes:
Barrier Bar, Handle, and Mounting Hardware
Caution Label
Blade Mounting Hardware
Debris Shield Assembly and Mounting Hardware
Owners Manual

Disclaimer: Trimmers manufactured prior to October 2001 may require additional hardware.

THIS PART ALSO REPLACES:

  • Echo 80559
  • and others

Price: $87.99



Shindaiwa A226000740 Foam Air Filter C230 And T230


LawnMowerPros offers OEM and Aftermarket 2-cycle equipment parts like our Shindaiwa A226000740 Air Filter, to get you ready for the mowing season. Purchase the Shindaiwa A226000740 Air Filter you need to repair your equipment today. LawnMowerPros has the Shindaiwa air filters for your 2-cycle equipment.

This product is an Genuine OEM Part.

Make your outdoor power equipment repair fast with a air filters from LawnMowerPros.

Manufactured by Shindaiwa to exact tolerance for your equipment. Shindaiwa A226000740 Air Filter is made of foam. Available individually for your convenience. LawnMowerPros wants to put the parts you need in your hands today!

REPLACES:
  • SHINDAIWA 20018-81750
  • STENS 102-598
  • and others
FITS:
  • SHINDAIWA 80192 Multipurpose Tool Carrier
  • SHINDAIWA 80280 Multipurpose Tool Carrier
  • SHINDAIWA AH230 Articulated Hedge Trimmer
  • SHINDAIWA AH231 Articulated Hedge Trimmer
  • SHINDAIWA ATT-AH230
  • SHINDAIWA C230 Brushcutter
  • SHINDAIWA C-250 Brushcutter
  • SHINDAIWA LE230 Lawn Edger
  • SHINDAIWA LE231 Lawn Edger
  • SHINDAIWA LE250 Lawn Edger
  • SHINDAIWA M230 Multipurpose Tool
  • SHINDAIWA M231 Multipurpose Tool
  • SHINDAIWA P230 Pole Pruner
  • SHINDAIWA P231 Pole Pruner
  • SHINDAIWA PB230 Power Broom
  • SHINDAIWA S-230
  • SHINDAIWA T230 Trimmer
  • SHINDAIWA T230XR-EMC Gas Trimmer
  • SHINDAIWA T231 Trimmer
  • SHINDAIWA T231B Trimmer
  • SHINDAIWA T231X Trimmer
  • SHINDAIWA T231XB Trimmer
  • SHINDAIWA T-250 Trimmer
  • SHINDAIWA TCX230 Trimmer
  • SHINDAIWA X230 Trimmer
  • and others


THIS PART ALSO REPLACES:

  • Echo A226000740
  • and others

Price: $2.99



SHINDAIWA SBA-TX24-EU MULTI-PURPOSE TRIMMER TOOL, REPLACES SBA-T230/CE


REPLACES SHINDAIWA SBA-T230/CE

THIS PART ALSO REPLACES:

  • Echo SBA-TX24-EU
  • and others

Price: $69.95



Shindaiwa X504003190 Label, Ht230 Trade


THIS PART REPLACES:
  • SHINDAIWA 70871-91120
  • and others


THIS PART ALSO REPLACES:

  • Echo X504003190
  • and others

Price: $1.99



Showing 9 Products
