Shindaiwa T25 and C25 Trimmer Illustrated Parts Diagram |
||||||||||||
|
||||||||||||
|
||||||||||||
|
||||||||||||
| No | Description | Part No | Order | |||||||||
| A1 | Cylinder | 20005-12110 |
No Longer Available |
|||||||||
| Insulator Gasket | 20000-12220 |
Price: $0.99 |
||||||||||
| Bolt | 11022-05200 |
This part is no longer available and has been replaced by Shindaiwa V203000351
|
||||||||||
| A2 | Insulator | 20000-12212 |
No Longer Available |
|||||||||
| Bolt | 01010-05250 |
No Longer Available |
||||||||||
| A3 | Insulator, Muffler | 20000-15131 |
This part is no longer available and has been replaced by SHINDAIWA V104001650
|
|||||||||
| Screw | 01213-05120 |
This part is no longer available and has been replaced by SHINDAIWA 9156405012
|
||||||||||
| Bolt, SPW | 11020-05180 |
This part is no longer available and has been replaced by SHINDAIWA V203000710
|
||||||||||
 |
||||||||||||
| No | Description | Part No | Order | |||||||||

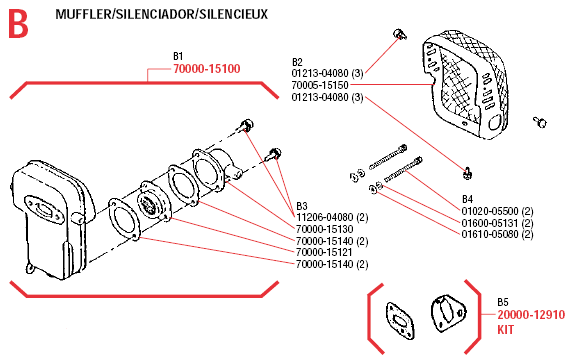

| B1 | Muffler Assembly | 70000-15100 |
Price: $41.99 |
|||||||||
| B2 | Screw | 01213-04080 |
This part is no longer available and has been replaced by Shindaiwa 9156404008
|
|||||||||
| Muffler Guard | 70005-15150 |
Price: $27.99 |
||||||||||
| Screw | 01213-04080 |
This part is no longer available and has been replaced by Shindaiwa 9156404008
|
||||||||||
| B3 | Screw, PM | 11206-04080 |
Price: $1.99 |
|||||||||
| Muffler Cap | 70000-15130 |
Price: $7.99 |
||||||||||
| Gasket | 70000-15141 |
This part is no longer available and has been replaced by SHINDAIWA V104001380
|
||||||||||
| Spark Arrestor | 70000-15121 |
No Longer Available |
||||||||||
| B4 | Bolt | 01020-05500 |
This part is no longer available and has been replaced by Echo 90010505050
|
|||||||||
| Spring Washer | 01600-05131 |
This part is no longer available and has been replaced by Echo 90060500005
|
||||||||||
| Washer | 01610-05080 |
This part is no longer available and has been replaced by Echo 90060000005
|
||||||||||
| B5 | Gasket Kit | 20000-12910 |
No Longer Available |
|||||||||
 |
||||||||||||
| No | Description | Part No | Order | |||||||||
| C1 | Crankcase M | 70005-21120 |
No Longer Available |
|||||||||
| Dowel Pin | 20000-21140 |
This part is no longer available and has been replaced by Echo 10021502830
|
||||||||||
| C2 | Oil Seal | 20000-21211 |
This part is no longer available and has been replaced by Shindaiwa V505000080
|
|||||||||
| Ball Bearing | 12900-62010 |
This part is no longer available and has been replaced by SHINDAIWA V592000330
|
||||||||||
| C3 | Crankcase Assembly | 70005-21002 |
Price: $72.19 |
|||||||||
| C4 | Crankcase M Assembly | 99909-167 |
Price: $43.29 |
|||||||||
| C5 | Crankcase S Assembly | 99909-168 |
Price: $40.49 |
|||||||||
| C6 | Crankcase S | 70005-21112 |
Price: $18.99 |
|||||||||
| Bolt | 01020-05250 |
This part is no longer available and has been replaced by Echo 90010505025
|
||||||||||
 |
||||||||||||
| No | Description | Part No | Order | |||||||||
| D1 | Bolt | 01020-05250 |
This part is no longer available and has been replaced by Echo 90010505025
|
|||||||||
| Spring Washer | 01600-05131 |
This part is no longer available and has been replaced by Echo 90060500005
|
||||||||||
| Washer | 01610-05080 |
This part is no longer available and has been replaced by Echo 90060000005
|
||||||||||
| Clamp B | 20000-31442 |
No Longer Available |
||||||||||
| Clamp A | 20000-31432 |
Price: $2.79 |
||||||||||
| Cap, Union | 70005-31420 |
No Longer Available |
||||||||||
| D2 | Screw | 20000-31330 |
Currently Unavailable |
|||||||||
| Protector | 20000-31300 |
No Longer Available |
||||||||||
| Protector, Plug | 20000-31342 |
No Longer Available |
||||||||||
| Anti-Vibration Unit | 20000-31412 |
Price: $40.99 |
||||||||||
| Ground Spring | 20000-31510 |
Price: $0.79 |
||||||||||
| D3 | Cover Assembly, Fan | 70005-31102 |
Price: $97.59 |
|||||||||
| D4 | Screw | 01213-05120 |
This part is no longer available and has been replaced by SHINDAIWA 9156405012
|
|||||||||
| Cylinder Cover | 70005-31210 |
No Longer Available |
||||||||||
| D5 | Bolt | 11022-05200 |
This part is no longer available and has been replaced by Shindaiwa V203000351
|
|||||||||
| Label, Name Plate | 70005-31151 |
No Longer Available |
||||||||||
| Snap Ring | 02432-28120 |
This part is no longer available and has been replaced by Shindaiwa 9242428000
|
||||||||||
| D6 | Snap Ring | 20000-31140 |
This part is no longer available and has been replaced by Echo 90070100012
|
|||||||||
| Ball Bearing | 02006-06001 |
This part is no longer available and has been replaced by ECHO 9404206001
|
||||||||||
| D7 | Cover, Fan | 70005-31112 |
Price: $39.79 |
|||||||||
| Clutch Drum Assembly | 20000-31122 |
No Longer Available |
||||||||||
| D8 | Screw | 01213-05200 |
This part is no longer available and has been replaced by SHINDAIWA 9156405020
|
|||||||||
 |
||||||||||||
| No | Description | Part No | Order | |||||||||
| E1 | -- | 20000-51104 |
This part is no longer available and has been replaced by Shindaiwa A056000260
|
|||||||||
| E2 | -- | 20000-41210 |
This part is no longer available and has been replaced by Shindaiwa A101000400
|
|||||||||
| Piston | 20000-41111 |
This part is no longer available and has been replaced by SHINDAIWA A100000620
|
||||||||||
| Snap Ring | 20000-41320 |
This part is no longer available and has been replaced by SHINDAIWA V580000090
|
||||||||||
| Thrust Washer | 20000-41341 |
This part is no longer available and has been replaced by SHINDAIWA V392000020
|
||||||||||
| Needle Bearing | 20000-41330 |
This part is no longer available and has been replaced by Shindaiwa V554000010
|
||||||||||
| Piston Pin | 20000-41310 |
This part is no longer available and has been replaced by SHINDAIWA V607000030
|
||||||||||
| E3 | Clutch Bolt | 20000-51212 |
This part is no longer available and has been replaced by SHINDAIWA A557000040
|
|||||||||
| Spring | 20000-51220 |
No Longer Available |
||||||||||
| Key | 02403-03100 |
This part is no longer available and has been replaced by SHINDAIWA 9311503010
|
||||||||||
| E4 | Clutch Shoe Set | 20000-51114 |
This part is no longer available and has been replaced by SHINDAIWA A555000110
|
|||||||||
| Washer | 22100-71430 |
This part is no longer available and has been replaced by SHINDAIWA V304000150
|
||||||||||
| E5 | Nut | 22100-43231 |
This part is no longer available and has been replaced by Shindaiwa V265000180
|
|||||||||
| Spring Washer | 01600-08201 |
This part is no longer available and has been replaced by Echo 90060500008
|
||||||||||
| Crankshaft Assembly | 20000-42002 |
Price: $95.99 |
||||||||||
| E6 | -- | 99909-121 |
No Longer Available |
|||||||||
 |
||||||||||||
| No | Description | Part No | Order | |||||||||
| F1 | Grommet | 20000-72111 |
Price: $1.99 |
|||||||||
| Screw, PM | 11207-04120 |
This part is no longer available and has been replaced by Shindaiwa V252000180
|
||||||||||
| Spring Washer | 01600-04101 |
This part is no longer available and has been replaced by Echo 90060500004
|
||||||||||
| Washer | 01610-04050 |
This part is no longer available and has been replaced by Echo 90060000004
|
||||||||||
| F2 | Cap Plug | 22102-72220 |
This part is no longer available and has been replaced by Shindaiwa A427000100
|
|||||||||
| Spark Plug Spring | 20000-72230 |
This part is no longer available and has been replaced by Shindaiwa A426000050
|
||||||||||
| Tube, Vinyl | 20000-71630 |
Price: $0.99 |
||||||||||
| Coil | 70000-71612 |
This part is no longer available and has been replaced by Shindaiwa A411001110
|
||||||||||
| Flywheel | 20000-71201 |
This part is no longer available and has been replaced by Shindaiwa A409000580
|
||||||||||
| F3 | Insulator | 20010-71830 |
This part is no longer available and has been replaced by Shindaiwa V322000040
|
|||||||||
| Unit | 72920-71711 |
This part is no longer available and has been replaced by Shindaiwa A416000000
|
||||||||||
| Bolt | 01020-04240 |
This part is no longer available and has been replaced by SHINDAIWA 9110004024
|
||||||||||
 |
||||||||||||
| No | Description | Part No | Order | |||||||||
| G1 | Starter Assembly | 70005-75100 |
This part is no longer available and has been replaced by Shindaiwa A051001790
|
|||||||||
| G2 | Friction Plate | 20000-75150 |
This part is no longer available and has been replaced by SHINDAIWA A518000050
|
|||||||||
| Screw | 20000-75170 |
This part is no longer available and has been replaced by SHINDAIWA V253000470
|
||||||||||
| Rope | 20000-75180 |
This part is no longer available and has been replaced by ECHO 17722661830
|
||||||||||
| Starter Knob | 20000-75190 |
This part is no longer available and has been replaced by Shindaiwa A511000180
|
||||||||||
| G3 | Spring Case | 20000-75145 |
Price: $3.99 |
|||||||||
| Recoil Spring | 20000-75140 |
This part is no longer available and has been replaced by Shindaiwa A504000120
|
||||||||||
| G4 | Nut | 20000-76210 |
This part is no longer available and has been replaced by Shindaiwa V265000170
|
|||||||||
| Starter Pulley | 70000-75230 |
This part is no longer available and has been replaced by Shindaiwa A520000171
|
||||||||||
| Cap Knob | 20000-75210 |
This part is no longer available and has been replaced by Shindaiwa A513000000
|
||||||||||
| Recoil Spring w/ Case | 20000-75149 |
This part is no longer available and has been replaced by SHINDAIWA A504000250
|
||||||||||
| G5 | Reel | 20000-75120 |
This part is no longer available and has been replaced by SHINDAIWA A506000250
|
|||||||||
| Return Spring | 20000-75220 |
This part is no longer available and has been replaced by SHINDAIWA V452000560
|
||||||||||
| Friction Spring | 20000-75160 |
This part is no longer available and has been replaced by SHINDAIWA V452000550
|
||||||||||
| Ratchet | 20000-75130 |
This part is no longer available and has been replaced by SHINDAIWA A514000130
|
||||||||||
| G6
|
Screw | 01213-05160 |
This part is no longer available and has been replaced by SHINDAIWA 9156405016
|
|||||||||
| Name Plate | 70005-75240 |
Price: $1.99 |
||||||||||
| Starter Case | 70005-75110 |
Price: $23.99 |
||||||||||
 |
||||||||||||
| No | Description | Part No | Order | |||||||||
| H1 | Breather Cap | 20000-85511 |
This part is no longer available and has been replaced by SHINDAIWA A362000000
|
|||||||||
| Fuel Valve | 22100-85260 |
This part is no longer available and has been replaced by Shindaiwa E263000040
|
||||||||||
| Washer | 22100-85250 |
This part is no longer available and has been replaced by SHINDAIWA V303000170
|
||||||||||
| Retainer, Fuel | 22100-85240 |
This part is no longer available and has been replaced by SHINDAIWA A359000010
|
||||||||||
| Valve Holder | 20000-85521 |
This part is no longer available and has been replaced by SHINDAIWA A358000030
|
||||||||||
| Breather Grommet | 20000-85579 |
This part is no longer available and has been replaced by Shindaiwa V138000020
|
||||||||||
| H2 | Breather Assembly | 20000-85500 |
This part is no longer available and has been replaced by Shindaiwa A039000020
|
|||||||||
| H3 | Fuel Tank | 20000-85113 |
No Longer Available |
|||||||||
| Fuel Gasket | 20000-85220 |
This part is no longer available and has been replaced by Shindaiwa V107000010
|
||||||||||
| Stand | 20000-86151 |
Price: $14.99 |
||||||||||
| Screw | 01213-05120 |
This part is no longer available and has been replaced by SHINDAIWA 9156405012
|
||||||||||
| Band | 20000-86160 |
This part is no longer available and has been replaced by Shindaiwa V495002450
|
||||||||||
| H4 | -- | 20000-85200 |
This part is no longer available and has been replaced by Shindaiwa A033000070
|
|||||||||
| H5 | Cushion A | 20000-86122 |
No Longer Available |
|||||||||
| Tank Retainer | 70000-86111 |
Price: $4.99 |
||||||||||
| H6 | Clamp A | 20000-85340 |
This part is no longer available and has been replaced by SHINDAIWA V451000850
|
|||||||||
| Pipe | 20000-85313 |
This part is no longer available and has been replaced by Shindaiwa V470001080
|
||||||||||
| H7 | Fuel Pipe Assembly | 20000-85303 |
This part is no longer available and has been replaced by Shindaiwa P021017770
|
|||||||||
| H8 | Clamp B | 20000-85350 |
This part is no longer available and has been replaced by Shindaiwa V490000610
|
|||||||||
| Connector Tube | 20000-85321 |
This part is no longer available and has been replaced by Shindaiwa V186000220
|
||||||||||
| Filter A | 22100-85420 |
This part is no longer available and has been replaced by Shindaiwa A368000020
|
||||||||||
| Fuel Weight | 22100-85411 |
This part is no longer available and has been replaced by Shindaiwa A369000030
|
||||||||||
| H9 | Pipe Suction | 20011-85450 |
This part is no longer available and has been replaced by Shindaiwa V470001110
|
|||||||||
| Check Valve | 20000-85440 |
This part is no longer available and has been replaced by Shindaiwa A356000080
|
||||||||||
| Filter Clip | 22102-85440 |
This part is no longer available and has been replaced by Shindaiwa V490000590
|
||||||||||
| Filter B | 22100-85431 |
This part is no longer available and has been replaced by Shindaiwa A368000030
|
||||||||||
| H10 | Fuel Filter Assembly | 20011-85400 |
This part is no longer available and has been replaced by Shindaiwa A037000000
|
|||||||||
| H11 | Fuel Tank Assembly | 20000-85002 |
No Longer Available |
|||||||||
 |
||||||||||||
| No | Description | Part No | Order | |||||||||
| J1 | Bolt SPW | 11022-05120 |
This part is no longer available and has been replaced by SHINDAIWA V203000700
|
|||||||||
| Swivel Hanger | 22009-12210 |
This part is no longer available and has been replaced by Shindaiwa C063000010
|
||||||||||
| Nut | 01500-05041 |
This part is no longer available and has been replaced by Echo 90050000005
|
||||||||||
| -- | 72005-12510 |
No Longer Available |
||||||||||
| J2 | Outer Pipe Assembly | 72005-12100 |
Price: $106.99 |
|||||||||
| J3 | Grip | 22026-12130 |
This part is no longer available and has been replaced by Shindaiwa C412000360
|
|||||||||
| Caution Label | 72005-12140 |
This part is no longer available and has been replaced by SHINDAIWA X505002860
|
||||||||||
| J4 | Hanger Assembly | 72005-12200 |
Price: $12.99 |
|||||||||
| J5 | Shaft Bushing | 22000-12120 |
This part is no longer available and has been replaced by Shindaiwa C501000040
|
|||||||||
| J6 | -- | 22000-12231 |
No Longer Available |
|||||||||
| Main Shaft | 22000-12413 |
This part is no longer available and has been replaced by Shindaiwa C504000620
|
||||||||||
| J7 | Nut | 01500-05041 |
This part is no longer available and has been replaced by Echo 90050000005
|
|||||||||
| Bracket Switch | 22000-12220 |
Price: $4.99 |
||||||||||
| Hanger | 22000-12210 |
Price: $5.99 |
||||||||||
| Screw | 01213-05120 |
This part is no longer available and has been replaced by SHINDAIWA 9156405012
|
||||||||||
 |
||||||||||||
| No | Description | Part No | Order | |||||||||
| K1 | Gearcase Assembly | 72005-13010 |
No Longer Available |
|||||||||
| K2 | Bolt | 11022-06280 |
This part is no longer available and has been replaced by SHINDAIWA V204000410
|
|||||||||
| Spring Washer | 01600-05131 |
This part is no longer available and has been replaced by Echo 90060500005
|
||||||||||
| Washer | 01610-05080 |
This part is no longer available and has been replaced by Echo 90060000005
|
||||||||||
| Bolt SW | 01020-05120 |
This part is no longer available and has been replaced by Echo 90010505012
|
||||||||||
| K3 | Bolt | 22015-13410 |
This part is no longer available and has been replaced by Shindaiwa V206000250
|
|||||||||
| Gasket | 22015-13420 |
This part is no longer available and has been replaced by SHINDAIWA V307000230
|
||||||||||
| K4 | Snap Ring | 02432-26120 |
This part is no longer available and has been replaced by Shindaiwa 9242426000
|
|||||||||
| Snap Ring | 22000-13320 |
This part is no longer available and has been replaced by Echo 90070600010
|
||||||||||
| Ball Bearing | 02002-06000 |
This part is no longer available and has been replaced by Shindaiwa 9404406000
|
||||||||||
| Ball Bearing | 02000-06000 |
This part is no longer available and has been replaced by Echo 90080006000
|
||||||||||
| K5 | Holder A | 22000-13241 |
This part is no longer available and has been replaced by Shindaiwa C535000841
|
|||||||||
| Slide Pin | 22000-13530 |
This part is no longer available and has been replaced by Shindaiwa V641000250
|
||||||||||
| Holder B | 22000-13252 |
This part is no longer available and has been replaced by Shindaiwa C535000851
|
||||||||||
| Bolt Guard | 22000-13290 |
This part is no longer available and has been replaced by Shindaiwa C535000860
|
||||||||||
| Bolt | 22000-13512 |
This part is no longer available and has been replaced by Shindaiwa V205000480
|
||||||||||
| K6 | Pinion Gear Kit | 22000-13390 |
This part is no longer available and has been replaced by SHINDAIWA V651000600
|
|||||||||
| K7 | Shim | 22011-13450 |
This part is no longer available and has been replaced by SHINDAIWA V340000280
|
|||||||||
| -- | 72005-13110 |
This part is no longer available and has been replaced by Shindaiwa C531000612
|
||||||||||
| Bearing | 02006-06000 |
This part is no longer available and has been replaced by Echo 90080206000
|
||||||||||
| Bevel Gear | 22000-13220 |
This part is no longer available and has been replaced by SHINDAIWA V651000590
|
||||||||||
| K8 | Gear Shaft | 22000-13212 |
This part is no longer available and has been replaced by Shindaiwa P021039330
|
|||||||||
| Ball Bearing | 02000-06201 |
This part is no longer available and has been replaced by Echo 9403536201
|
||||||||||
| Collar Gear Shaft | 22000-13230 |
This part is no longer available and has been replaced by Shindaiwa V356000500
|
||||||||||
| Oil Seal | 22000-13120 |
This part is no longer available and has been replaced by Shindaiwa V510000010
|
||||||||||
| Snap Ring | 02432-32120 |
This part is no longer available and has been replaced by Shindaiwa 9242432000
|
||||||||||
 |
||||||||||||
| No | Description | Part No | Order | |||||||||
| L1 | Strap Assembly | 72007-17202 |
This part is no longer available and has been replaced by Shindaiwa C062000330
|
|||||||||
| L2 | -- | 72005-16000 |
This part is no longer available and has been replaced by Shindaiwa P021032702
|
|||||||||
| L3 | Pro Harness Assembly | 72451-17202 |
This part is no longer available and has been replaced by Shindaiwa C062000430
|
|||||||||
| L4 | Bolt SPW | 11022-05160 |
This part is no longer available and has been replaced by Shindaiwa V203000590
|
|||||||||
| Clamp Guard | 22000-16129 |
This part is no longer available and has been replaced by SHINDAIWA C551000100
|
||||||||||
| Protector | 22007-17220 |
This part is no longer available and has been replaced by SHINDAIWA C652000040
|
||||||||||
| -- | 22011-17261 |
Price: $10.99 |
||||||||||
| Hook | 22000-17130 |
This part is no longer available and has been replaced by SHINDAIWA C649000170
|
||||||||||
| L5 | Pad, Right | 72451-17241 |
This part is no longer available and has been replaced by SHINDAIWA 64007-67330
|
|||||||||
| Spacer | 72005-16130 |
Price: $1.29 |
||||||||||
| Nut | 01500-05041 |
This part is no longer available and has been replaced by Echo 90050000005
|
||||||||||
| Pad, Left | 72451-17251 |
This part is no longer available and has been replaced by SHINDAIWA 64007-67340
|
||||||||||
| Protector | 22007-17220 |
This part is no longer available and has been replaced by SHINDAIWA C652000040
|
||||||||||
| Buckle | 72451-17230 |
This part is no longer available and has been replaced by SHINDAIWA C645000000
|
||||||||||
| -- | 72451-17270 |
No Longer Available |
||||||||||
| -- | 72451-17261 |
This part is no longer available and has been replaced by Shindaiwa 72451-17370
|
||||||||||
 |
||||||||||||
| No | Description | Part No | Order | |||||||||
| M1 | Handle Assembly | 72441-14200 |
No Longer Available |
|||||||||
| M2 | Handle Grip | 22000-14520 |
Price: $7.99 |
|||||||||
| Throttle Lever Assembly | 72910-14320 |
No Longer Available |
||||||||||
| Collar, Throttle Lever | 22000-14250 |
This part is no longer available and has been replaced by SHINDAIWA 22000-14251
|
||||||||||
| Throttle Lever | 22011-14440 |
This part is no longer available and has been replaced by Shindaiwa C044000620
|
||||||||||
| M3 | Grip, Band | 22000-14241 |
This part is no longer available and has been replaced by Shindaiwa V495001420
|
|||||||||
| Handle Grip | 22000-14220 |
This part is no longer available and has been replaced by SHINDAIWA C403000370
|
||||||||||
| Grip, Core | 22000-14230 |
This part is no longer available and has been replaced by SHINDAIWA V352000130
|
||||||||||
| M4 | Grip, Band | 22000-14241 |
This part is no longer available and has been replaced by Shindaiwa V495001420
|
|||||||||
| Spacer, Handle | 22042-14260 |
Price: $2.99 |
||||||||||
| M5 | Handle Grip | 22000-14520 |
Price: $7.99 |
|||||||||
| M6 | Handle Assembly | 72006-14201 |
No Longer Available |
|||||||||
| -- | 72006-14000 |
Currently Unavailable |
||||||||||
| M7 | Bolt SPW | 11022-05250 |
This part is no longer available and has been replaced by Shindaiwa V203000630
|
|||||||||
| Upper Cap | 72051-14131 |
Price: $7.99 |
||||||||||
| M8 | Switch Assembly | 72435-12820 |
This part is no longer available and has been replaced by SHINDAIWA A045000290
|
|||||||||
| Wire, Black, Throttle Lever | 72435-12910 |
This part is no longer available and has been replaced by SHINDAIWA V485001600
|
||||||||||
| M9 | Screw | 11203-05200 |
Price: $0.69 |
|||||||||
| M10 | Bracket Assembly | 72091-14100 |
This part is no longer available and has been replaced by SHINDAIWA P021024920
|
|||||||||
| M11 | Spring, Throttle Lever Return | 72435-12750 |
This part is no longer available and has been replaced by SHINDAIWA V452000480
|
|||||||||
| Lever, Throttle Lever | 72435-12730 |
This part is no longer available and has been replaced by Shindaiwa P022007770
|
||||||||||
| Wire, Red, Throttle Lever | 72435-12920 |
This part is no longer available and has been replaced by SHINDAIWA V485001610
|
||||||||||
| M12 | Handle Bracket | 72051-14110 |
This part is no longer available and has been replaced by SHINDAIWA P021033260
|
|||||||||
| Washer | 01610-05080 |
This part is no longer available and has been replaced by Echo 90060000005
|
||||||||||
| Lower Cap | 72051-14120 |
This part is no longer available and has been replaced by SHINDAIWA P021033260
|
||||||||||
| Washer | 01610-05080 |
This part is no longer available and has been replaced by Echo 90060000005
|
||||||||||
| Bolt SPW | 11022-05250 |
This part is no longer available and has been replaced by Shindaiwa V203000630
|
||||||||||
| M13 | Snap Ring, Throttle Lever | 72435-12780 |
This part is no longer available and has been replaced by Shindaiwa V583000150
|
|||||||||
| Body Assembly, Throttle Lever | 72435-12720 |
This part is no longer available and has been replaced by Shindaiwa C044001340
|
||||||||||
| Shaft, Throttle Lever | 72435-12740 |
This part is no longer available and has been replaced by Shindaiwa C451000040
|
||||||||||
| Spring, Throttle Lever | 72435-12760 |
This part is no longer available and has been replaced by Shindaiwa V450000900
|
||||||||||
| M14 | Nut, Throttle Lever | 72435-12950 |
This part is no longer available and has been replaced by ECHO P022022010
|
|||||||||
| Button, Throttle Lever | 72435-12770 |
This part is no longer available and has been replaced by ECHO C461000040
|
||||||||||
| M15 | Throttle Lever Assembly | 72435-12700 |
This part is no longer available and has been replaced by Shindaiwa C044000790
|
|||||||||
 |
||||||||||||
| No | Description | Part No | Order | |||||||||
| N1 | 8" 30 Tooth Brush Blade | 22000-92157 |
No Longer Available |
|||||||||
| Shindaiwa Tornado Brushcutter Blade (6 tooth) | LP6-9 |
No Longer Available |
||||||||||
| Shindaiwa Tornado Brushcutter Blade (12 Tooth) | LP12-9 |
No Longer Available |
||||||||||
| -- | 22070-92710 |
Currently Unavailable |
||||||||||
| N2 | Service Tool Kit | 72005-91000 |
No Longer Available |
|||||||||
| N3 | Tool Bag | 19610-02600 |
This part is no longer available and has been replaced by Shindaiwa 19639-01700
|
|||||||||
| Hook Spanner | 22013-97130 |
Price: $3.99 |
||||||||||
| Plug Wrench | 22000-91181 |
This part is no longer available and has been replaced by Oregon 57-017
|
||||||||||
| Wrench, Hex | 09026-03001 |
This part is no longer available and has been replaced by SHINDAIWA X605000090
|
||||||||||
| Wrench, Hex | 09026-04001 |
This part is no longer available and has been replaced by ECHO X605000100
|
||||||||||
| Wrench, Hex | 09026-05001 |
This part is no longer available and has been replaced by ECHO X605000070
|
||||||||||
 |
||||||||||||
| No | Description | Part No | Order | |||||||||
| P1 | Bolt, Shaft, 8mm, LH | 72005-92710 |
Price: $17.99 |
|||||||||
| Eyelet | 72005-92630 |
Price: $2.99 |
||||||||||
| Housing, Square LH | 99909-15570 |
Price: $22.99 |
||||||||||
| P2 | Bolt, Shaft, 8mm, LH | 72005-92710 |
Price: $17.99 |
|||||||||
| Housing | 99909-15510 |
Price: $18.99 |
||||||||||
| Spring | 99909-15520 |
Price: $2.99 |
||||||||||
| Bolt, Shaft, 8mm, LH | 72005-92710 |
Price: $17.99 |
||||||||||
| Housing | 72005-92740 |
No Longer Available |
||||||||||
| P3 | Nut | 72418-15130 |
Price: $6.99 |
|||||||||
| Spring | 99909-15520 |
Price: $2.99 |
||||||||||
| Spool, LH | 99909-15580 |
Price: $14.99 |
||||||||||
| Knob Button | 99909-15590 |
Price: $6.99 |
||||||||||
| Cover, LH | 99909-15610 |
Price: $17.99 |
||||||||||
| P4 | Washer | 99909-15530 |
Price: $1.99 |
|||||||||
| Outer Drive | 99909-15540 |
Price: $16.99 |
||||||||||
| Cam, Inner, LH | 99909-15550 |
Price: $15.99 |
||||||||||
| Spool | 99909-15560 |
Price: $18.99 |
||||||||||
| P5 | -- | 72005-92730 |
This part is no longer available and has been replaced by Shindaiwa 72005-92630
|
|||||||||
| Spool | 72005-92720 |
Price: $20.99 |
||||||||||
| Spring | 72005-92660 |
Price: $2.99 |
||||||||||
| Knob, L | 72005-92770 |
Price: $20.99 |
||||||||||
| P6 | Trimmer Head | UN32-8L (Replaced by UN32) |
No Longer Available |
|||||||||
| P7 | -- | 72005-92001 |
Currently Unavailable |
|||||||||
| P8 | -- | 72005-92610 |
Currently Unavailable |
|||||||||
| Spool Housing | 72005-92620 |
No Longer Available |
||||||||||
| -- | 22000-96100 |
Currently Unavailable |
||||||||||
| P9 | Puller Assembly | 22000-96501 |
Price: $8.79 |
|||||||||
| P10 | Eyelet | 72005-92630 |
Price: $2.99 |
|||||||||
| 6000 DDU | 22000-96210 |
Price: $8.99 |
||||||||||
| Rod 6000 22 | 22000-96310 |
Price: $6.79 |
||||||||||
| Rod 6201 | 22000-96410 |
Price: $12.29 |
||||||||||
| Spool, Inner | 72005-92640 |
Price: $14.99 |
||||||||||
| Spring | 72005-92660 |
Price: $2.99 |
||||||||||
| -- | 72005-92670 |
Currently Unavailable |
||||||||||
| P11 | Bolt | 22000-96521 |
Price: $8.49 |
|||||||||
| Holder | 22000-96510 |
Price: $39.99 |
||||||||||
| P12 | Puller Assembly | 22000-96600 |
Price: $7.09 |
|||||||||
| P13 | Bolt | 22000-96621 |
Price: $14.89 |
|||||||||
| Holder | 22000-96610 |
Price: $26.69 |
||||||||||
| Nut | 22000-96630 |
Price: $1.99 |
||||||||||
| P14 | -- | 22000-96002 |
Currently Unavailable |
|||||||||
| P15 | Service Tool Kit | 20021-96001 |
Price: $91.99 |
|||||||||
| P16 | Pin Adapter | 20021-96650 |
Price: $7.99 |
|||||||||
| Pin Adapter | 20021-96660 |
Price: $7.99 |
||||||||||
| Pin Adapter | 20021-96670 |
No Longer Available |
||||||||||
| P17 | Boss | 20000-96640 |
No Longer Available |
|||||||||
| Puller | 20021-96611 |
Price: $3.99 |
||||||||||
| Bolt | 20021-96621 |
No Longer Available |
||||||||||
| P18 | Air Gap Gauge | 20000-96210 |
This part is no longer available and has been replaced by Shindaiwa X623000030
|
|||||||||
| P19 | Bolt, Center | 22100-96121 |
Price: $10.99 |
|||||||||
| Bolt | 20000-96130 |
No Longer Available |
||||||||||
| Lever | 20000-96114 |
No Longer Available |
||||||||||
| P20 | Bolt | 20000-96140 |
No Longer Available |
|||||||||
| P21 | Puller Assembly | 20021-96601 |
This part is no longer available and has been replaced by Shindaiwa Y089000250
|
|||||||||
| P22 | Puller Assembly | 20000-96104 |
No Longer Available |
|||||||||
| P23 | Stopper | 20021-96420 |
This part is no longer available and has been replaced by Shindaiwa X644000070
|
|||||||||
| Spanner, Rotor | 20000-96411 |
Price: $6.99 |
||||||||||
| P24 | Screw | 01211-06120 |
Price: $1.99 |
|||||||||
| P25 | Guide Pin | 20035-96630 |
Price: $11.99 |
|||||||||
| Guide Pin | 20000-96631 |
This part is no longer available and has been replaced by Shindaiwa X648000090
|
||||||||||
| Guide Pin | 20021-96630 |
No Longer Available |
||||||||||
 |
||||||||||||

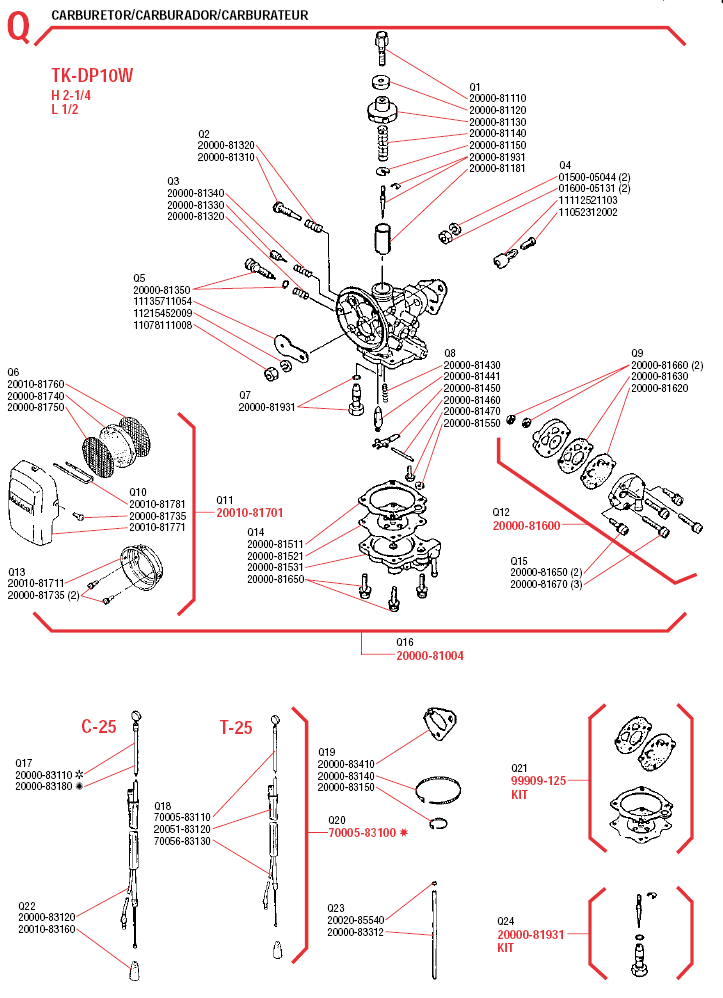

| No | Description | Part No | Order | |||||||||
| Q1 | Cable Adjuster | 20000-81110 |
Price: $4.99 |
|||||||||
| Lock Nut | 20000-81120 |
No Longer Available |
||||||||||
| Throttle, Cap | 20000-81130 |
This part is no longer available and has been replaced by Shindaiwa P004003400
|
||||||||||
| Spring, Throttle | 20000-81140 |
This part is no longer available and has been replaced by Echo 12411405530
|
||||||||||
| Spring, Receiver | 20000-81150 |
This part is no longer available and has been replaced by Echo 12411505530
|
||||||||||
| Carburetor Kit | 20000-81931 |
No Longer Available |
||||||||||
| Throttle Valve | 20000-81181 |
Price: $18.99 |
||||||||||
| Q2 | Spring | 20000-81320 |
This part is no longer available and has been replaced by Shindaiwa 12433305630
|
|||||||||
| Screw, Slow Stop | 20000-81310 |
This part is no longer available and has been replaced by Shindaiwa 12415905530
|
||||||||||
| Q3 | Spring | 20000-81340 |
This part is no longer available and has been replaced by Shindaiwa P004000890
|
|||||||||
| Screw, Slow Air | 20000-81330 |
This part is no longer available and has been replaced by Shindaiwa P004000880
|
||||||||||
| Spring | 20000-81320 |
This part is no longer available and has been replaced by Shindaiwa 12433305630
|
||||||||||
| Q4 | -- | 01500-05044 |
Currently Unavailable |
|||||||||
| Spring Washer | 01600-05131 |
This part is no longer available and has been replaced by Echo 90060500005
|
||||||||||
| Choke Lever | 11112521103 (Replaced by 20000-81230) |
This part is no longer available and has been replaced by SHINDAIWA P004000850
|
||||||||||
| Choke Shaft | 11052312002 (Replaced by 20000-81220) |
This part is no longer available and has been replaced by SHINDAIWA P004000840
|
||||||||||
| Q5 | Screw, Main Adjust | 20000-81350 |
No Longer Available |
|||||||||
| Choke Plate | 11135711054 (Replaced by 20000-81240) |
Price: $2.09 |
||||||||||
| Spring Washer | 11215452009 (Replaced by 20000-81250) |
This part is no longer available and has been replaced by SHINDAIWA P004000870
|
||||||||||
| Nut | 11078111008 (Replaced by 20000-821260) |
Currently Unavailable |
||||||||||
| Q6 | Net B | 20010-81760 |
This part is no longer available and has been replaced by Shindaiwa A230000040
|
|||||||||
| Filter | 20000-81740 |
This part is no longer available and has been replaced by Shindaiwa A226000670
|
||||||||||
| Net A | 20000-81750 |
This part is no longer available and has been replaced by Shindaiwa A230000030
|
||||||||||
| Q7 | Carburetor Kit | 20000-81931 (Replaced by 49-829) |
Price: $12.99 |
|||||||||
| Q8 | Spring Lever | 20000-81430 |
No Longer Available |
|||||||||
| Needle Valve | 20000-81441 |
This part is no longer available and has been replaced by Shindaiwa P004000930
|
||||||||||
| Lever | 20000-81450 |
No Longer Available |
||||||||||
| Pin | 20000-81460 |
This part is no longer available and has been replaced by SHINDAIWA P004000950
|
||||||||||
| Screw | 20000-81470 |
This part is no longer available and has been replaced by SHINDAIWA P004000960
|
||||||||||
| Seat | 20000-81550 |
No Longer Available |
||||||||||
| Q9 | Gasket | 20000-81660 |
No Longer Available |
|||||||||
| Gasket | 20000-81630 |
No Longer Available |
||||||||||
| Diaphragm | 20000-81620 |
No Longer Available |
||||||||||
| Q10 | Filter Clip Retaining | 20010-81781 |
This part is no longer available and has been replaced by Shindaiwa A238000060
|
|||||||||
| Screw | 20000-81735 |
This part is no longer available and has been replaced by Shindaiwa V252000230
|
||||||||||
| Cover, Air Cleaner | 20010-81771 |
This part is no longer available and has been replaced by Shindaiwa A232000870
|
||||||||||
| Q11 | Air Cleaner Assembly | 20010-81701 |
This part is no longer available and has been replaced by SHINDAIWA A027000090
|
|||||||||
| Q12 | Fuel Pump Assembly | 20000-81600 |
No Longer Available |
|||||||||
| Q13 | Air Cleaner Body | 20010-81711 |
This part is no longer available and has been replaced by SHINDAIWA A225000500
|
|||||||||
| Screw | 20000-81735 |
This part is no longer available and has been replaced by Shindaiwa V252000230
|
||||||||||
| Q14 | Gasket | 20000-81511 |
No Longer Available |
|||||||||
| Diaphragm | 20000-81521 |
No Longer Available |
||||||||||
| Cover | 20000-81531 |
No Longer Available |
||||||||||
| Screw | 20000-81650 |
This part is no longer available and has been replaced by SHINDAIWA P004001030
|
||||||||||
| Q15 | Screw | 20000-81650 |
This part is no longer available and has been replaced by SHINDAIWA P004001030
|
|||||||||
| Screw | 20000-81670 |
Price: $0.29 |
||||||||||
| Q16 | Carburetor Assembly | 20000-81004 |
No Longer Available |
|||||||||
| Q17 | Throttle Cable | 20000-83110 |
No Longer Available |
|||||||||
| Throttle Cable | 20000-83180 |
No Longer Available |
||||||||||
| Q18 | Throttle Cable | 70005-83110 |
No Longer Available |
|||||||||
| Pipe | 20051-83120 |
This part is no longer available and has been replaced by SHINDAIWA V475004890
|
||||||||||
| -- | 70059-83130 |
Currently Unavailable |
||||||||||
| Q19 | Gasket | 20000-83410 |
Price: $0.99 |
|||||||||
| Clamp | 20000-83140 |
Price: $0.69 |
||||||||||
| Clamp | 20000-83150 |
This part is no longer available and has been replaced by Shindaiwa V495001450
|
||||||||||
| Q20 | Throttle Cable Assembly | 70005-83100 |
No Longer Available |
|||||||||
| Q21 | Gasket and Diaphragm Kit | 99909-125 |
This part is no longer available and has been replaced by Oregon 49-827
|
|||||||||
| Q22 | Ground Cord | 20000-83120 |
Price: $1.29 |
|||||||||
| Cable Cap | 20010-83160 |
Price: $0.59 |
||||||||||
| Q23 | Clip | 20020-85540 |
This part is no longer available and has been replaced by Shindaiwa V490000500
|
|||||||||
| Pipe | 20000-83312 |
This part is no longer available and has been replaced by SHINDAIWA V471002630
|
||||||||||
| Q24 | Carburetor Kit | 20000-81931 (Replaced by 49-829) |
No Longer Available |
|||||||||
